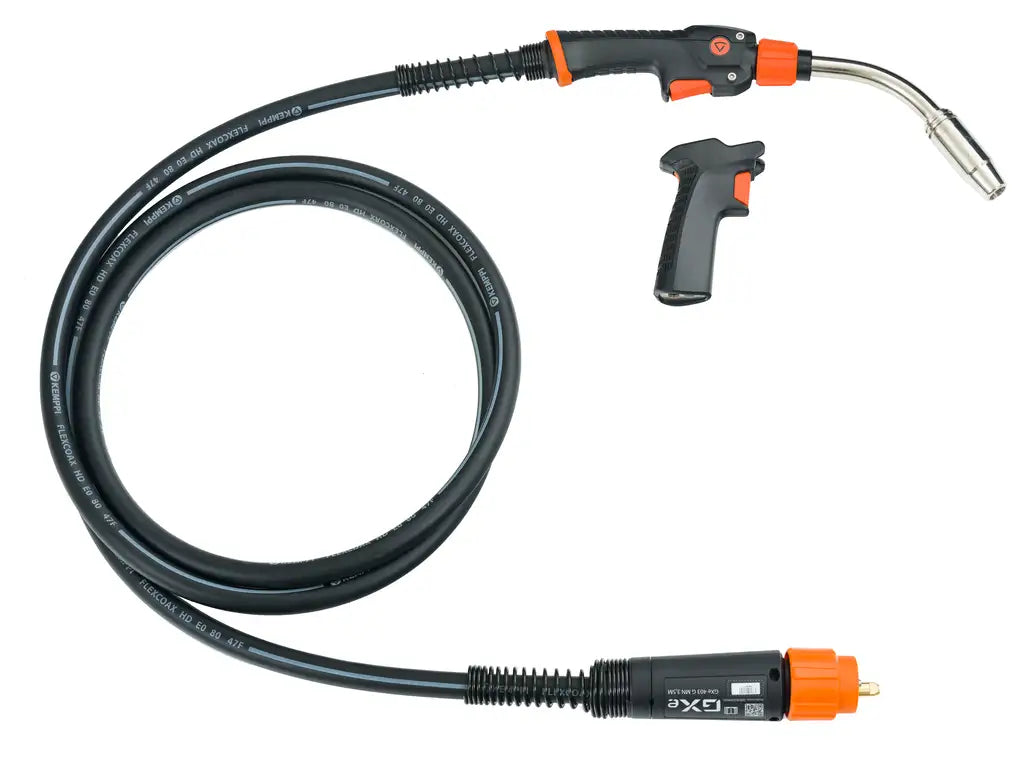

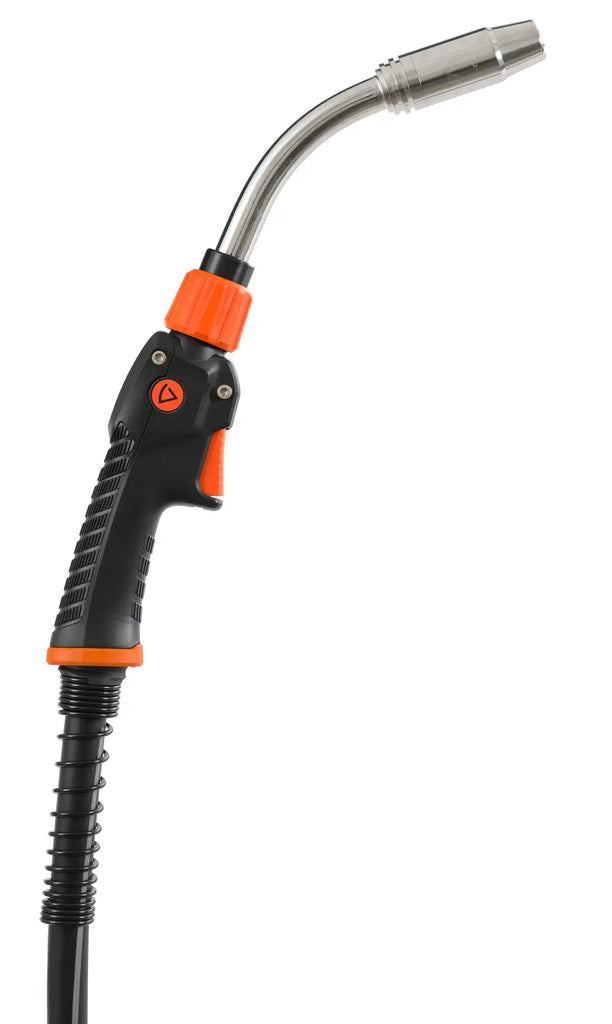

Kemppi Flexlite GXe K3 403GMN Air Cooled 400A MIG Torch, w/ Multi-Neck System & Euro Connection
400 A MIG/MAG welding torch with Euro and Amphenol connectors, Kemppi Flexcoax cable and Multi-Neck system. Cable length options are 3.5 and 5 meters.
The Flexlite GXe MIG/MAG torch series is built to meet the demands of professional welders who need reliability, precision, and durability in every weld. Designed for demanding welding tasks, the Flexlite GXe enables excellent control, precision, and comfort – day after day, weld after weld.
- Long, cost-efficient lifetime
- IP5X Protected against dust and humidity
- Improved handle grip features and shape for better ergonomics
- Lightweight on-torch remote control options
- Coaxial cable Kemppi Flexcoax with coaxial bending support delivers high flexibility
- Compatible with all GX-series consumables
Technical data
| Welding connection type | Euro |
| Filler wire diameter | 0.8 ... 1.6 mm |
| Filler wire diameter, Fe | 0.8 ... 1.6 mm |
| Filler wire diameter, Fe-MC/FC | 0.9 ... 1.6 mm |
| Filler wire diameter, Ss | 0.8 ... 1.6 mm |
| Filler wire diameter, Ss-MC/FC | 0.9 ... 1.6 mm |
| Filler wire diameter, Al | 0.8 ... 1.6 mm |
| Type of cooling | Air |
| Contact tip | M10x1 |
| Method of guidance | Manual |
| Load capacity 35% / Ar + 18% CO₂ | 400 A |
| Load capacity 60% / Ar + 18% CO₂ | 360 A |
| Load capacity test, filler wire material | Fe |
| Load capacity test, filler wire diameter | 1.6 mm |
| Load capacity test, stick out length | 22 mm |
| Load capacity test, gas flow | 20 l/min |
| Gun handle | Yes |
| Neck type | Changeable |
| Neck dimensions: length | 152 mm |
| Neck dimensions: height | 105 mm |
| Neck dimensions: angle | 50 ° |
| Welding torch cable length | 3.5 m |
| Remote control | Optional |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Standards | IEC 60974-7 |
