  • Sale
  • £2,820.00
  • £3,376.34

Excludes VAT

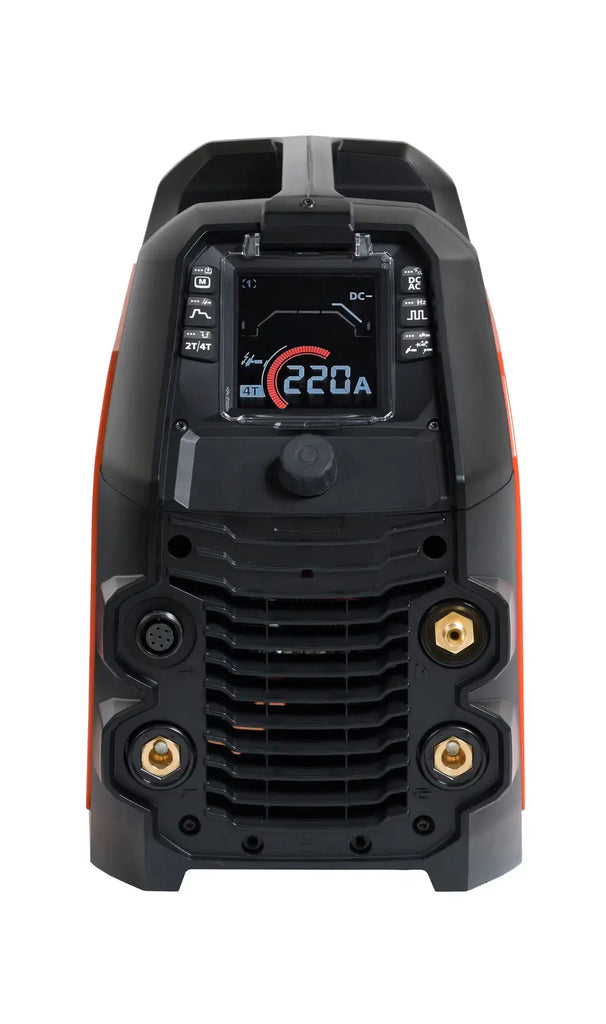

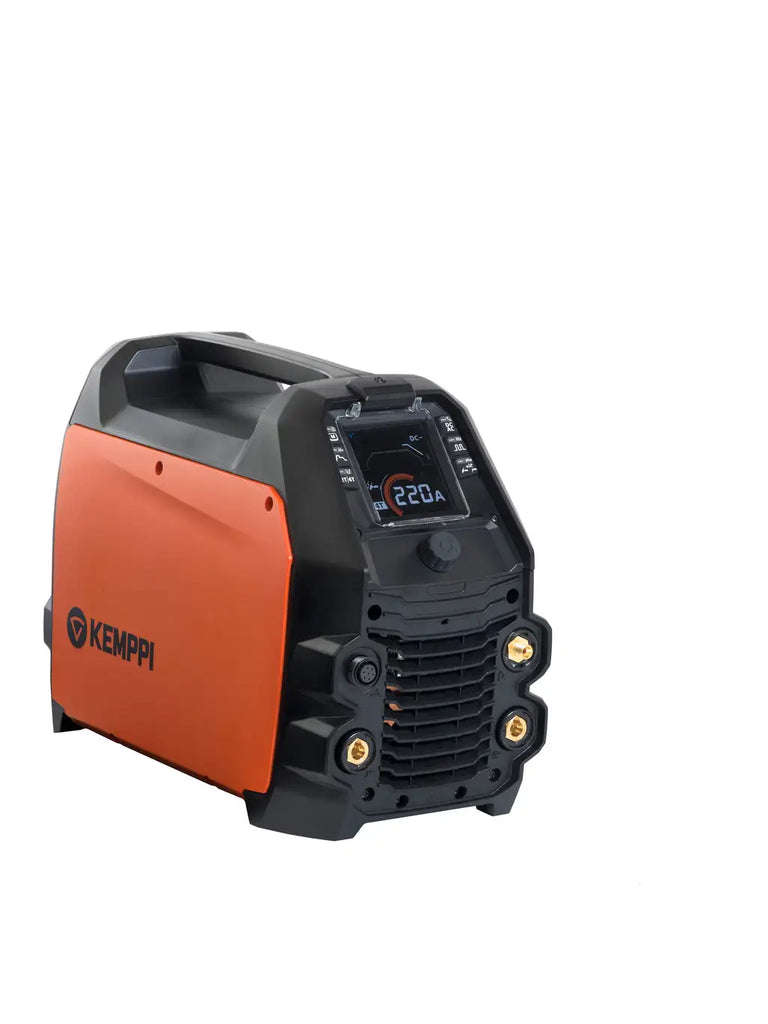

Kemppi Minarc T 223 AC/DC GM TIG Welder Air Cooled Package with Torch & Foot pedal

WELD AND CLEAN WITH ONE TIG MACHINE.

Minarc T 223 ACDC GM is a new 220 A single-phase AC/DC TIG welding machine with built-in electrolytic weld cleaning capability. This portable multi-voltage welding machine allows you to perform high-quality TIG welding and professional weld cleaning with one machine.

Take the Minarc T 223 ACDC GM anywhere on-site and save time by completing and finishing perfect welds in one spot. The new MAX WeldClean electrolytic cleaning process is simple and easy to use. It just takes a moment to convert your TIG torch to cleaning mode, where an efficient combination of electric current and phosphoric acid offers quick removal of oxidation and discolouration around the weld, delivering immaculate welds.

Powerful and versatile, the Minarc T 223 ACDC GM TIG welding machine has important features like the Auto Pulse function, AC frequency control, memory channels, and convenient remote control options. A large colour display with impact protection and a clear user interface makes choosing settings in a wide range of light conditions easy.

  • Premium multi-voltage AC/DC TIG welding machine with built-in weld cleaning function
  • DC+ and DC- MMA welding
  • 220 A with 20% duty cycle from a 1-phase power supply
  • WeldClean electrolytic cleaning process speeds up post-processing of welds
  • Large LCD display
  • Four memory channels
  • Auto Pulse with frequency control
  • AC balance control
  • Three alternative transport cart options
  • Set parameters remotely with an optional on-torch remote

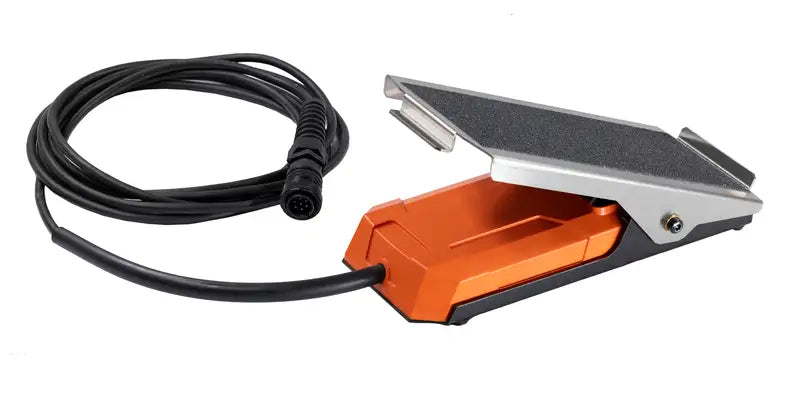

  • Control your welding with the FR41 wired foot pedal
Description Value
Mains connection voltage 220...240 V ±10 %
Mains connection voltage (MV low range) 110...120 V ±10 %
Mains connection phases 1~50/60 Hz
Mains connection cable type 3G, H07RN-F
Mains connection cable size 2.5 mm²
Rated maximum input power [S1max] 5.5 kVA
Mains fuse 16 A
Mains fuse (@MV low range) 16 A
Idle power 10 W
Output, duty cycle % at rated max. current, TIG 20 %
Output at +40 °C, rated max current, TIG 220 A
Output at +40 °C, 60% TIG 170 A
Output at +40 °C, 100% TIG 160 A
Output, duty cycle % at rated max. current, MMA 35 %
Output at +40 °C, rated max current, MMA 170 A
Output at +40 °C, 60% MMA 130 A
Output at +40 °C, 100% MMA 110 A
Output, duty cycle % at rated max. current, TIG (@MV low range) 40 %
Output at +40 °C, rated max current, TIG (@MV low range) 130 A
Output at +40 °C, 60% TIG (@MV low range) 110 A
Output at +40 °C, 100% TIG (@MV low range) 90 A
Output, duty cycle % at rated max. current, MMA (@MV low range) 40 %
Output at +40 °C, rated max current, MMA (@MV low range) 90 A
Output at +40 °C, 60% MMA (@MV low range) 70 A
Output at +40 °C, 100% MMA (@MV low range) 60 A
Power factor at rated maximum current [λ] 1
Efficiency at rated maximum current [η] 83 %
EMC class A
Voltage supply for cooling unit 220...240 V
Welding connection type R1/4
Wired communication type Analog
Recommended minimum generator power [Sgen] 8 kVA
Degree of protection (fully installed) IP23
External dimensions, length 520 mm
External dimensions, width 250 mm
External dimensions, height 379 mm
Weight without accessories 16.8 kg
Standards EN IEC 60974-1, -3, -10 IEC 61000-3-12
