Kemppi MINARC T 223 DC MLP Tig Welder Air Cooled Packages 110/230v

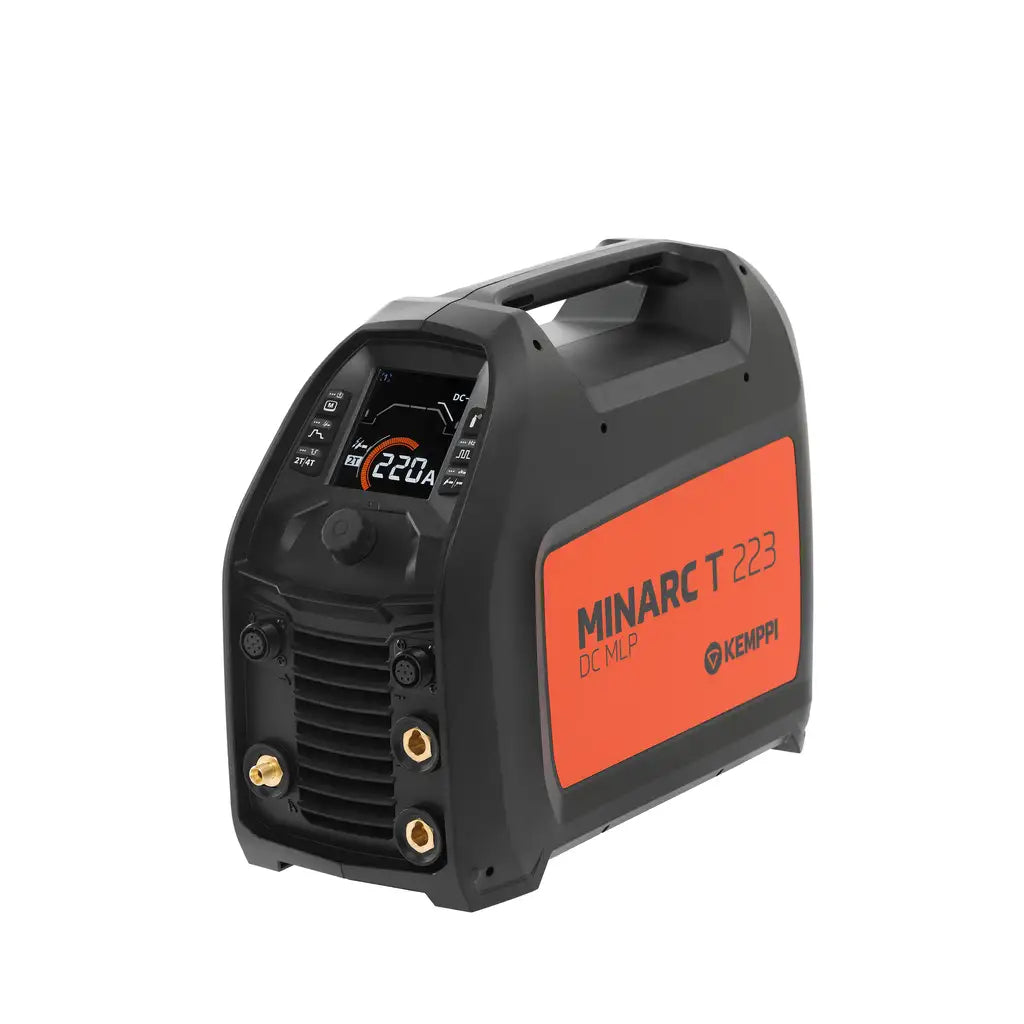

The Minarc T 223 DC, 1ph 110V / 230V, is a portable, small, but mighty TIG welding machine designed for welders on the go. With a powerful output of 220 amps, this portable welding machine delivers precise DC TIG and MMA performance and is protected with a durable and stylish molded casing. Kemppi's professionals design, engineer, build, and test every Minarc T DC TIG welding power source in Finland, ensuring reliable Finnish welding quality for every weld.
This multi-voltage TIG welder is perfect for industrial workshops and site welding applications. It uses PFC technology for energy-efficient operation. Standard features include pre- and post-flow gas control, slope time regulation, memory channels, and power adjustments that can be made using optional remote controls.
The Minarc T 223 DC MLP models also offer a pulse function and 'Minilog' control, which allows welders to select preset power levels during welding directly from the standard torch trigger switch. Delivery packages come with the DC TIG power source, a carrying strap, an earth return cable, a gas hose, and a Flexlite TX welding TIG torch (available in 4m or 8m lengths).
Features
- DC TIG and MMA processes available
- 220 A DC @ 20% duty cycle, 1-phase, 220V-240V
- Power-efficient PFC technology
- HF and Lift ignition
- Pulse option and Minilog (MLP models)
- Lightweight and portable with 9.6kg
- Refined ignition
- Stable welding arc
- Reliable Finnish quality
- Four memory channels
- Hand and foot-operated remote-control options
- Color LCD for easy-to-use user interface
- Pre and post-gas timer
- Slope in/out timer
Package details
- Power source: The Minarc T 223 DC power source itself.
- Torch: A Flexlite TX TIG welding torch, available in 4m or 8m lengths.
- Cables: Earth return cable and gas hose.
- Other: A carrying strap for portability.

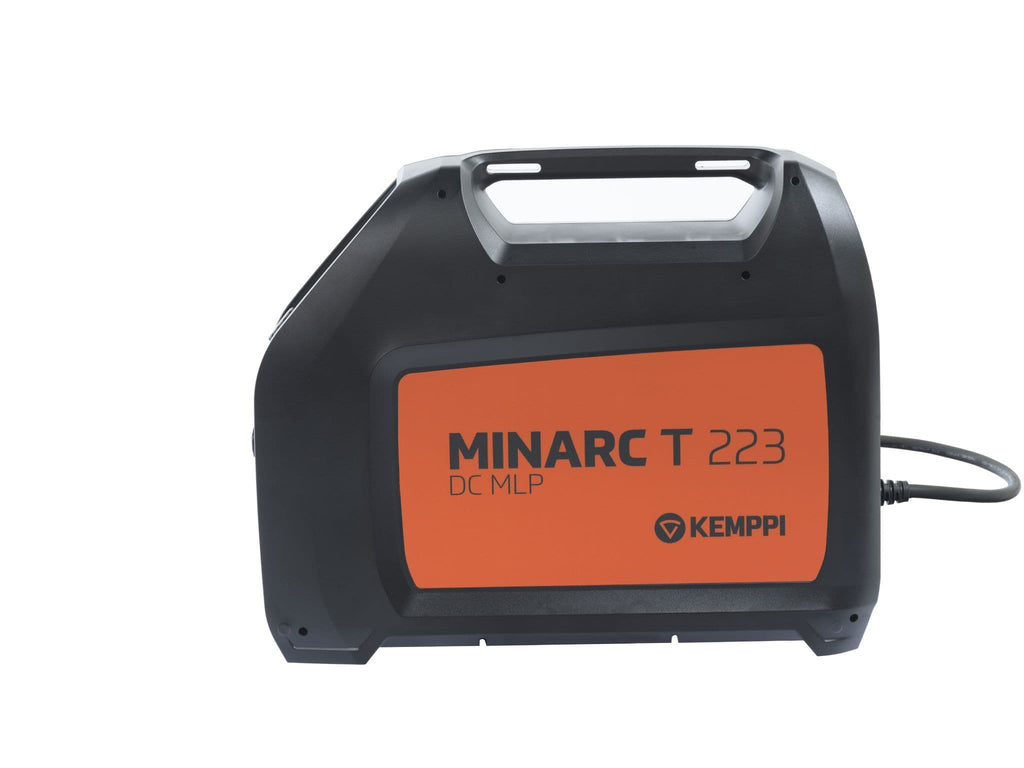

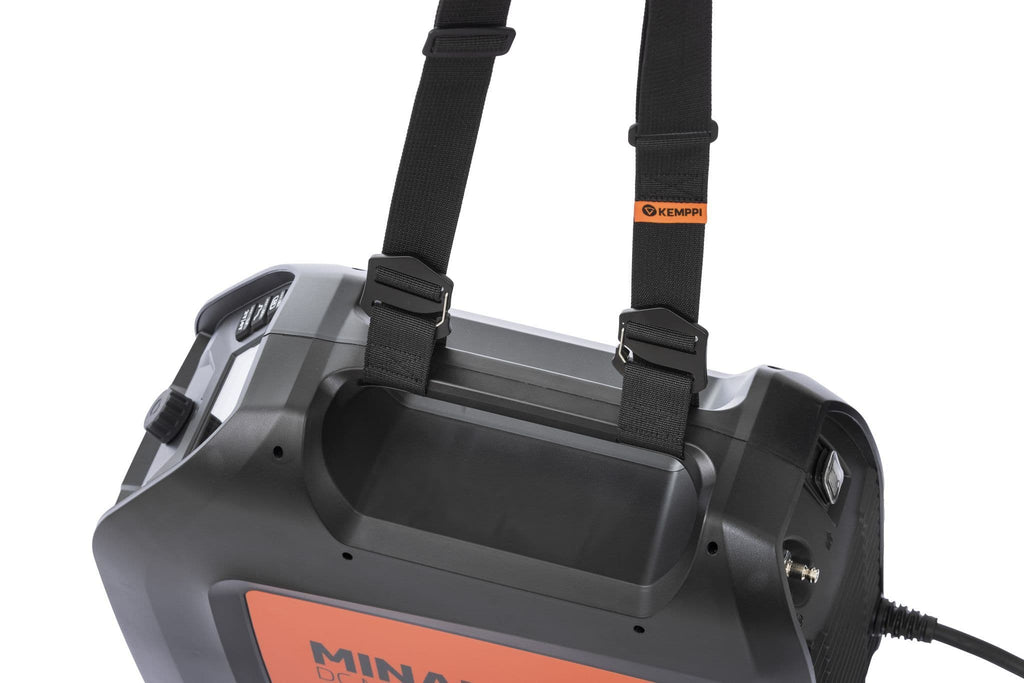

Designed for portability The Minarc T 223 DC's shape, dimensions, and weight are optimised for portability. Its clever carrying strap is easily attached to the handle holes and secured with hooks.


Robust and durable body Minarc T 223 DC has a robust molded case that can withstand heavy knocks and bumps.

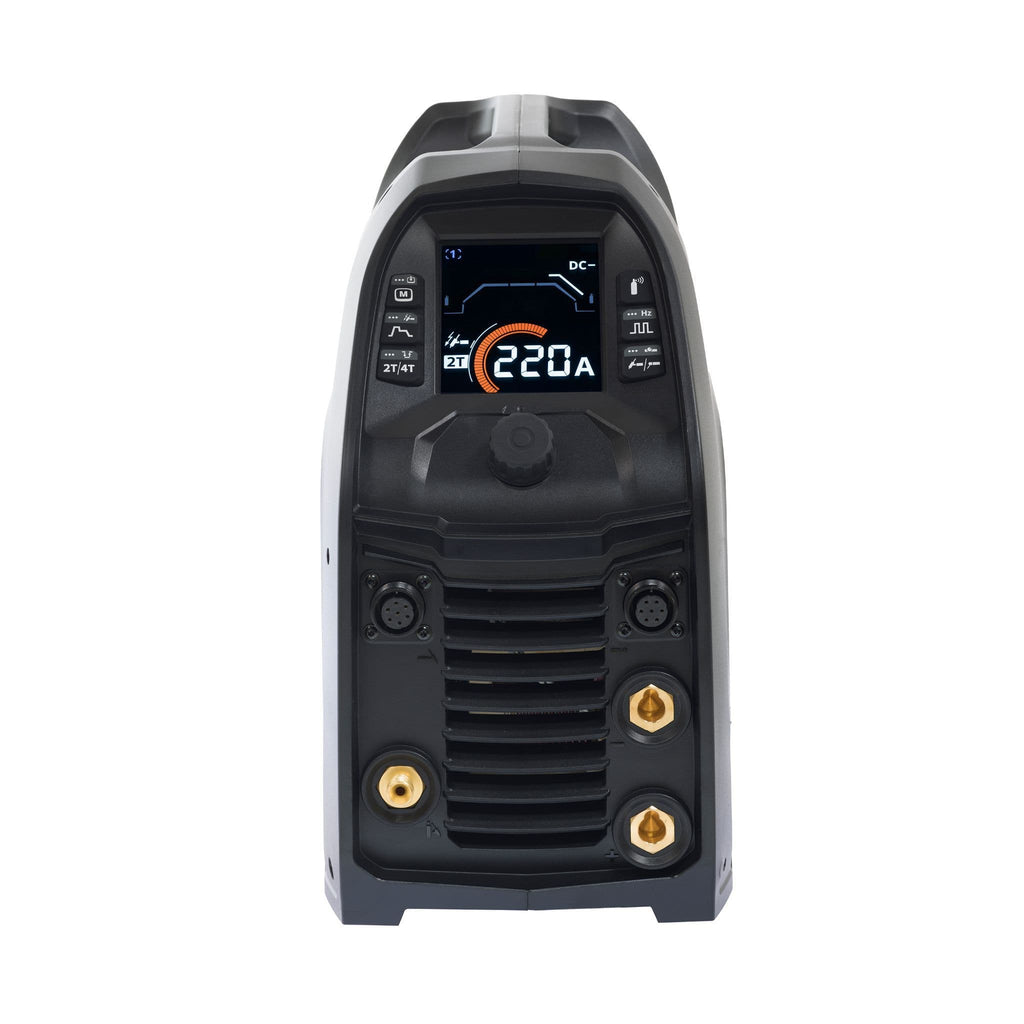

Modern look and feel with a brilliant user interface The new Minarc T is the most modern-looking welding machine in its class. Its bright, clear, and logical interface is a pleasure to use.

Premium arc quality Arc ignition, stability, and current control and impressively smooth.

| Description | Value |
|---|---|
| Mains connection voltage | 220...240 V ±10 % |
| Mains connection voltage (MV low range) | 110...120 V ±10 % |
| Mains connection phases | 1~50/60 Hz |
| Mains connection cable type | 3G, H07RN-F |
| Mains connection cable size | 2.5 mm² |
| Rated maximum input power [S1max] | 5.5 kVA |
| Mains fuse | 16 A |
| Mains fuse (@MV low range) | 16 A |
| Idle power | 10 W |
| Output, duty cycle % at rated max. current, TIG | 20 % |
| Output at +40 °C, rated max current, TIG | 220 A |
| Output at +40 °C, 60% TIG | 170 A |
| Output at +40 °C, 100% TIG | 140 A |
| Output, duty cycle % at rated max. current, MMA | 25 % |
| Output at +40 °C, rated max current, MMA | 170 A |
| Output at +40 °C, 60% MMA | 140 A |
| Output at +40 °C, 100% MMA | 120 A |
| Output, duty cycle % at rated max. current, TIG (@MV low range) | 20 % |
| Output at +40 °C, rated max current, TIG (@MV low range) | 130 A |
| Output at +40 °C, 60% TIG (@MV low range) | 110 A |
| Output at +40 °C, 100% TIG (@MV low range) | 90 A |
| Output, duty cycle % at rated max. current, MMA (@MV low range) | 20 % |
| Output at +40 °C, rated max current, MMA (@MV low range) | 75 A |
| Output at +40 °C, 60% MMA (@MV low range) | 70 A |
| Output at +40 °C, 100% MMA (@MV low range) | 60 A |
| Output range, TIG | 5 A / 8 V ... 220 A / 20 V |
| Output range, MMA | 15 A / 15 V ... 170 A / 34 V |
| Output range, TIG (@MV low range) | 5 A / 8 V ... 130 A / 16 V |
| Output range, MMA (@MV low range) | 15 A / 15 V ... 75 A / 31 V |
| Power factor at rated maximum current [λ] | 1 |
| Efficiency at rated maximum current [η] | 85 % |
| EMC class | A |
| Stick electrode diameter | 1.6 ... 4 mm |
| Welding connection type | R1/4 |
| Wired communication type | Analog |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 8 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 461 mm |
| External dimensions, width | 202 mm |
| External dimensions, height | 367 mm |
| Weight without accessories | 9.6 kg |
| Standards | EN IEC 60974-1, -3, -10, IEC 61000-3-12 |
