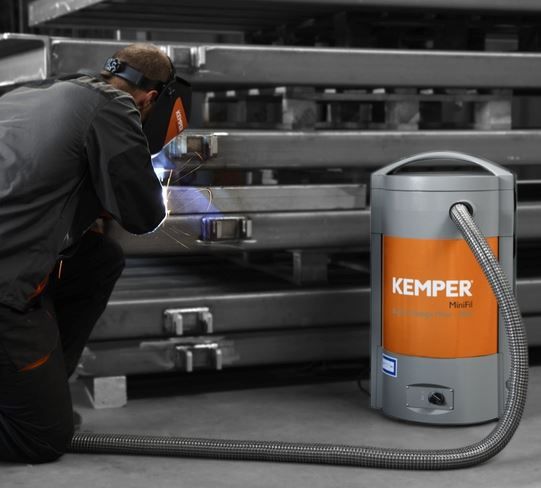

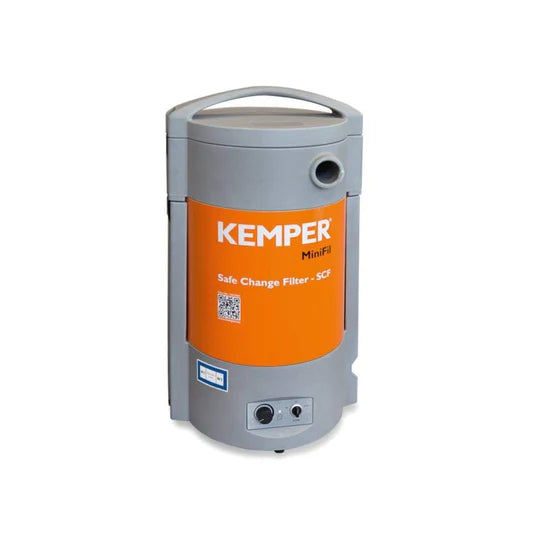

The compact MiniFil high-vacuum extraction unit for medium amounts of smoke and dust ensures high mobility for frequently changing workplaces with on torch extraction or extraction nozzles. The integrated automatic start/stop and the contamination-free filter change make the MiniFil especially simple and safe to use.
Applications
- Also suitable for high-alloy steel
- Medium levels of smoke and dust
- Occasional to frequent use
- Torch extraction
Benefits
- Energy-saving operation with integrated automatic start/stop function for AC/alternating current
- Increased safety with safe filter change

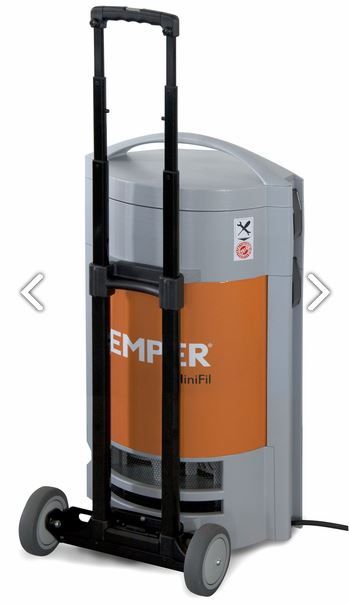

- Ideal for changing workplaces due to its low weight and optional trolley
- Optimal adjustment to the welding process with stepless speed control
Technical Data
- Extraction capacity - 150 m³/h
- Dimensions (w x d x h) - 425 x 365 x 790 mm
- Weight - 20 kg
- Motor power - 2 kW
- Power supply - 1 x 230 V / 50 Hz
- Rated current - 11 A
- Noise level - 74 dB(A)
- Hose connection - Ø 45 mm
