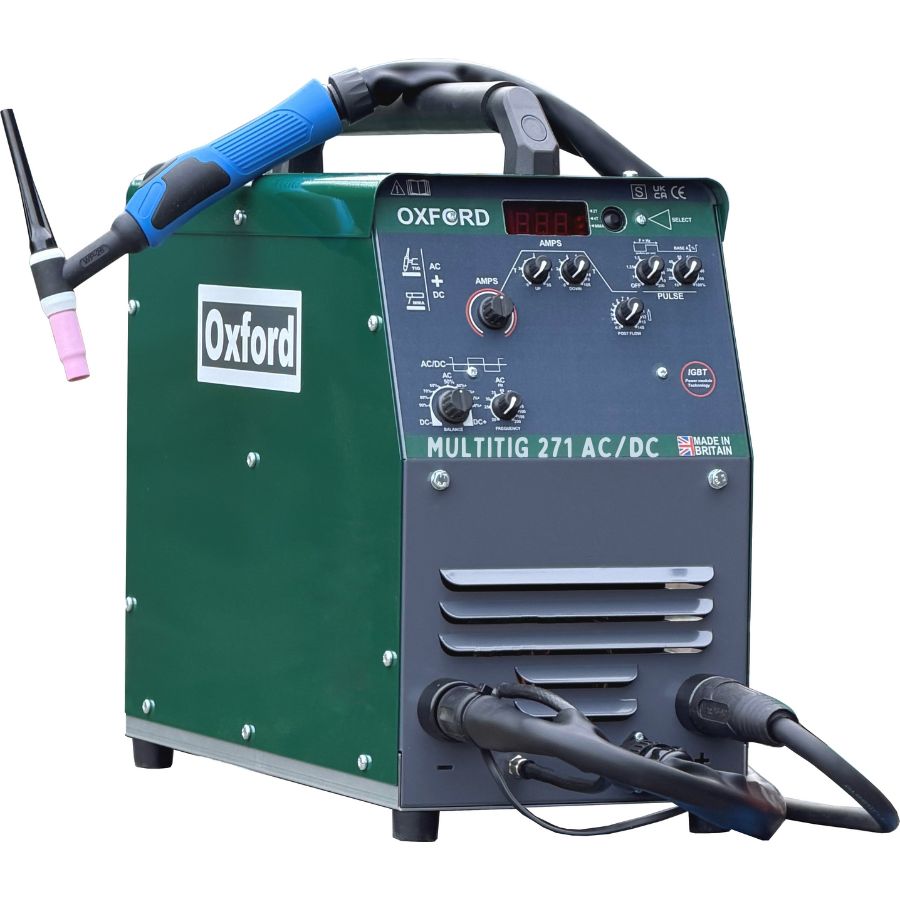

Oxford MULTI-TIG 271 AC/DC TIG 230V 1 ph.
Oxford Multi-TIG 271 AC/DC TIG WELDING INVERTER – 230V
The Oxford Multi-TIG 271 AC/DC is a professional 230V TIG welding inverter built in the UK for unmatched reliability and performance. Compact and hand portable, this industrial grade welder delivers precise TIG and MMA welding on aluminium, stainless steel, mild steel, copper, titanium, and other alloys.
Featuring rugged construction and advanced TIG functionality, the Oxford Multi-TIG 271 AC/DC combines durability with performance for demanding workshop and on site applications. With excellent arc characteristics and smooth operation across all materials, this UK built TIG inverter sets the standard for quality, reliability, and versatility in professional welding. This generator friendly machine features adjustable weld power and digital display for precise control. Lightweight yet durable, the Oxford Multi-TIG 271 AC/DC delivers professional grade performance. Designed to endure over 25 years of hard work, it’s the ideal choice for industrial and on site welding.
Supplied with: WP26 4m TIG torch, earth leads, gas hose, and flow meter.
Features and Benefits
- Precision Welding Control: Adjustable 5A–220A/270A weld power with digital display for exact, repeatable results.
- Flexible TIG & MMA Operation: 2T/4T torch trigger modes, AC/DC balance, and MMA welding on all rods including cellulosics.
- Remote & Foot Pedal Control: Allows hands free operation and precise amperage adjustment.
- Advanced AC Performance: AC squarewave technology and ultra low arc noise for smooth, clean welding on aluminium and steel.
- AC Frequency & Balance Control: Adjustable 20–200Hz for optimal arc focus, penetration, and cleaning.
- Slope & Gas Control: Adjustable upslope/downslope plus preflow and postflow gas circuits for perfect starts and finishes.
- Pulse Welding Capability: Extended frequency range for better heat management and consistent welds.
- Generator Friendly & Cable Compensation: Stable performance even on generators and with cables up to 100m.
- Durable & Efficient Design: Rugged, drop-tested case, separate cooling chamber, high duty cycle, and only 20W standby power.
- Portable & Long-Lasting: Lightweight, compact, and industrial grade build.
Oxford Multi-TIG AC/DC Specification |
|
|---|---|
| Model | 271 |
| Input Volts | 230V 1 Phase |
| Amps range | 5 – 270A |
| Duty cycle @40C – TIG | 270A @60% 210A @100% |
| Rec fuse * | 32A *13A |
| Idle power | 20W |
| OCV | 85V DC |
| Pulse range | 1Hz – 200 |
| Slope Up | 0-5 sec |
| Slope Down | 0-10 sec |
| Ac Freq | 20 – 200Hz |
| Gas Post F. | 0.5-14 sec |
| Weight | 22kg |
Further Specifications
The Oxford Multi-TIG 271 AC/DC features a compact and portable power source, measuring 230W × 510L × 400H mm (460 mm including the top handle), making it ideal for both workshop and on site use. It offers the same amperage range for MMA and TIG welding, with the duty cycle reduced by up to 6% when using MMA. Recommended fusing is a ‘D’ slow type, with a 13A fuse suitable for TIG welding up to 200A. Duty cycle is tested at 40°C, increasing by approximately 5% at 20°C for extended welding periods. The inverter operates at high efficiency, achieving 83% (model 273) and 82% (models 221/271).
Fully compliant with BS IEC60974-1, WEE/HD0071UZ, and EU2019/1784 standards, it is rugged and protected with an IP23S rating, making it suitable for outdoor use when covered.
Front Panel Controls Close up View – MMA Functions and Performance
Simply select MMA via the top mode select switch.
Every type of electrode can be used, including cellulosic & other difficult to run rods.
Hot start is built in to give instant arc up.
Weld with DC – or DC + or AC.
Full AC TIG balance & frequency controls provide even more flexibility.
Super smooth arc welding guaranteed!
Safety and Energy Saving Features
The Oxford Multi-TIG 271 AC/DC TIG Welding Inverter is designed with advanced safety and efficiency features to protect both the user and the machine. The system includes an automatic gas and power shut down that activates if the TIG output remains energised for too long without welding. Preventing unnecessary gas use and enhancing operator safety.
A fan on demand circuit ensures the cooling fan only runs when needed, reducing noise, dust intake, and component wear. During the welding process, the output automatically resets to off during slope down if the arc is interrupted, while the upslope timer only begins once the arc is initiated, giving you precise, controlled starts every time.
For additional safety, the output power always remains off when the machine is switched on until the torch trigger is pressed or MMA mode is selected. This intelligent design eliminates accidental arc starts and provides safer, more controlled welding operation.
Built with Oxford’s signature reliability and engineering excellence, the Multi-TIG 271 AC/DC delivers professional-grade TIG and MMA welding performance with safety, control, and durability at its core.
Built for Reliability
The Oxford Multi-TIG 271 AC/DC TIG Welding Inverter is engineered and built in the UK to deliver unmatched durability and long term reliability. Oxford designs and manufactures all their own PCBs, transformers, coils, and power assemblies, ensuring complete quality control and consistently high performance.
Unlike many modern welders, the Multi-TIG 271 AC/DC contains no microprocessors or programmable software, which eliminates the risk of software faults or corruption. Instead, it relies on rugged dual-IGBT power module technology and straightforward electronics, featuring a minimal parts design that maximizes reliability.
Whether used daily in production or stored for occasional welding jobs, the Multi-TIG 271 AC/DC consistently performs at a professional standard. Designed for easy maintenance with serviceability in mind, featuring diagnostic LEDs and test points for quick and easy maintenance. All Oxford welding inverters are simple to maintain and built to last.
With British built quality, robust construction, and full 230V AC/DC TIG and MMA capability, the Oxford Multi-TIG 271 AC/DC stands out as one of the most reliable and versatile TIG welding inverters available today.
Oxford Warranty
Investing in an Oxford welder guarantees a high quality machine with unmatched support. With a 3 year warranty on all items, a 5 year warranty on the main transformer, the heart of the machine, and a minimum 20 year guarantee on spare parts availability, the best in the industry.
