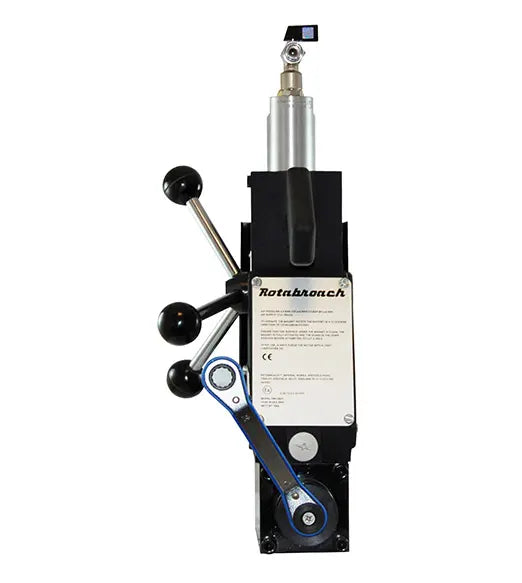

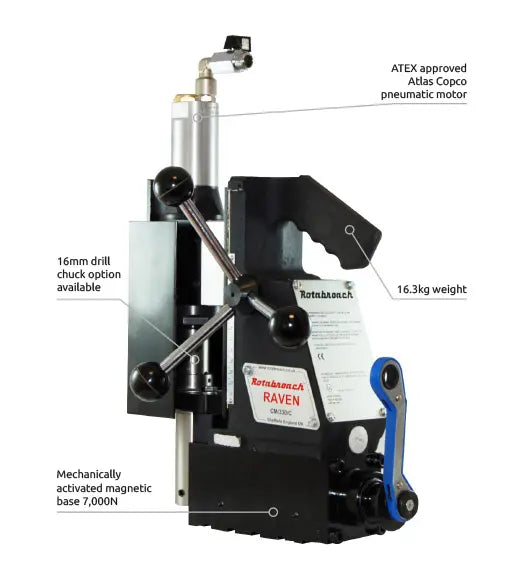

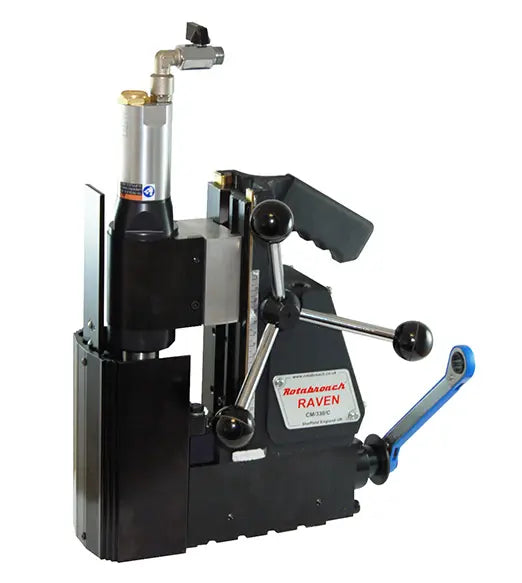

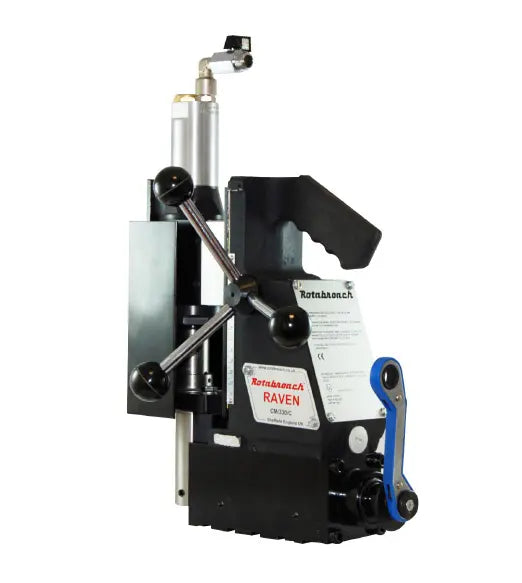

Rotabroach CM/330/C Raven Air Powered Pneumatic Drill
Designed for use on pneumatic supplies in non corrosive atmospheres. Lightweight and highly portable. Suitable for drilling up to 52mm diameter by 50mm depth, tough versatile pneumatic mag drill.
Features
- Designed for use on pneumatic supplies in non-corrosive atmospheres.
- Lightweight and highly portable.
- Suitable for drilling up to 52mm diameter by 50mm depth.
Technical Data
Model Number: CM/330/C.
Motor Specification: 13 lts/sec – 28CFM @ 5.5 bar min – 6.9 bar max.
No Load RPM: 270 RPM.
Max Hole Cutting Capacity: ø52 x 50mm deep.
Drill Chuck Capacity: ø16mm.
Overall Dimensions: Height: 525mm / Width: 165mm / Length: 315mm.
Magnetic Adhesion: 7,000N.
Magnet Size: 175mm x 75mm.
Machine Weight: 16.3kg.
Specifications
| Model Number |
CM/330/C |
|---|---|
| Motor Specification |
13 lts/sec – 28CFM @ 5.5 bar min – 6.9 bar max |
| No load RPM |
270 RPM |
| Max Hole Cutting Capacity |
ø52 x 50mm deep |
| Drill Chuck Capacity |
ø16mm |
| Overall Dimension |
Height: 525mm / Width: 165mm / Length: 315mm |
| Machine Weight |
16.3kg |
| Magnetic Adhesion |
7,000N |
| Magnet Size |
175mm x 75mm |
| Safety Features |
Fixed Guard |
Includes
Carry case.
Safety strap.
Pipe adaptor fixing strap.
4mm hexagon key.
