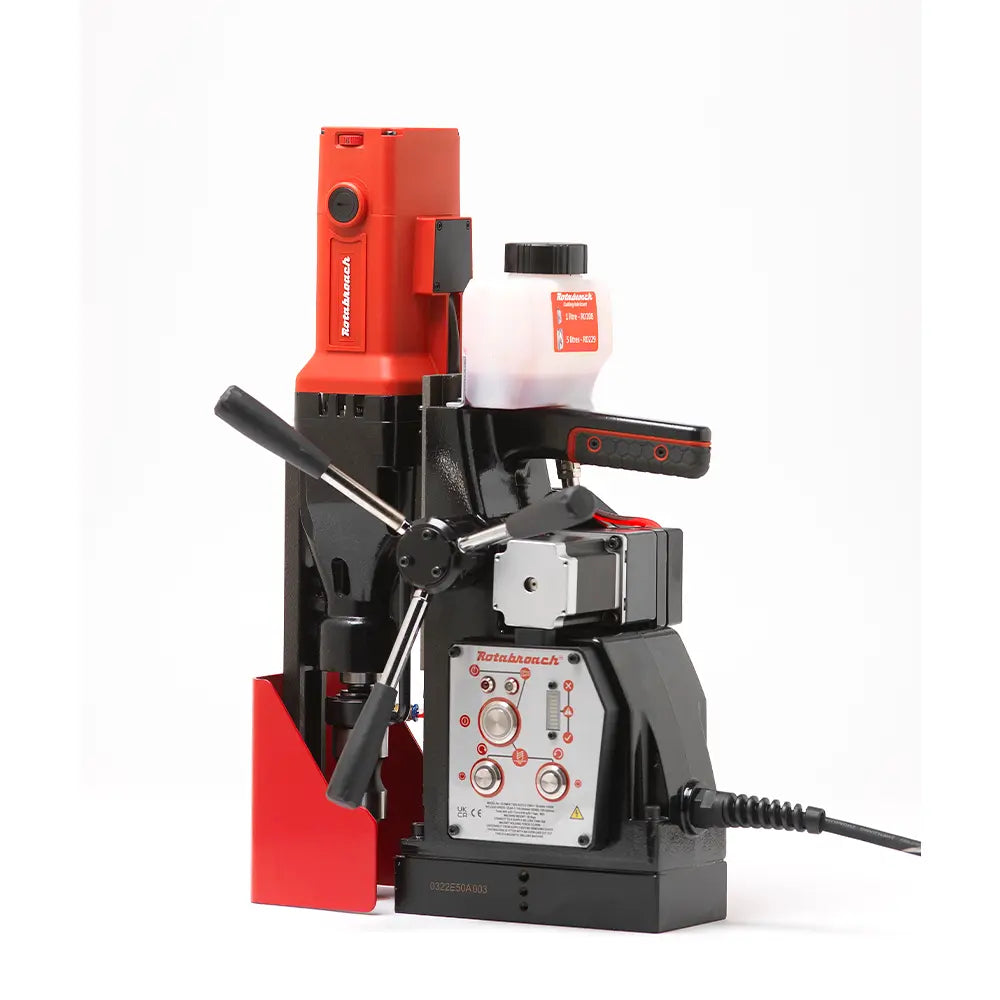

Rotabroach ELEMENT50/3AUTO Element 50 Automatic Magnetic Drill 230V

£ POA

Please call for best price.


Rotabroach ELEMENT50/3AUTO Element 50 Automatic Magnetic Drill 230V

Powerful 1500w motor with a two-speed mechanical gearbox. Suitable for drilling up to 40mm diameter by 50mm depth. Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility. Internal cooling – keeping your mag drill cool and allowing you to drill for longer. Fully automatic drilling. The machine drills the hole, retracts and powers off – ready to be moved safely on to the next hole. CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.

Features

  • Powerful 1500w motor with a two-speed mechanical gearbox.
  • Fully automatic drilling. The machine drills the hole, retracts and powers off – ready to be moved safely on to the next hole.
  • Suitable for drilling up to 40mm diameter by 50mm depth.
  • CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
  • Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
  • Internal cabling reduces the risk of damage and downtime for your magdrill.
  • Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
  • At just 514mm, this magnetic drill can perform in difficult environments.
  • 50mm max cutter diameter.
  • Dual motor protection system to prolong the machine’s life and prevent unwanted wear.

Specification

Model Number

Element 50/1 Auto  / Element 50/3 Auto

Motor Specification

110V 1500W / 230V 1500W

No load RPM

Low Gear: 100-265RPM / High Gear: 200-500RPM

Max Cutting Capacity

⌀50 x 50mm Deep – 20mm with 2MT twist drill

Tapping

M20

Overall Dimension

Height: 586mm / Width: 190mm / Length: 317mm

Machine Weight

18.5kg

Magnetic Adhesion

13500N

Magnet Size

200 x 98mm

Safety Features

Cutsmart™ Technology / Magnetic Detection / Secondary Motor Protection
