Rotabroach ELEMENT75/3 Element 75 Magnetic Drill 230V
The Element 75 is a heavy-duty machine for the drilling of larger holes. It is compact, durable and more portable than other larger machines. It is suitable for drilling up to 75mm diameter by 75mm depth. The Element 75 offers forward and reverse functionality. The range also features a unique dual-motor protection system that prolongs the machine's life and prevents unwanted wear.

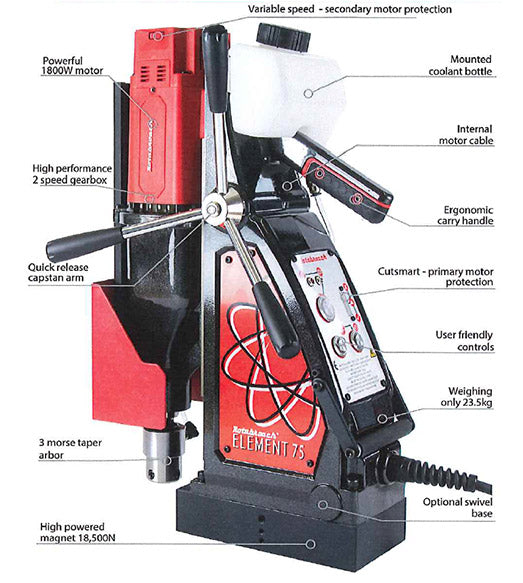

Features
- Powerful 1800w motor with a two speed mechanical gearbox.
- Suitable for drilling up to 75mm diameter by 75mm depth.
- Quick release interchangeable handle – allowing you to operate the mag drill from either side and improving accessibility.
- Internal cooling – keeping your mag drill cool and allowing you to drill for longer.
- Twist drill, threading and countersinking capabilities.
- 23.5kg: Lighter and more compact than other heavy-duty drills.
- CutSmart Technology – designed to protect your motor and cutter, prolonging tool life.
- Internal cabling reduces the risk of damage and downtime for your magdrill.
- Swivel Base options available.
- Dual motor protection, minimising wear and downtime of this magdrill.
Specifications
| Model Number |
Element 75/1 / Element 75/3 |
|---|---|
| Motor Specification |
110V 1800W / 230V 1800W |
| No load RPM |
Low Gear: 70 -180 RPM / High Gear: 200-500 RPM |
| Max Hole Cutting Capacity |
ø75 x 75mm Deep – 26mm with MT Drill |
| Tapping |
M24 |
| Overall Dimension |
Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard |
| Machine Weight |
23.5kg |
| Magnetic Adhesion |
18,500N |
| Magnet Size |
220mm x 114mm |
| Safety Features |
Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch |
