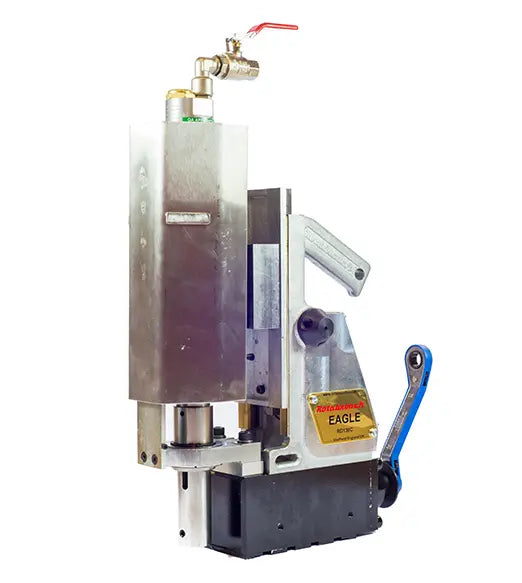

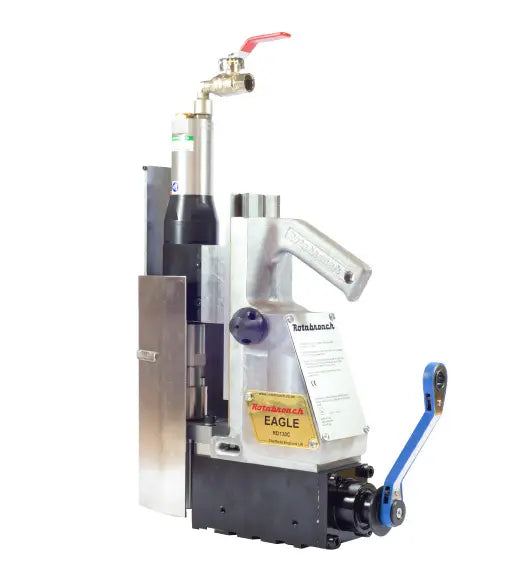

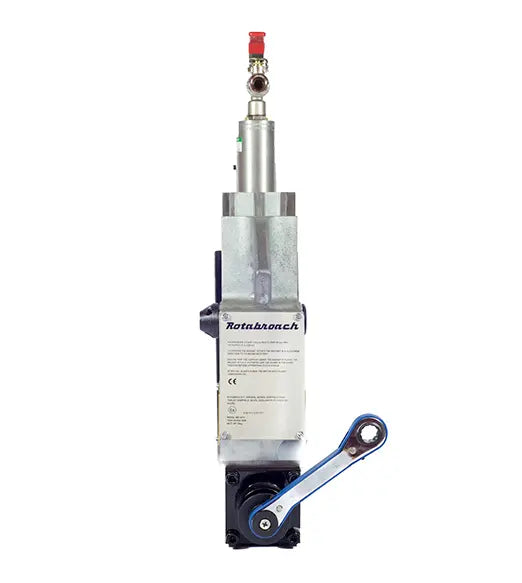

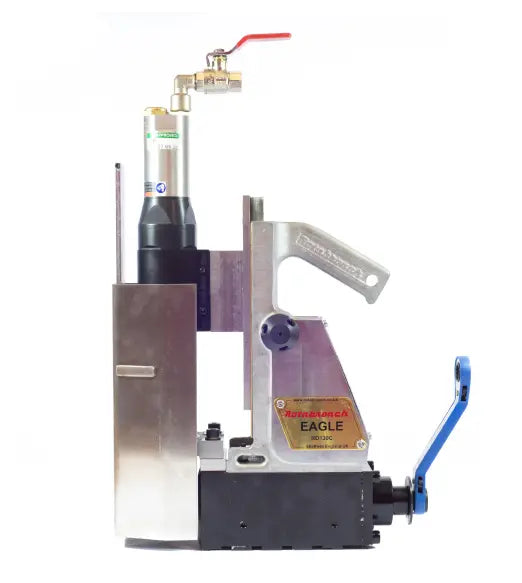

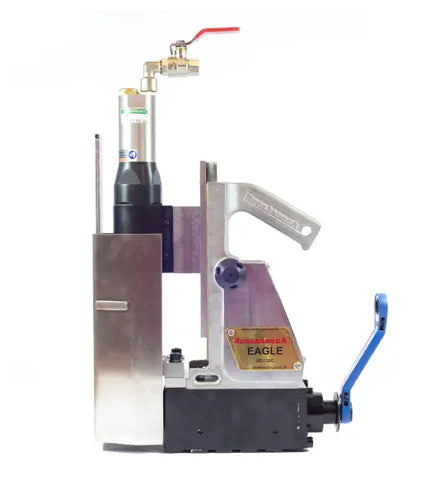

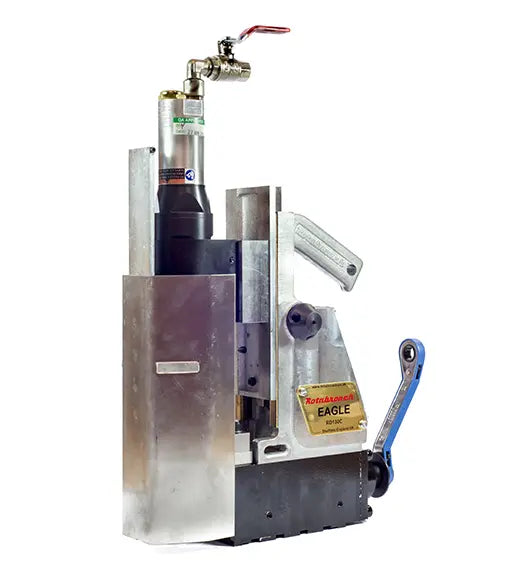

Rotabroach RD130C Eagle Pneumatic Magnetic Drill
The rotabroach eagle RD130C is a pneumatic drilling machine that is ideal for use in environment's where an electrical supply is not available or in hazardous environments.

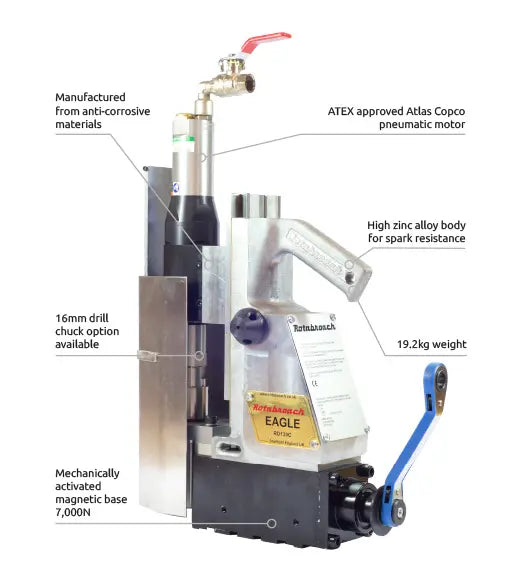

Features
- ATEX approved II 2G T4 II D110C
- Atlas Copco Pneumatic motor for safety in hazardous areas
- Mechanically activated permanent magnetic base
- For safety, the machine is built with a high zinc alloy body for spark resistance. All moving components are manufactured in anti-corrosive materials
- For use in any environments where electricity is not available
- Designed for use in petro-chemical plants, offshore oil platforms and other hazardous environments
Specifications
| Model Number |
RD130C |
|---|---|
| Motor Specification |
13 lts/sec – 28CFM @ 5.5 bar min – 6.9 bar max |
| No load RPM |
270 RPM |
| Max Hole Cutting Capacity |
ø52 x 50mm deep |
| Drill Chuck Capacity |
ø16mm |
| Overall Dimension |
Height: 560mm / Width: 160mm with Capstan / Length: 320mm with Guard |
| Machine Weight |
19.2kg |
| Magnetic Adhesion |
7,000N |
| Magnet Size |
165mm x 80mm |
| Safety Features |
Atlas Copco pneumatic motor for safety in hazardous areas / Fixed Guard |
