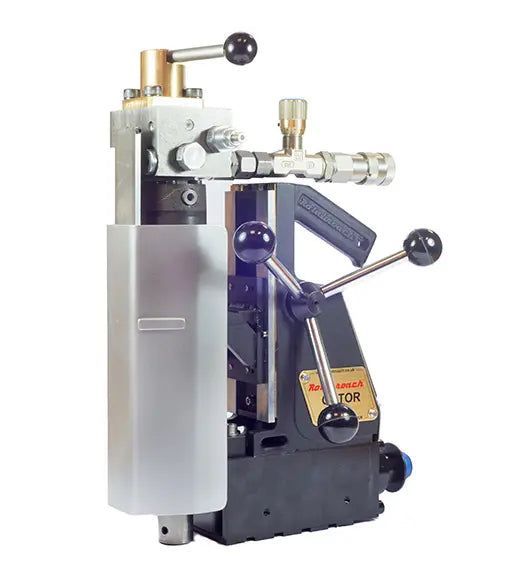

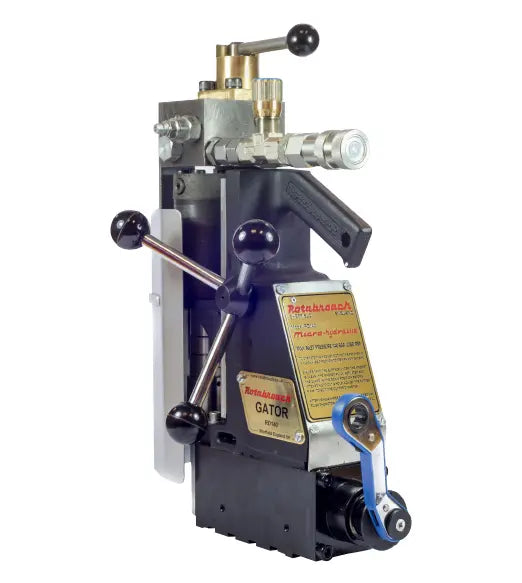

Rotabroach RD140 Gator Hydraulic Magnetic Drill
Used in applications when only hydraulic supplies are most convenient or necessary & is Suitable for drilling up to 52mm diameter by 50mm depth. A powerful tool designed for precision & efficiency. Hydraulic system ensuring optimal performance, tackles heavy duty drilling tasks at ease with a 52mm cutter capacity.

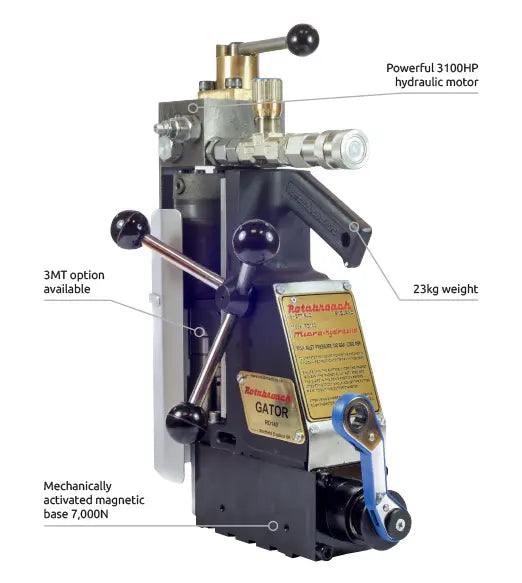

Features
- Stainless Steel construction resists corrosion
- Mechanically activated permanent magnetic base
- Powerful and secure magnetic hold
- Complete with drill chuck attachment
Specifications
| Model Number |
RD140 |
|---|---|
| Motor Specification |
140 bar (2050 psi) |
| No load RPM |
630 RPM |
| Max Hole Cutting Capacity |
ø52 x 50mm deep |
| Drill Chuck Capacity |
ø16mm |
| Overall Dimension |
Height: 520mm / Width: 160mm with Capstan / Length: 320mm with Guard |
| Machine Weight |
23kg |
| Magnetic Adhesion |
7,000N |
| Magnet Size |
175mm x 75mm |
| Safety Features |
Fixed Guard |
