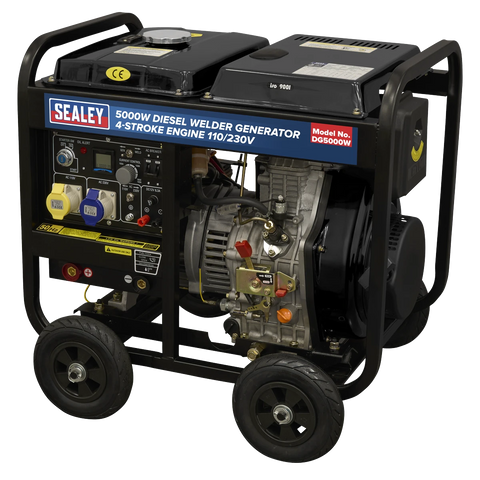

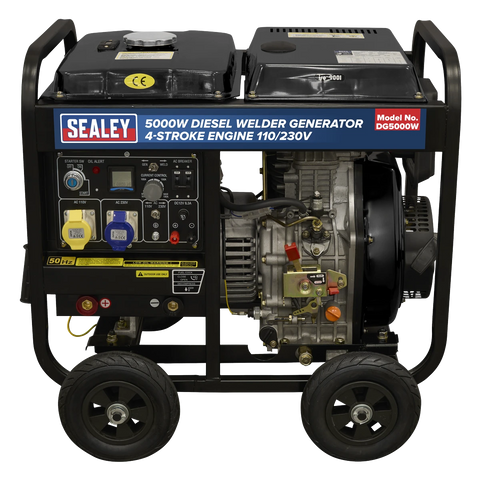

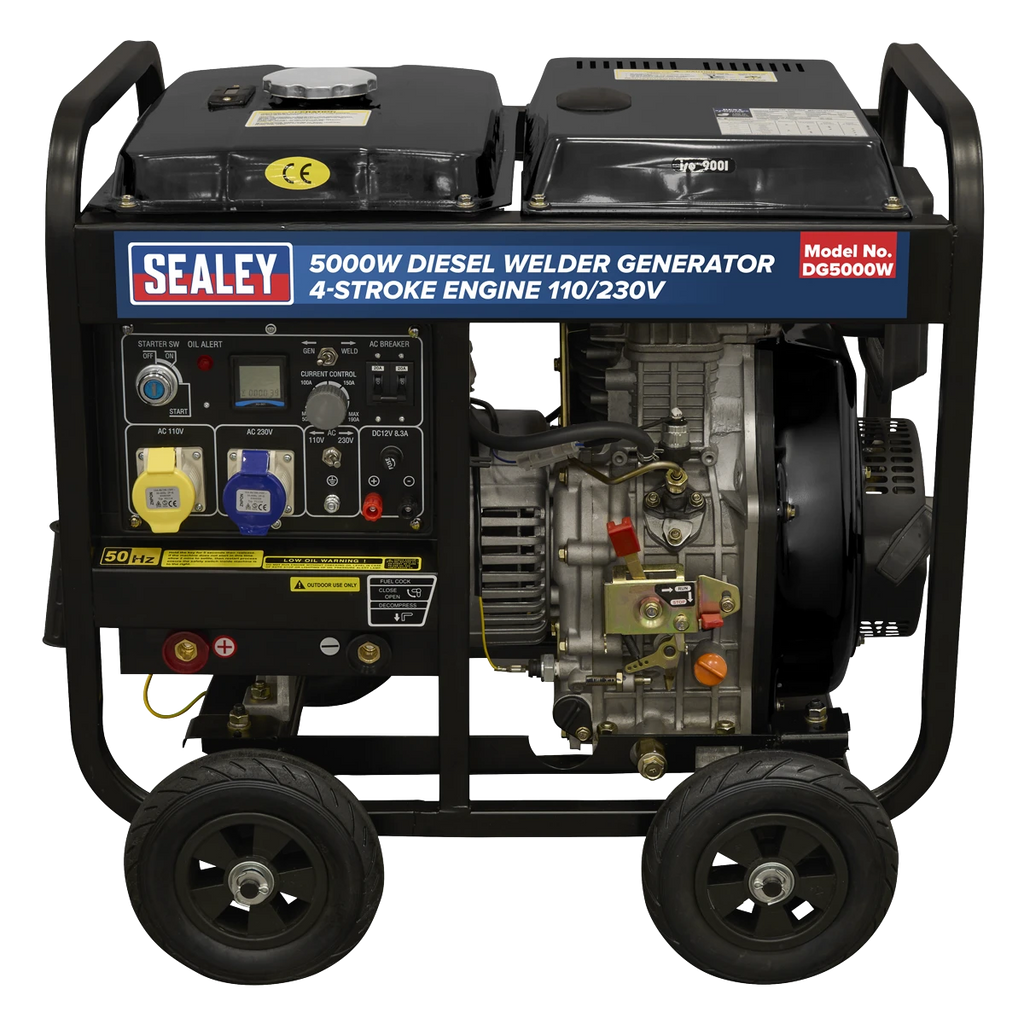

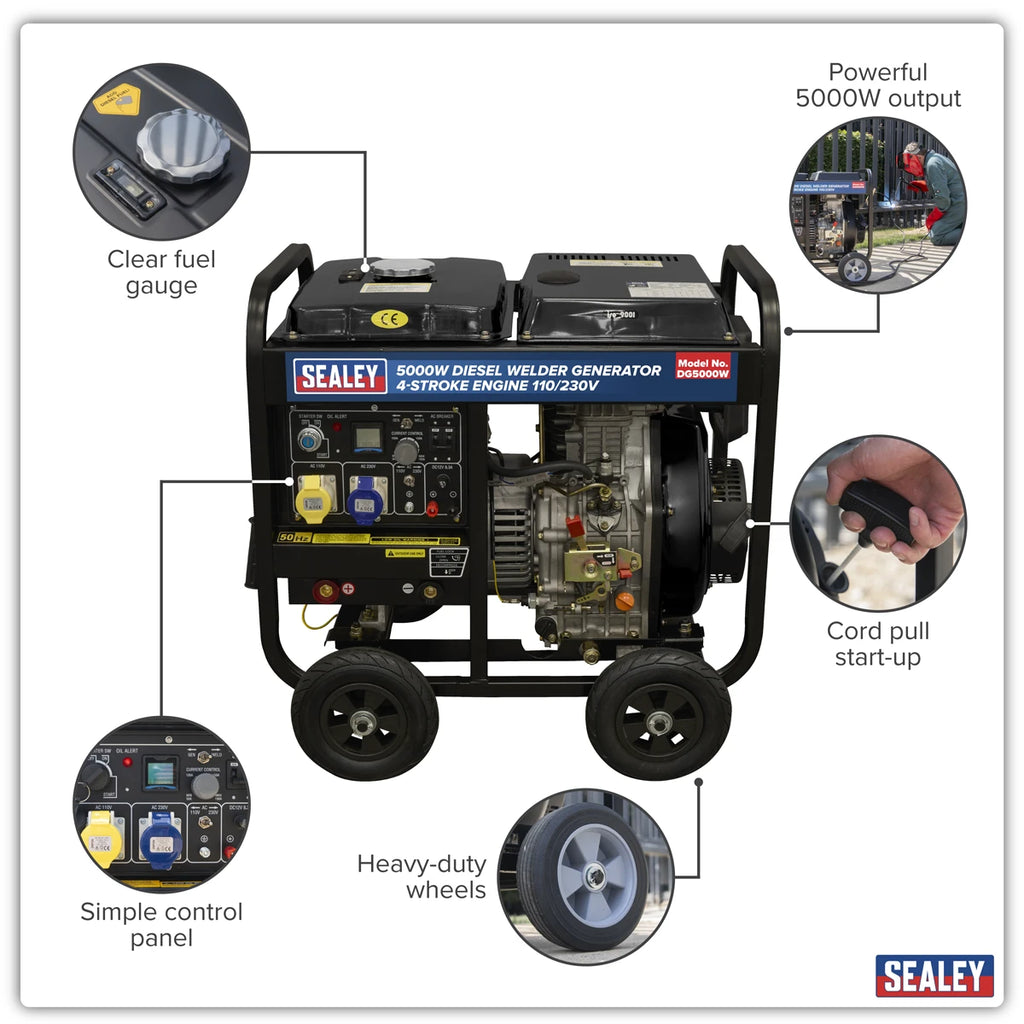

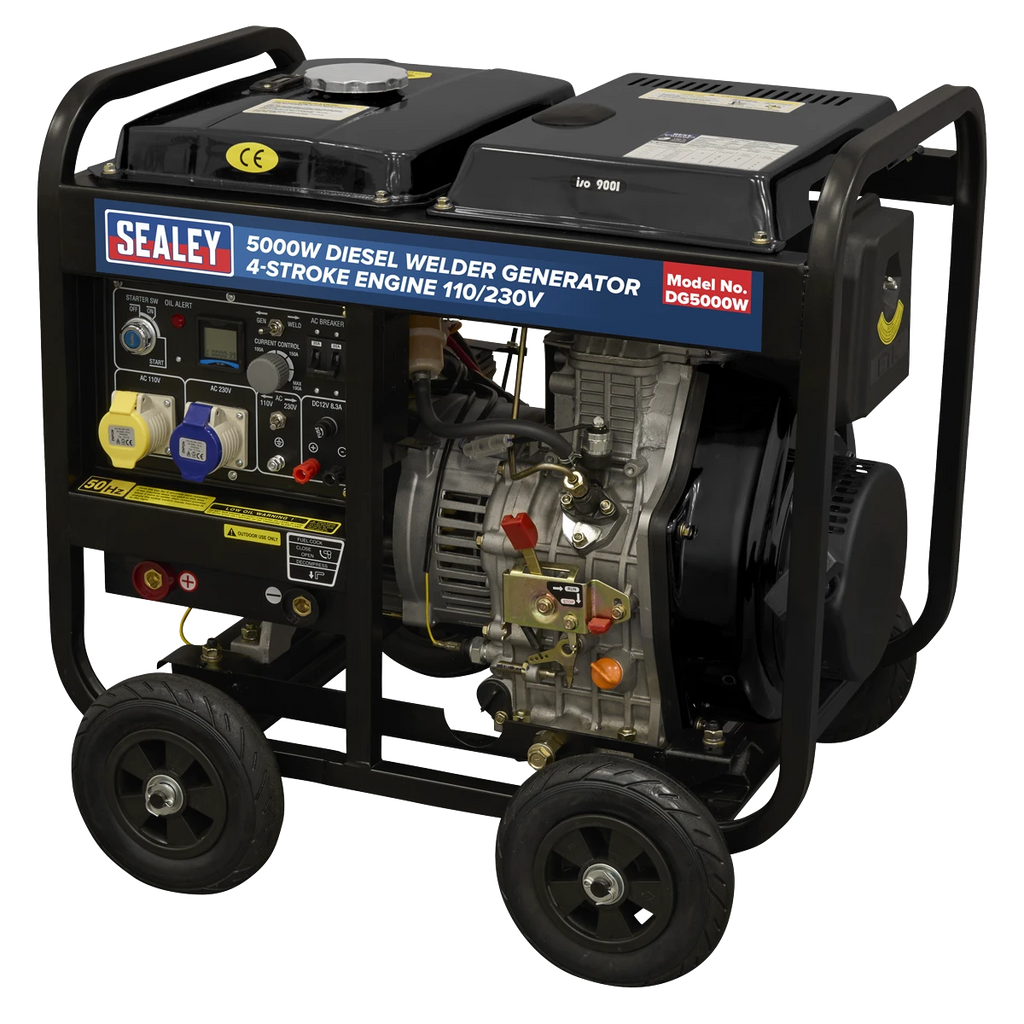

Sealey DG5000W Diesel Welder Generator 5000W 4-Stroke Engine 110/230V
Supplies both 110V and 230V AC for flexible power options on-site. Built-in electric welding capability with adjustable current ranges from 80–180A, suitable for electrodes from Ø2.5-4mm. Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5.0kW. Manual recoil start and key start function. 15L fuel tank allows extended operation without frequent refuelling. Rugged frame with two pull handles and four wheels for easy transportation around the worksite. Perfect for construction, agricultural, and industrial applications. Supplied with two keys, 2.8m electrode holder and 2.8m earth clamp. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

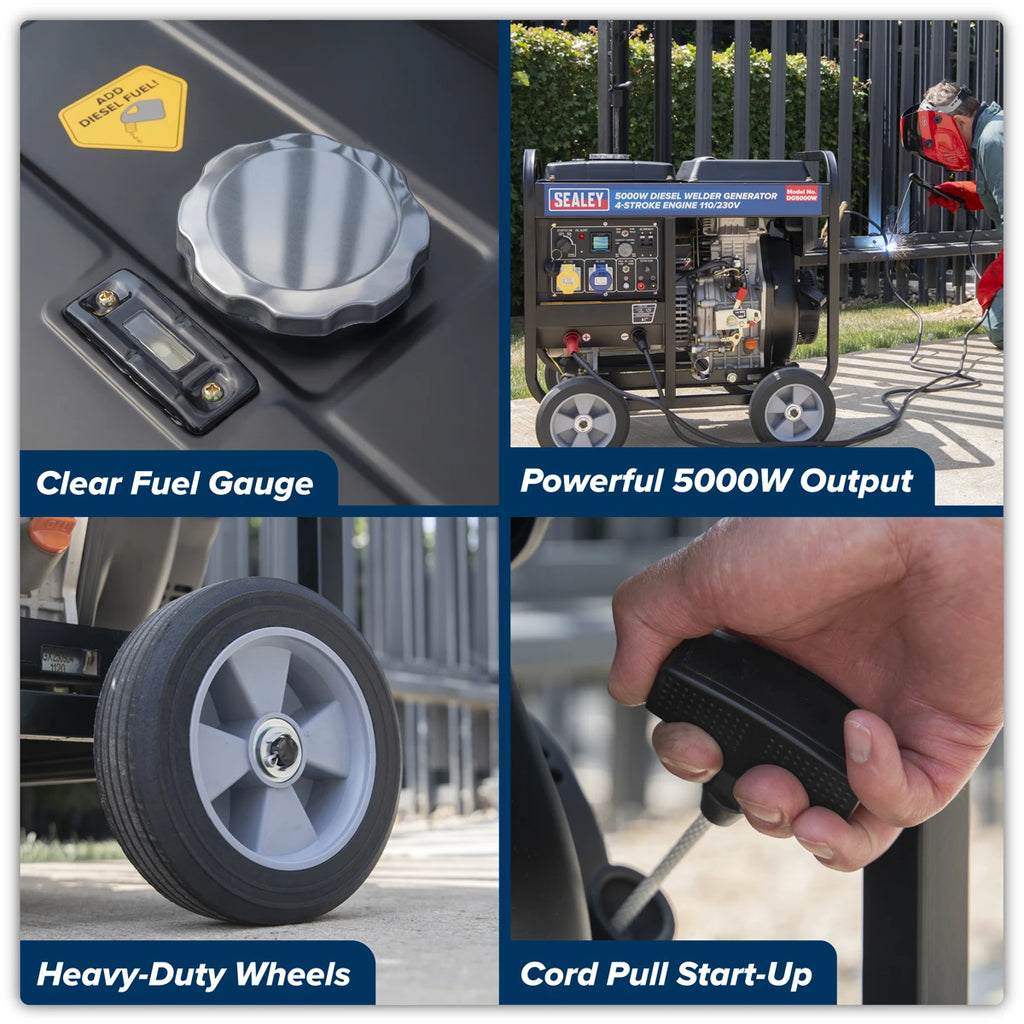

• DUAL VOLTAGE OUTPUT – Supplies both 110V and 230V AC for flexible power options on-site.

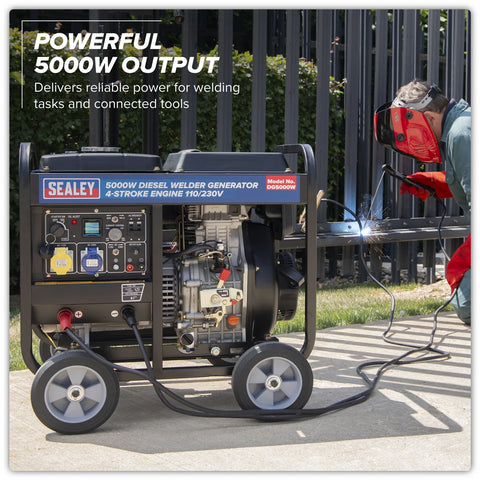

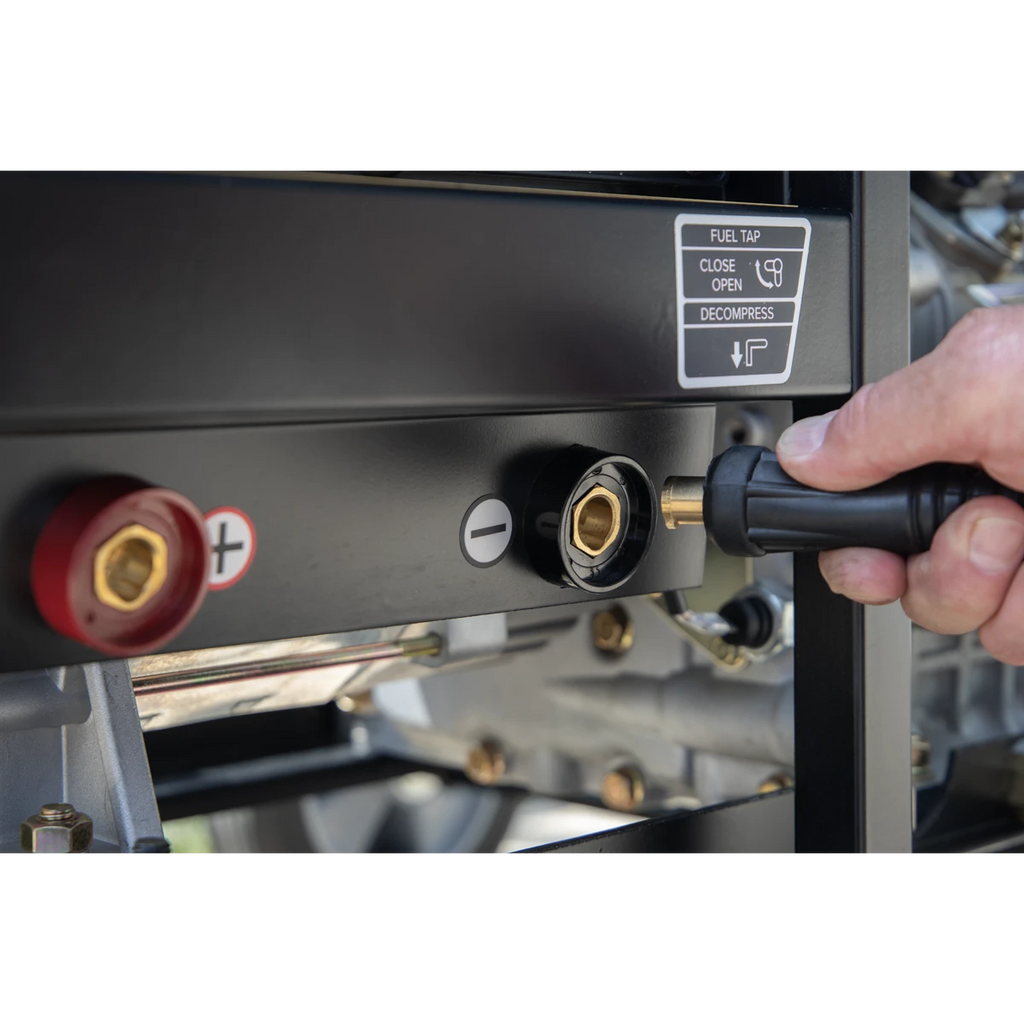

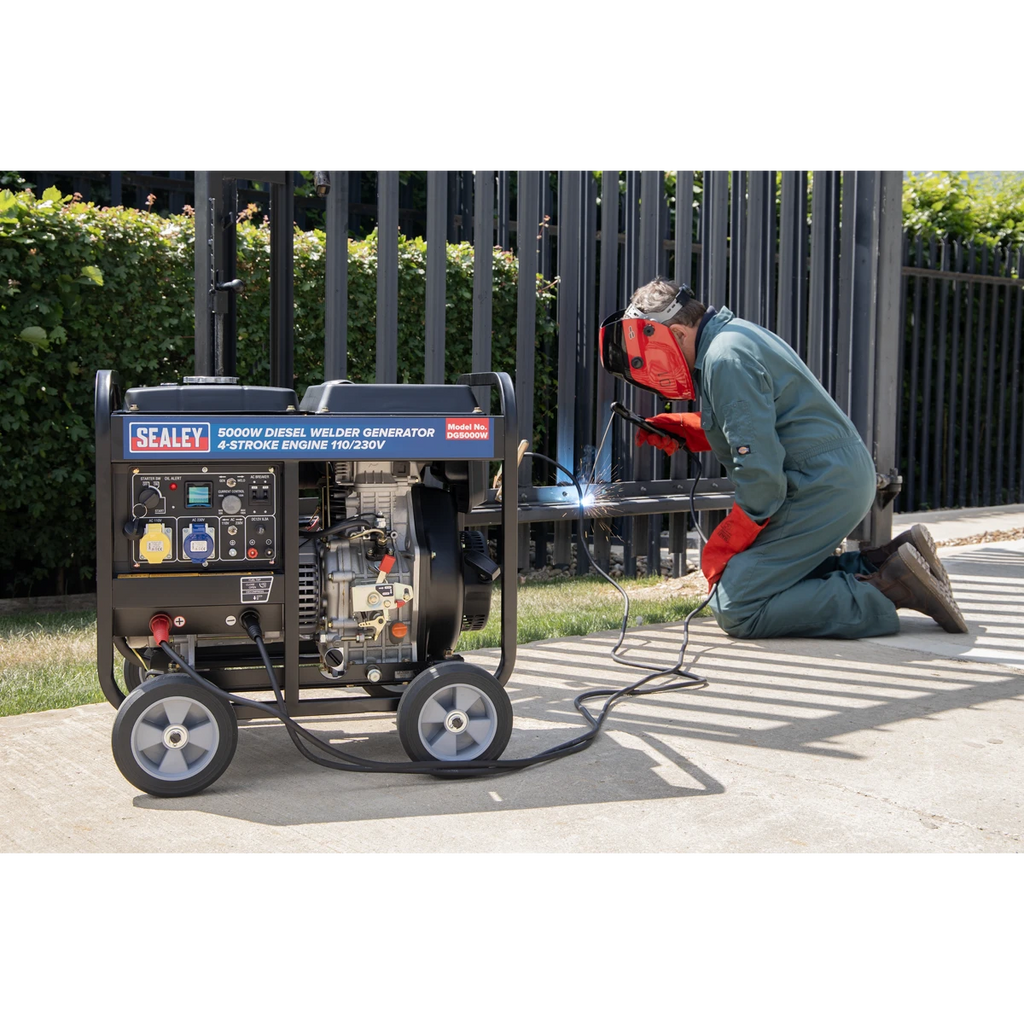

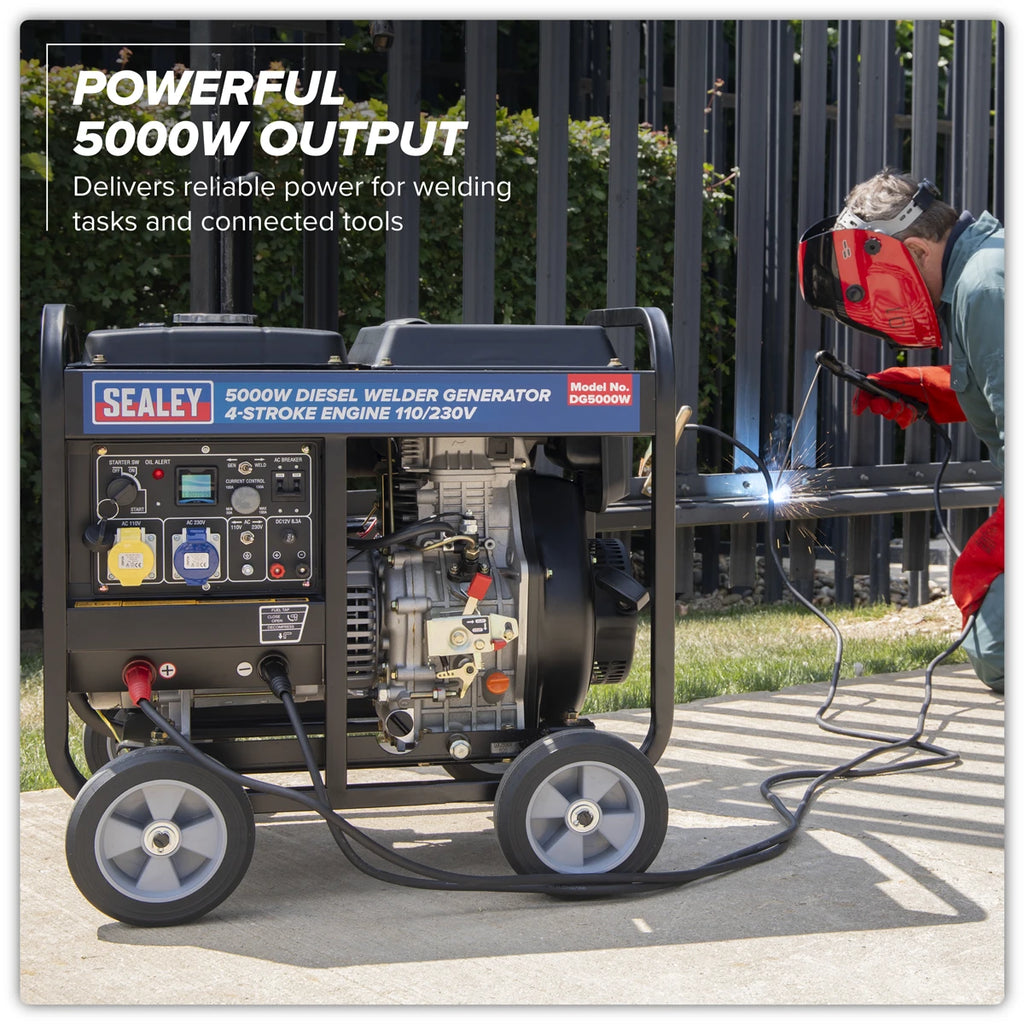

• WELDER FUNCTION – Built-in electric welding capability with adjustable current ranges from 80–180A.

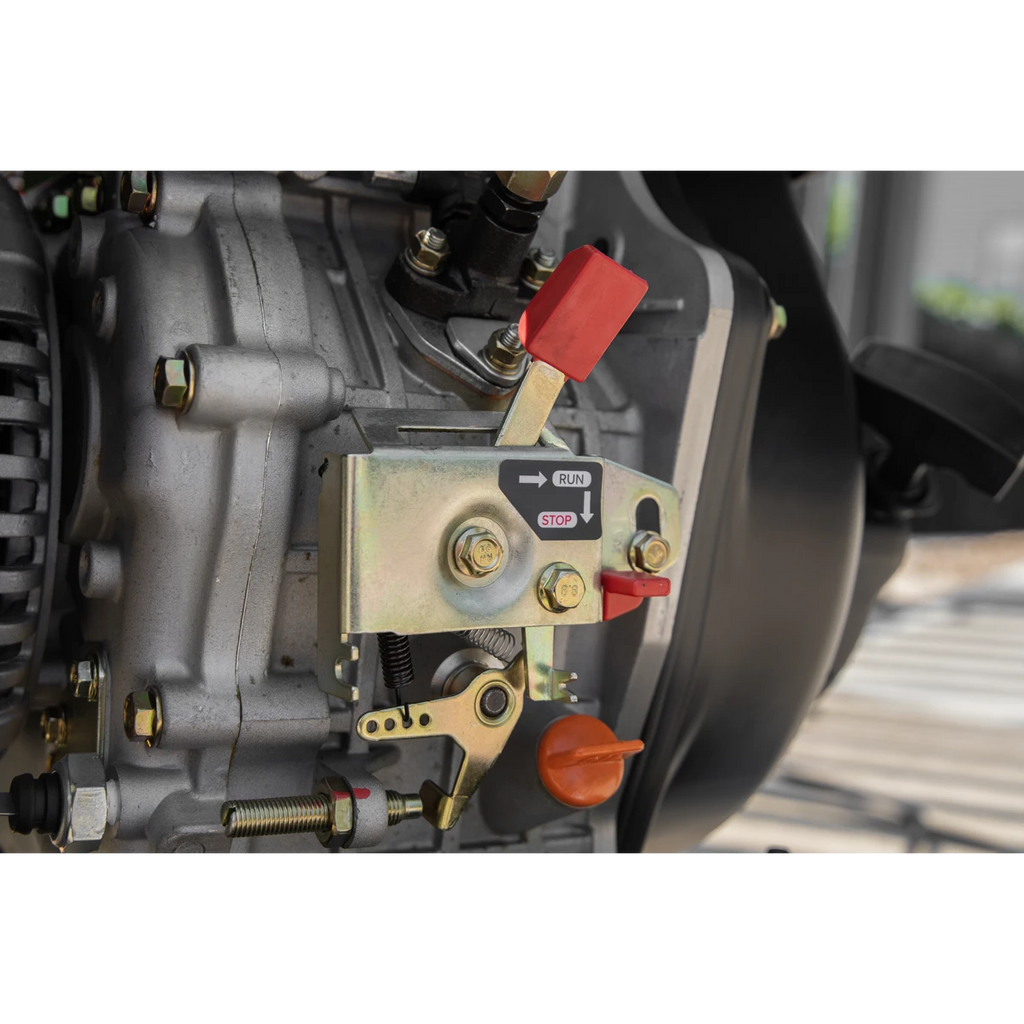

• DIESEL ENGINE POWER – Driven by a 418cc single-cylinder, 4-stroke diesel engine delivering 5kW.

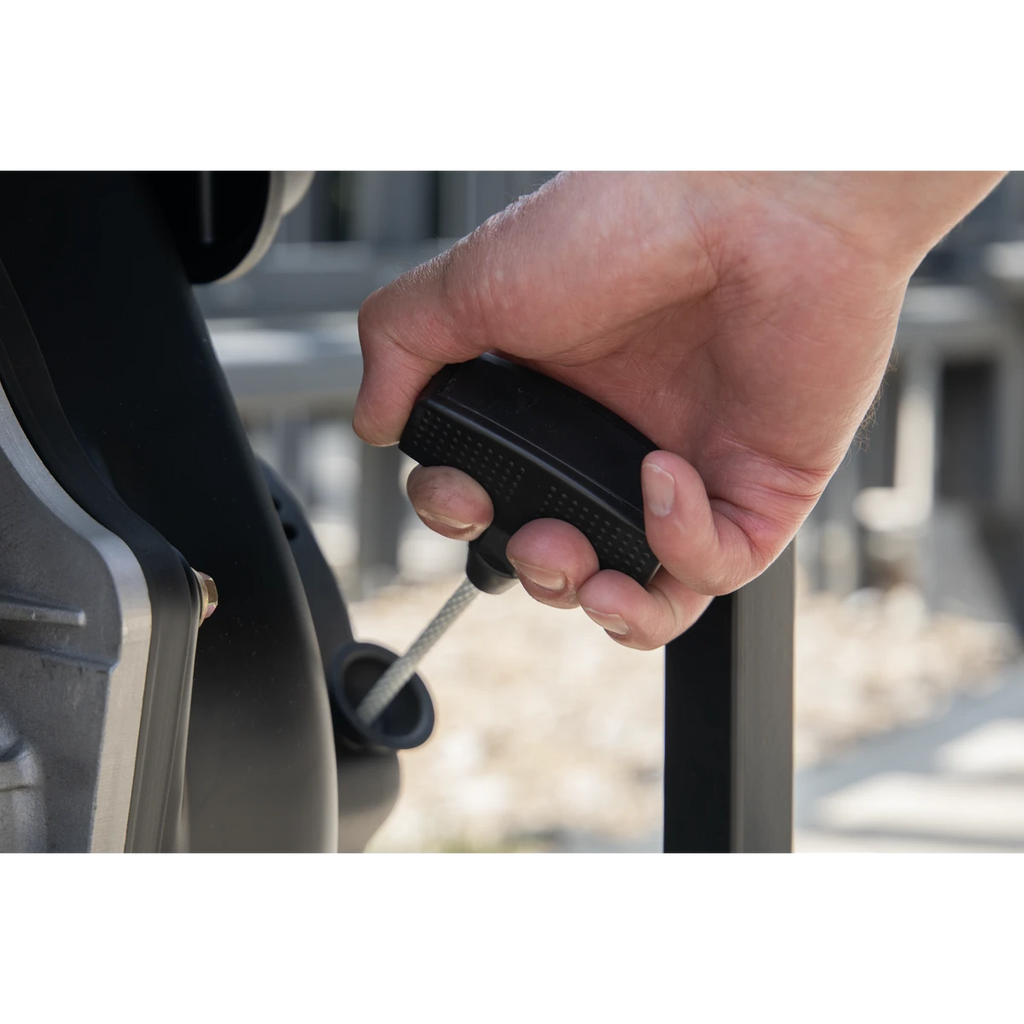

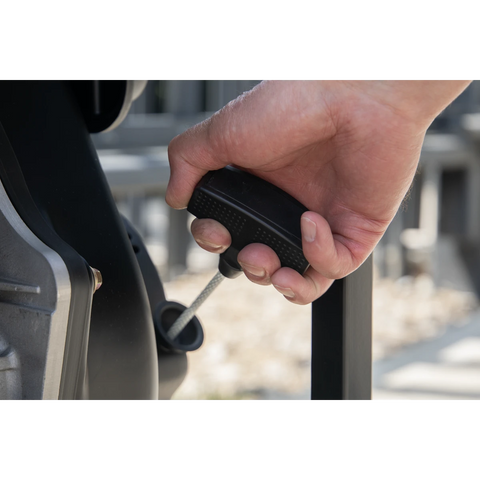

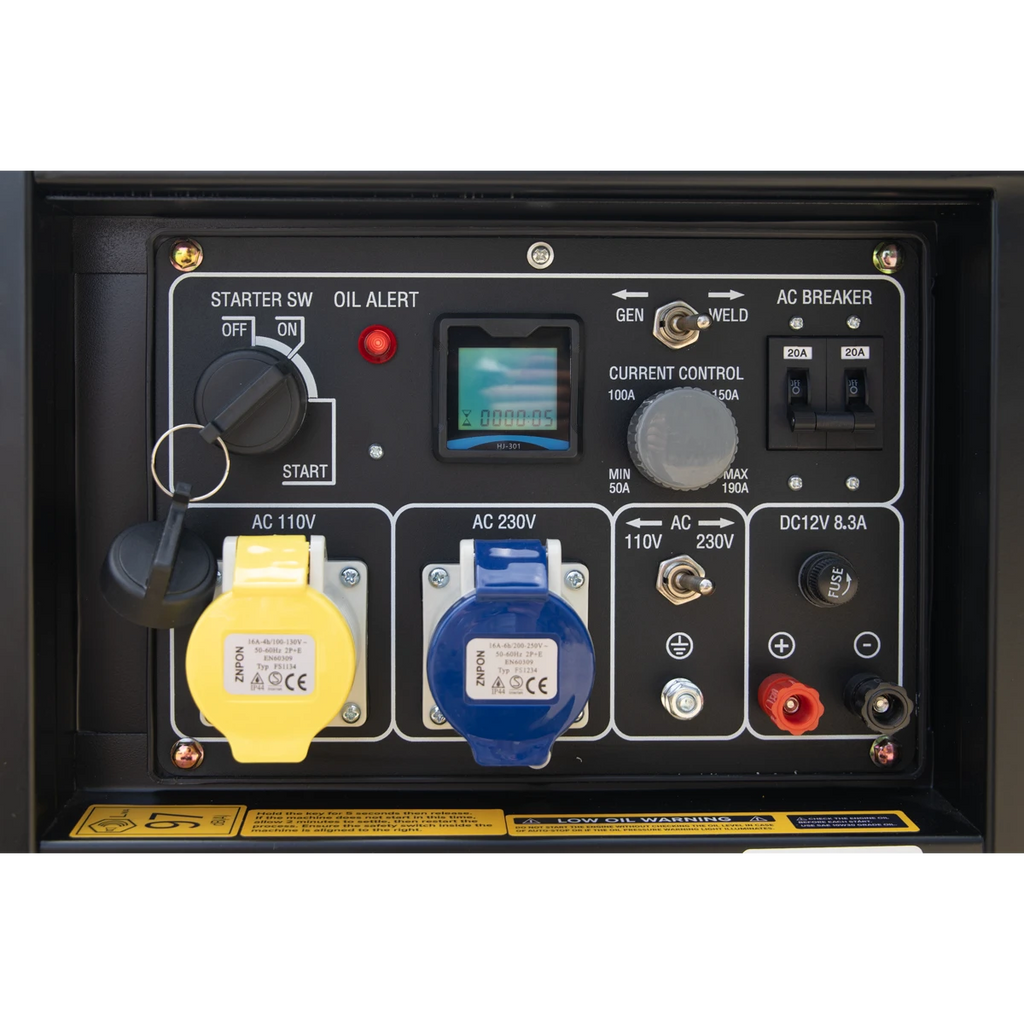

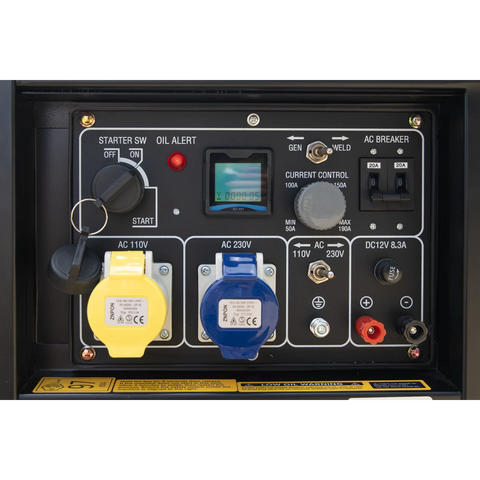

• RECOIL & KEY START – Manual recoil start, and Key Start Function.

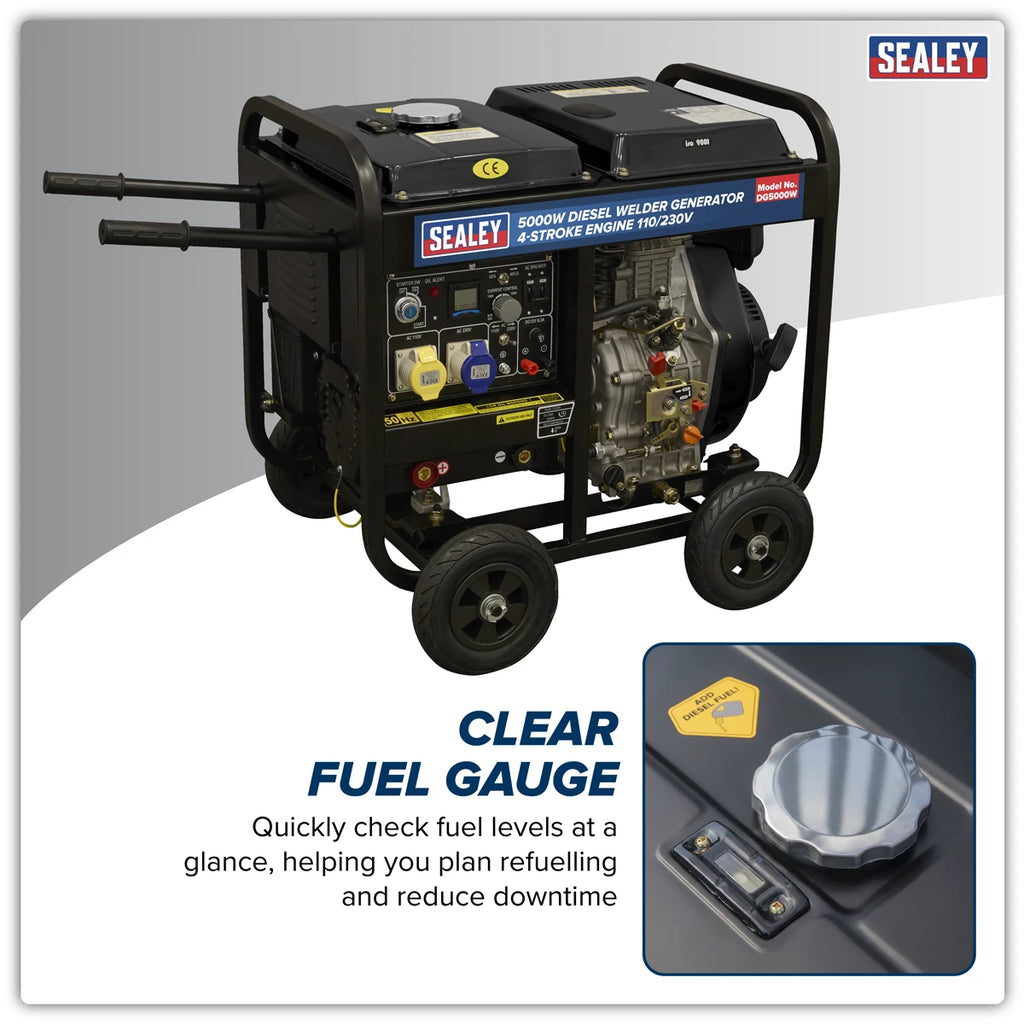

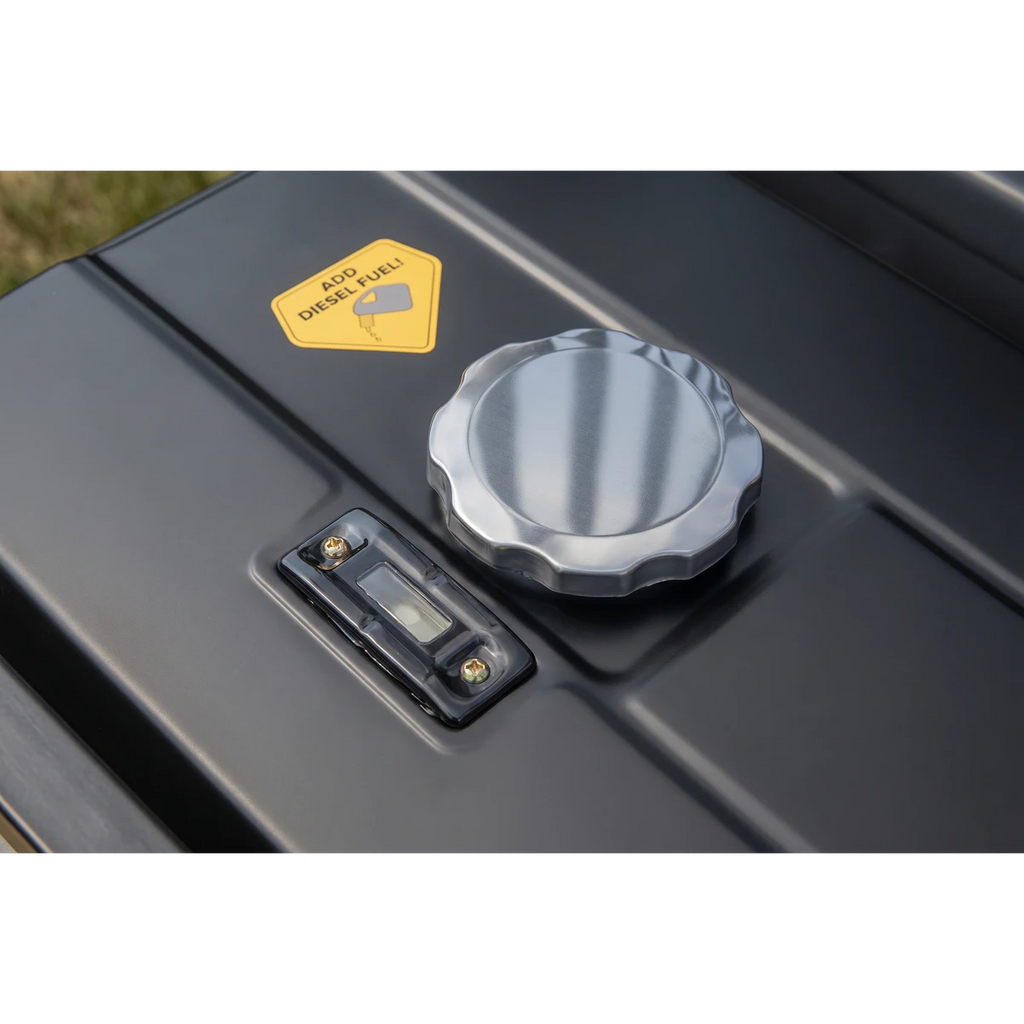

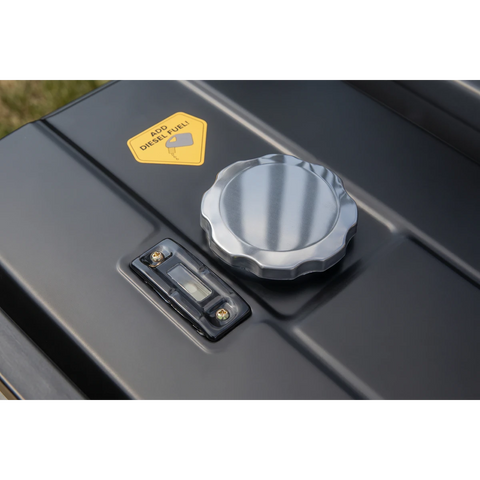

• LARGE FUEL TANK – 15L capacity allows extended operation without frequent refuelling.
• WELDING CAPACITY – Rated for 80–180A welding current and suitable for electrodes from Ø2.5-4mm.

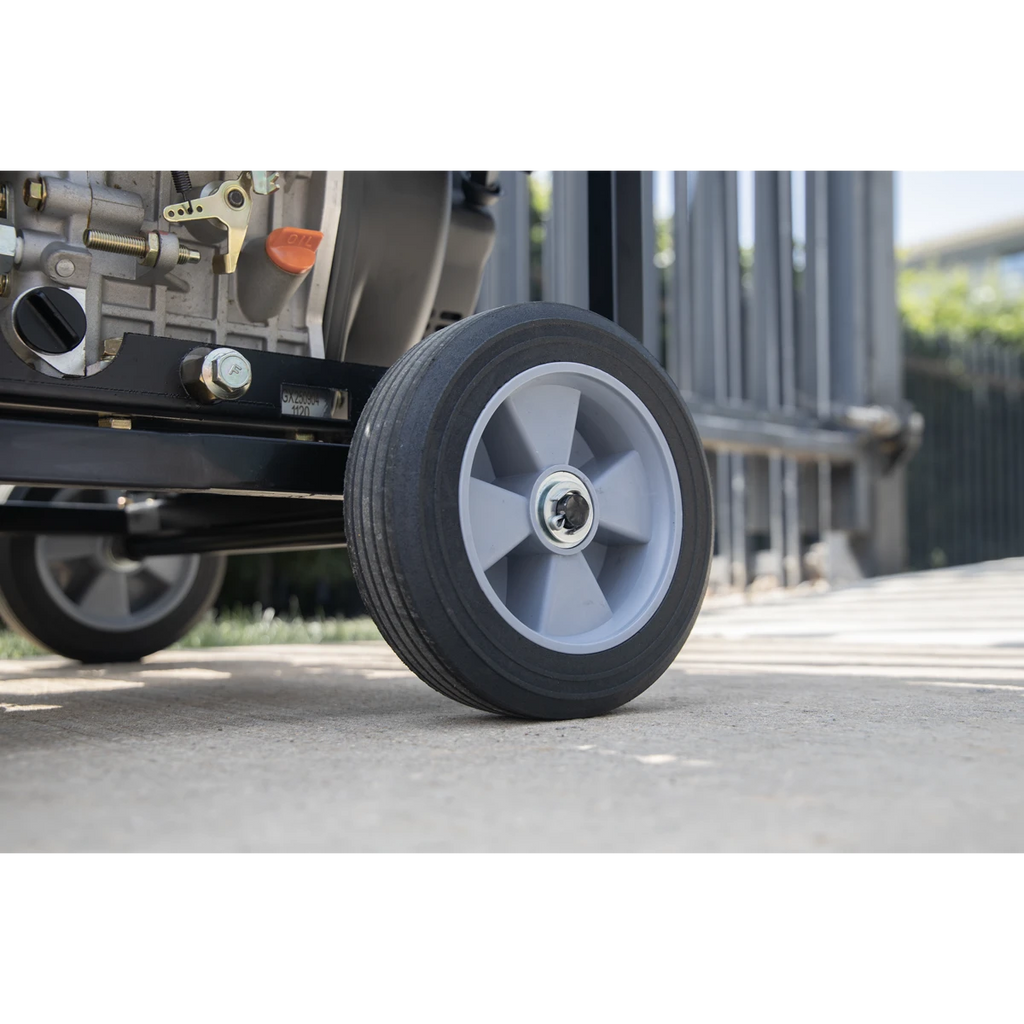

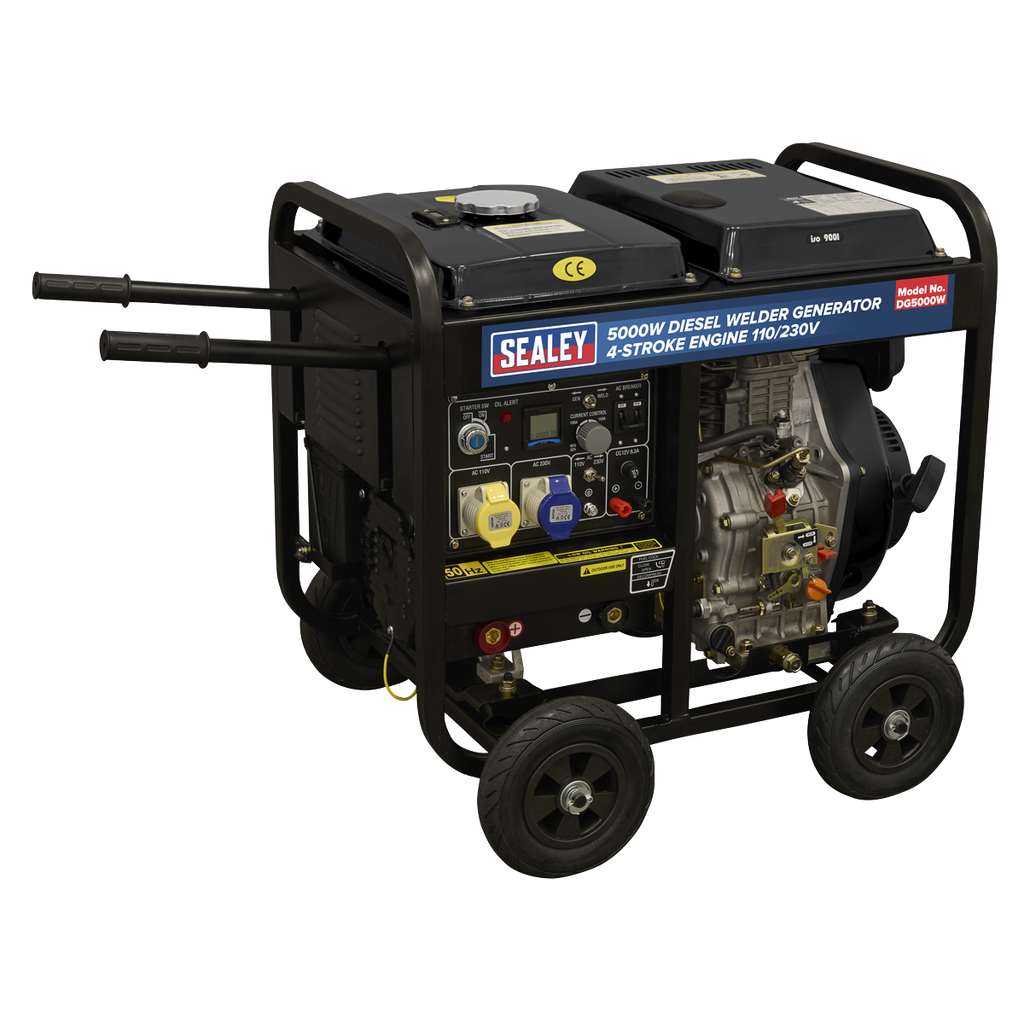

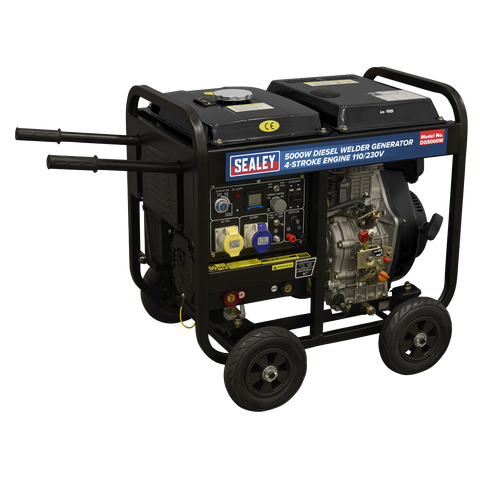

• COMPACT & PORTABLE – Rugged frame with two pull handles and four wheels for easy transportation around the worksite.
• IDEAL FOR REMOTE WORK – Perfect for construction, agricultural, and industrial applications.

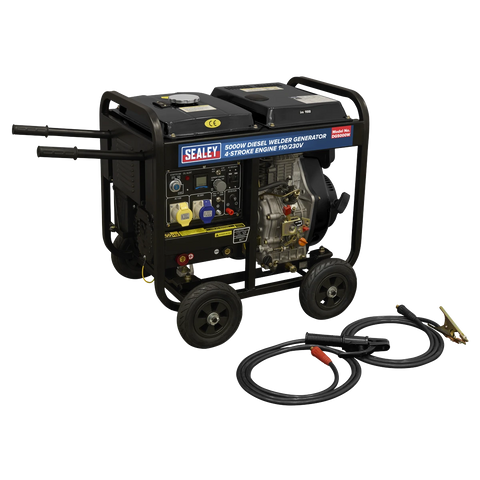

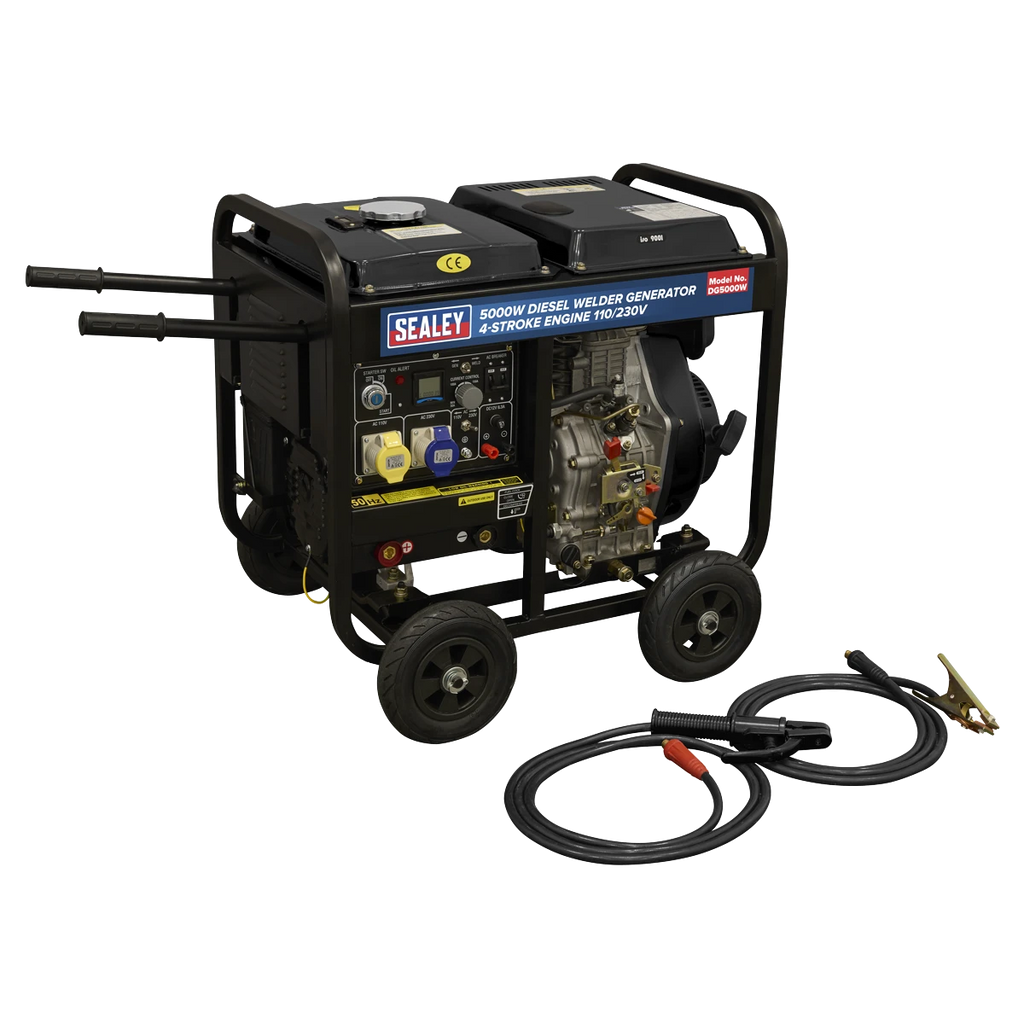

• SUPPLIED WITH – Two keys, 2.8m electrode holder and 2.8m earth clamp.
• HEAVY ITEM - This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

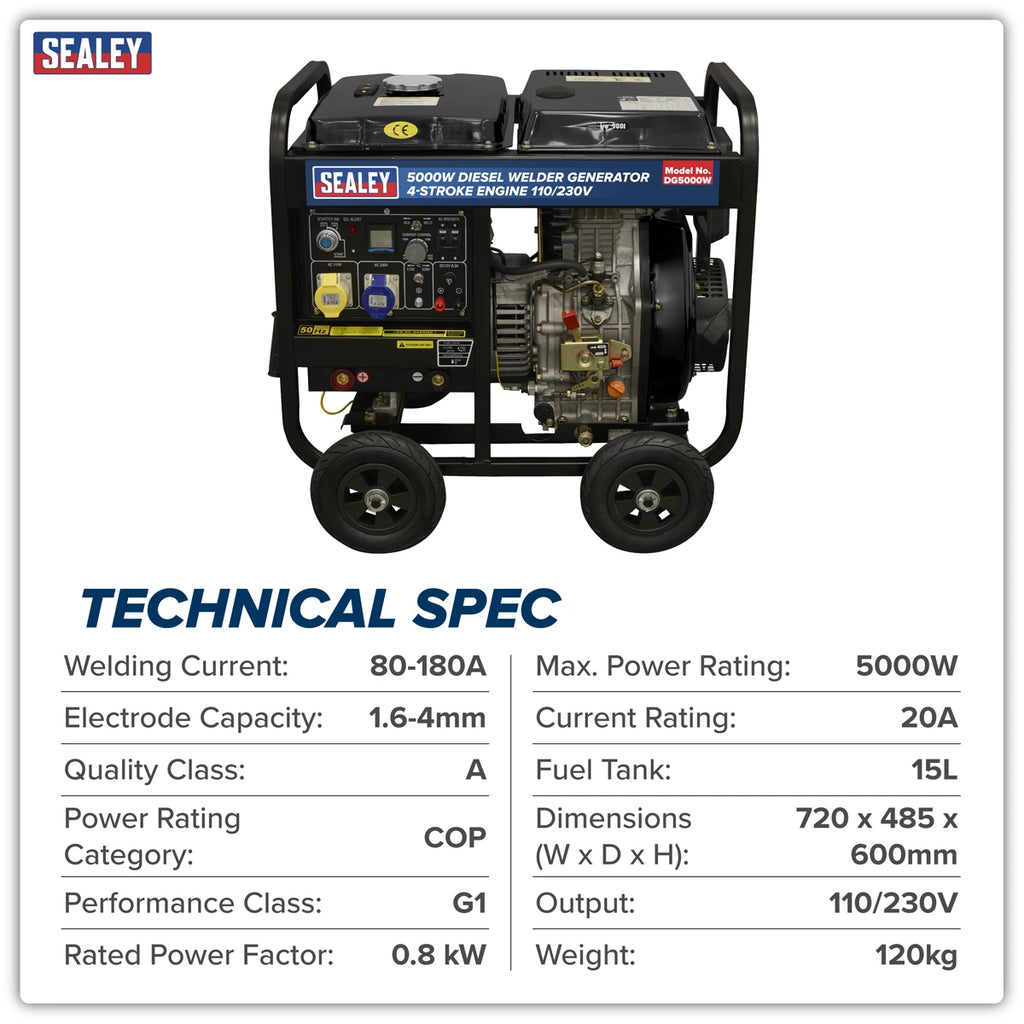

Technical Data
| Welding Current: | 80-180A |
| Electrode Capacity: | 1.6-4mm |
| Quality Class | A |
| Power Rating Category | COP |
| Performance Class | G1 |
| Rated Power Factor | (COS ∮) 0.8 kW |
|
Continuous Power Rating:
|
4600w
|
|
Current Rating:
|
20A
|
|
Dimensions (W x D x H):
|
720 x 485 x 600mm
|
|
Fuel Tank:
|
15L
|
|
Fuel:
|
Diesel
|
|
IP Rating:
|
IP23
|
|
Maximum Power Rating:
|
5000W
|
|
Maximum Running Time:
|
12hrs
|
|
Motor Power:
|
5.7kw/3600rpm
|
|
Motor Type:
|
4-Stoke Diesel
|
|
Noise Rating:
|
97db(A)
|
|
Oil Capacity:
|
1.65L
|
|
Output:
|
110/230V
|
|
Nett Weight:
|
120kg
|
|
Barcode:
|
5054630662492
|
