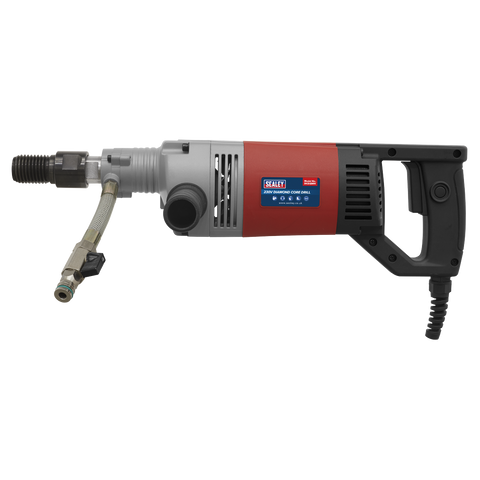

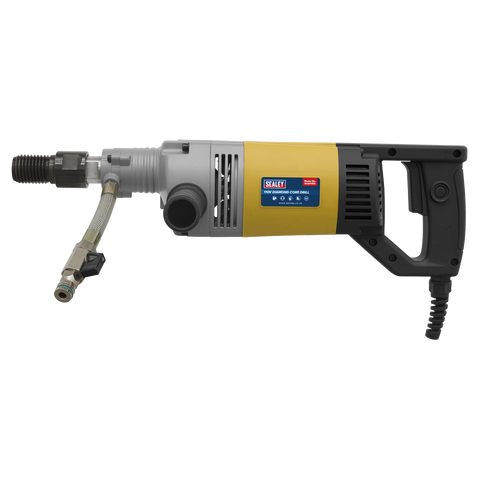

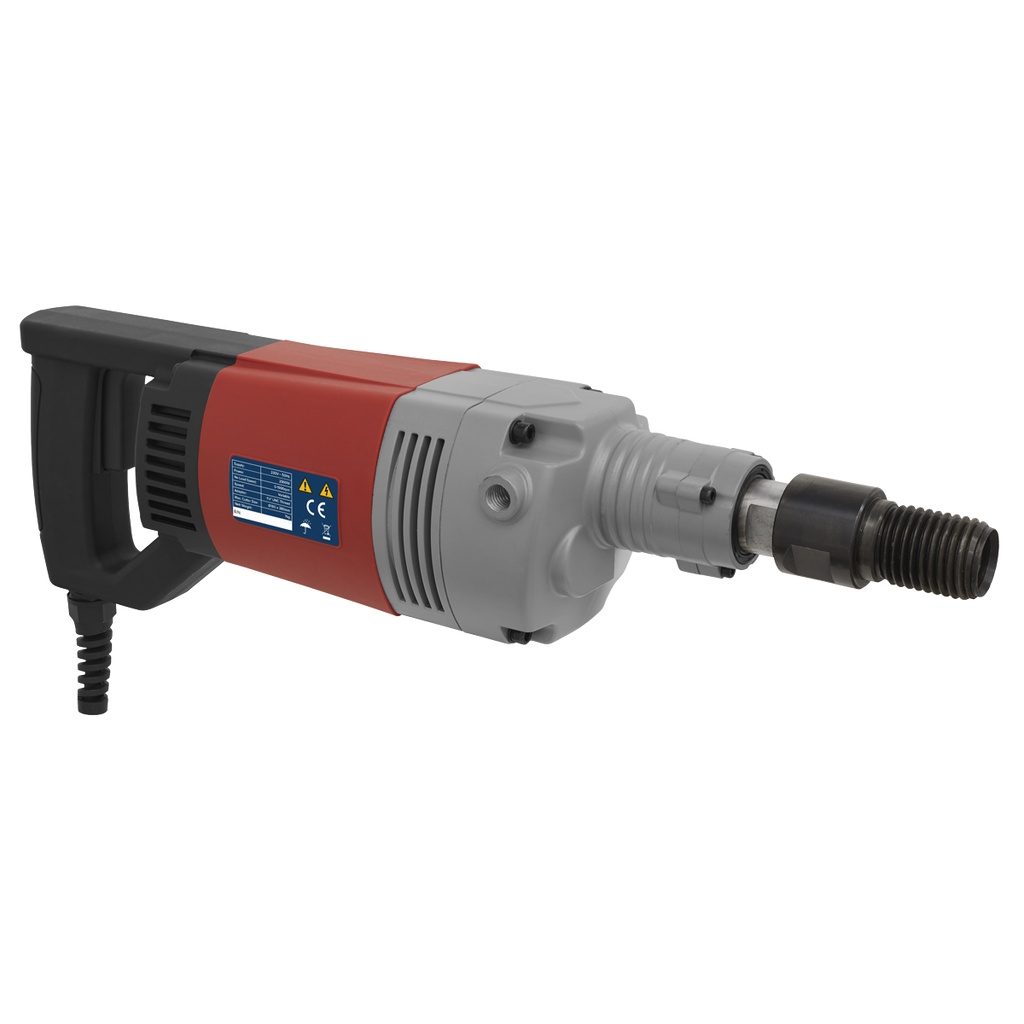

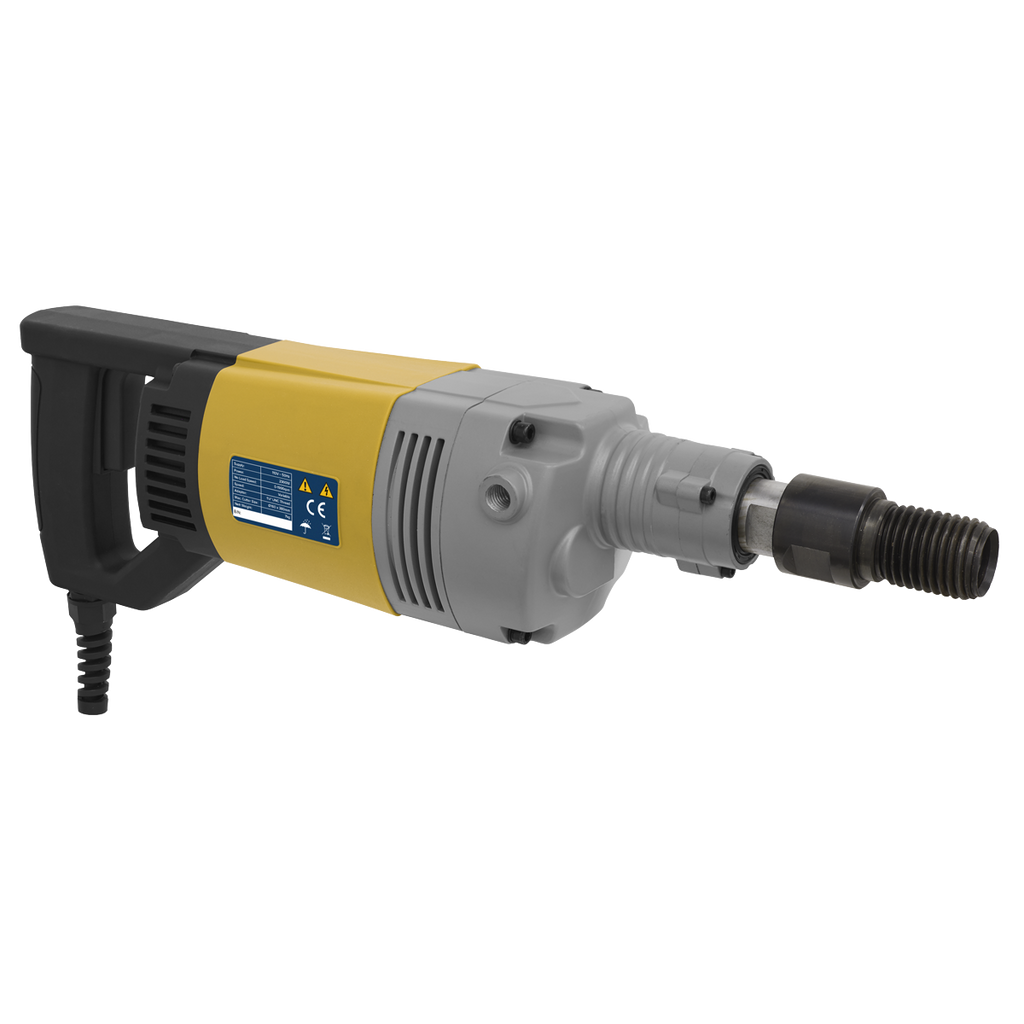

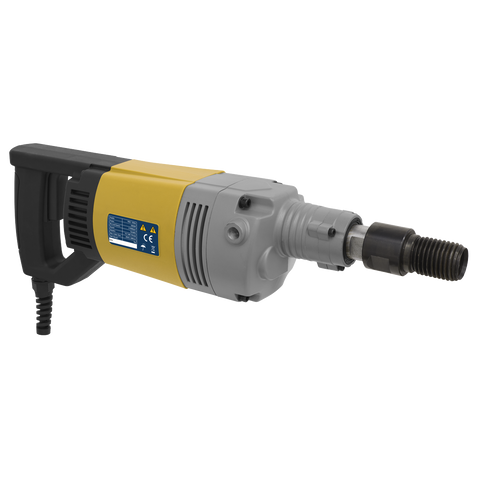

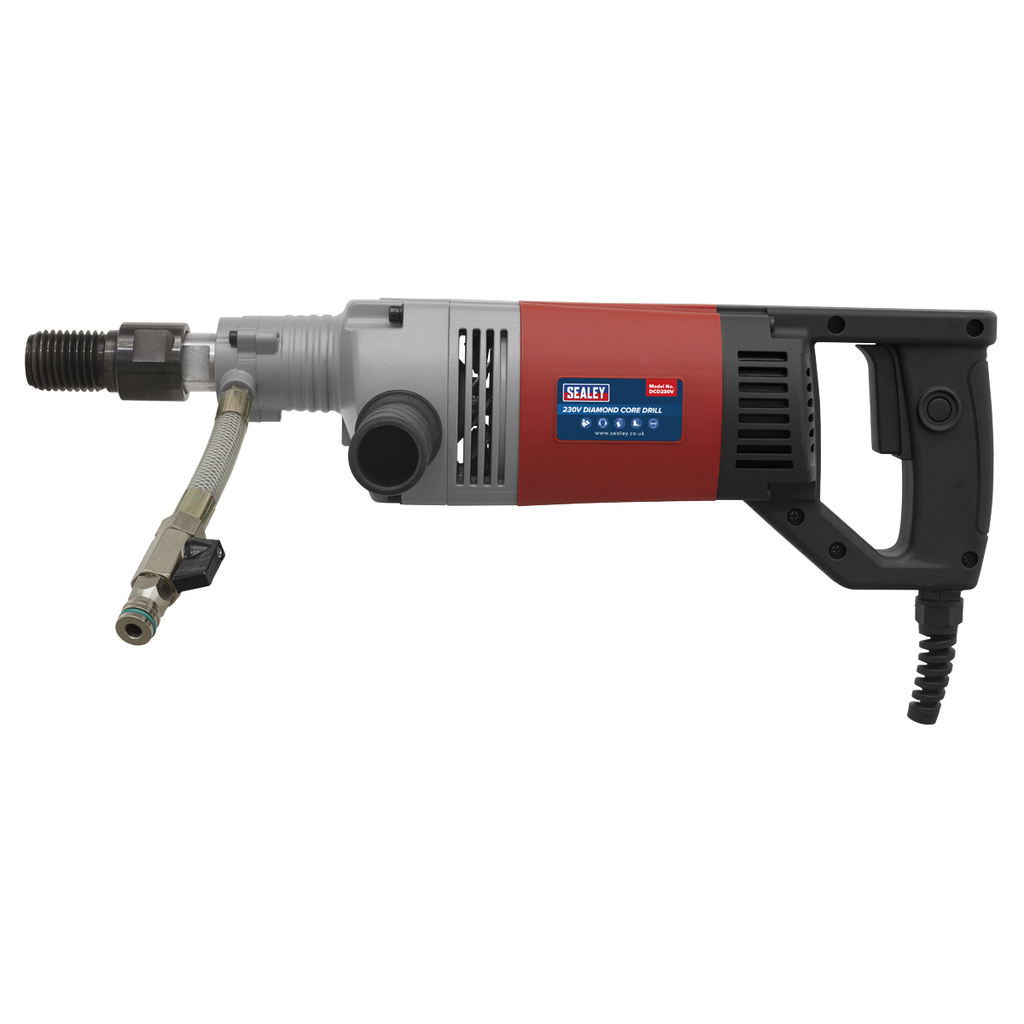

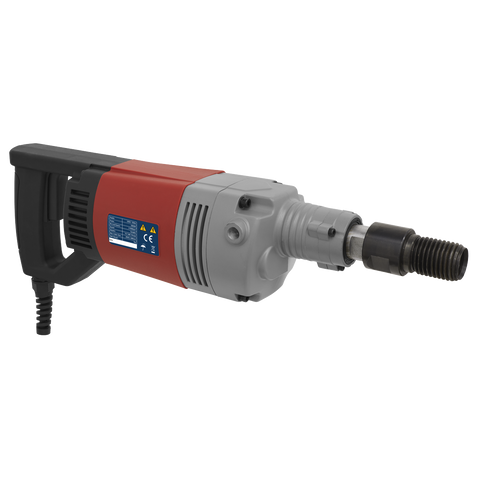

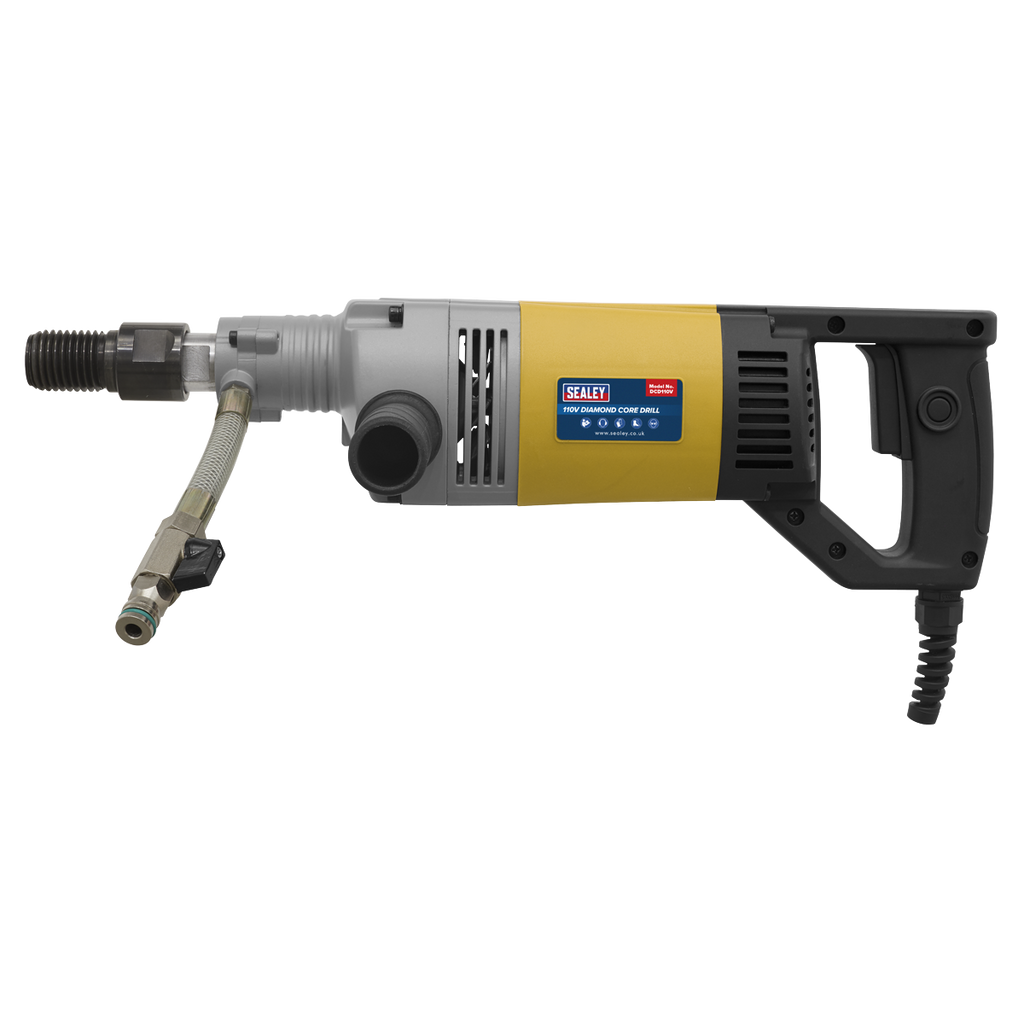

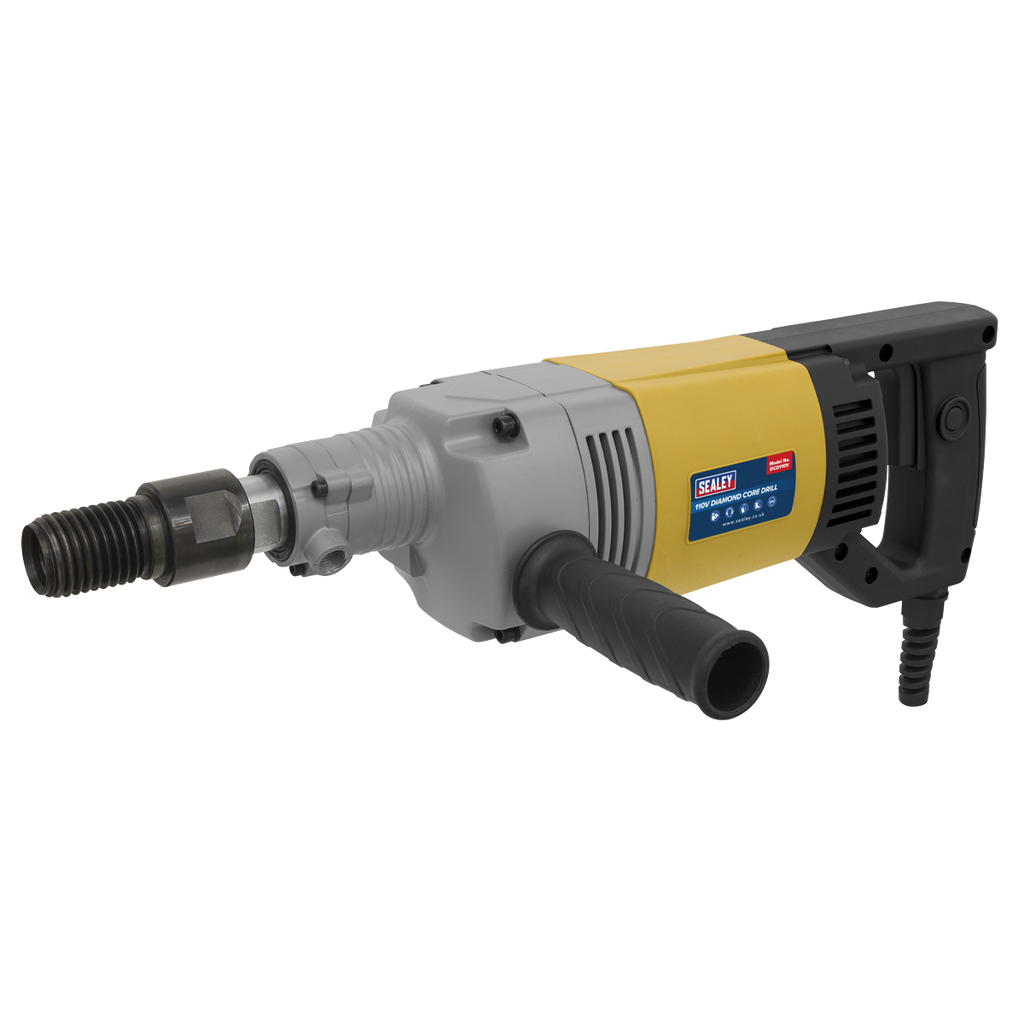

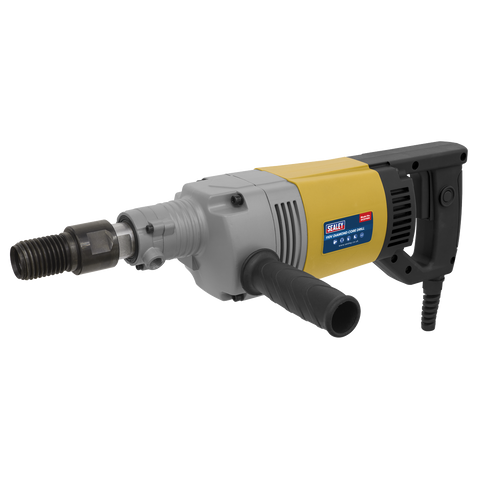

Sealey Diamond Core Drills 110V/230V
Manufactured using high quality components for performance and reliability. Lightweight and compact unit. Fitted with soft start, variable speed and overload protection. Designed for use in construction and other applications when working with masonry and concrete. Supplied with adaptor, water cooling kit and side handles. Can be used independently or with optional Model No. DCDST Diamond Core Drill Stand.
Features
- Manufactured using high quality components for performance and reliability
- Lightweight and compact unit
- Fitted with soft start, variable speed and overload protection
- Designed for use in construction and other applications when working with masonry and concrete

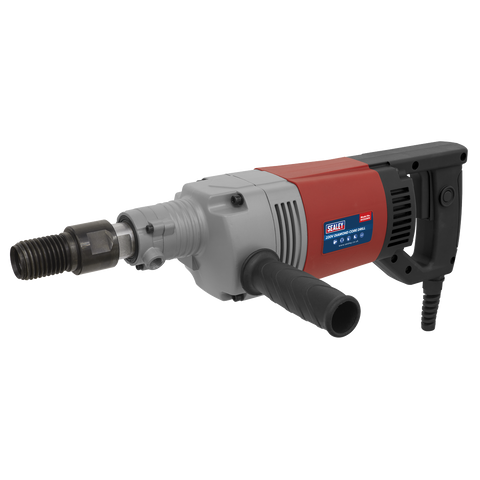

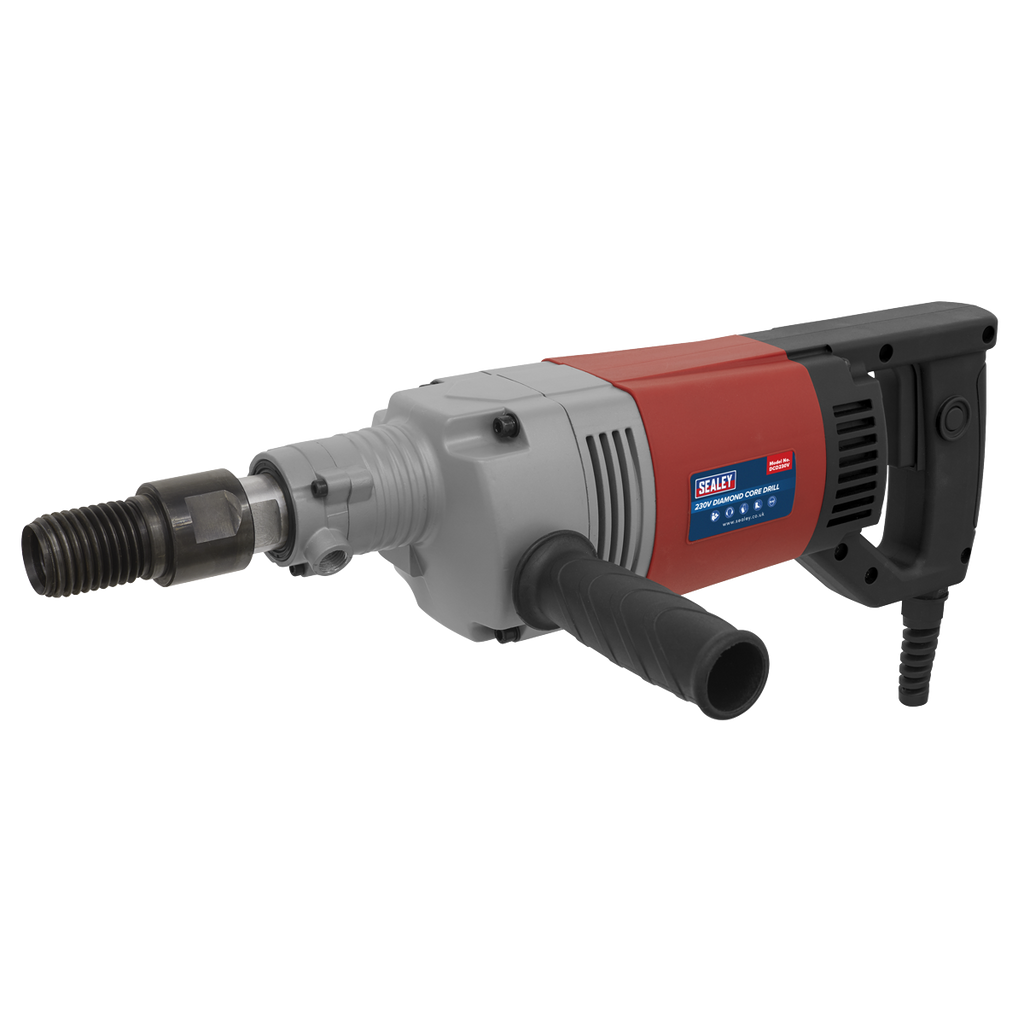

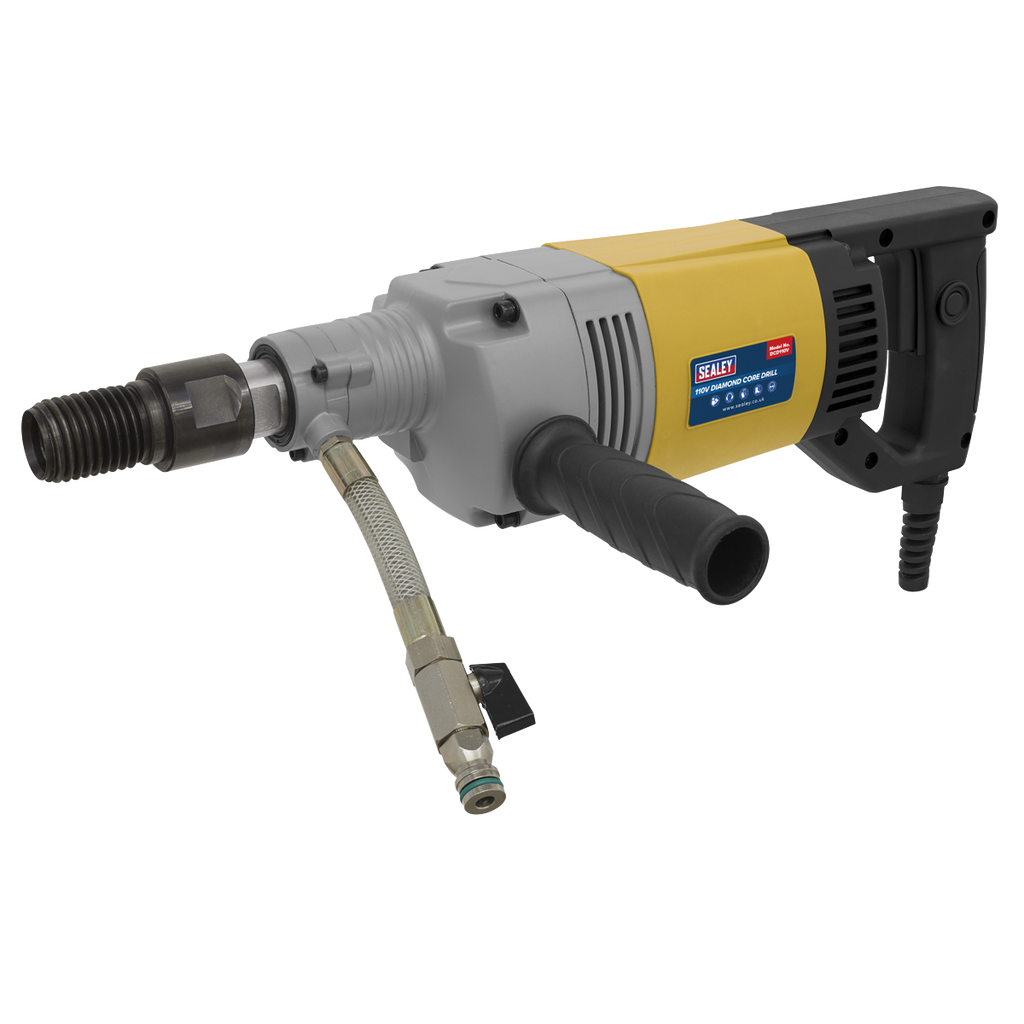

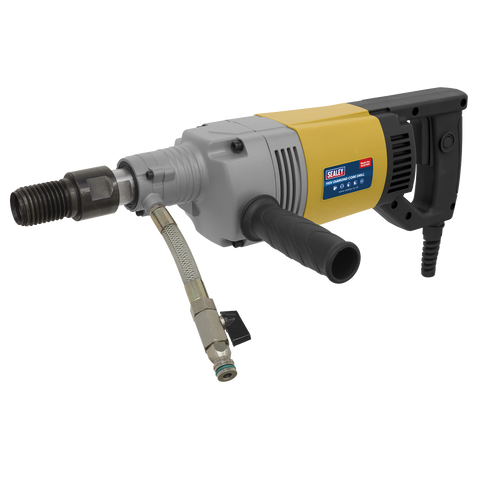

- Supplied with adaptor, water cooling kit and side handles

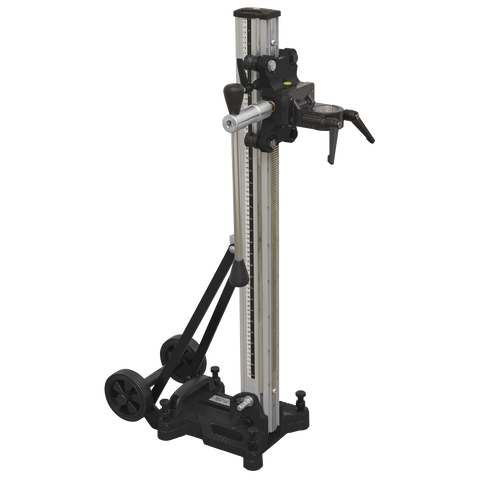

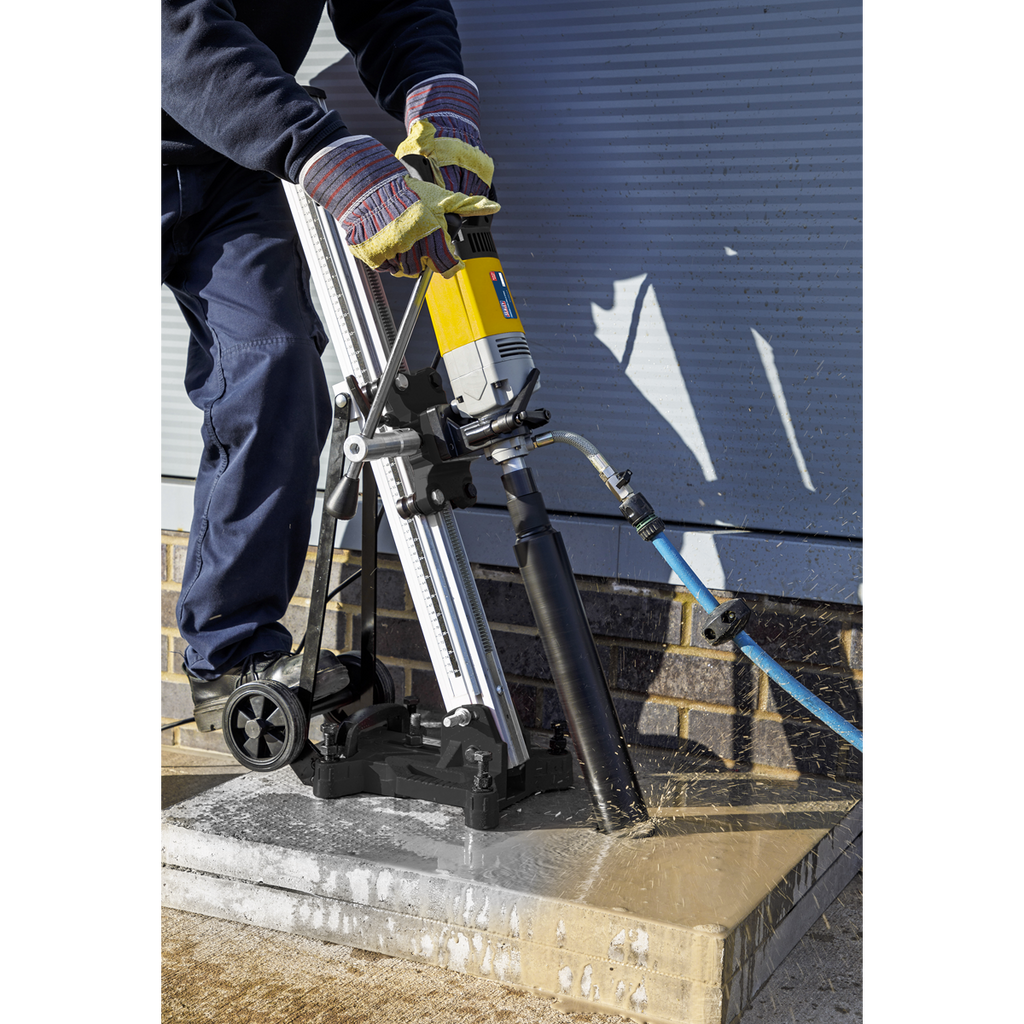

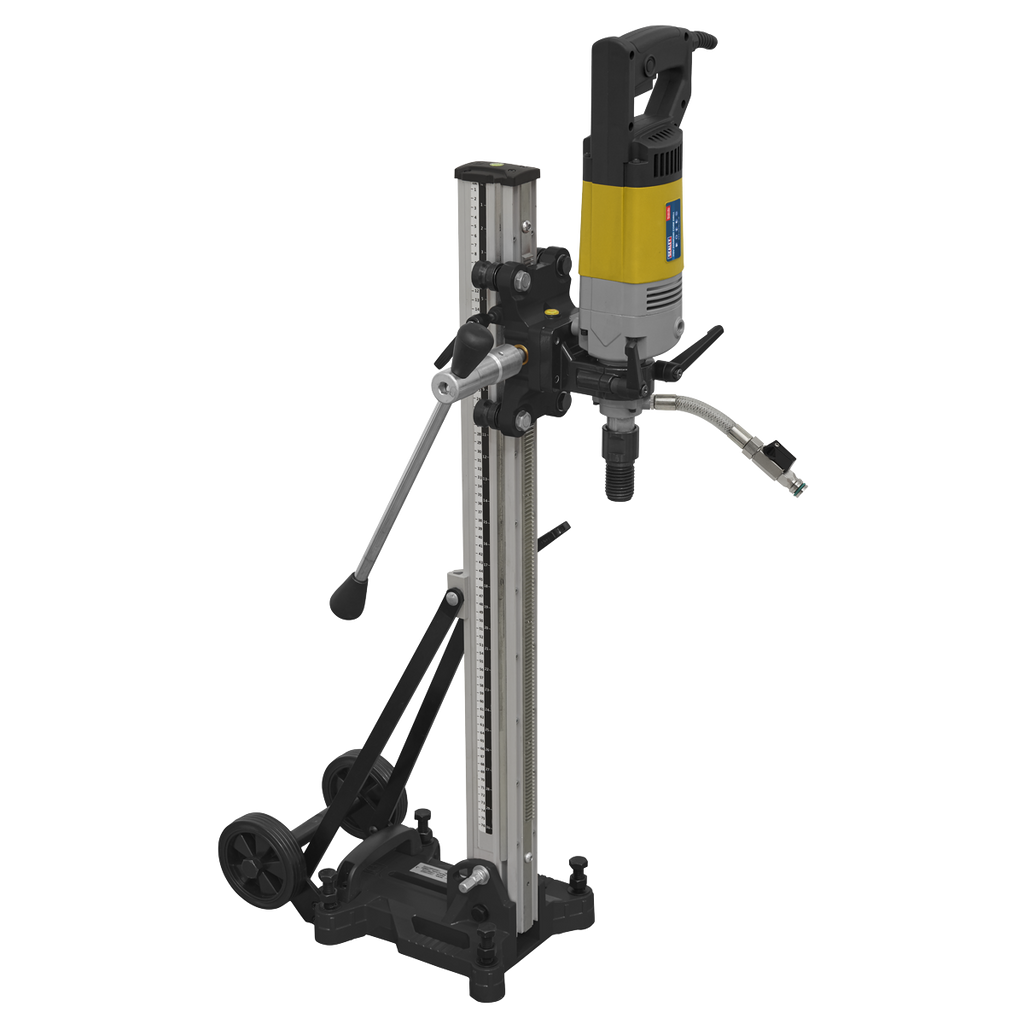

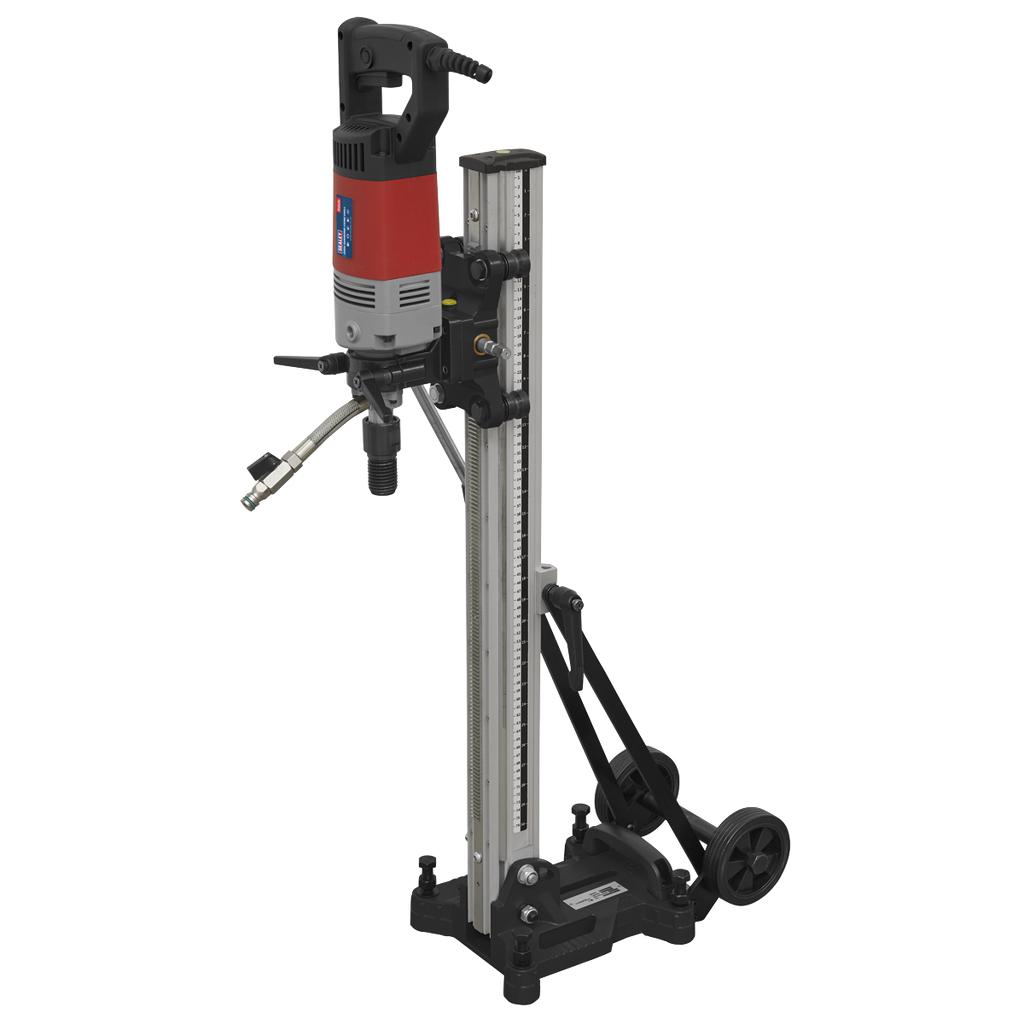

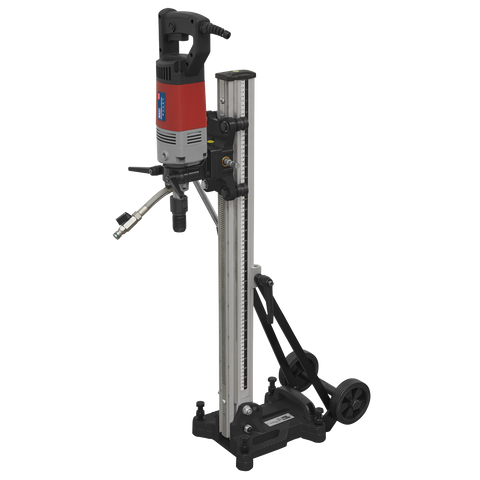

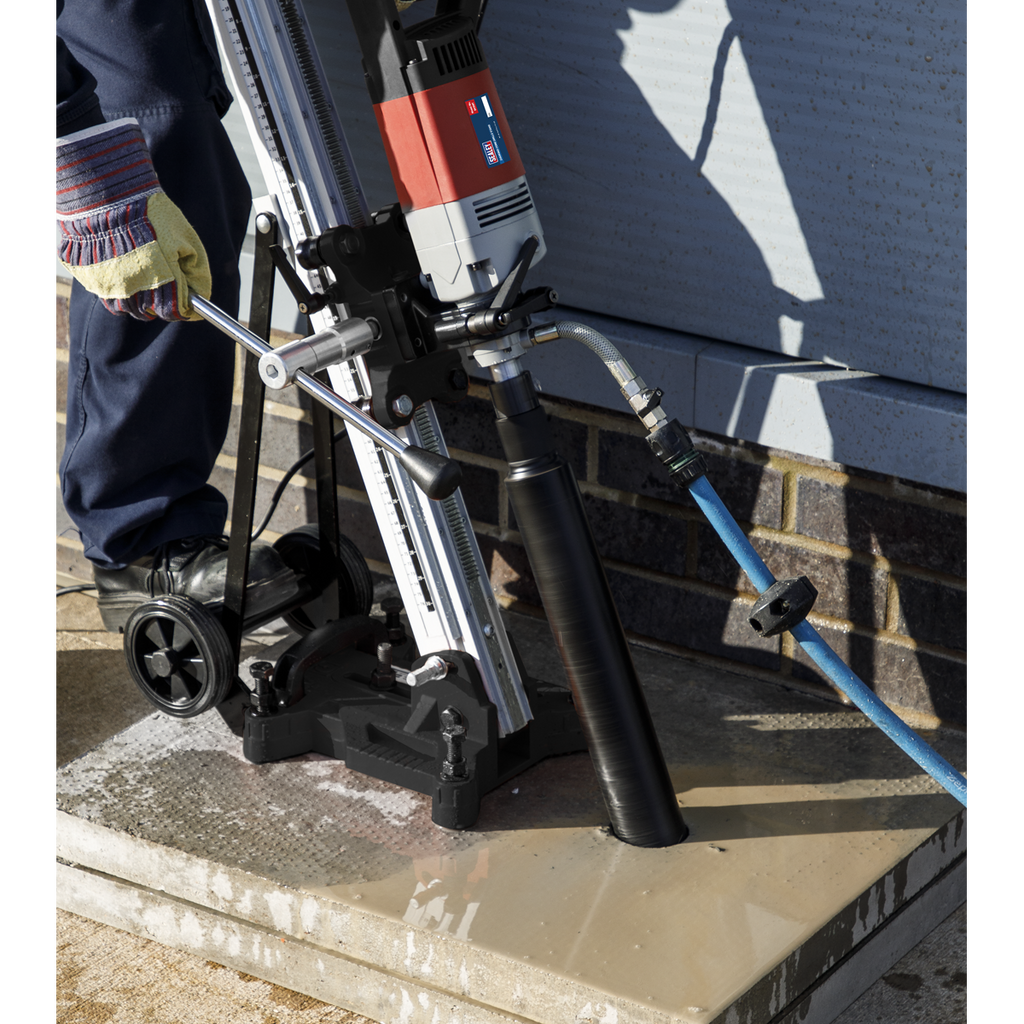

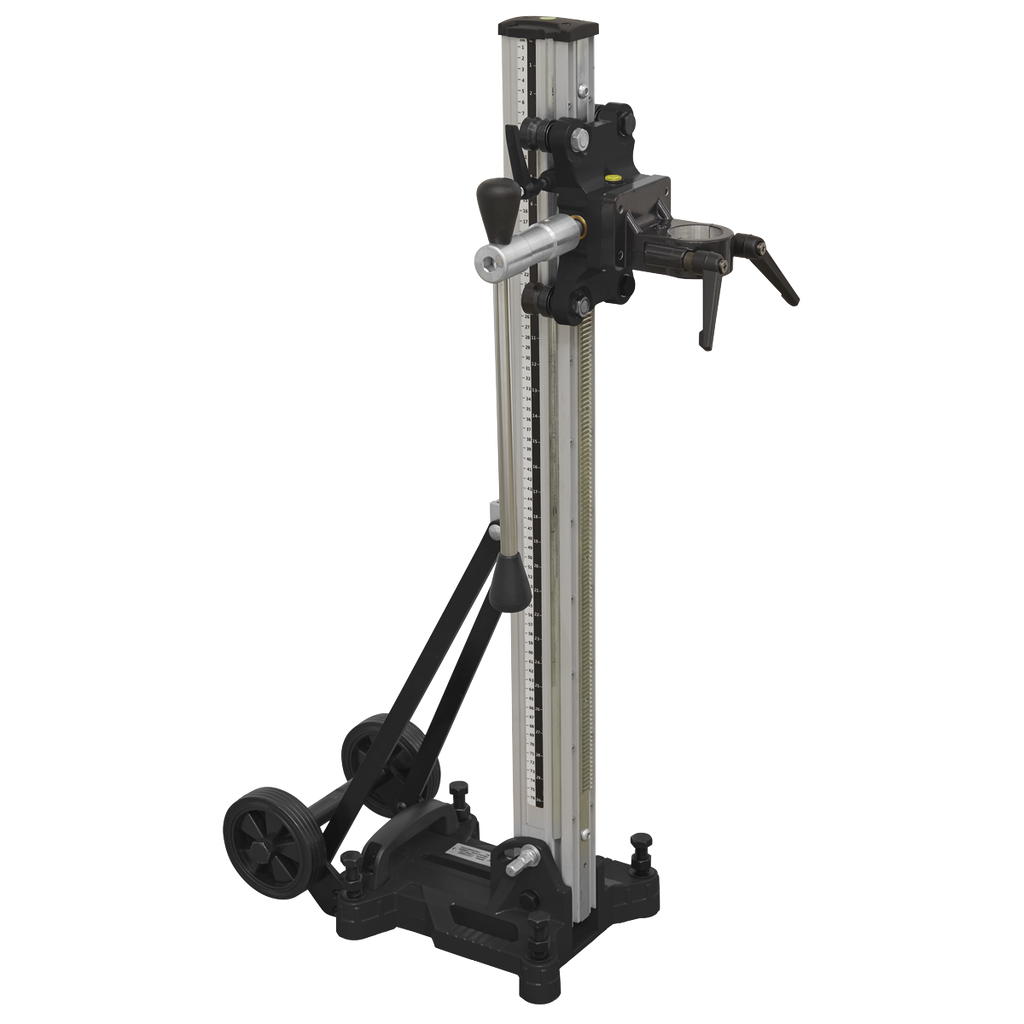

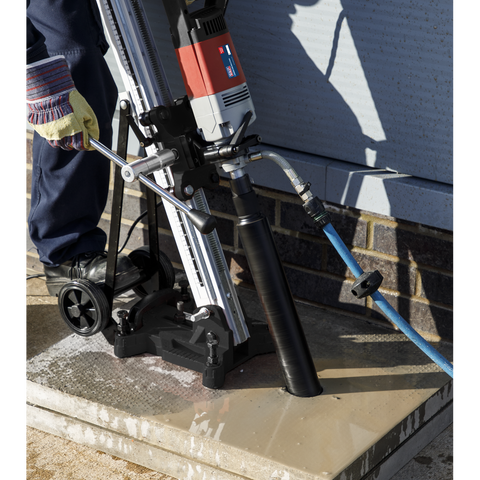

- Can be used independently or with optional Model No. DCDST Diamond Core Drill Stand
| Specification | 110V | 230V |
| Masonry Drilling Range: | Ø18-160mm | 18-160mm |
| Concrete Drilling Range: | Ø18-130mm | 18-130mm |
| Power Supply: | 110V - 50Hz | 230V - 50Hz |
| Motor Power: | 2300W | 2300W |
| No Load Speed: | 0 - 1900rpm | 0 - 1900rpm |
| Borehole Depth: | 380mm | 380mm |
| Maximum Cutter Size: | Ø160 x 380mm | Ø160 x 380mm |
| Adaptor: | 1-1/4"UNC Thread | 1-1/4"UNC Thread |
| Optional Drill Stand: | Model No. DCDST | Model No. DCDST |
|
Nett Weight:
|
7kg
|
7kg
|
|
Supply:
|
110V~50Hz
|
230V~50Hz
|
|
No-Load Speed:
|
0-1900rpm
|
0 - 1900rpm
|
|
Motor Power:
|
2300W
|
2300W
|
|
Cable Length:
|
3.5m
|
3.5m
|
|
Barcode:
|
5054511807516
|
5054511806571
|
**Please note that 110V machines require a transformer plug and are not suitable for standard 240V UK sockets.
