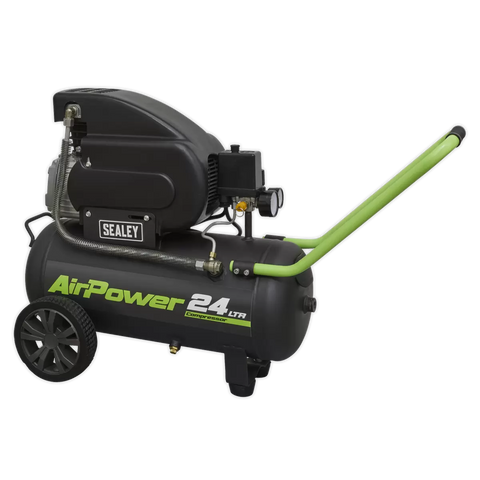

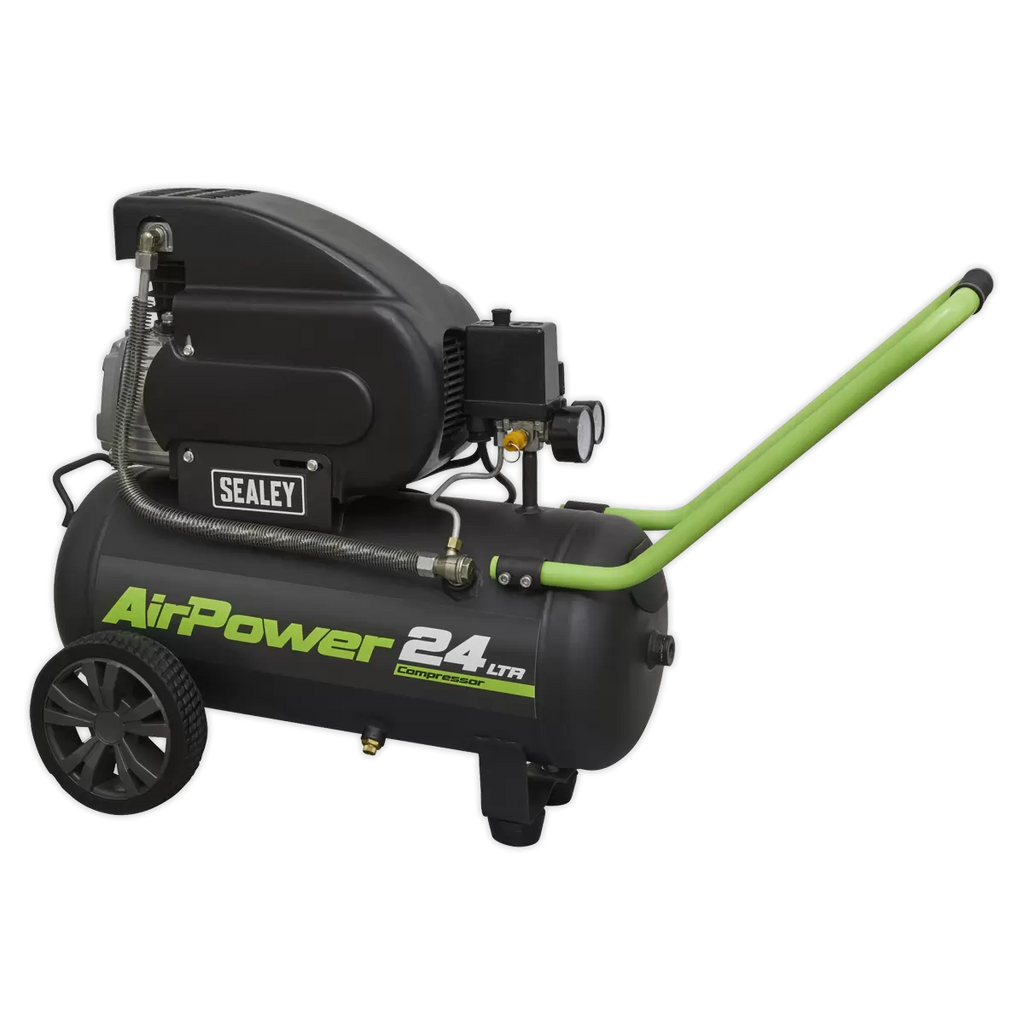

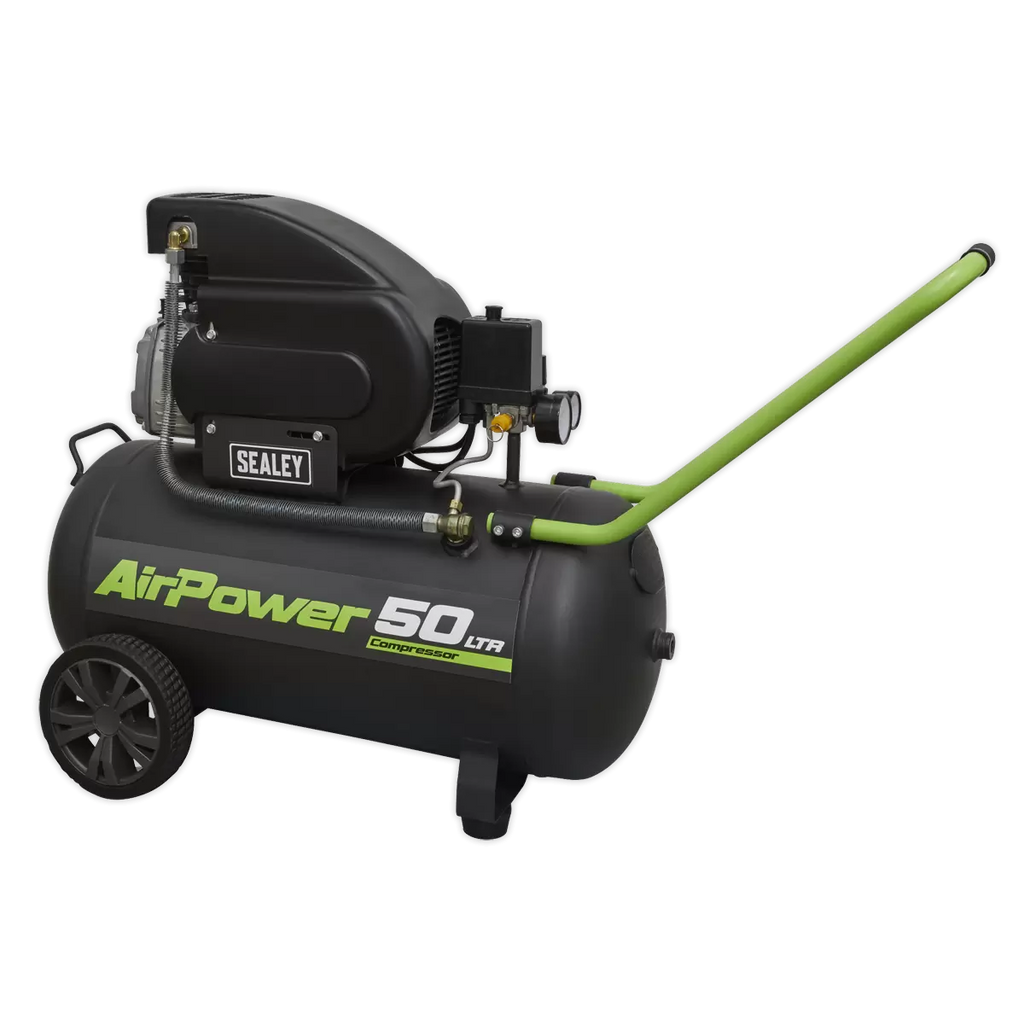

Sealey Direct Drive Air Compressors 2hp 230V

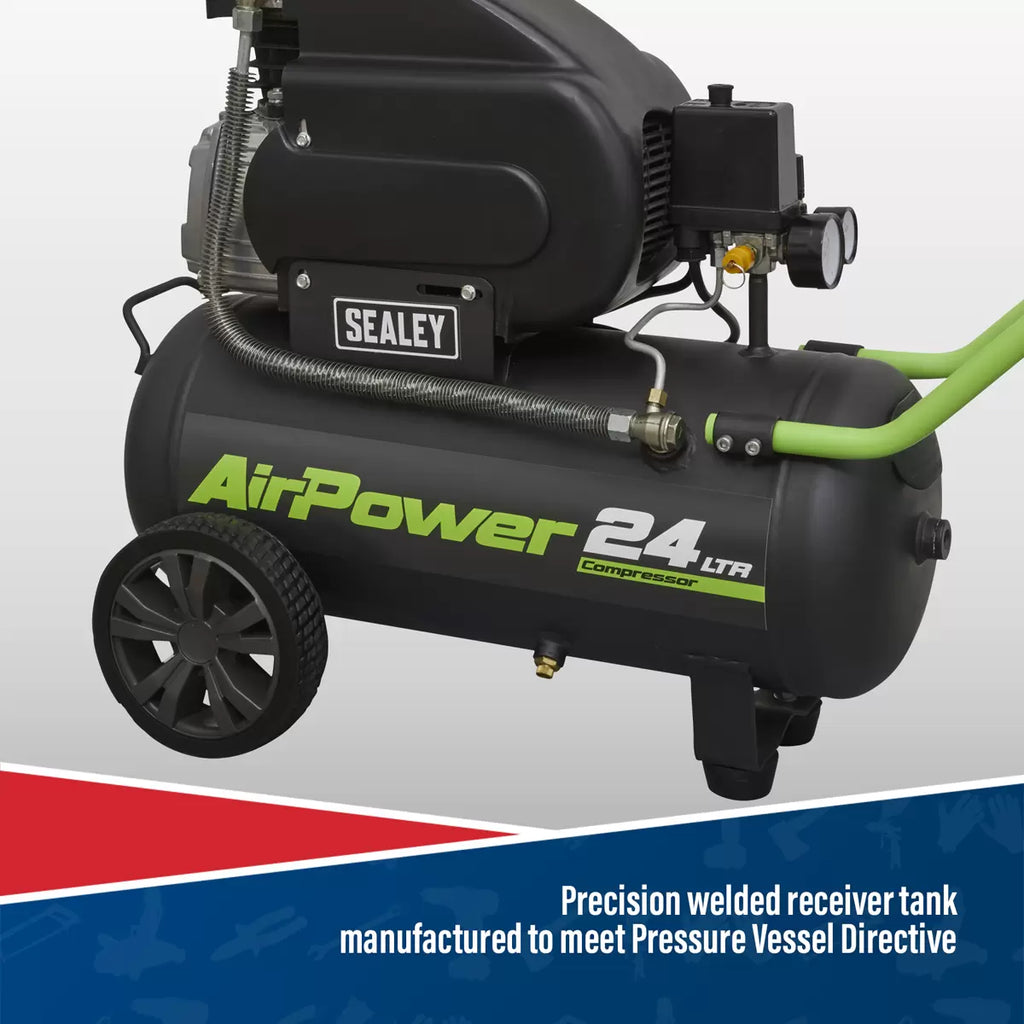

Aluminium cylinder head with cast iron cylinder gives added resistance to wear. Suitable for general-purpose workshop applications. Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation. Precision welded receiver tank manufactured to meet Pressure Vessel Directive. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Fitted with 3-pin plug.

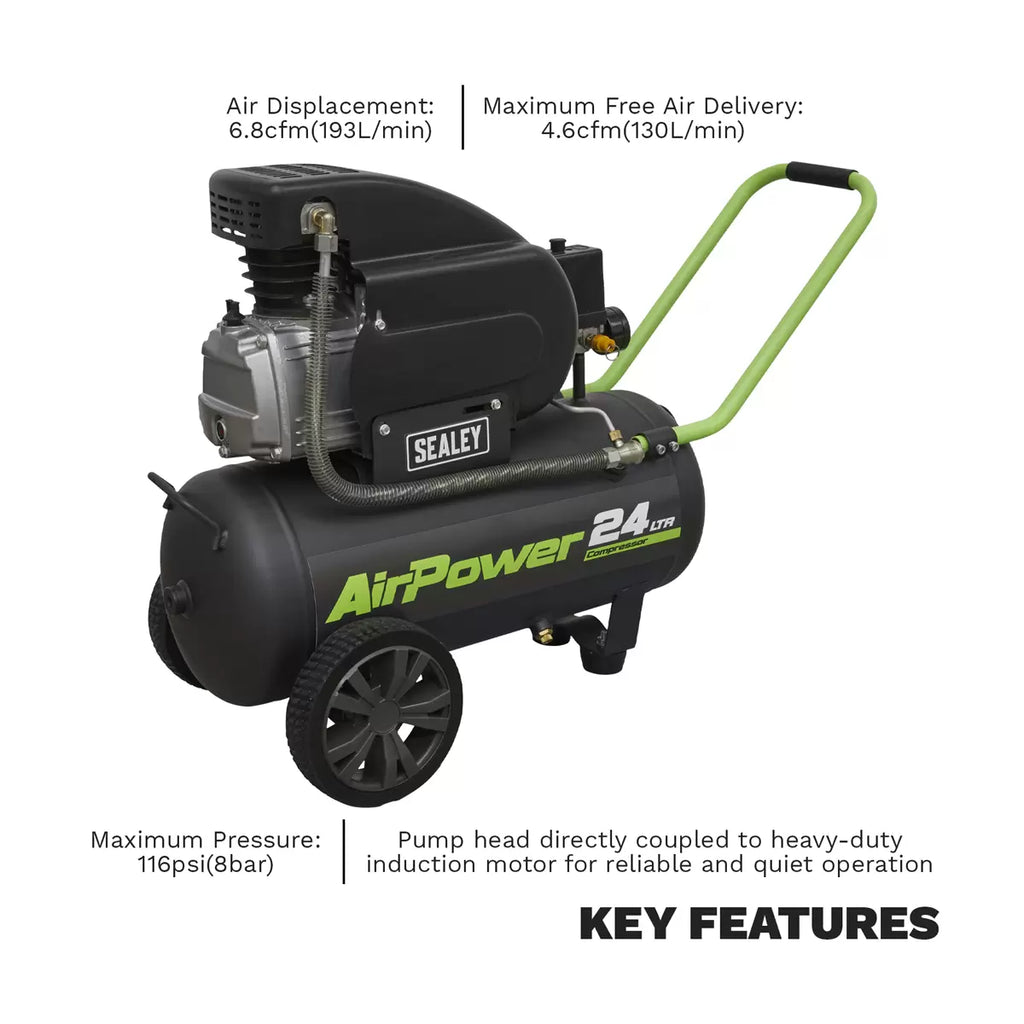

• Air Displacement: 6.8cfm(193L/min).
• Maximum Free Air Delivery: 4.6cfm(130L/min).
• Maximum Pressure: 116psi(8bar).

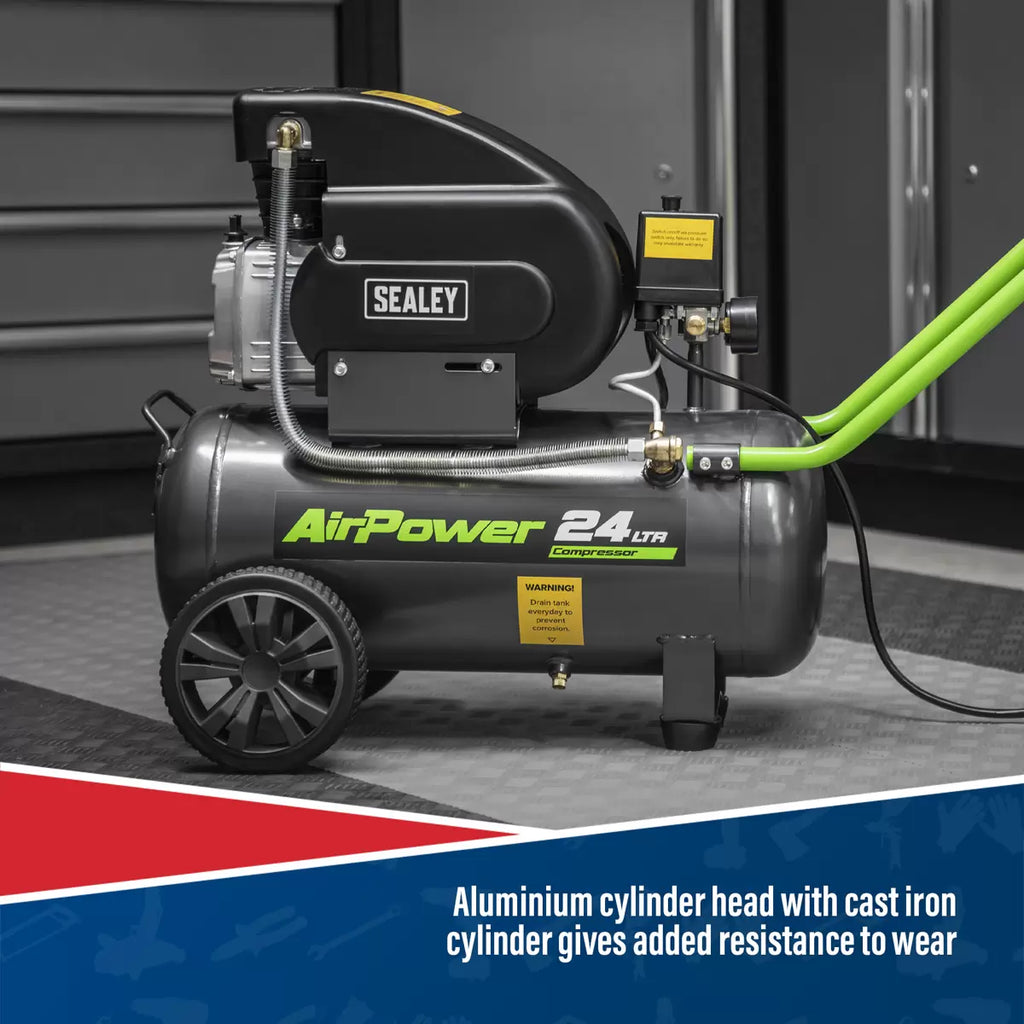

• Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• Suitable for general-purpose workshop applications.
• Pump head is directly coupled to heavy-duty induction motor for reliable and quiet operation.

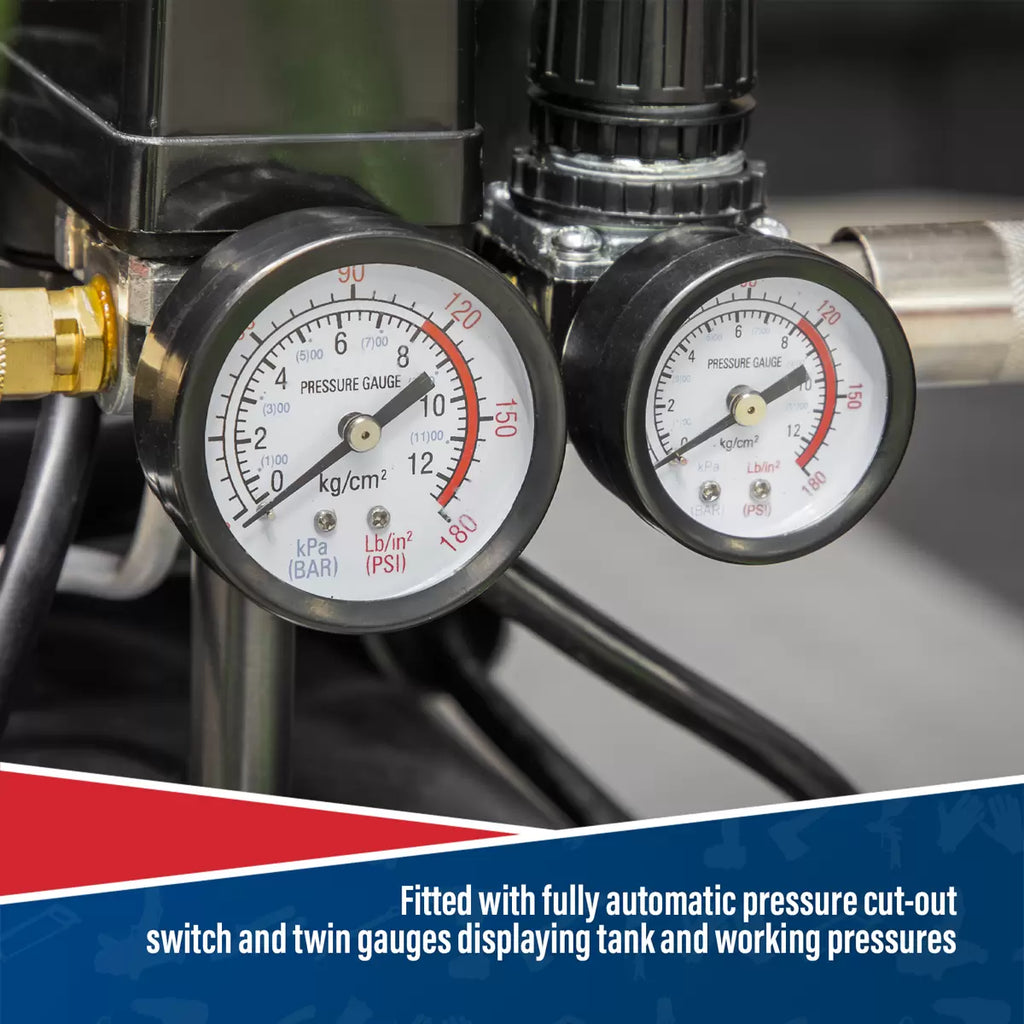

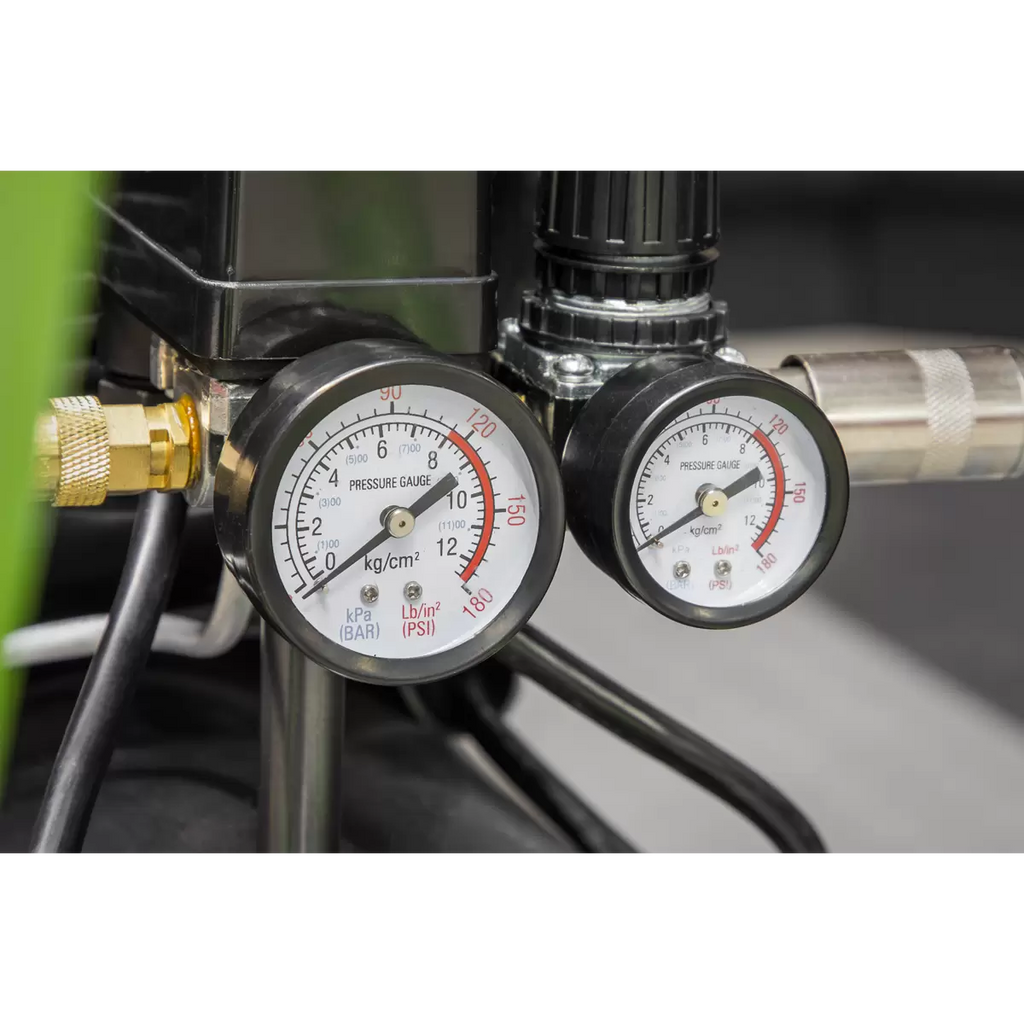

• Fitted with a fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• Fitted with a 3-pin plug.
• Maximum Free Air Delivery: 4.6cfm(130L/min).
• Maximum Pressure: 116psi(8bar).
• Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• Suitable for general-purpose workshop applications.
• Pump head is directly coupled to heavy-duty induction motor for reliable and quiet operation.
• Fitted with a fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• Fitted with a 3-pin plug.
Technical Data
|
Air Displacement cfm(L/min):
|
6.8(193)
|
6.8(193)
|
|
Maximum Free Air Delivery cfm(L/min):
|
4.6(130)
|
4.6(130)
|
|
Maximum Pressure:
|
116psi(8bar)
|
116psi(8bar)
|
|
Minimum Rated Supply:
|
13A
|
13A
|
|
Motor Output:
|
2hp
|
2hp
|
|
Noise Level:
|
96dB(A)
|
96dB(A)
|
|
Oil Capacity:
|
0.27L
|
0.27L
|
|

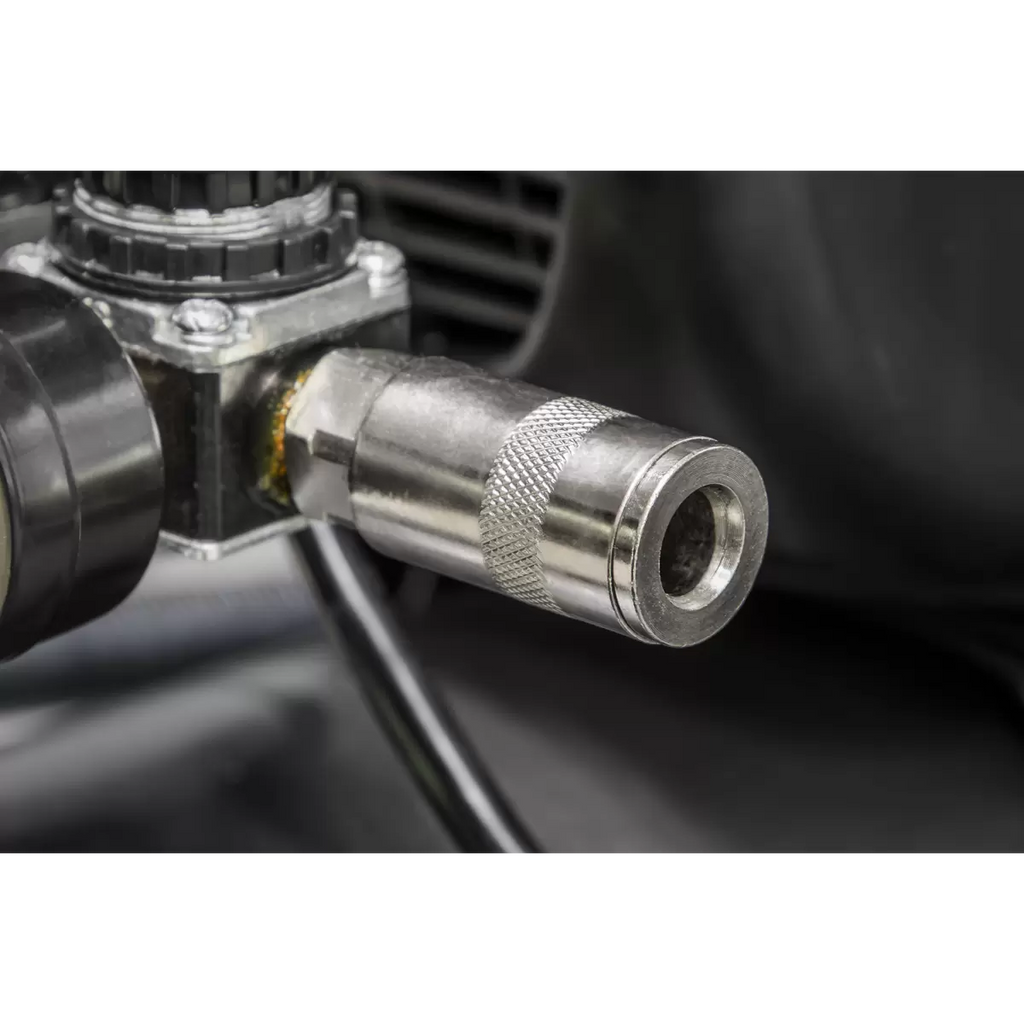

Outlet:
|
Quick Release Coupling
|
Quick Release Coupling
|
|
Phase:
|
1ph
|
1hp
|
|
Receiver Capacity:
|
24L
|
50L
|
|

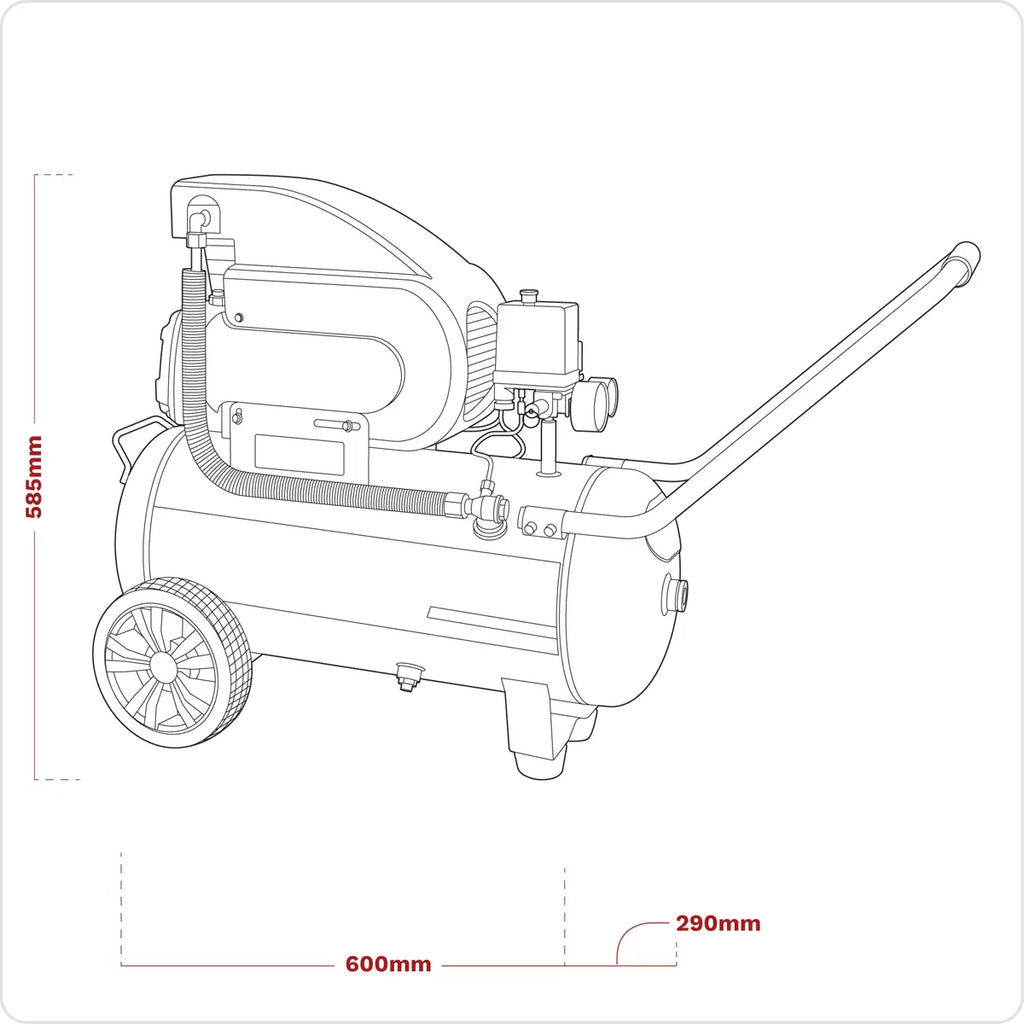

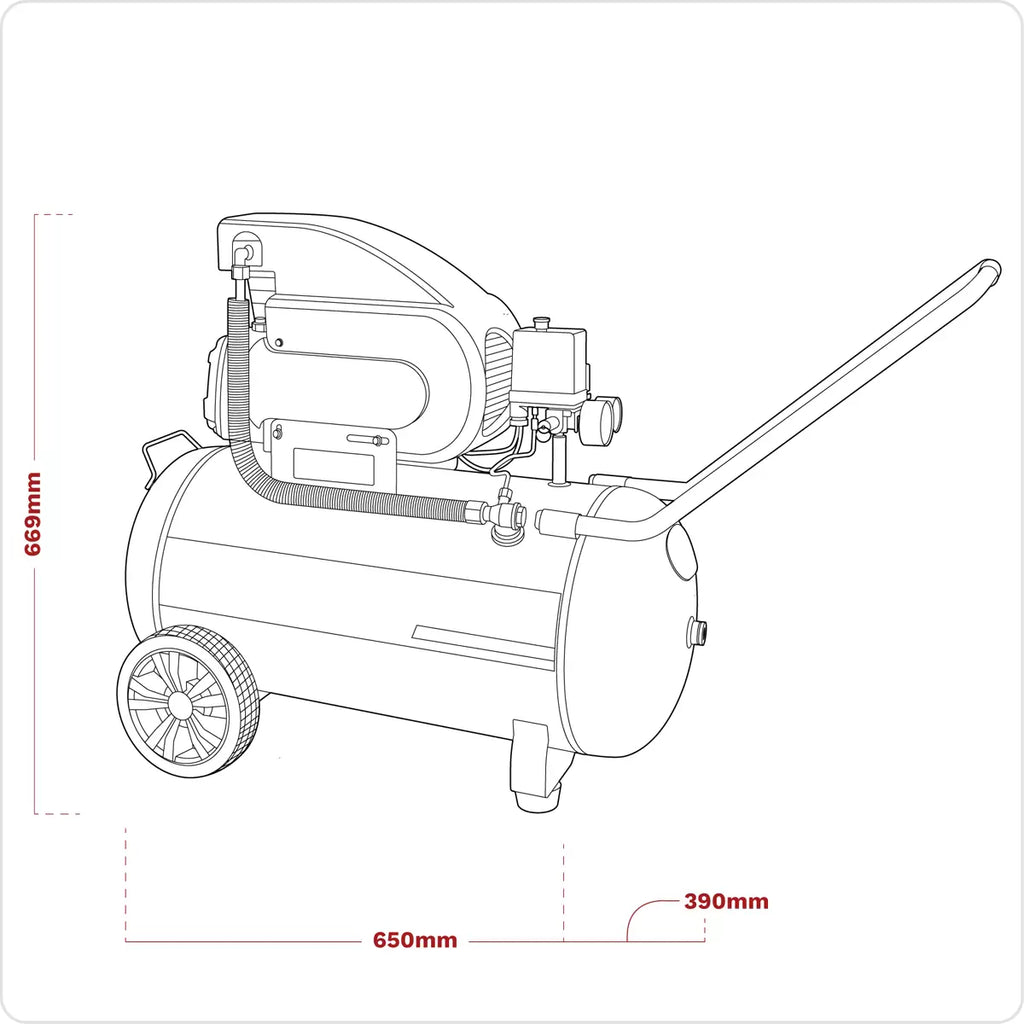

Size (W x D x H):
|
600 x 290 x 585mm
|
650 x 390 x 669mm
|
|
Supply:
|
230V/13A
|
230V/13A
|
|
Nett Weight:
|
26.5kg
|
29.0kg
|
|
Barcode:
|
5054511526394
|
5054511530605
|
