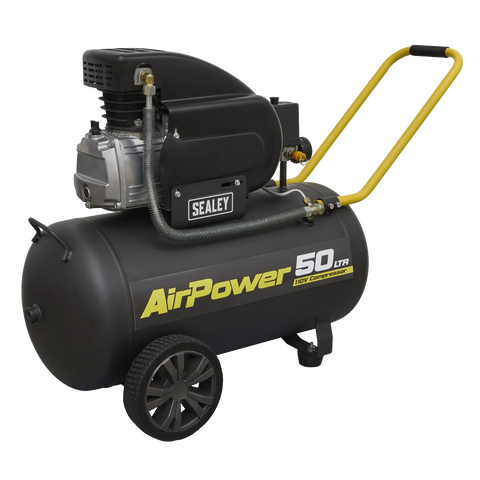

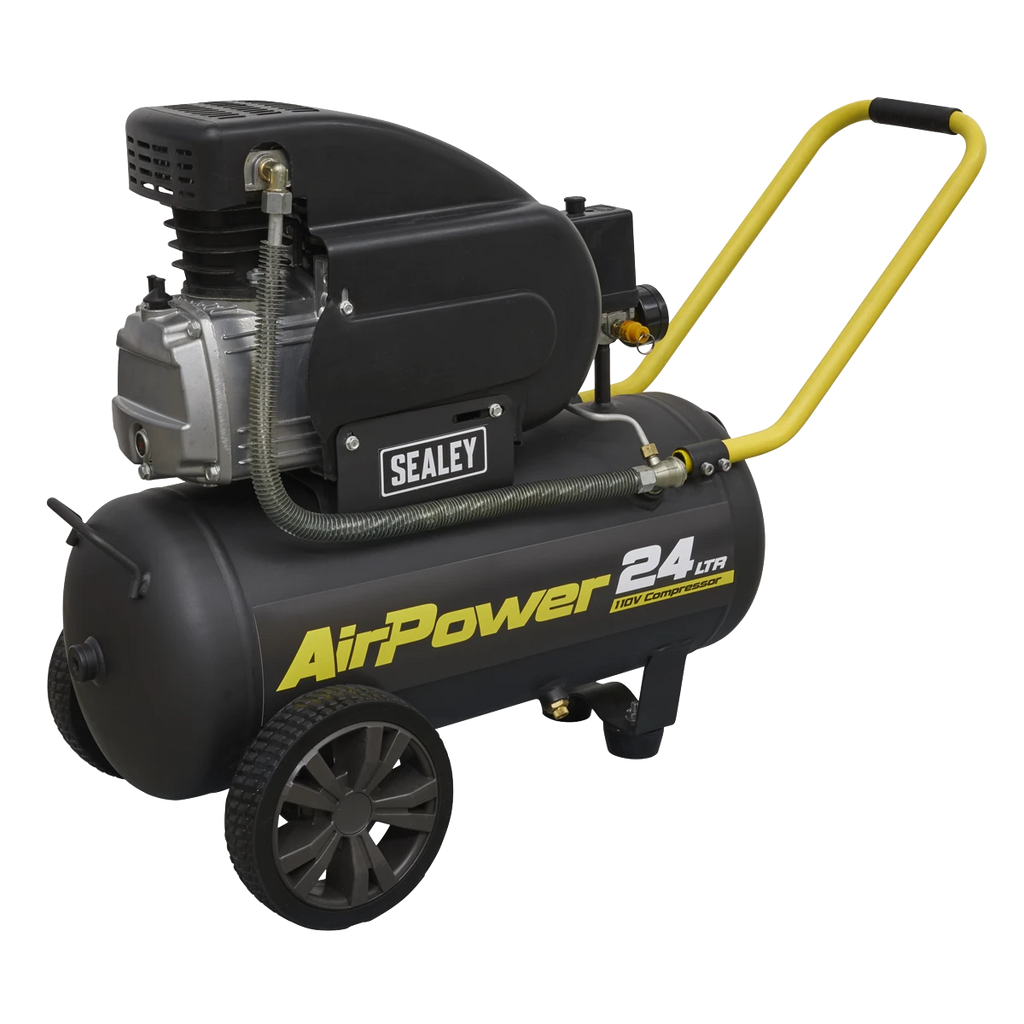

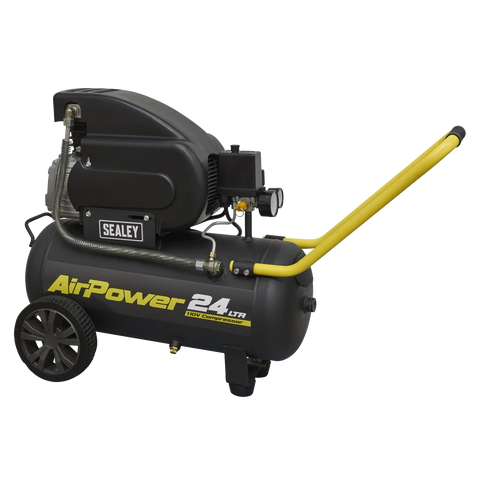

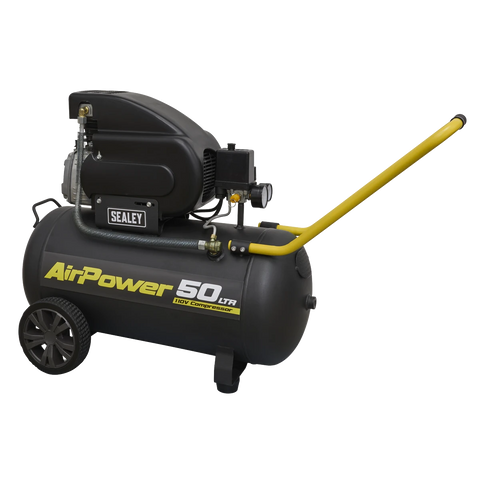

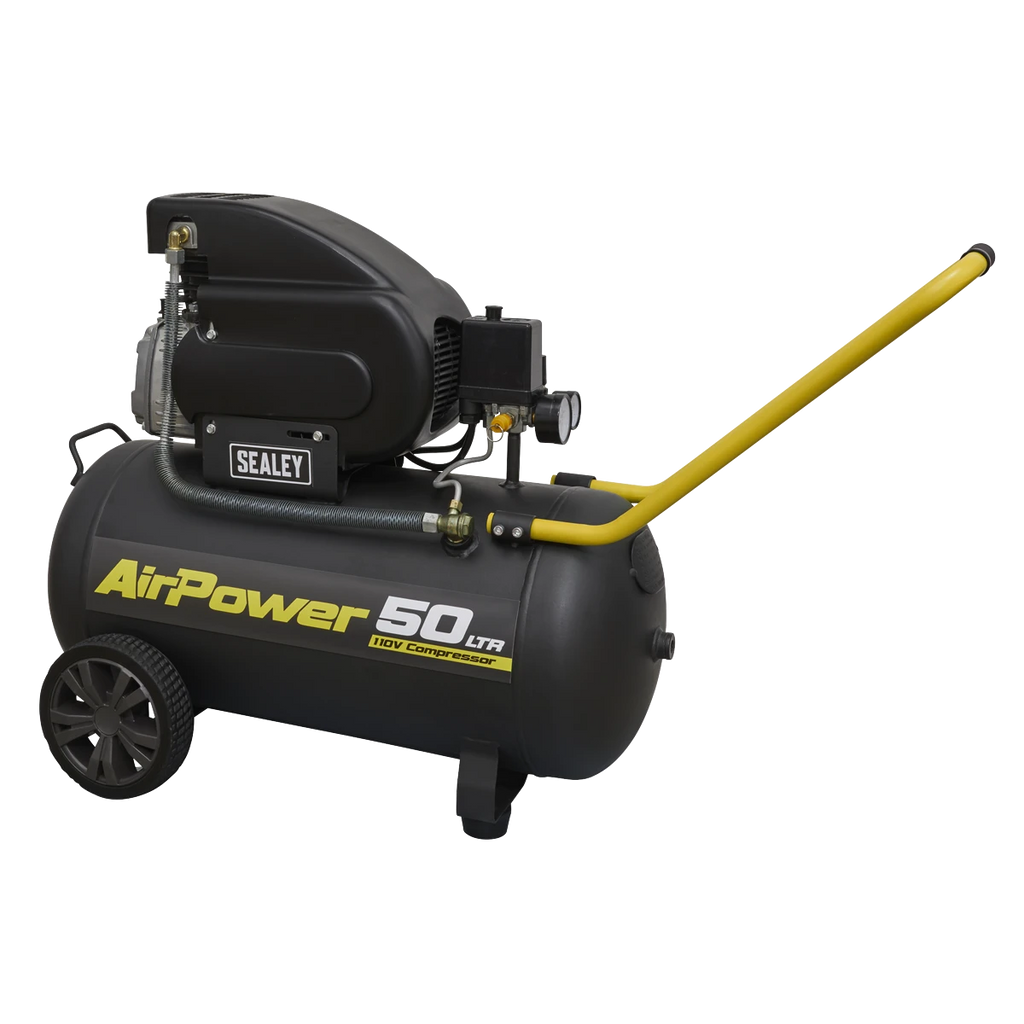

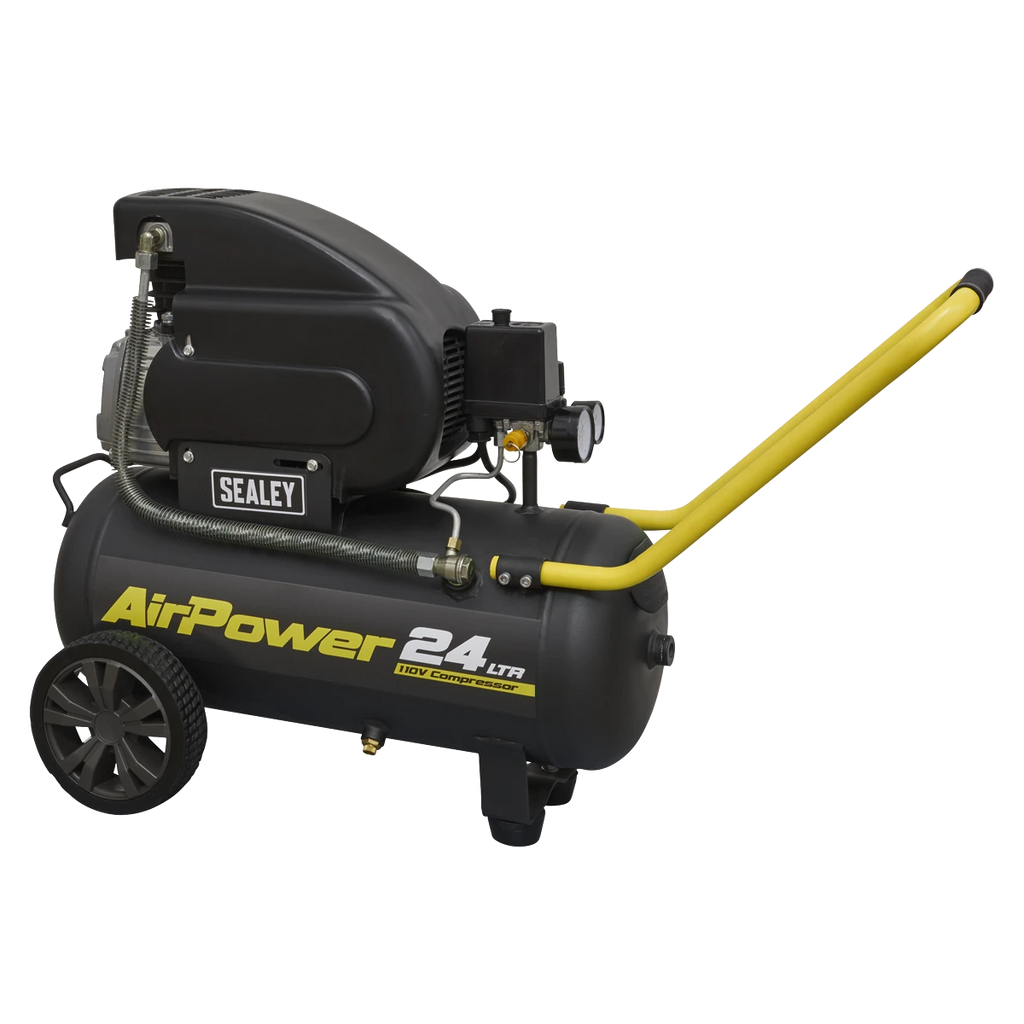

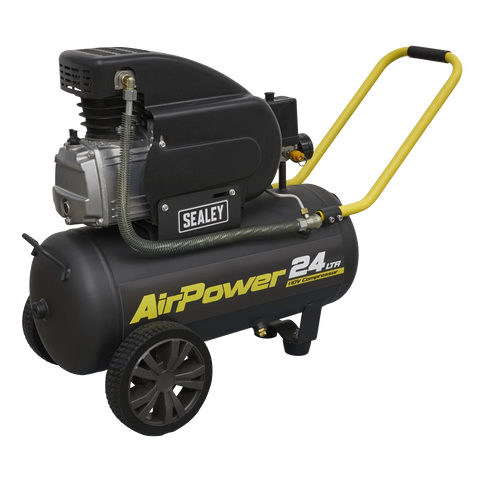

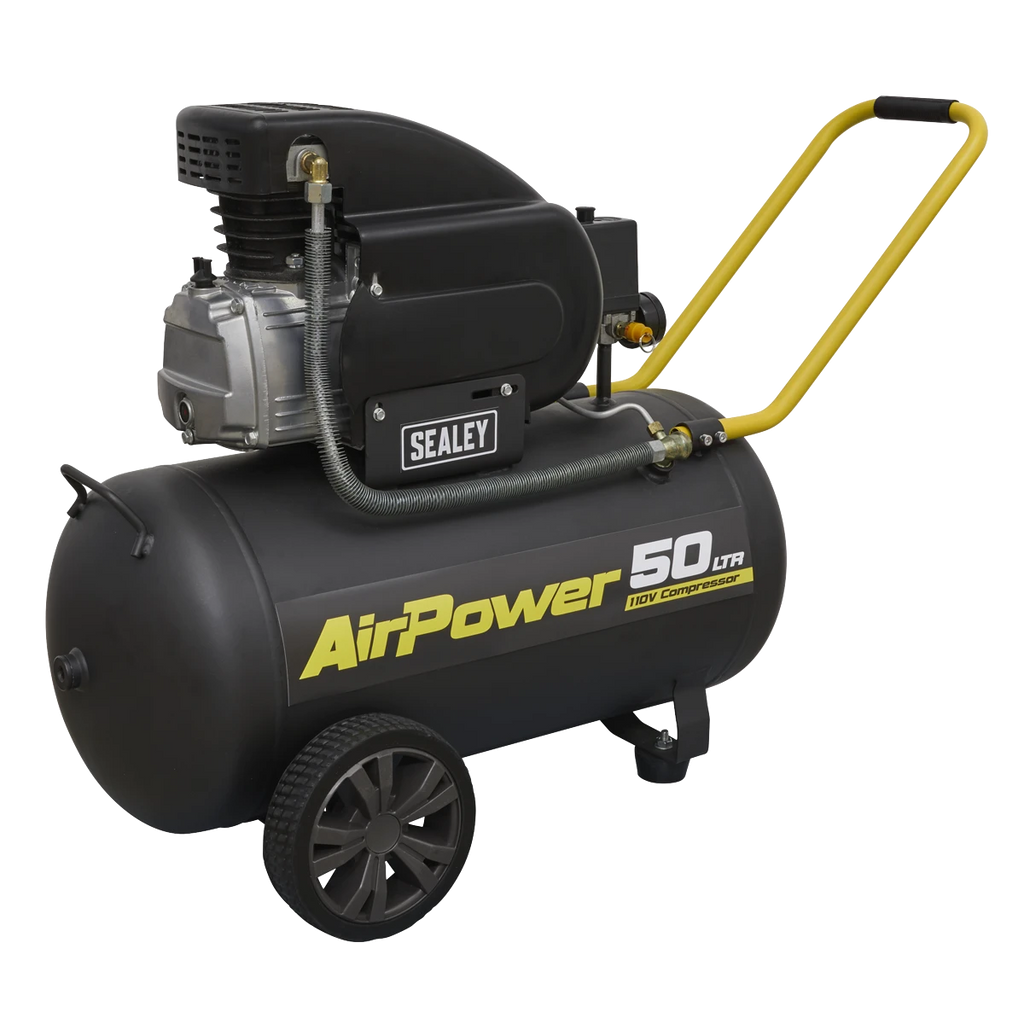

Sealey Direct Drive Compressors 110V
Aluminium cylinder head with cast iron cylinder gives added resistance to wear. Suitable for on site applications or anywhere that requires 110V. Pump head directly coupled to heavy-duty induction motor for reliable and smooth operation. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Copper wound motor provides longer lasting performance.
• ALUMINIUM CYLINDER HEAD AND CAST IRON CYLINDER - Gives added resistance to wear for improved product life.
• 110V - Suitable for on site applications or anywhere that does not have a 230V supply.

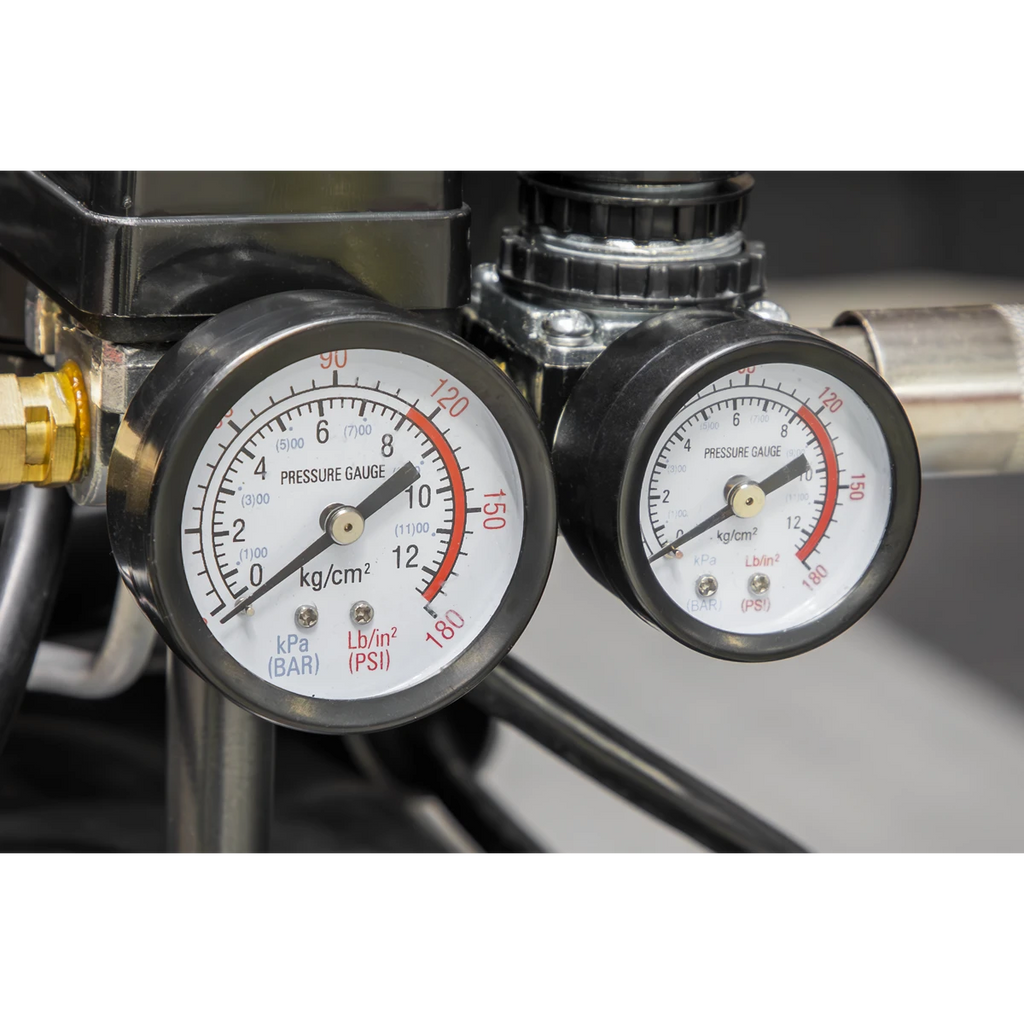

• TWIN GAUGES – One displays the tank pressure and the other displays the working pressures.
• COPPER WOUND MOTOR - Provides longer lasting performance.
• FULLY AUTOMATIC PRESSURE CUT-OUT SWITCH – Cuts off the motor automatically when the maximum pressure is reached.
Technical Data
|
Air Displacement cfm(L/min):
|
6.3(178)
|
6.3(178)
|
|
Maximum Free Air Delivery cfm(L/min):
|
4.6(130)
|
4.6(130)
|
|
Maximum Pressure:
|
116psi(8bar)
|
116psi(8bar)
|
|
Minimum Rated Supply:
|
16A
|
16A
|
|
Motor Output:
|
2hp
|
2hp
|
|
Noise Level:
|
95dB(A)
|
95dB(A)
|
|
Oil Capacity:
|
0.27L
|
0.27L
|
|

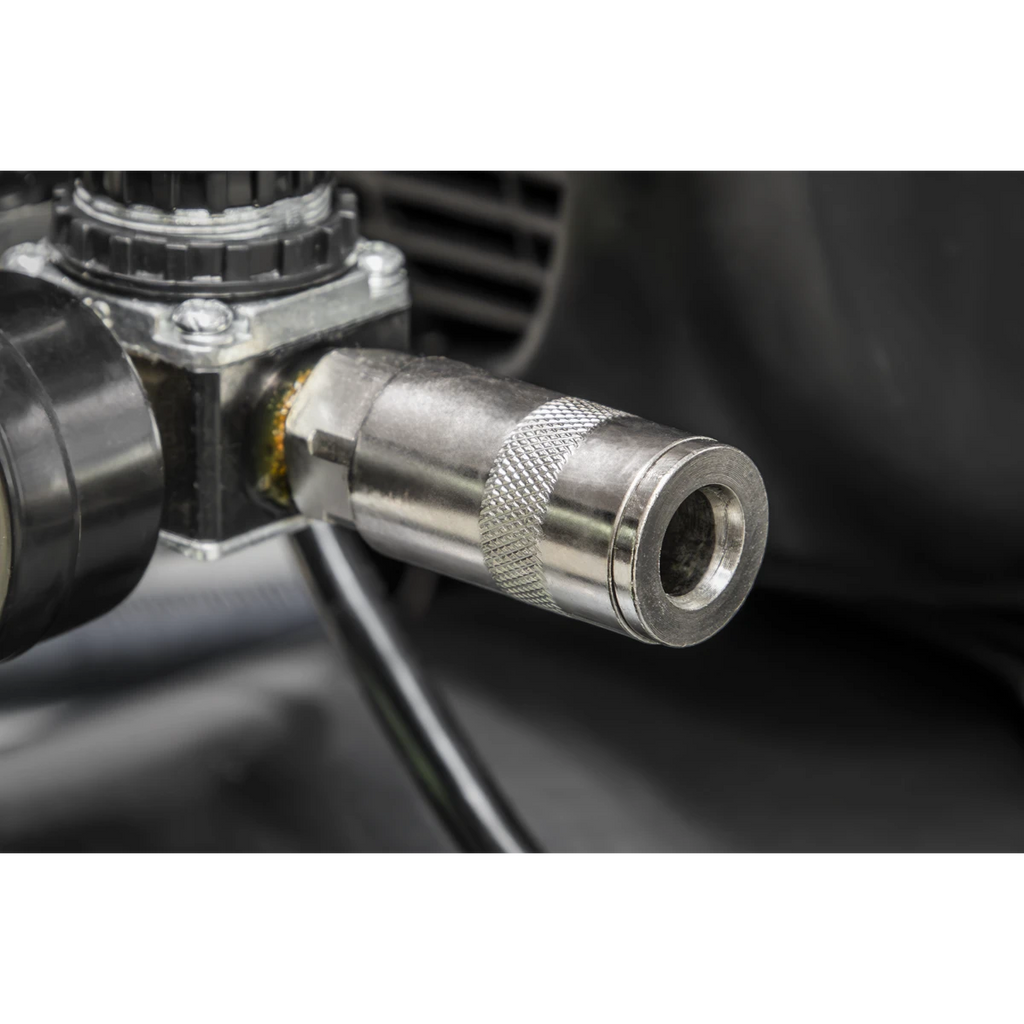

Outlet:
|
Quick Release Coupling
|
Quick Release Coupling
|
|
Phase:
|
1ph
|
1hp
|
|
Receiver Capacity:
|
24L
|
50L
|
|
Size (W x D x H):
|
600 x 290 x 585mm
|
650 x 390 x 669mm
|
|
Supply:
|
110V/16A
|
110V/16A
|
|
Nett Weight:
|
26.5kg
|
29kg
|
|
Barcode:
|
5054630326820
|
5054630326844
|
