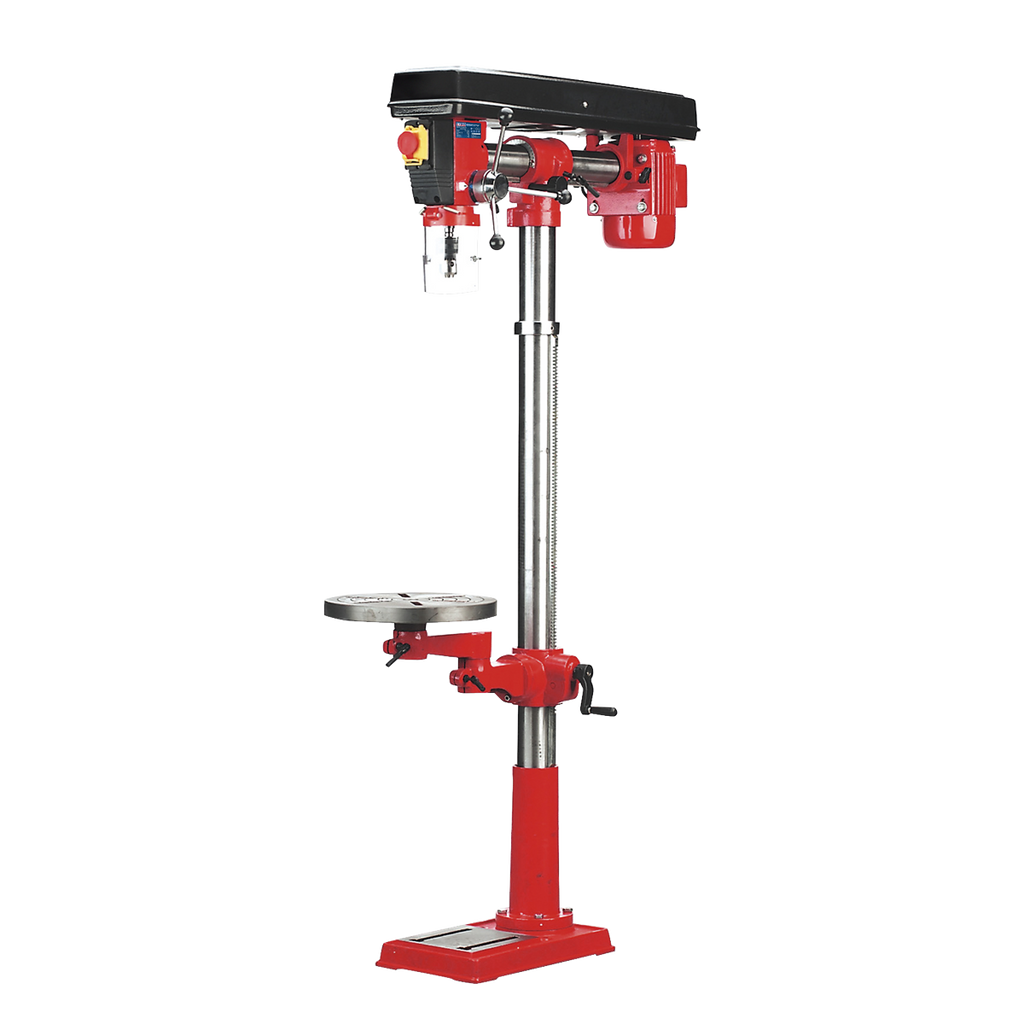

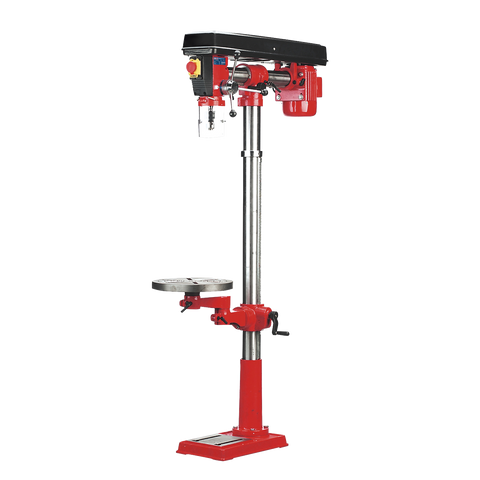

Sealey GDM1630FR Floor Standing Radial Pillar Drill 5-Speed 550W/230V
Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Also available as bench mounting type - Model No. GDM790BR.
Features
• Heavy-duty construction.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

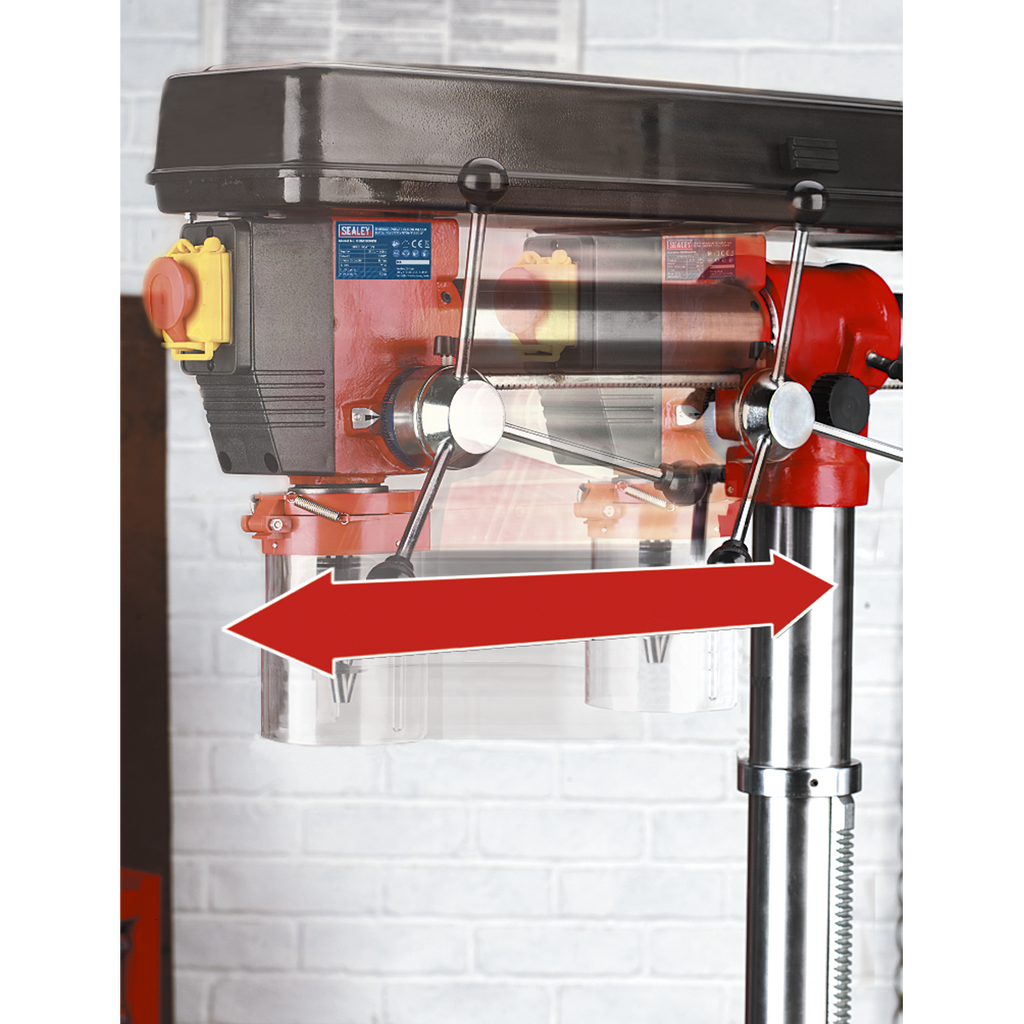

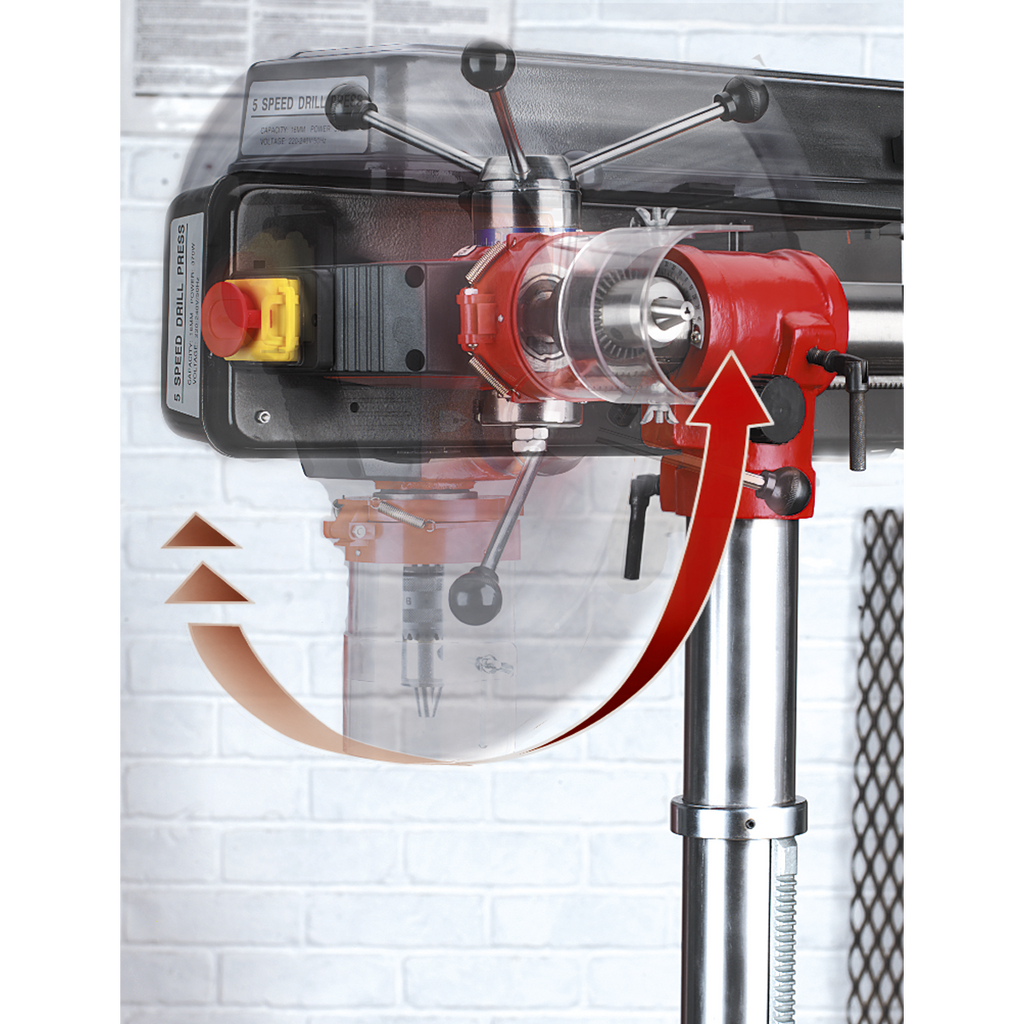

• Radial feature allows off-table drilling and angle drilling.
• Features a maximum throat depth of 420mm.

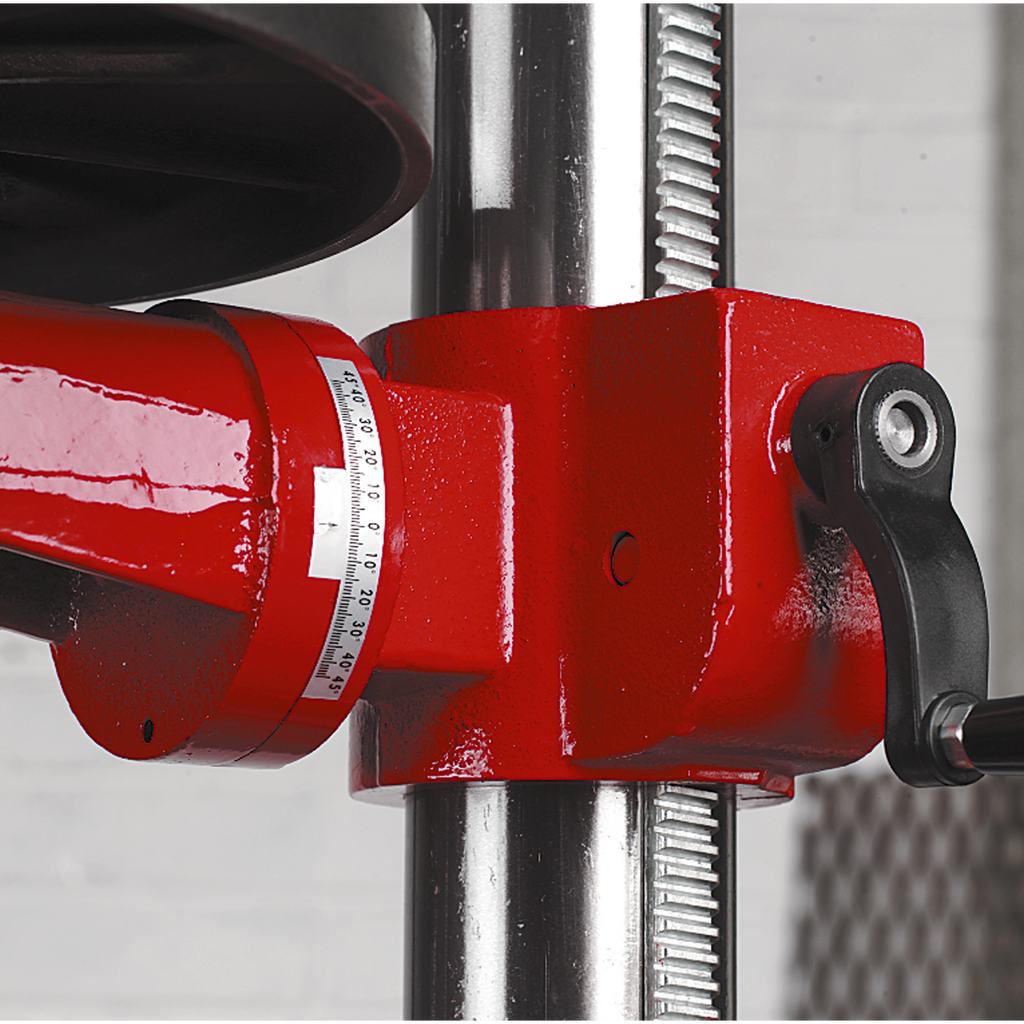

• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
• Also available as bench mounting type - GDM790BR.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 1620mm.
• Spindle Centre to Column - Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 70mm.
• Spindle Travel: 80mm.
• Weight: 59kg.
Specification
|
Base Size:
|
420 x 250mm
|
|
Collar Diameter:
|
Ø60mm
|
|
Column Diameter:
|
Ø70mm
|
|
Drilling Capacity (Chuck Size):
|
16mm
|
|
Maximum Distance Spindle to Base:
|
1280mm
|
|
Maximum Distance Spindle to Table:
|
830mm
|
|
Motor Power:
|
550W
|
|
Number of Speeds:
|
5
|
|
Optional Accessories:
|
GDMX/KC - Keyless Pillar Drill Chuck 16mm
|
|
Overall Height:
|
1620mm
|
|
Radial Arm Travel:
|
285mm
|
|
Speed Range:
|
500-2450rpm
|
|
Spindle Centre to Column:
|
420mm
|
|
Spindle Nose Taper:
|
MT2
|
|
Spindle Travel:
|
80mm
|
|
Supply:
|
230V
|
|
Swing:
|
840mm
|
|
Nett Weight:
|
59kg
|
|
Working Base Surface Size:
|
210 x 190mm
|
|
Working Table Surface Size:
|
Ø310mm
|
|
Barcode:
|
5024209116817
|
