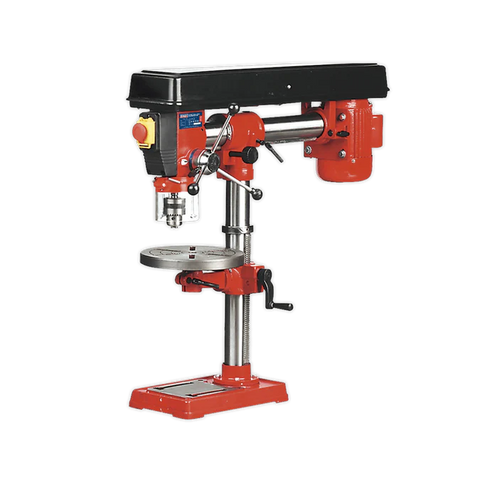

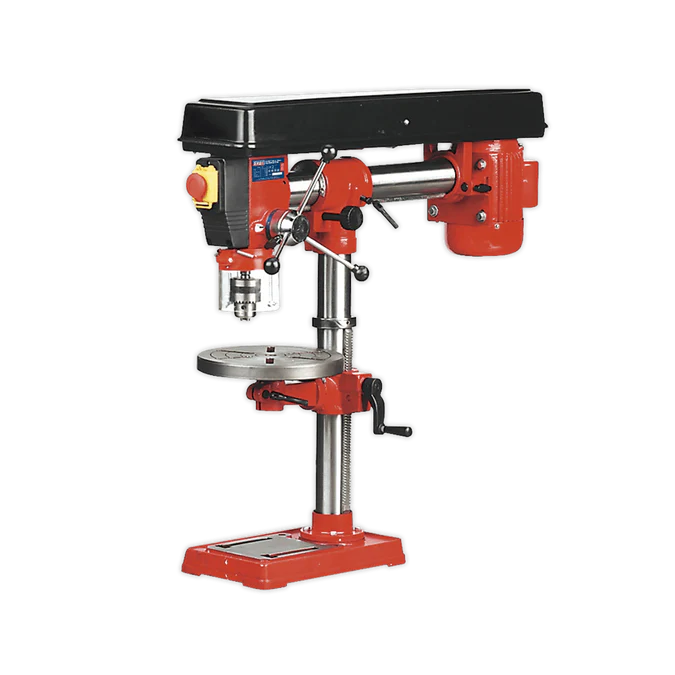

Sealey GDM790BR Bench Mounting Radial Pillar Drill 5-Speed 550W/230V

Sealey GDM790BR Bench Mounting Radial Pillar Drill 5-Speed 550W/230V

The Sealey GDM790BR Radial Pillar Drill Bench is a robust, heavy-duty solution for precision drilling tasks in professional workshops and trade environments. Available from Trade Counter Direct, this bench-mounted drill offers advanced safety features and versatile radial arm functionality, making it suitable for off-table and angled drilling applications.

Designed with a powerful 550W motor and a substantial 16mm (5/8") chuck capacity, the GDM790BR ensures reliable performance for a range of drilling requirements. Its radial arm, controlled by a rack and pinion assembly, allows for fine positioning of the drill bit, while integrated safety devices provide enhanced operator protection.

Features

• Heavy-duty construction.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

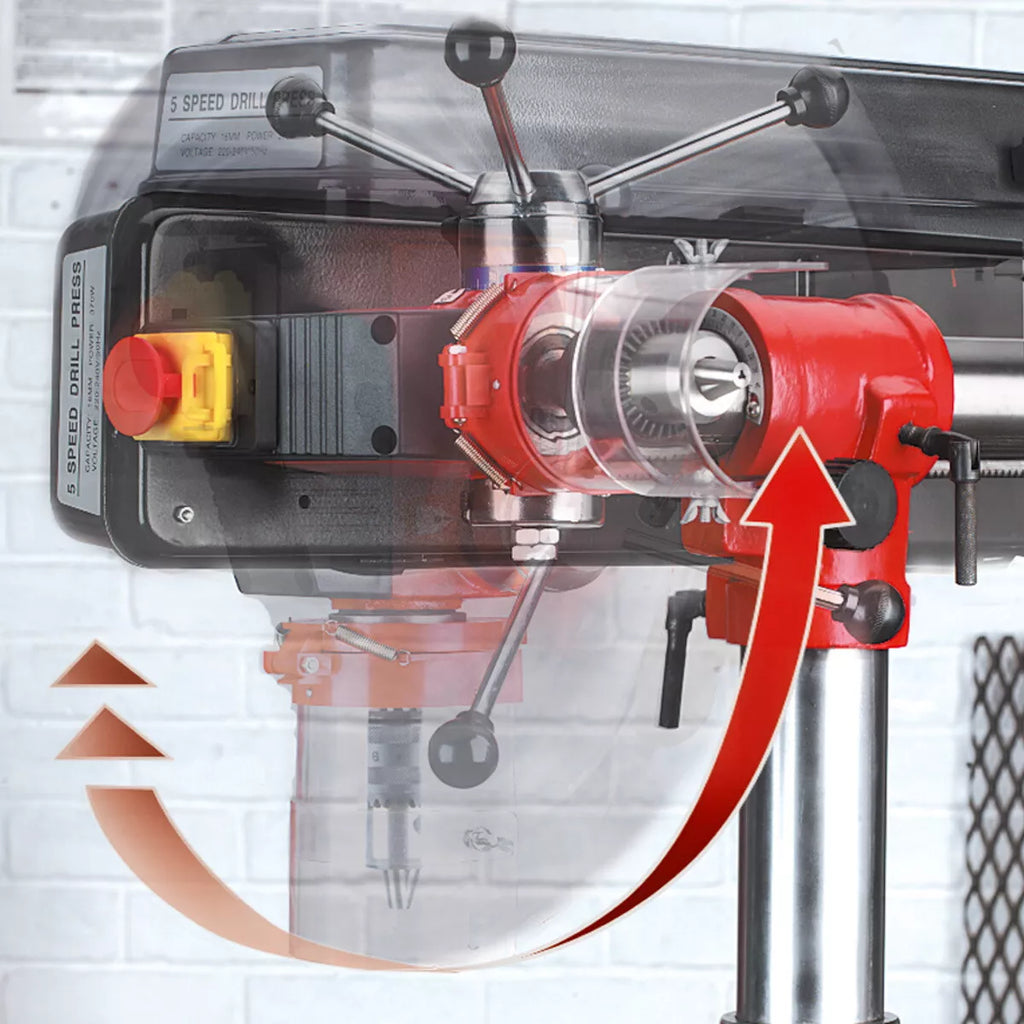

• Radial feature allows off-table drilling and angle drilling.
• Features a maximum throat depth of 420mm.

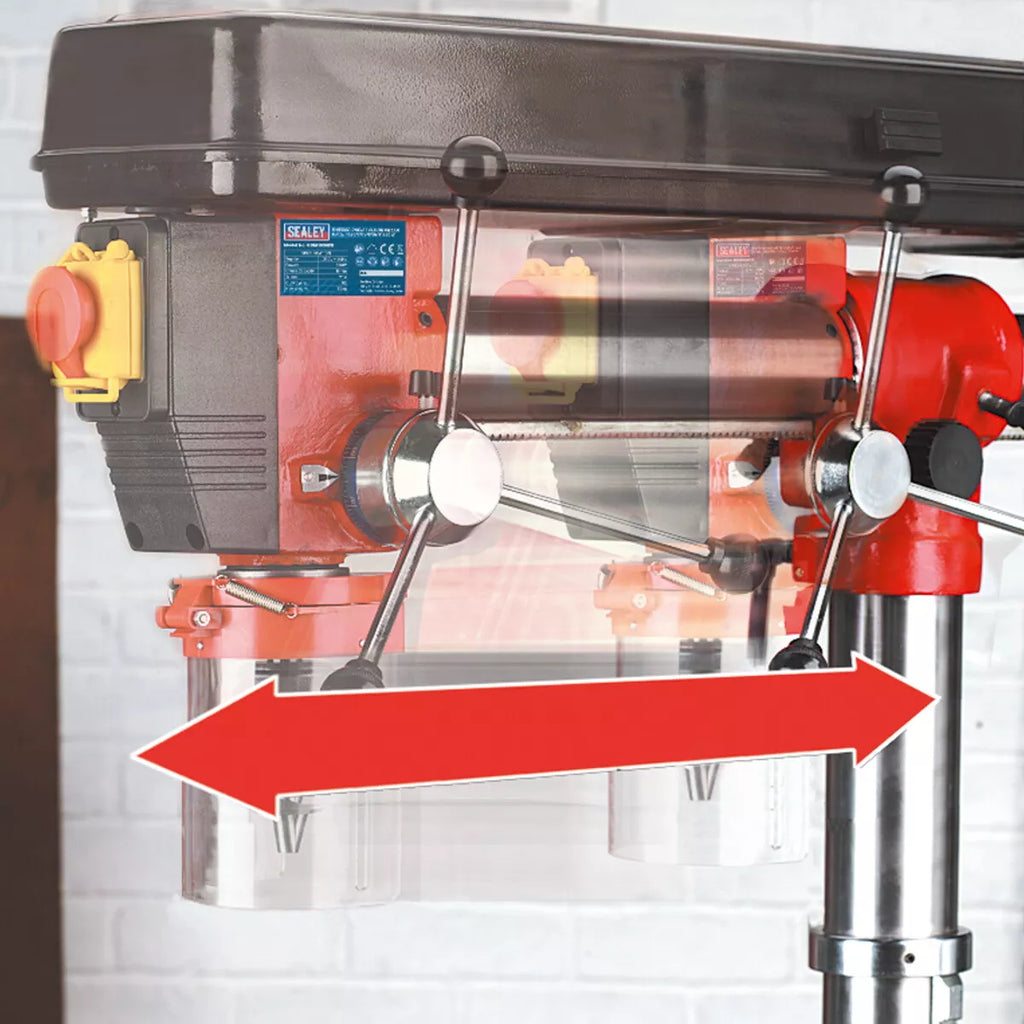

• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
• Also available as floor standing type - GDM1630FR.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck No. 2MT.
• Height: 820mm.
• Spindle Centre to Column - Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 60mm.
• Spindle Travel: 80mm.
• Weight: 43kg.

Specification

Manual

Declaration of Conformity
