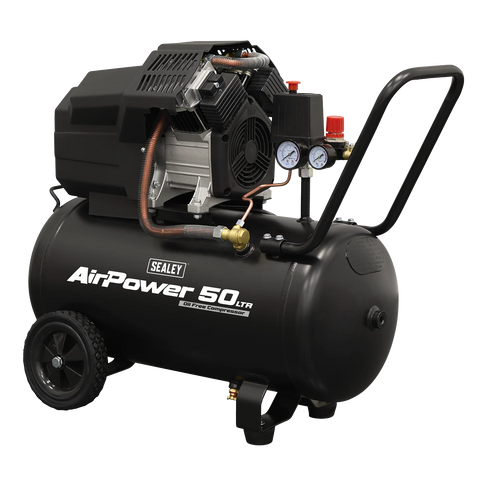

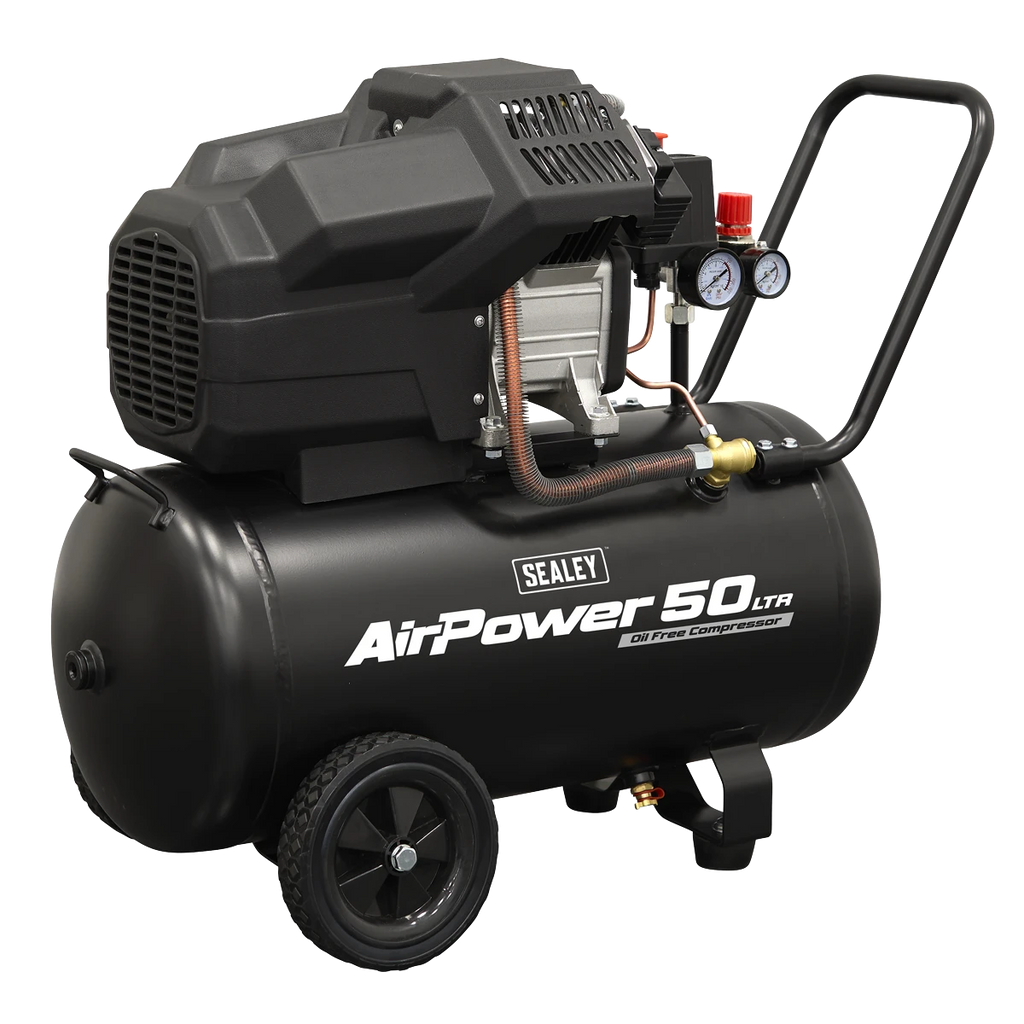

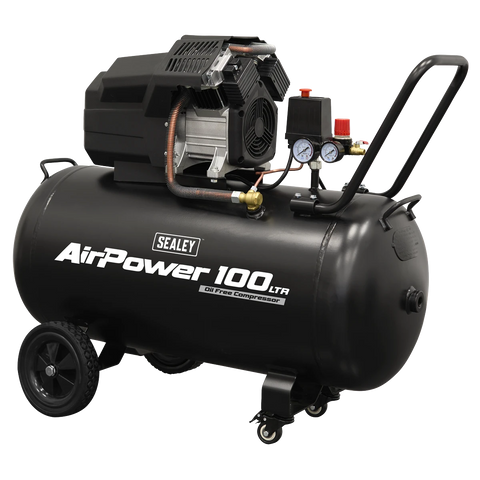

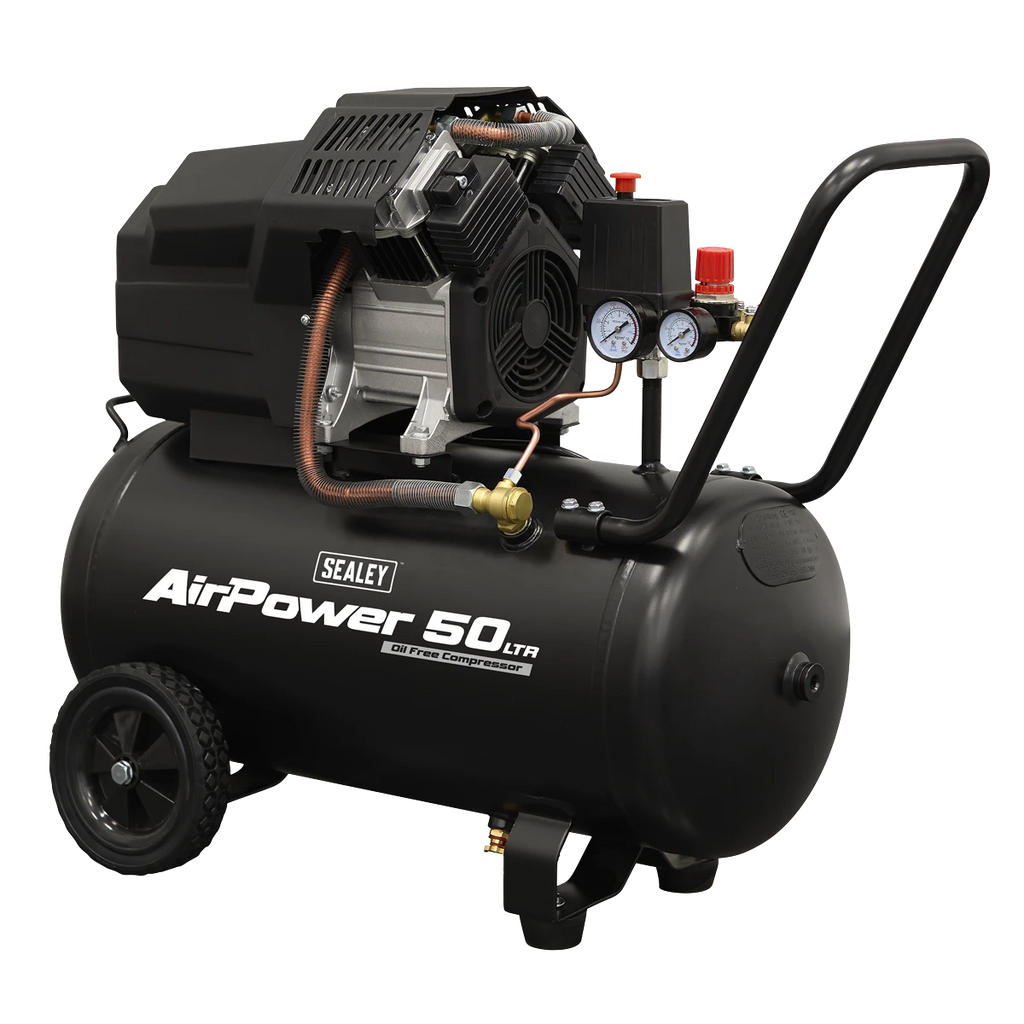

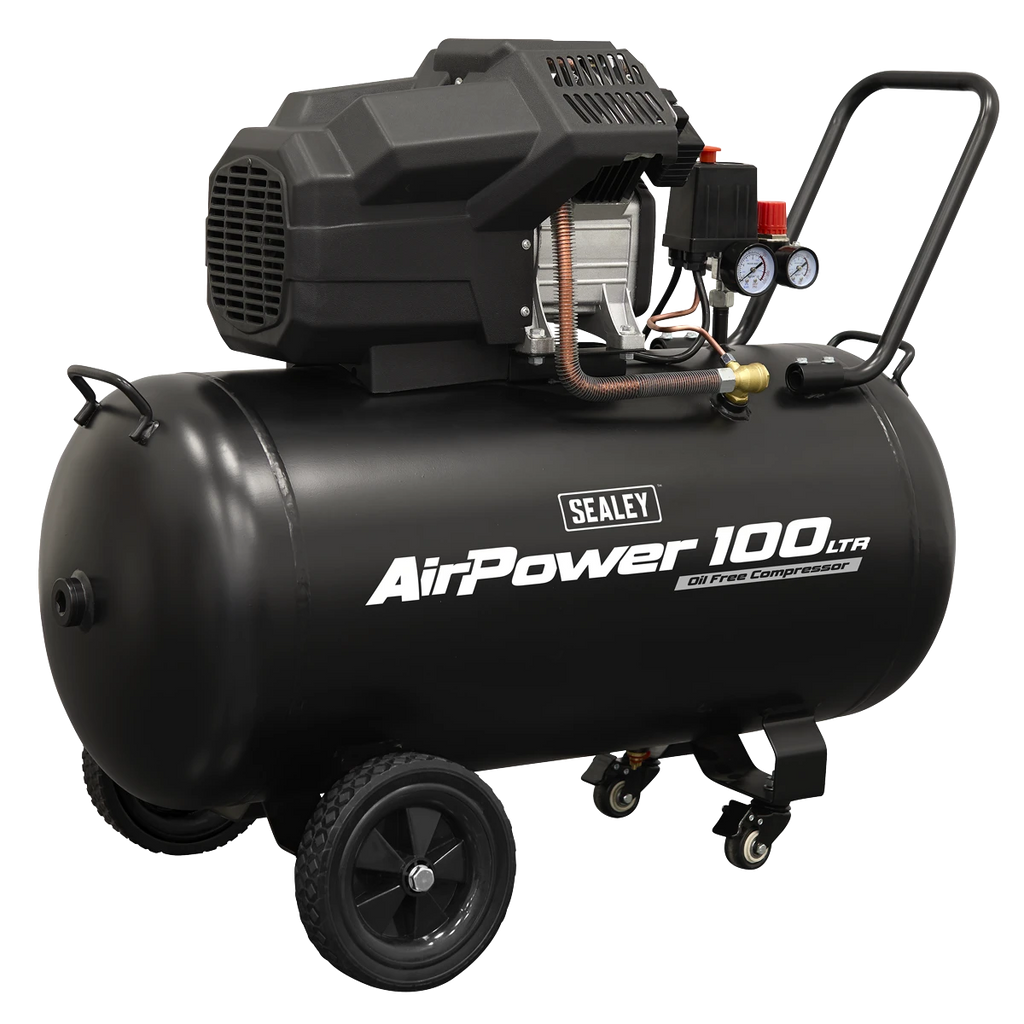

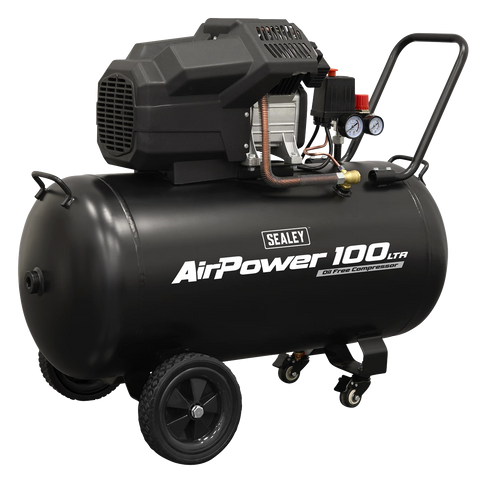

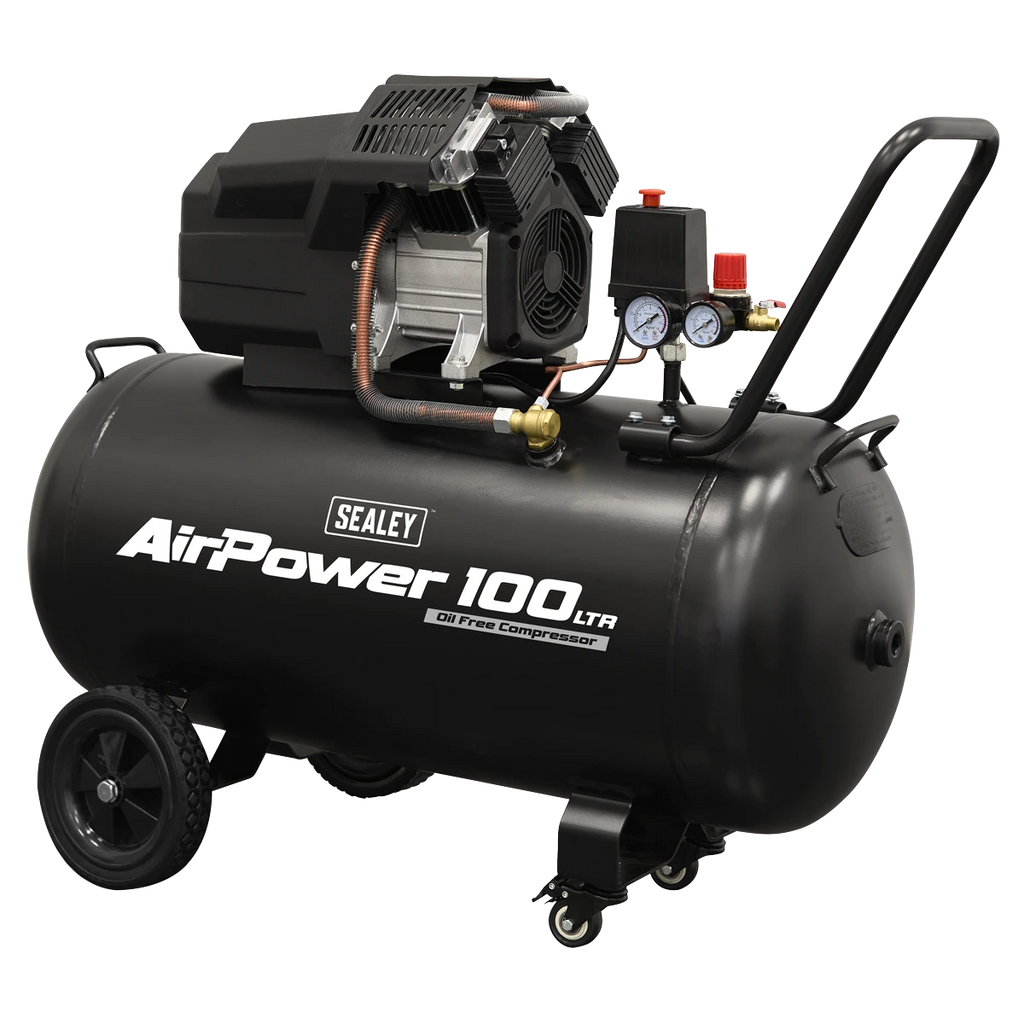

Sealey Oil Free V-Twin Direct Drive Air Compressors 3hp 230V
V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear. Ideal for use where an oil free air delivery is required. This is great for paint spraying as no oil can contaminate the supplied air. It also reduces maintenance costs. Suitable for general-purpose workshop applications. Pump directly coupled to heavy-duty induction motor for reliable and quiet operation. Fitted with fully automatic pressure cut-out switch, air regulator and pressure gauges for tank and supply. Supplied with handle and wheels. Fitted with 3-pin plug.
• EFFICIENT - V-Twin pump with aluminium cylinders and cast-iron liners for reduced weight and improved resistance to wear.
• OIL-FREE - Ideal for use where an oil free air delivery is required. This is great for paint spraying as no oil can contaminate the supplied air. It also reduces maintenance costs.
• PERFORMANCE - Pump directly coupled to heavy-duty induction motor for reliable and quiet operation. Engineered to ensure sustained performance even in the most demanding work settings.
• FULLY EQUIPPED - Fitted with fully automatic pressure cut-out switch, air regulator and pressure gauges for tank and supply.
Technical Data
|
Air Displacement cfm(L/min):
|
14.1cfm(400L/min)
|
14.1cfm(400L/min)
|
|
Maximum Free Air Delivery cfm(L/min):
|
9.64cfm(272L/min)
|
9.64cfm(272L/min)
|
|
Maximum Pressure:
|
145psi(10bar)
|
145psi(10bar)
|
|
Minimum Rated Supply:
|
13A
|
13A
|
|
Motor Output:
|
3hp
|
3hp
|
|
Noise Level:
|
94dB(A)
|
94dB(A)
|
|
Outlet:
|
Quick Release Coupling
|
Quick Release Coupling
|
|
Phase:
|
1ph
|
1ph
|
|
Receiver Capacity:
|
50L
|
100L
|
|
Size (W x D x H):
|
780 x 350 x 740mm
|
1050 x 450 x 800mm
|
|
Supply:
|
230V/50Hz
|
230V/50Hz
|
|
Nett Weight:
|
39kg
|
53kg
|
|
Barcode:
|
5054630475900
|
5054630475917
|
Declaration of Conformity 50L Declaration of Conformity 100L
