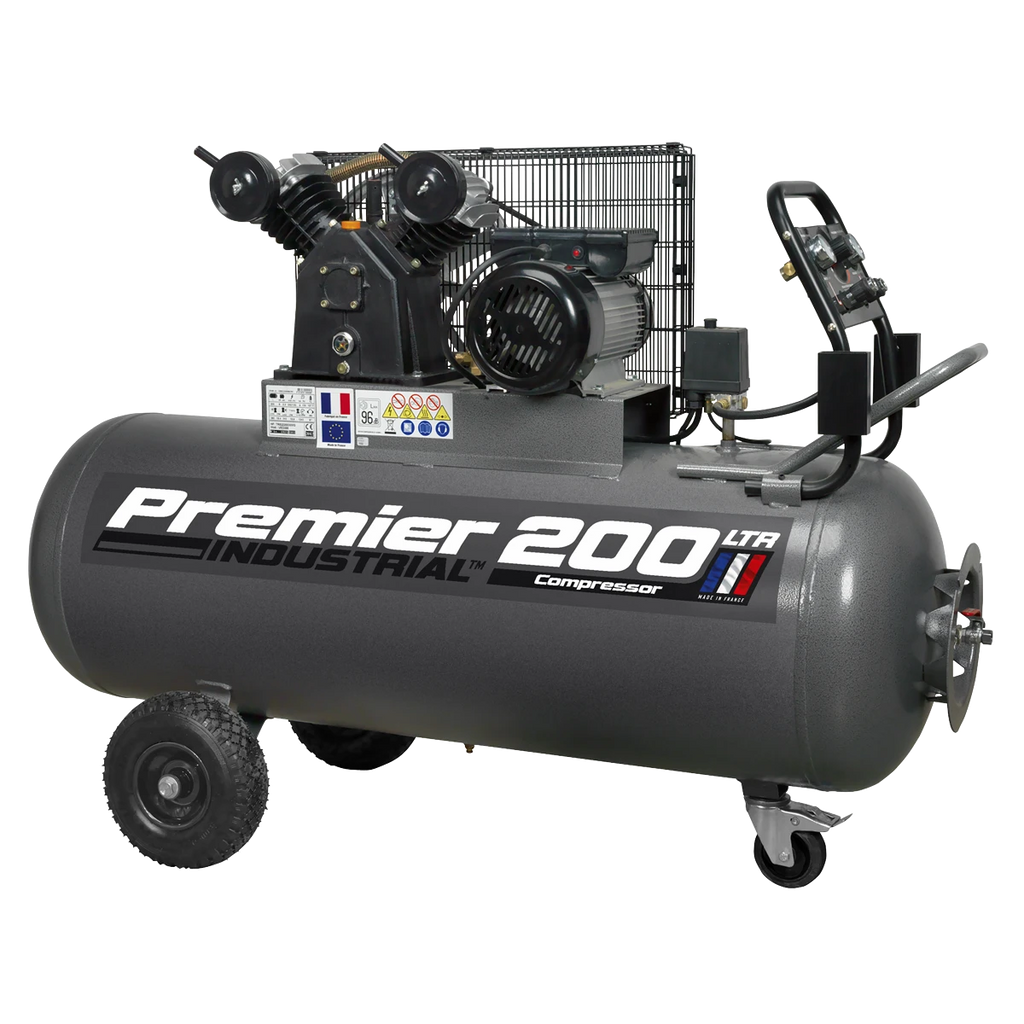

Sealey Premier Belt Drive Air Compressors with Front Control Panel 230V
Twin capacitors and a centrifugal switch aid trouble free start up on a good 13Amp supply. Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long life. Features an easy to use bespoke control panel with two outlets, one regulated and one direct. Heavy-duty pneumatic wheels with single front castor for easy manoeuvrability. Supplied with hose reel to keep your workspace tidy. Includes a drain valve for easy release of condensed water build up in the tank.
Features

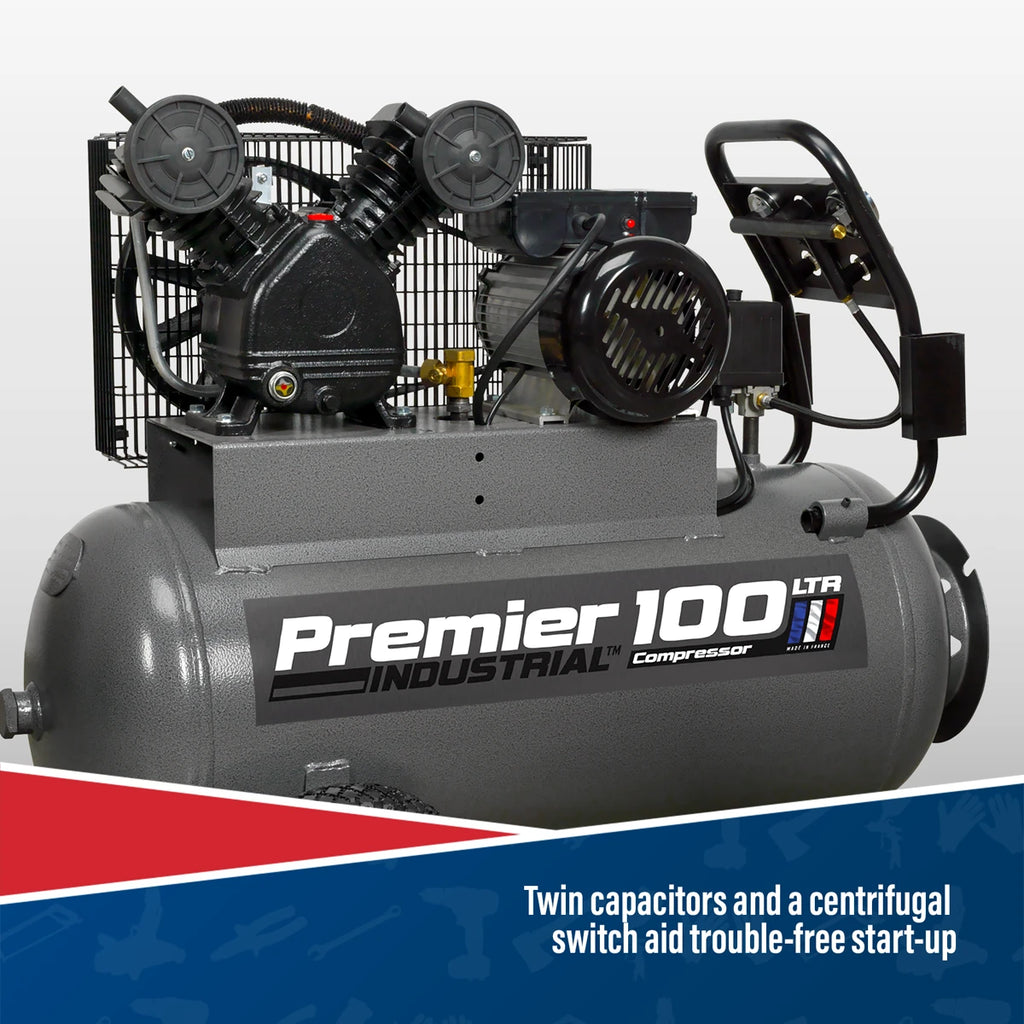

• EASY START - Twin capacitors and a centrifugal switch aid trouble-free start-up.

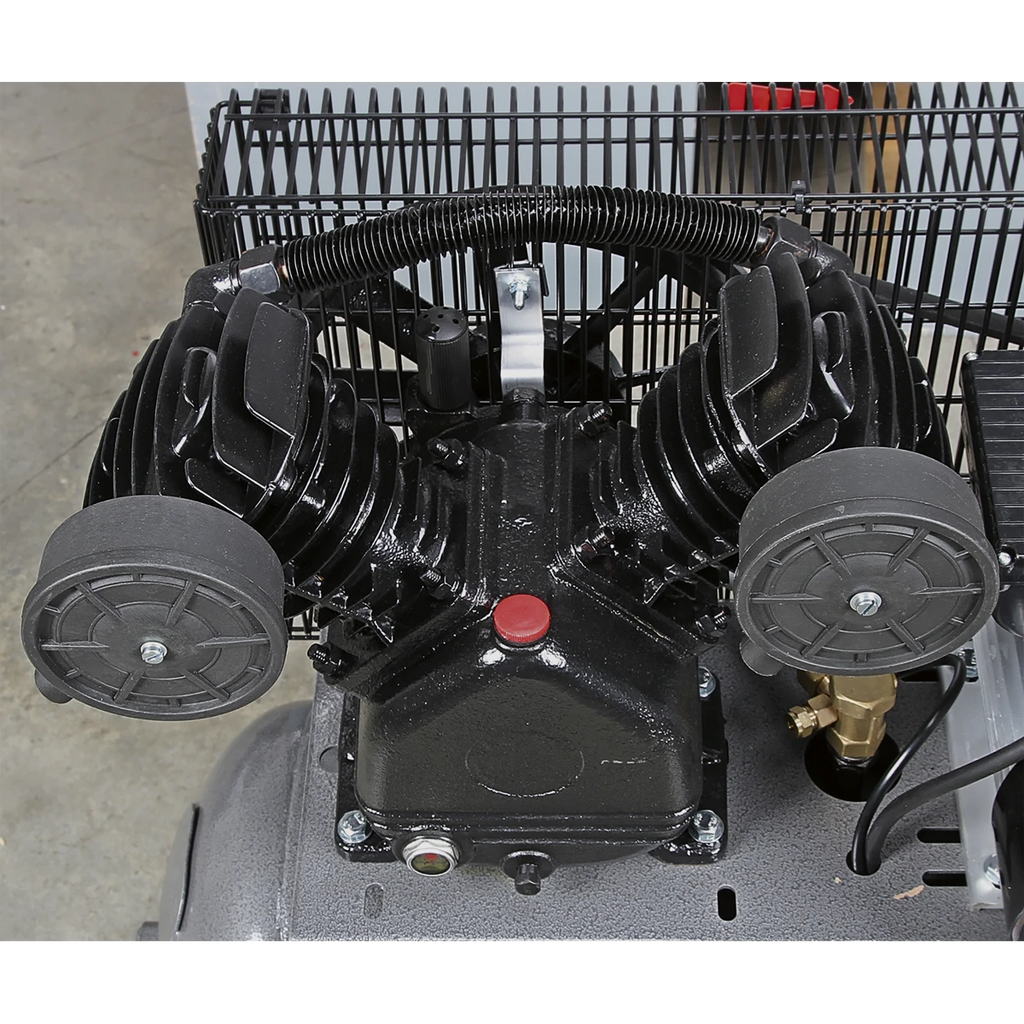

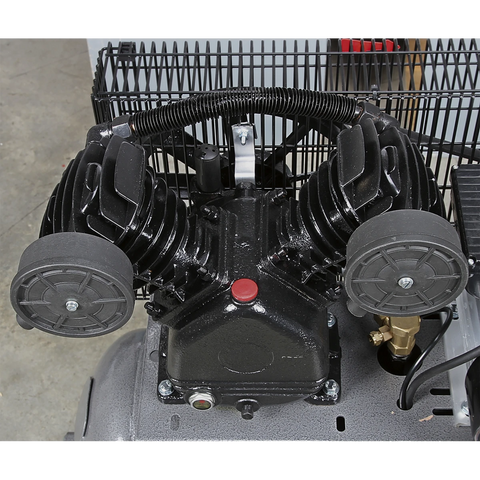

• HEAVY-DUTY FULL CAST CYLINDERS WITH ALLOY HEADS - For improved heat dissipation and long-life.

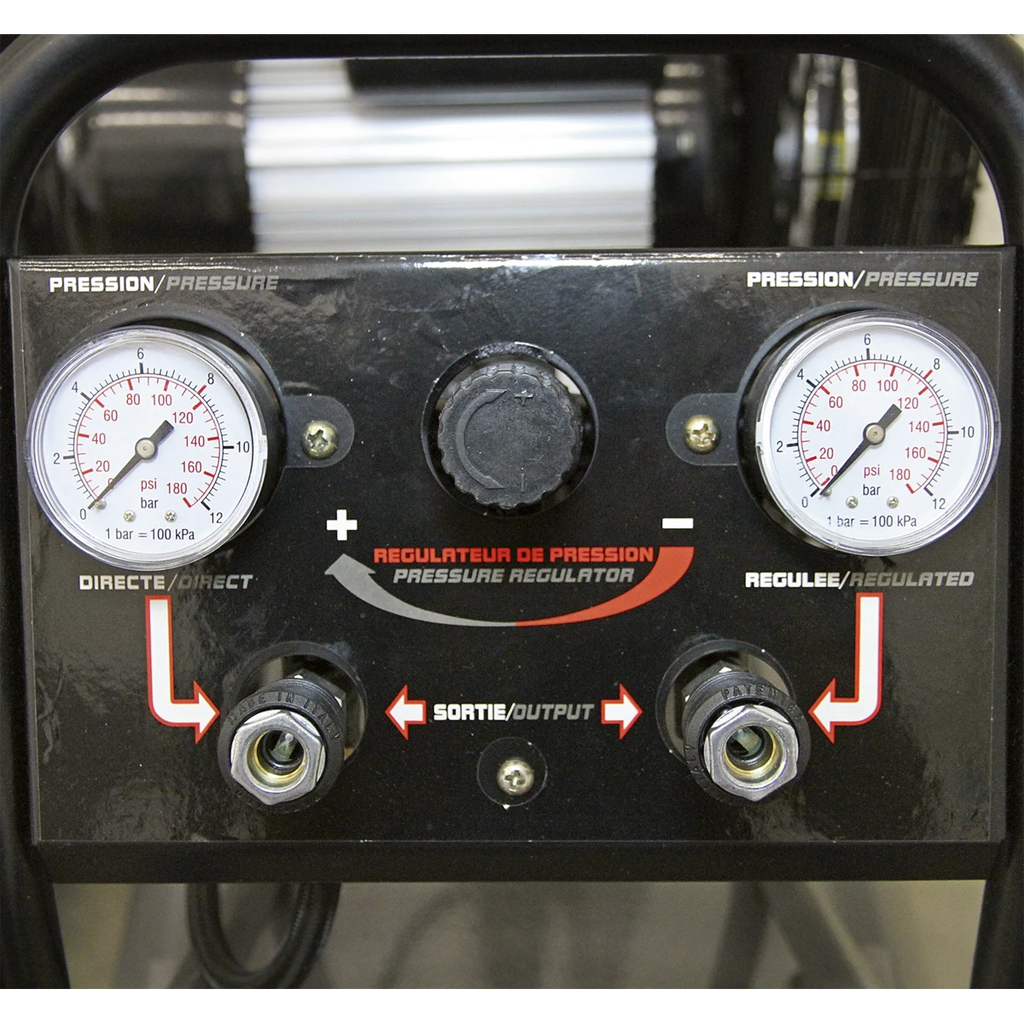

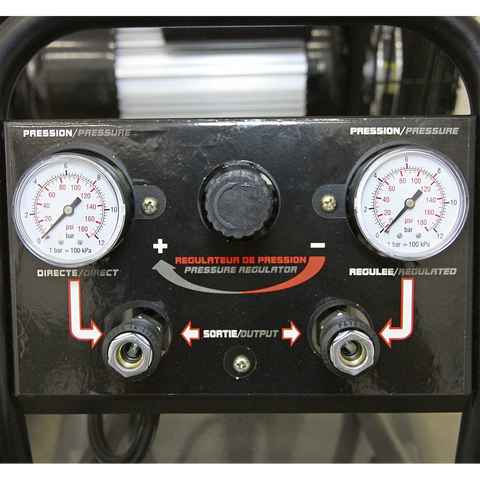

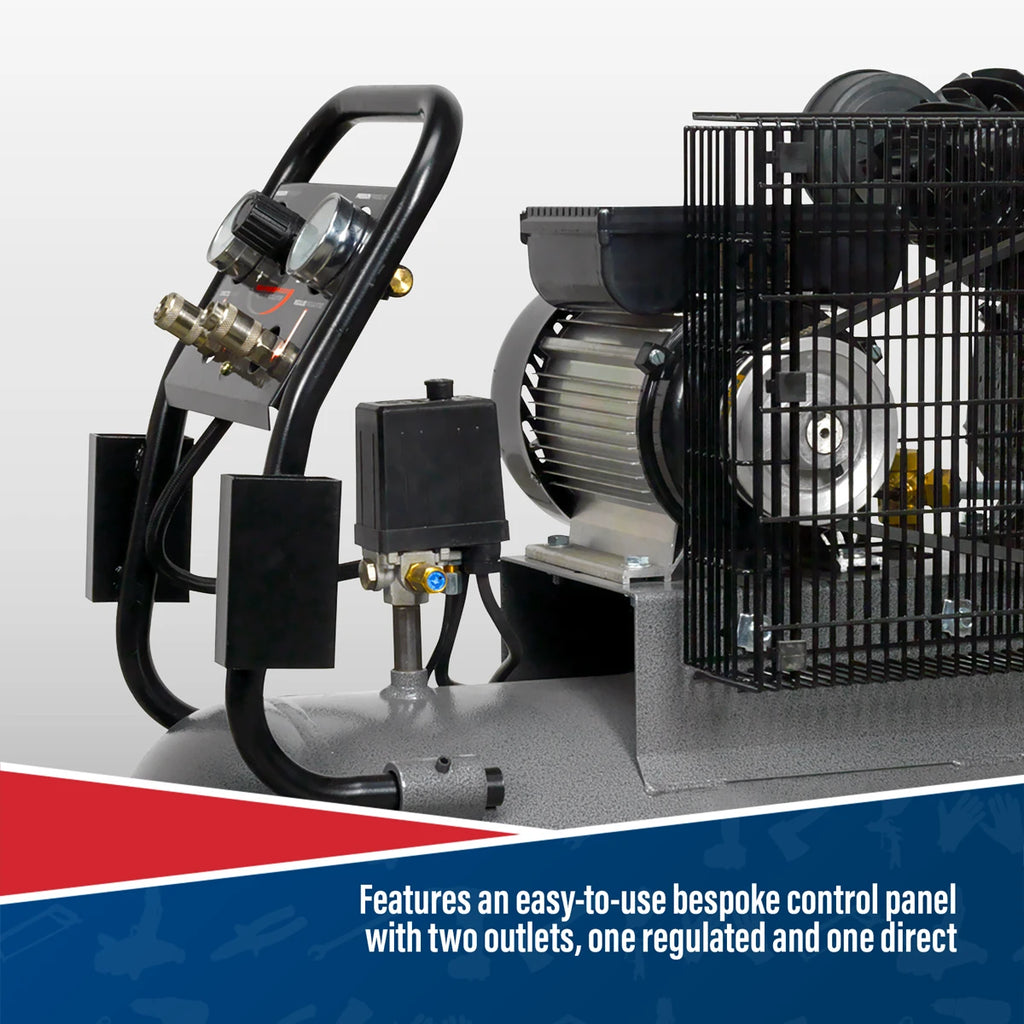

• BESPOKE CONTROL PANEL - Easy-to-use with two outlets, one regulated and one direct.

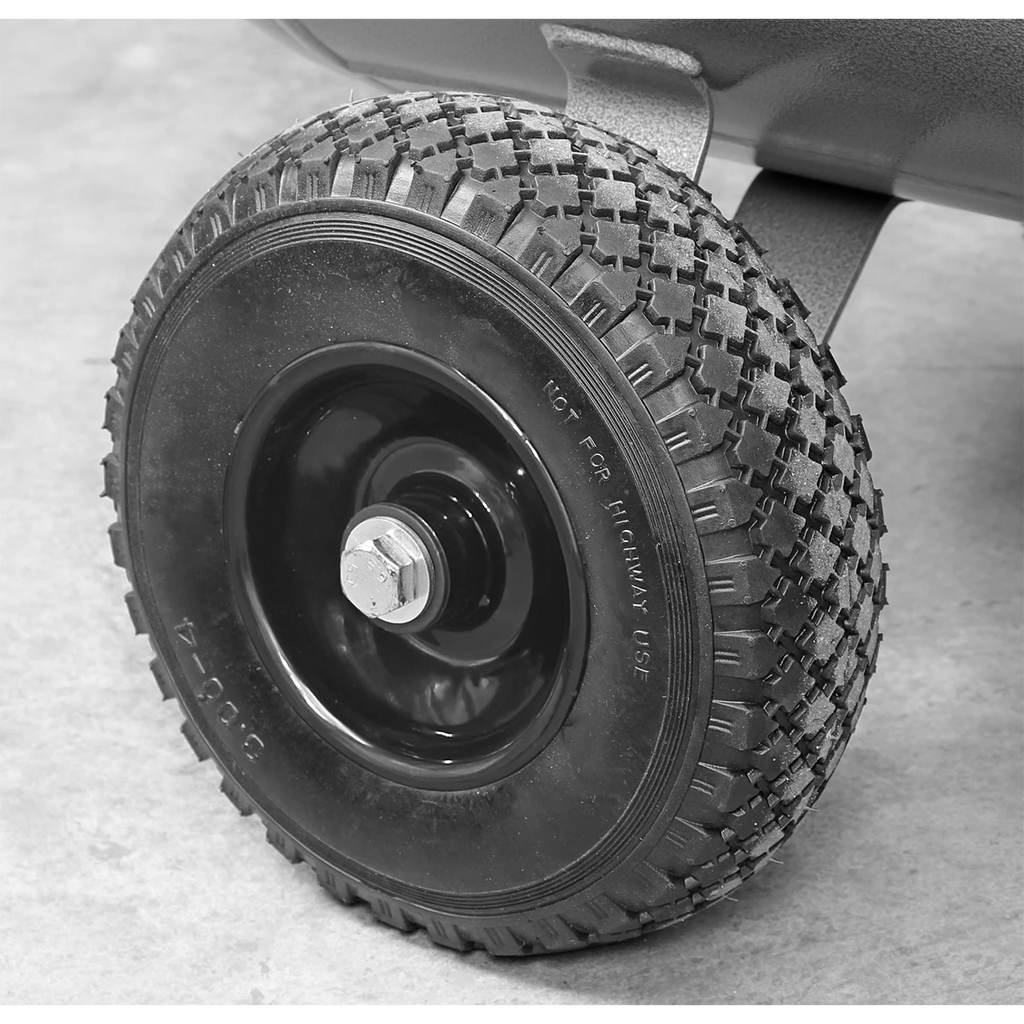

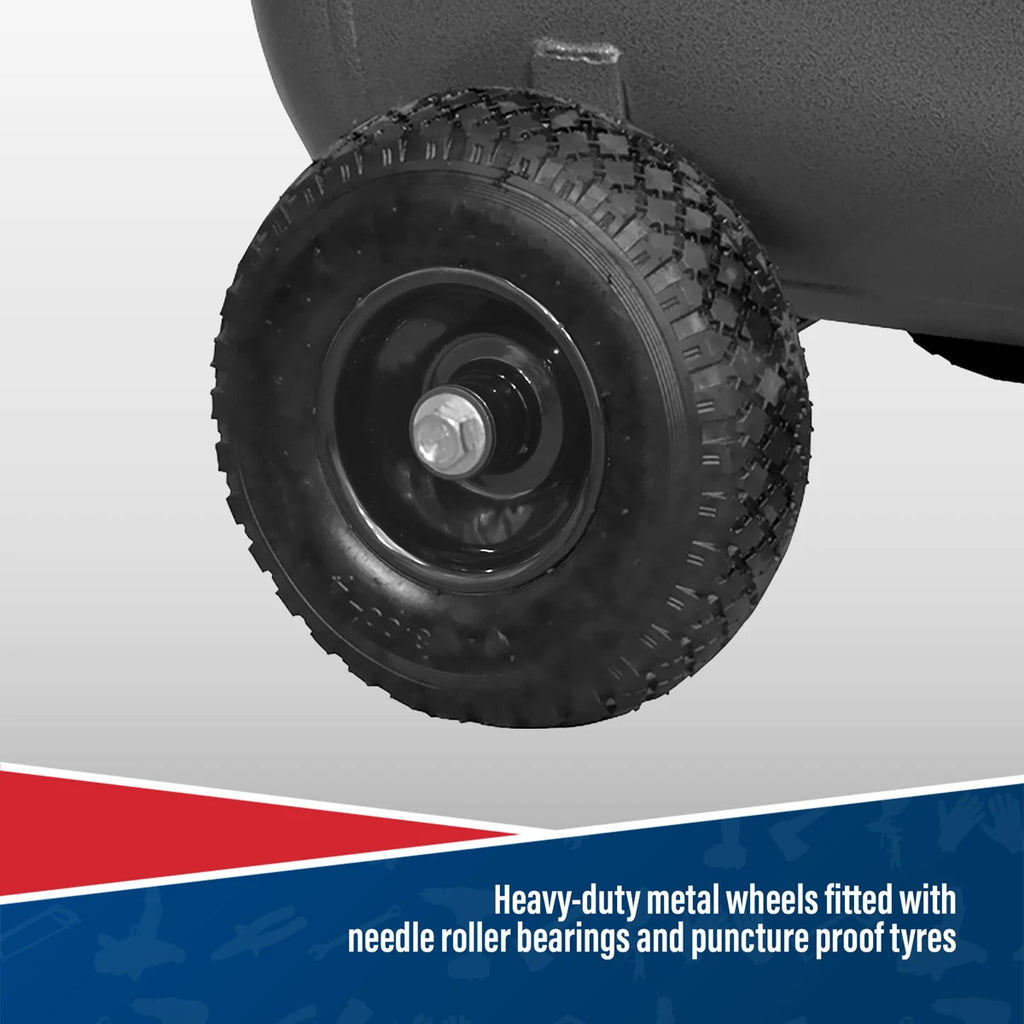

• HEAVY-DUTY METAL WHEELS - Fitted with needle roller bearings and puncture proof tyres.

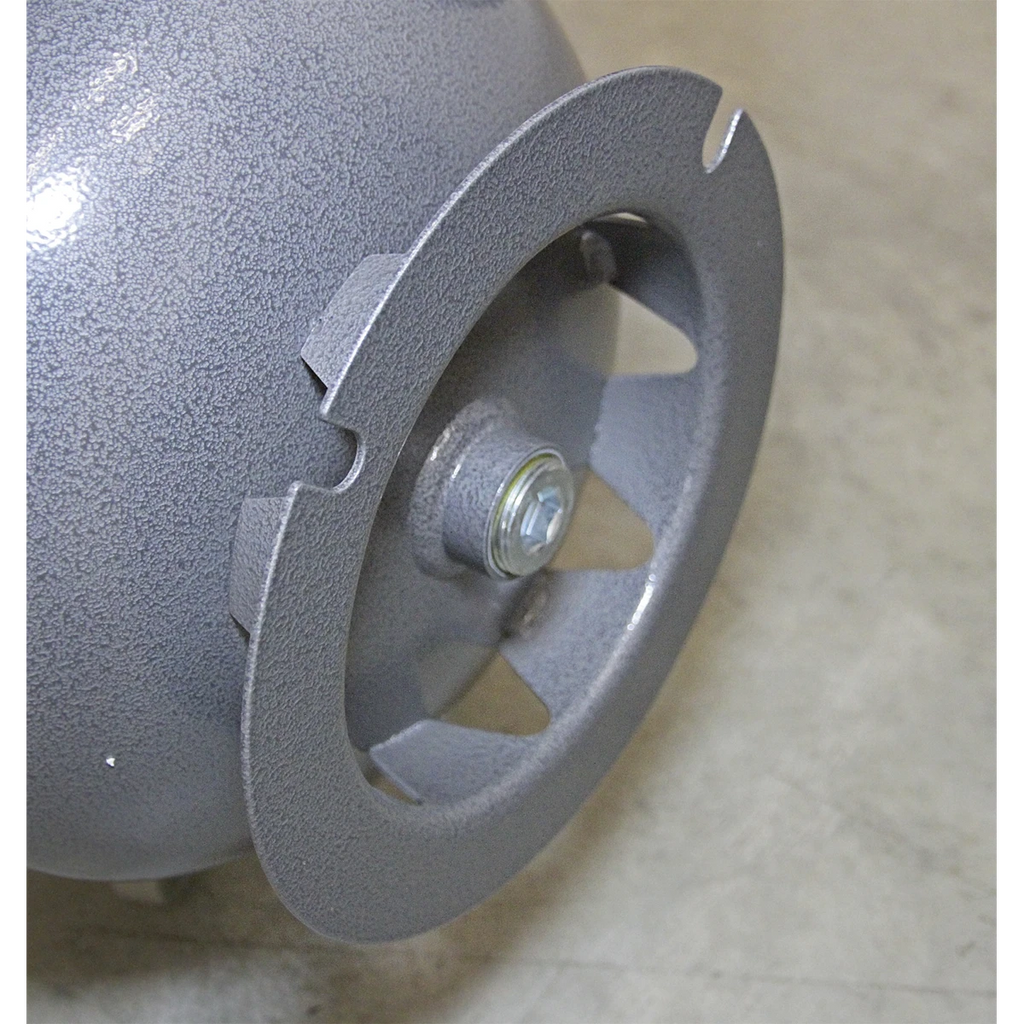

• HOSE REEL - Tank mounted to keep your workspace tidy.
• DRAIN VALVE - For easy release of condensed water build-up in the tank.
• 3 YEAR GUARANTEE*.

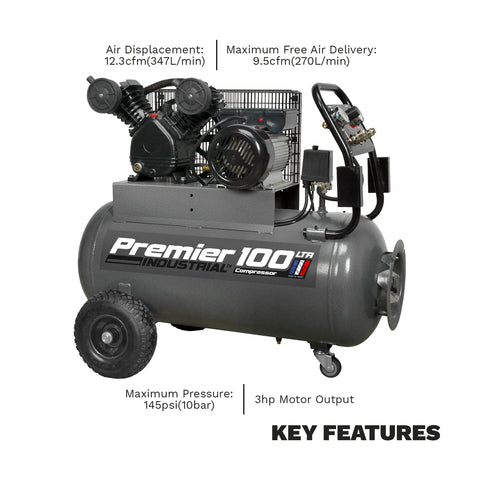

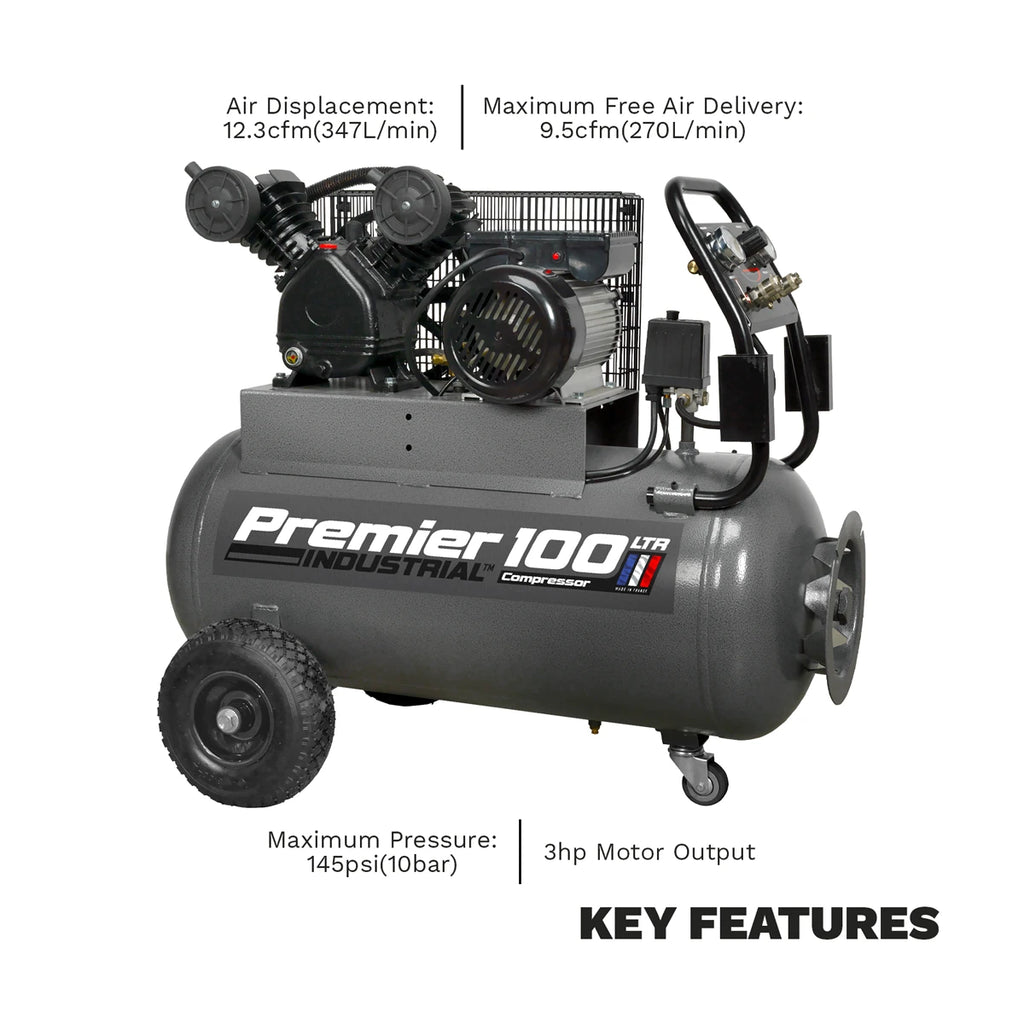

Technical Data
|
Air Displacement cfm(L/min):
|
12.3(347)
|
13.4(380)
|
13.4(380)
|
|
Maximum Free Air Delivery cfm(L/min):
|
9.5(270)
|
10.9(310)
|
10.9(310)
|
|
Maximum Pressure:
|
145psi(10bar)
|
145psi(10bar)
|
145psi(10bar)
|
|
Minimum Rated Supply:
|
16A
|
16A
|
16A
|
|
Motor Output:
|
3hp
|
3ph
|
3ph
|
|
Outlet:
|
High-Flow Quick
Release Coupling
|
High-Flow Quick Release Coupling
|
High-Flow Quick Release Coupling
|
|
Phase:
|
1ph
|
1ph
|
1ph
|
|
Receiver Capacity:
|

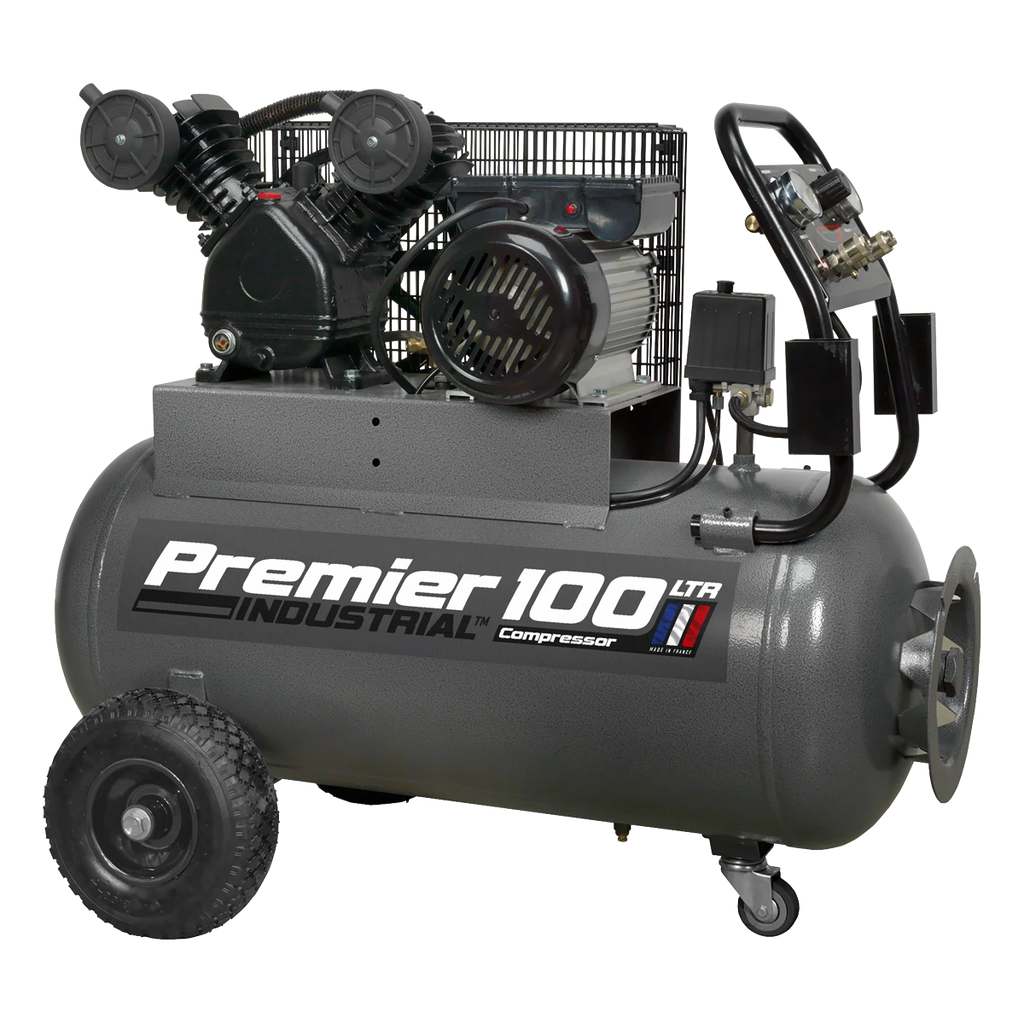

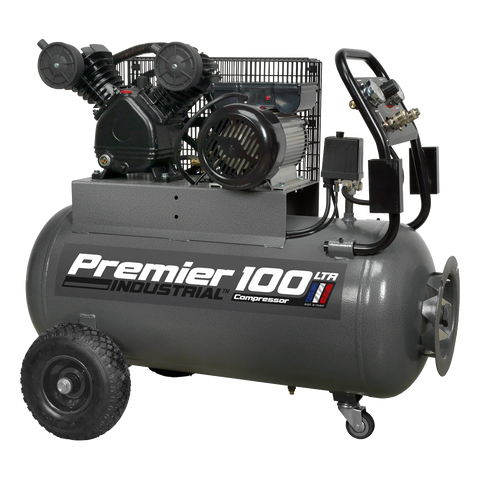

100L
|

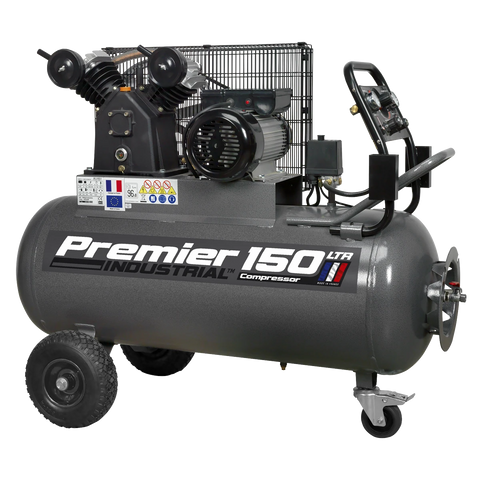

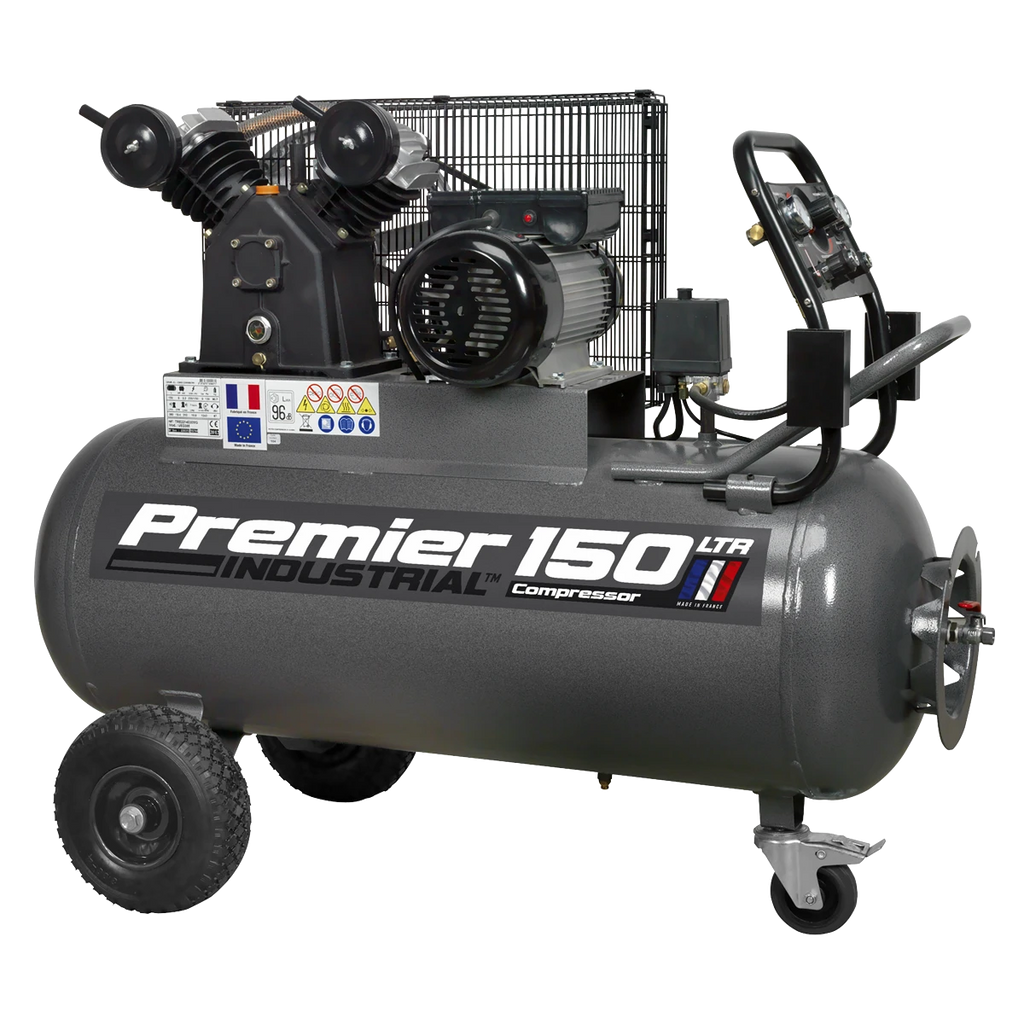

150L
|

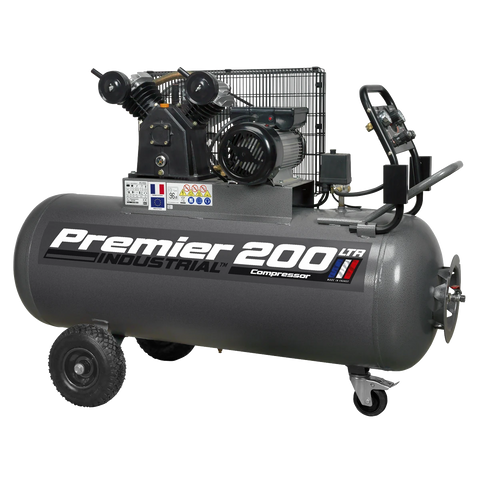

200L
|
|
Size (W x D x H):
|
980 x 500 x 800mm
|
1210 x 600 x 970mm
|
1410 x 600 x 1020mm
|
|
Speed:
|
1140rpm
|
1243rpm
|
1243rpm
|
|
Supply:
|
230V/16A
|
230V/16A
|
230V/16A
|
|
Nett Weight:
|
72.4kg
|
89kg
|
103kg
|
|
Noise Level
|
88
|
86
|
86
|
|
Plug Type
|
Bare Wire
|
Bare Wire
|
Bare Wire
|
|
Barcode:
|
5054630239045
|
5054630239021
|
5054630239014
|
