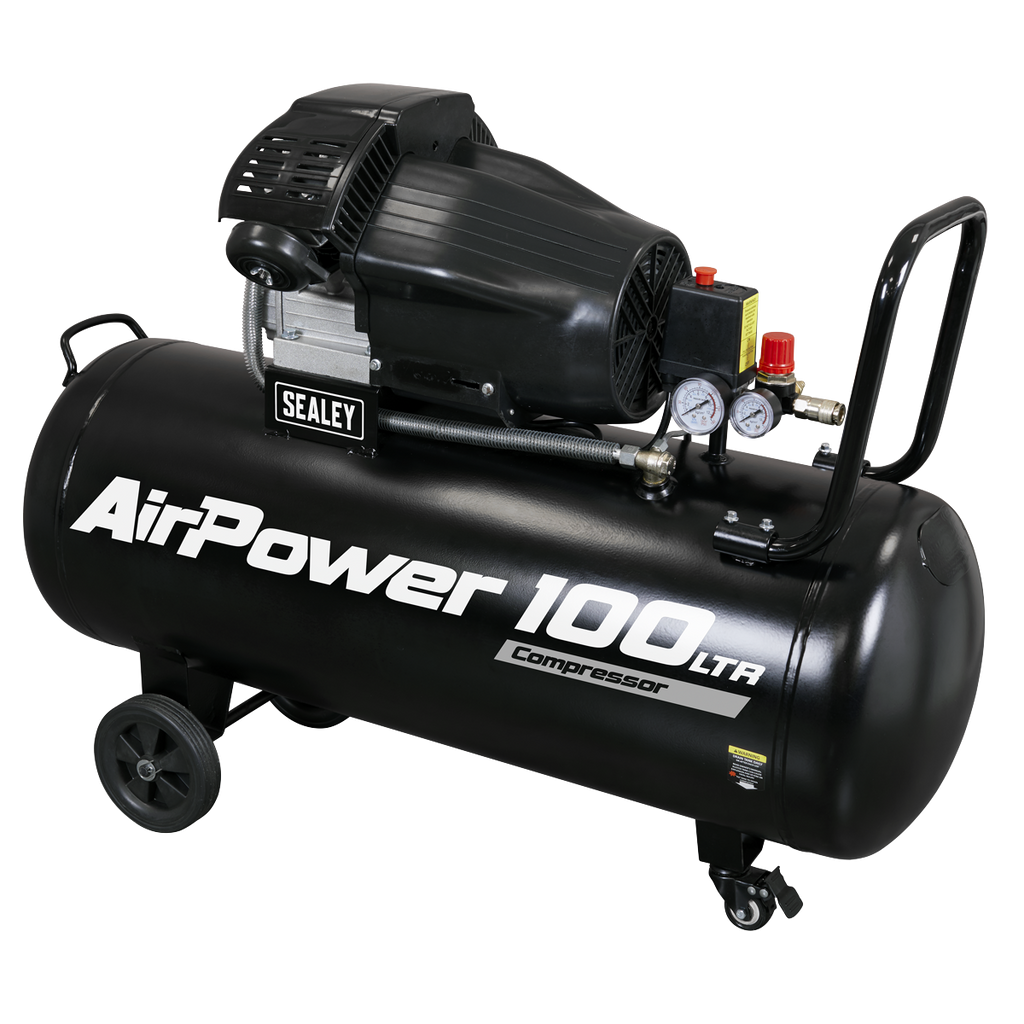

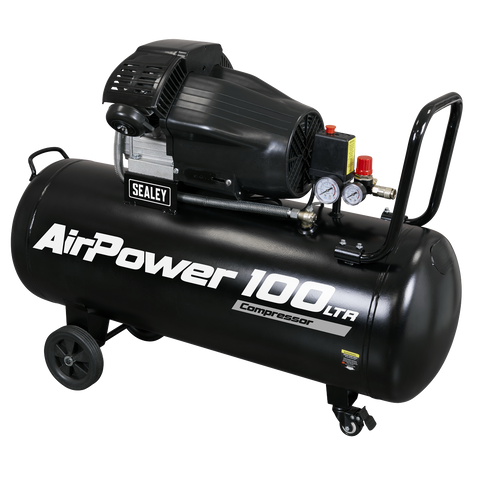

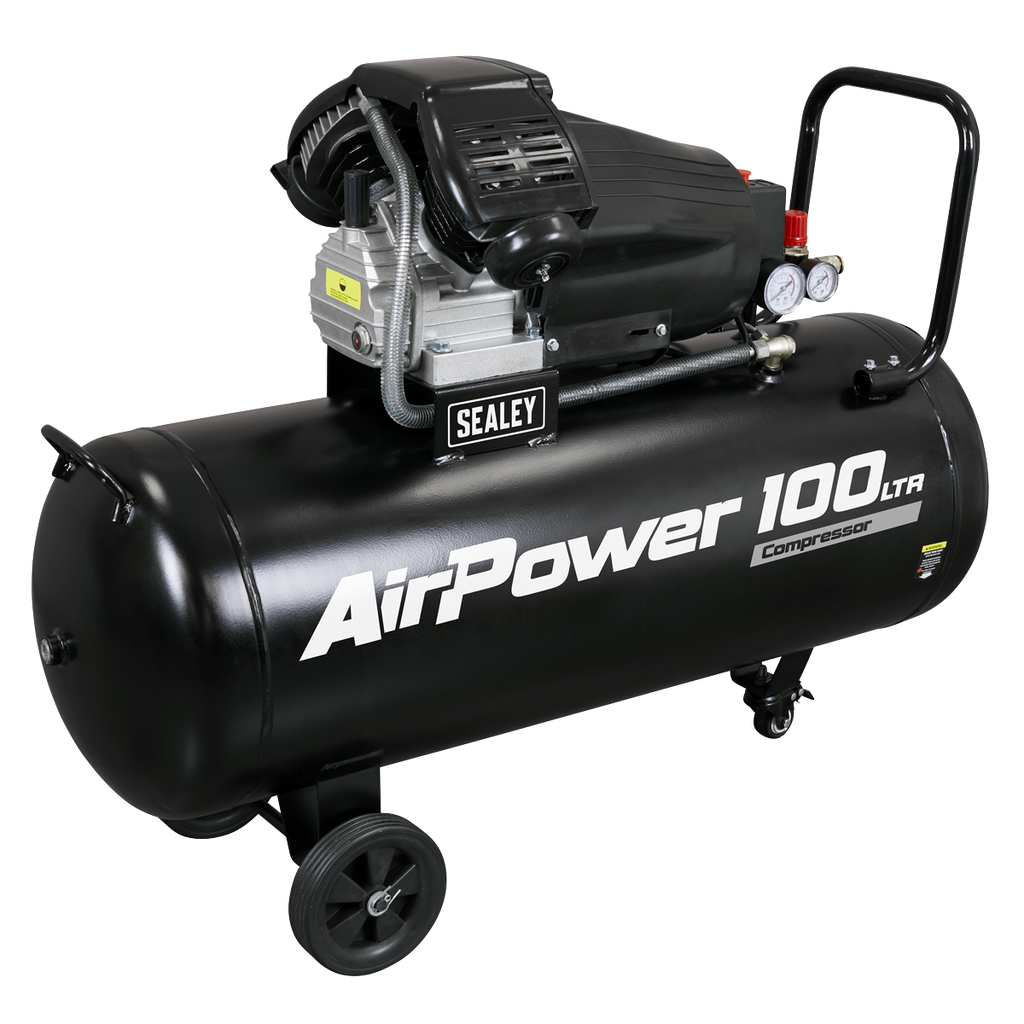

Sealey SAC10030VA 100L V-Twin Direct Drive Air Compressor 3hp
V-Twin pump aluminium cylinder head with cast iron cylinder gives added resistance to wear. Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation. Suitable for general-purpose workshop applications. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Fitted with 3-pin plug.
Features
• ALUMINIUM CONSTRUCTION - V-Twin pump with aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• AUTOMATIC CUT-OUT- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• RELIABLE AND QUIET - Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
• HIGH QUALITY TANK - Precision welded receiver tank manufactured to meet Pressure Vessel Directive.
• PERFECT FOR WORKSHOPS - Suitable for all general-purpose workshop applications.
Specification
|
Air Displacement cfm(L/min):
|
12.4cfm(350L/min)
|
|
Maximum Free Air Delivery cfm(L/min):
|
7cfm(198L/min)
|
|
Maximum Pressure:
|
116psi(8bar)
|
|
Minimum Rated Supply:
|
13A
|
|
Motor Output:
|
3hp
|
|
Noise Level:
|
97dB
|
|
Oil Capacity:
|
350ml
|
|
Outlet:
|
Quick Release Coupling
|
|
Phase:
|
1ph
|
|
Receiver Capacity:
|
100L
|
|

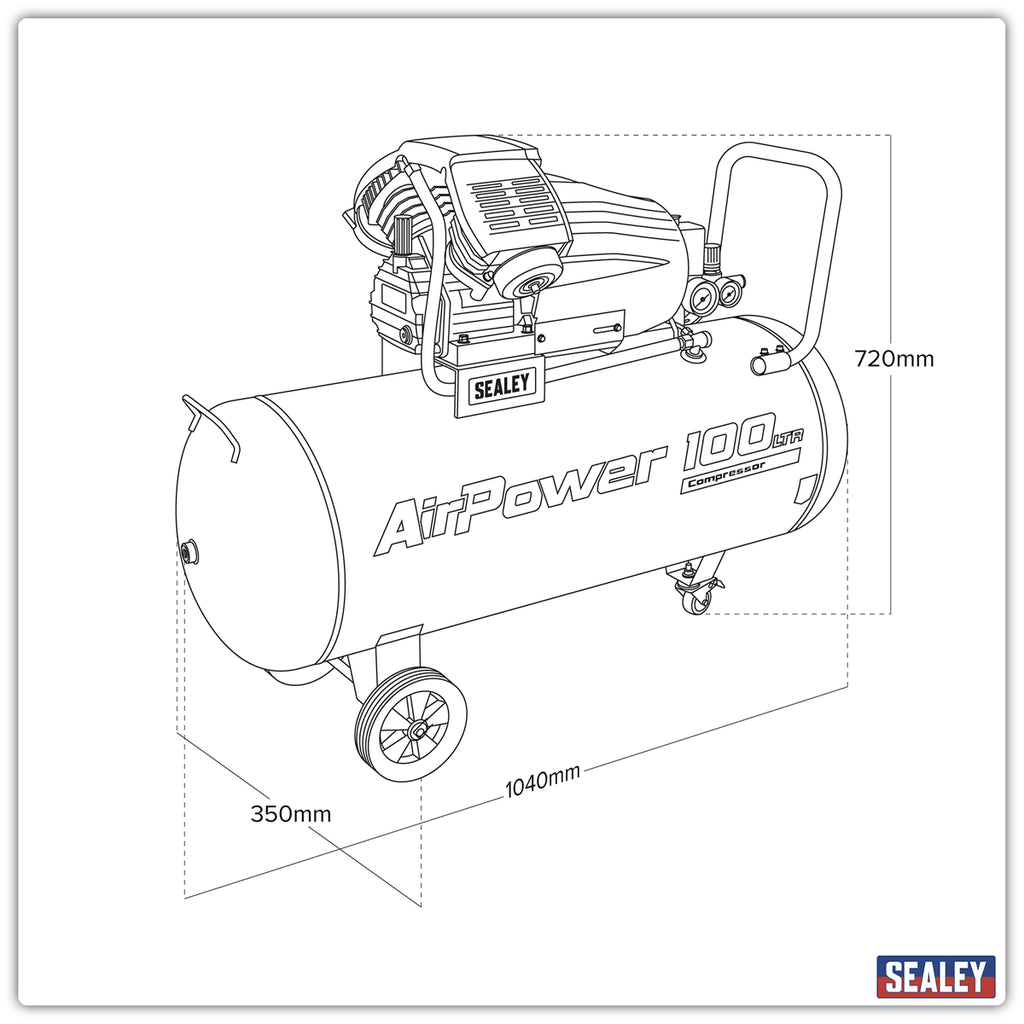

Size (W x D x H):
|
1040 x 350 x 720mm
|
|
Supply:
|
230V/13A
|
|
Nett Weight:
|
48kg
|
|
Barcode:
|
5054630385940
|
