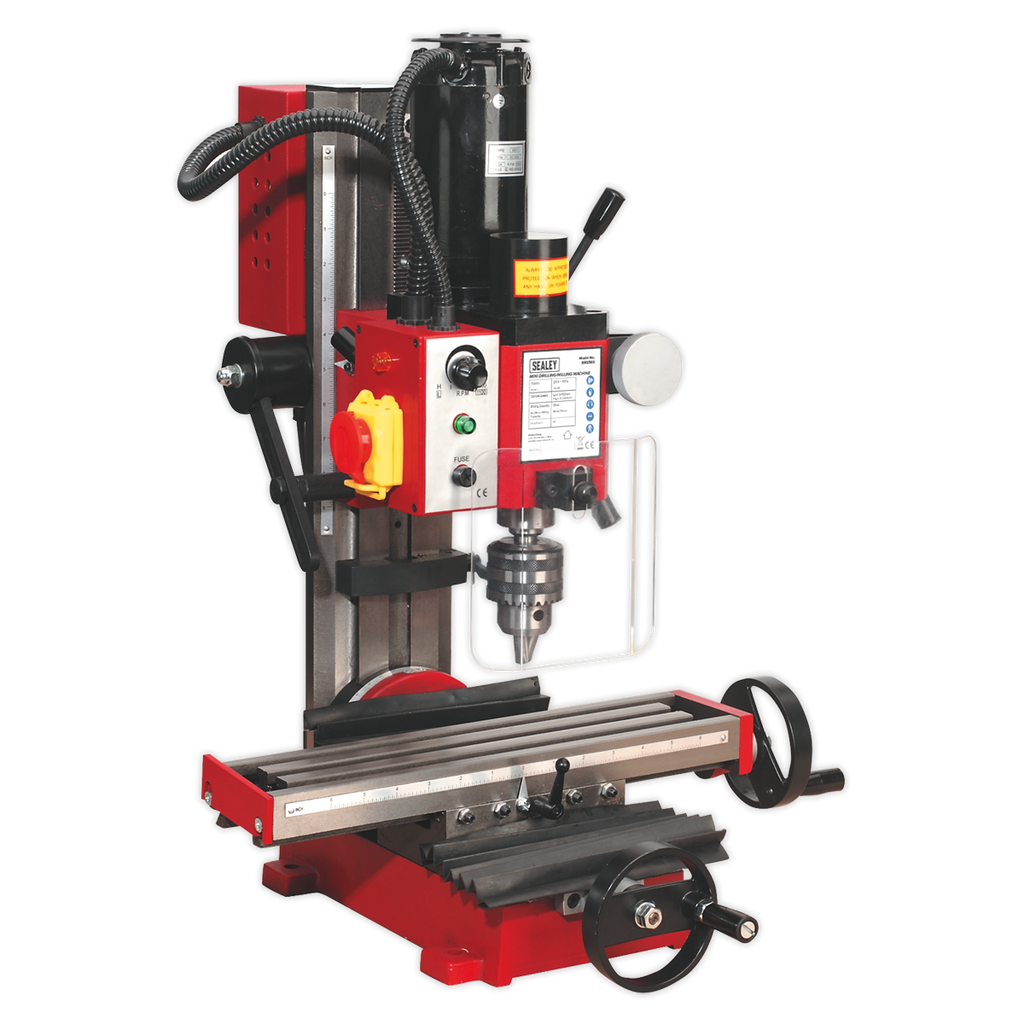

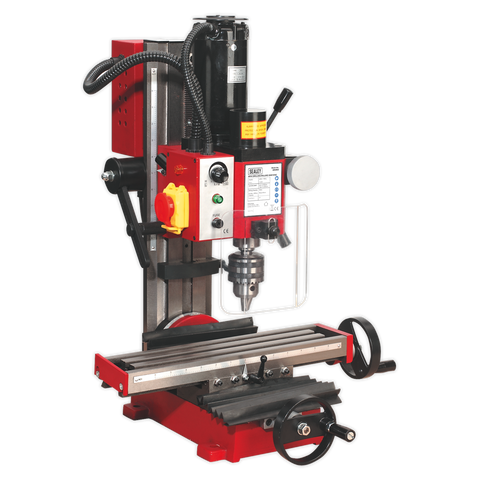

Sealey SM2502 Mini Drilling & Milling Machine
Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and Metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.
Features
• Bench mounting mini drilling/milling machine with the flexibility to handle most materials.
• Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and metric graduated compound scales.

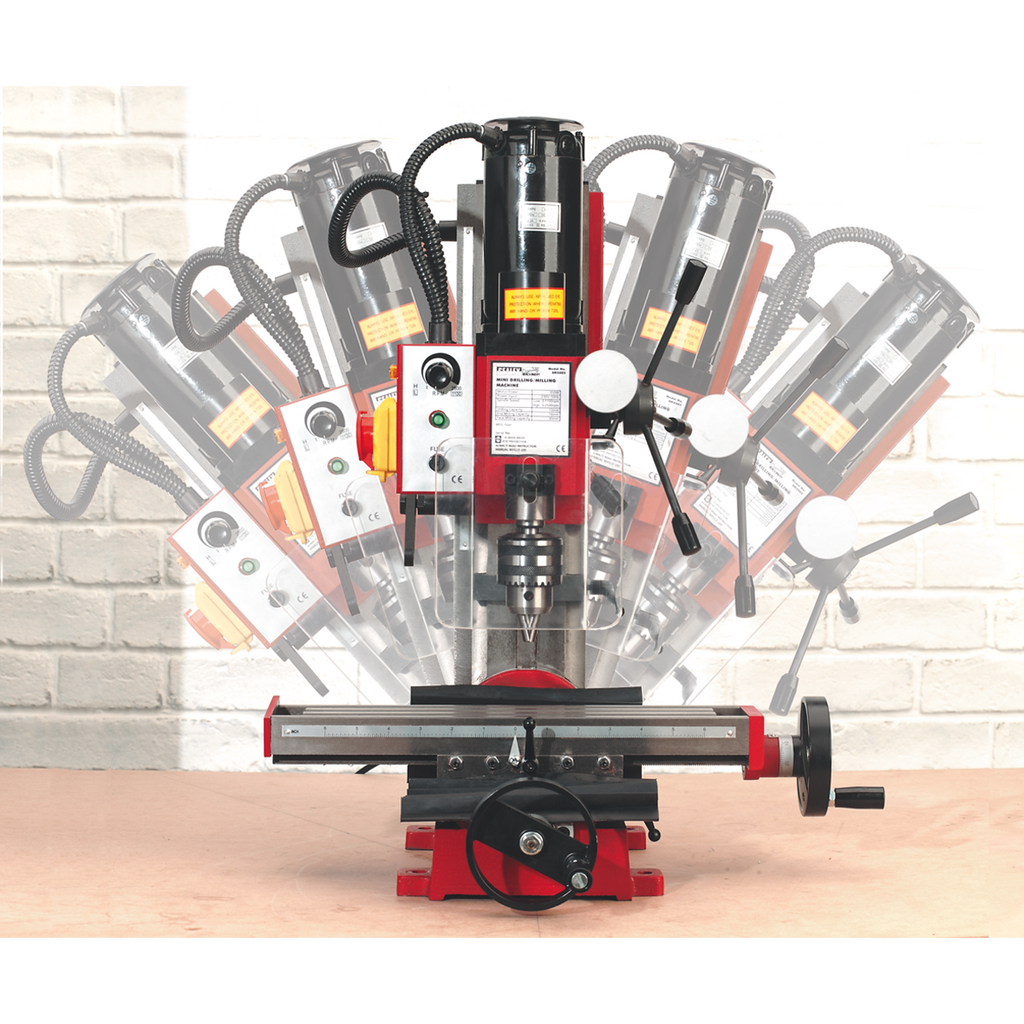

• The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical.
• Supplied with 13mm chuck accessory kit for adjusting and setting.
• An optional stand is available, order Model No. SM3002ST.
• A comprehensive range of accessories also available.
Specification
|
Cross Axis:
|
100mm
|
|
Drilling Capacity (Chuck Size):
|
13mm
|
|
End Mill Capacity:
|
16mm
|
|
Face Mill Capacity:
|
30mm
|
|
Headstock Travel:
|
180mm
|
|
Longitudinal Axis:
|
220mm
|
|
Motor Power:
|
350W
|
|
Spindle Nose Taper:
|
MT3
|
|
Spindle Speed - High Range:
|
0-2500rpm
|
|
Spindle Speed - Low Range:
|
0-1100rpm
|
|
Spindle Tilt Angle:
|
±45°
|
|
Supply:
|
230V
|
|
T-Slot:
|
12mm
|
|
Nett Weight:
|
68kg
|
|
Barcode:
|
5024209625630
|
