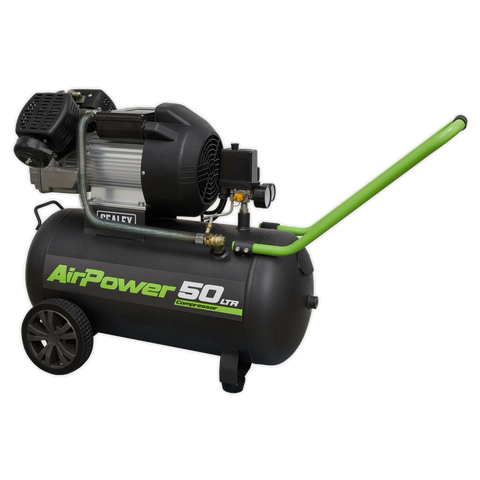

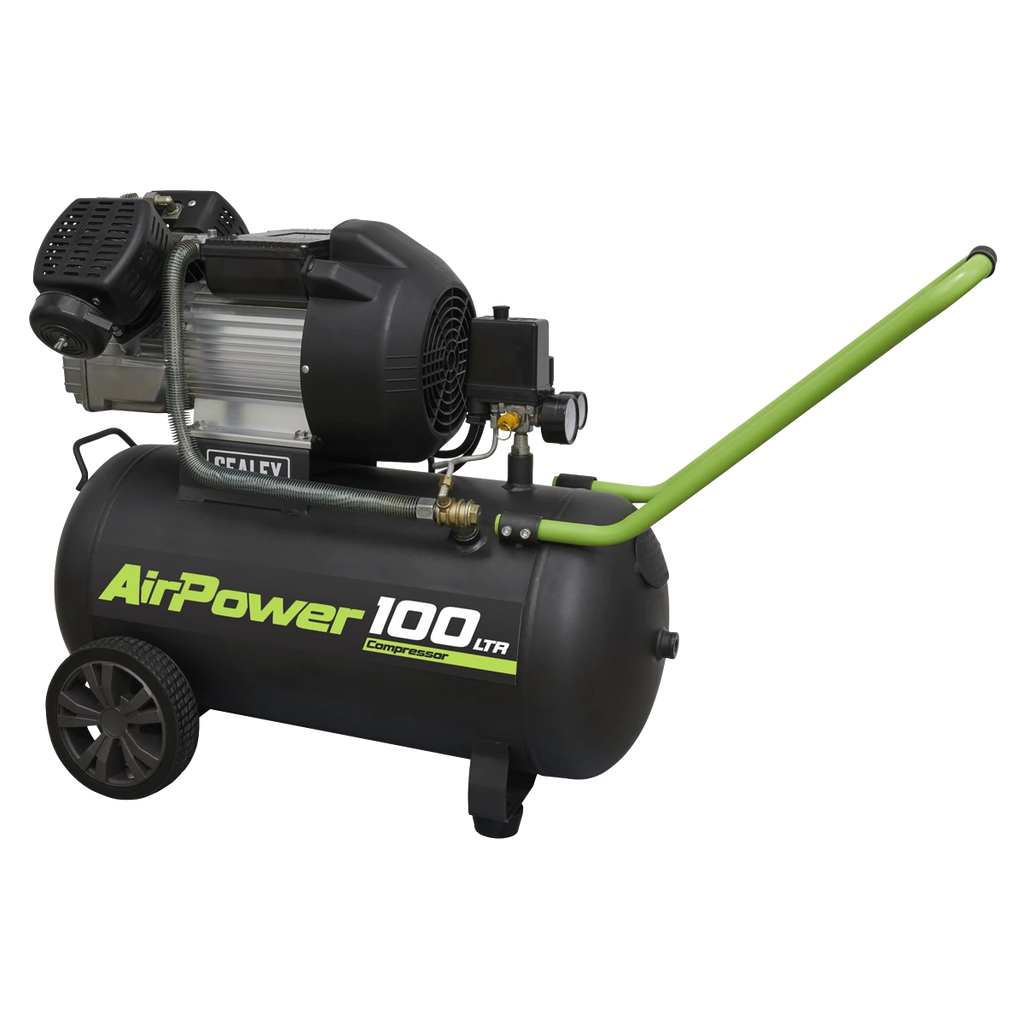

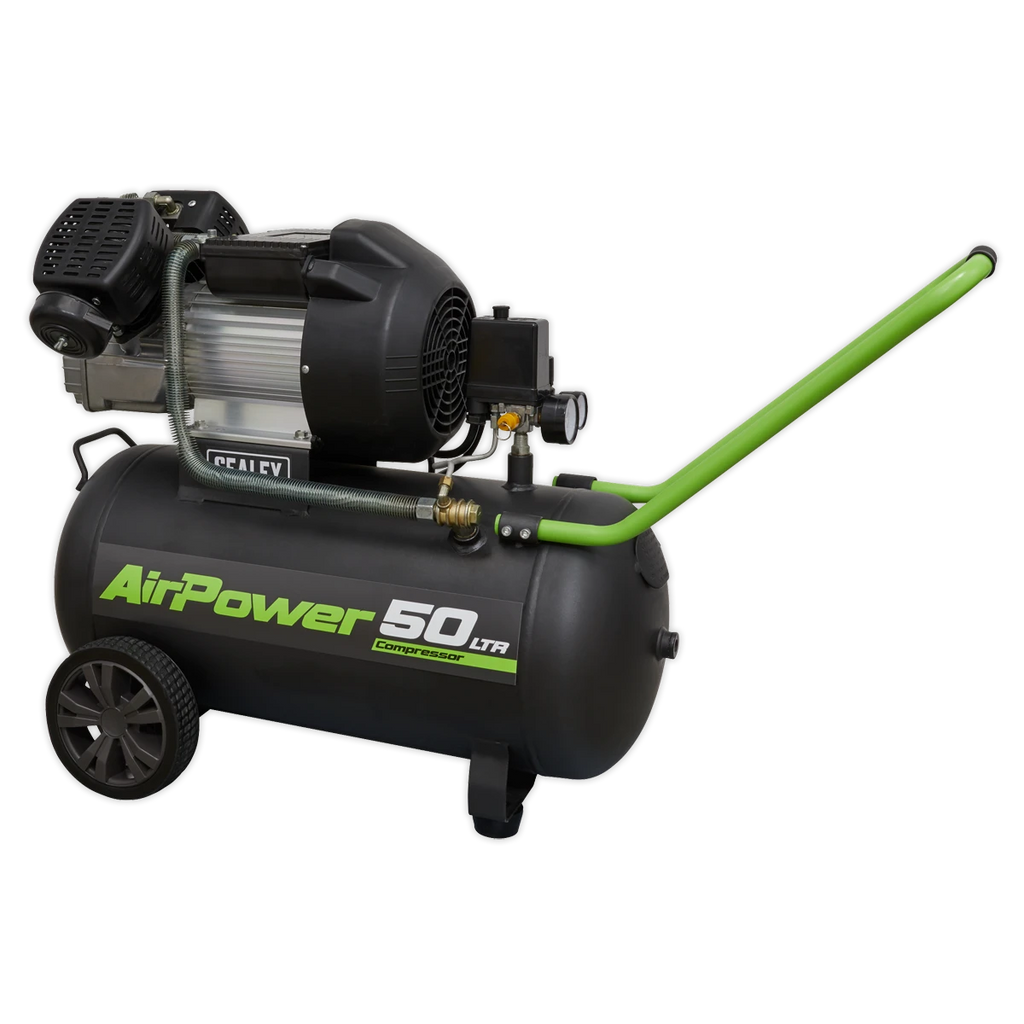

Sealey V-Twin Direct Drive Air Compressors 3hp 230V
The Sealey 50L/100L V-Twin Direct Drive Compressor 3hp has an aluminium cylinder head with cast iron cylinder for reduced weight and improved resistance to wear. The pump head is directly coupled to the heavy-duty induction motor for reliable and quiet operation. The compressor is suitable for general purpose workshop applications.
Features

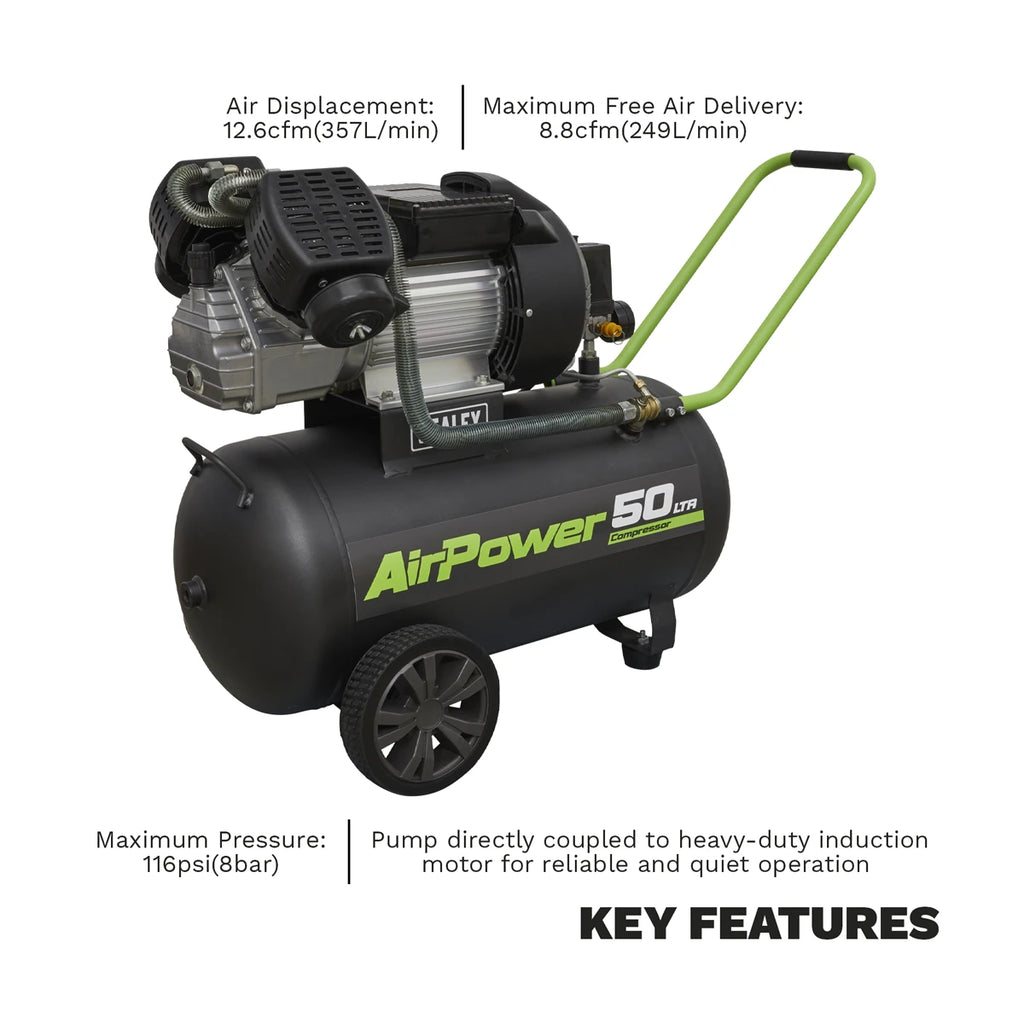

• Air Displacement: 12.6cfm(357L/min).
• Maximum Free Air Delivery: 8.8cfm(249L/min).
• Maximum Pressure: 116psi(8bar).

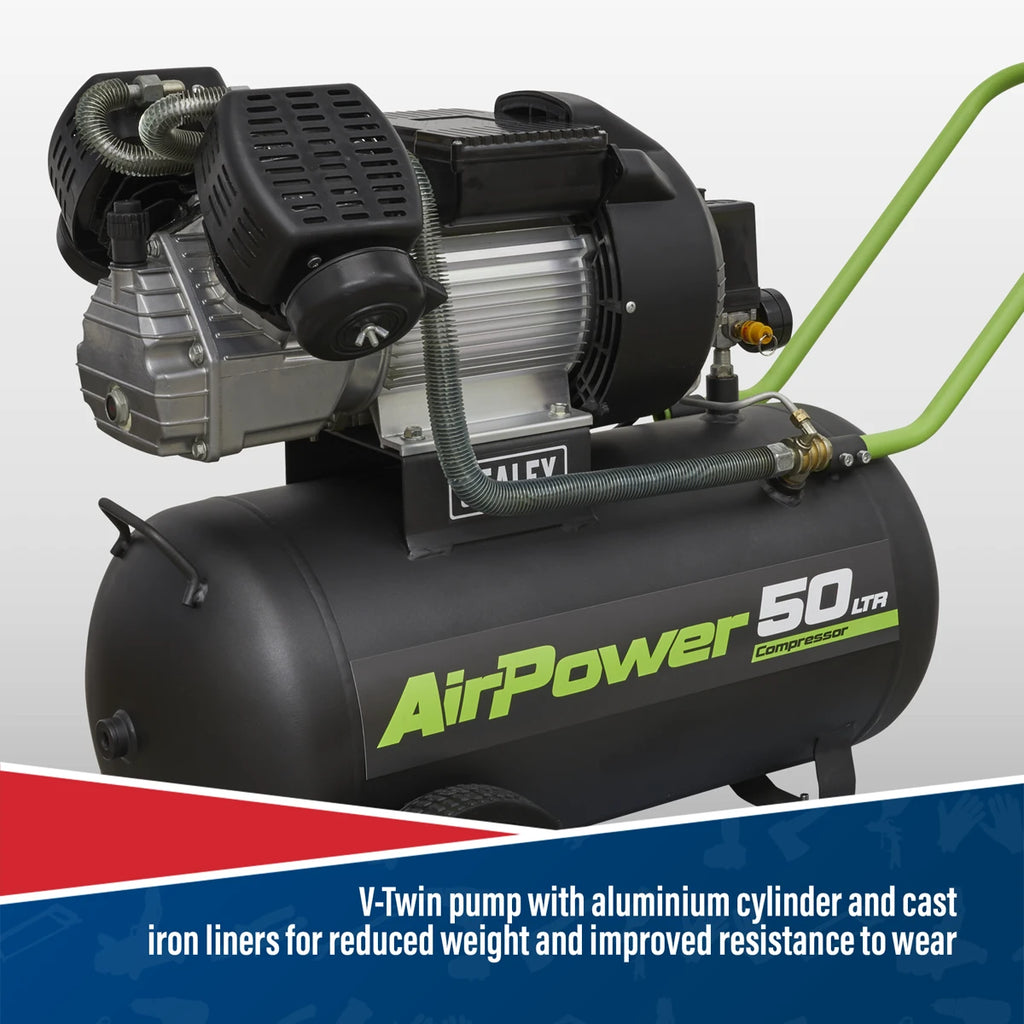

• V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.
• Suitable for general-purpose workshop applications.
• Pump directly coupled to heavy-duty induction motor for reliable and quiet operation.

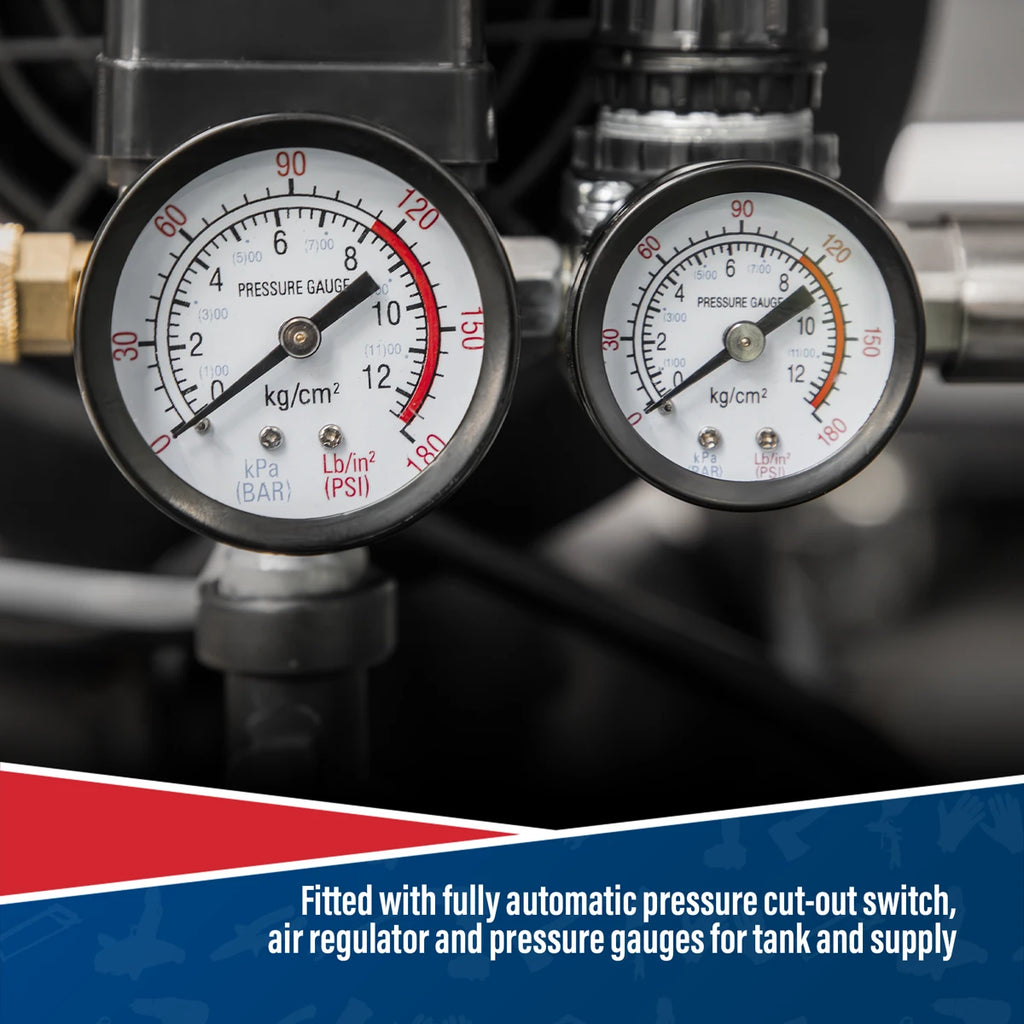

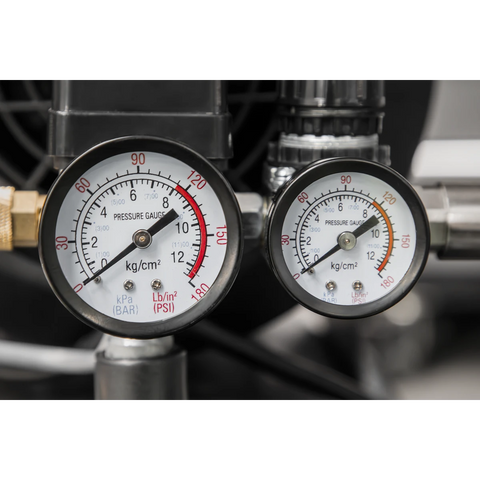

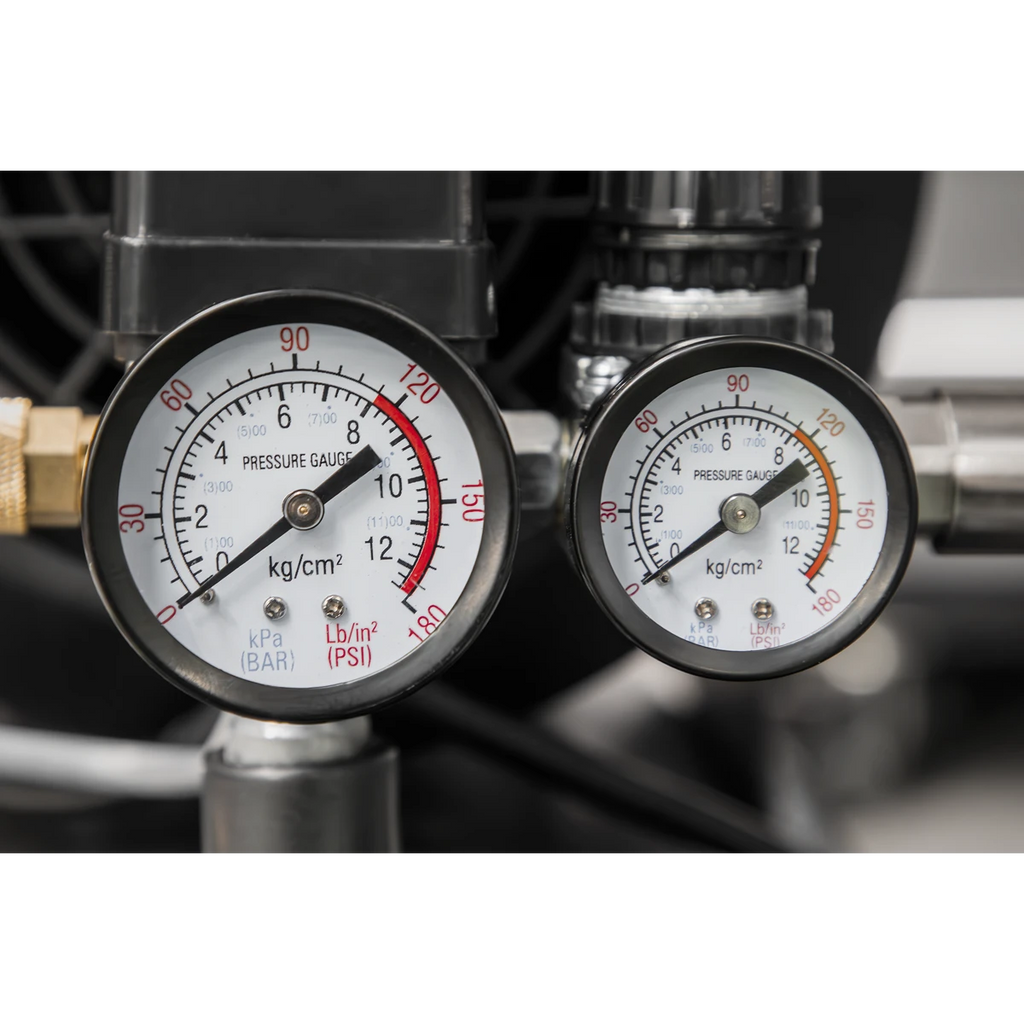

• Fitted with fully automatic pressure cut-out switch, air regulator and pressure gauges for tank and supply.

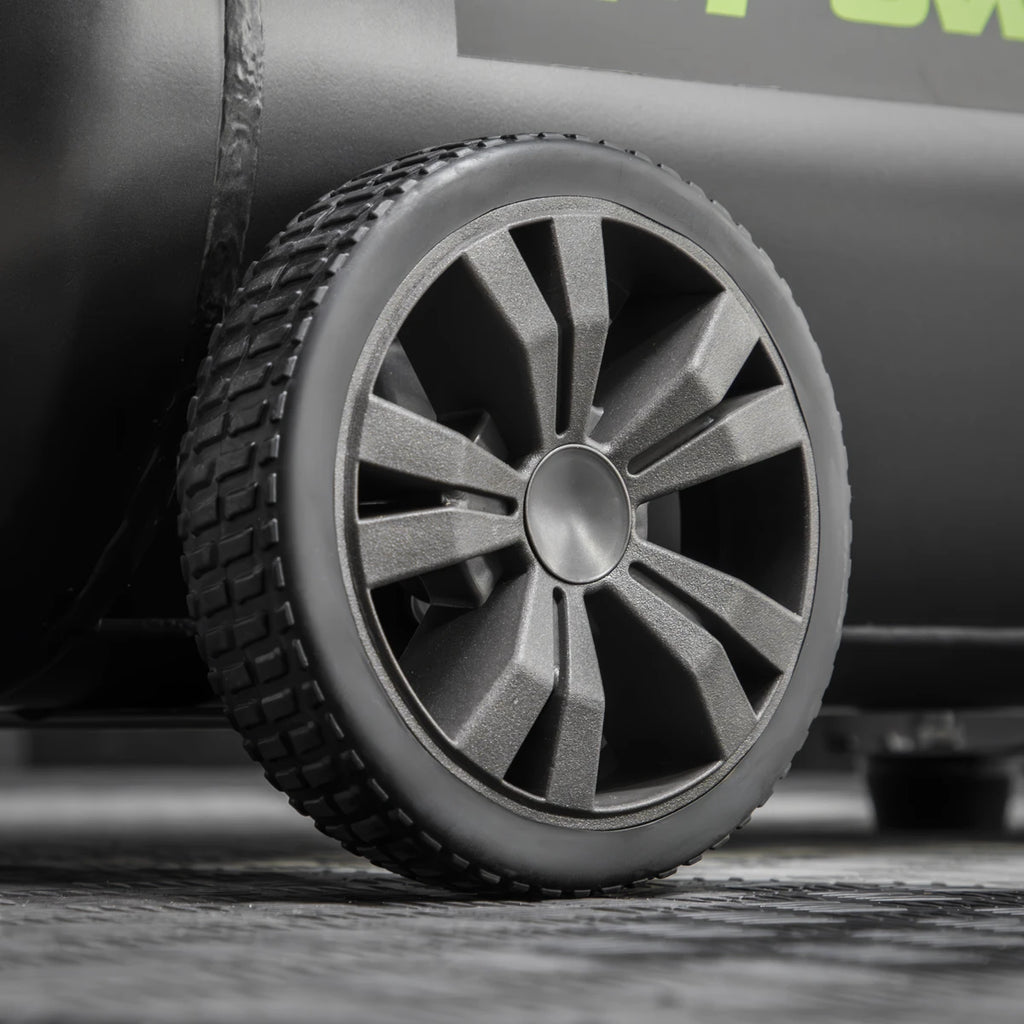

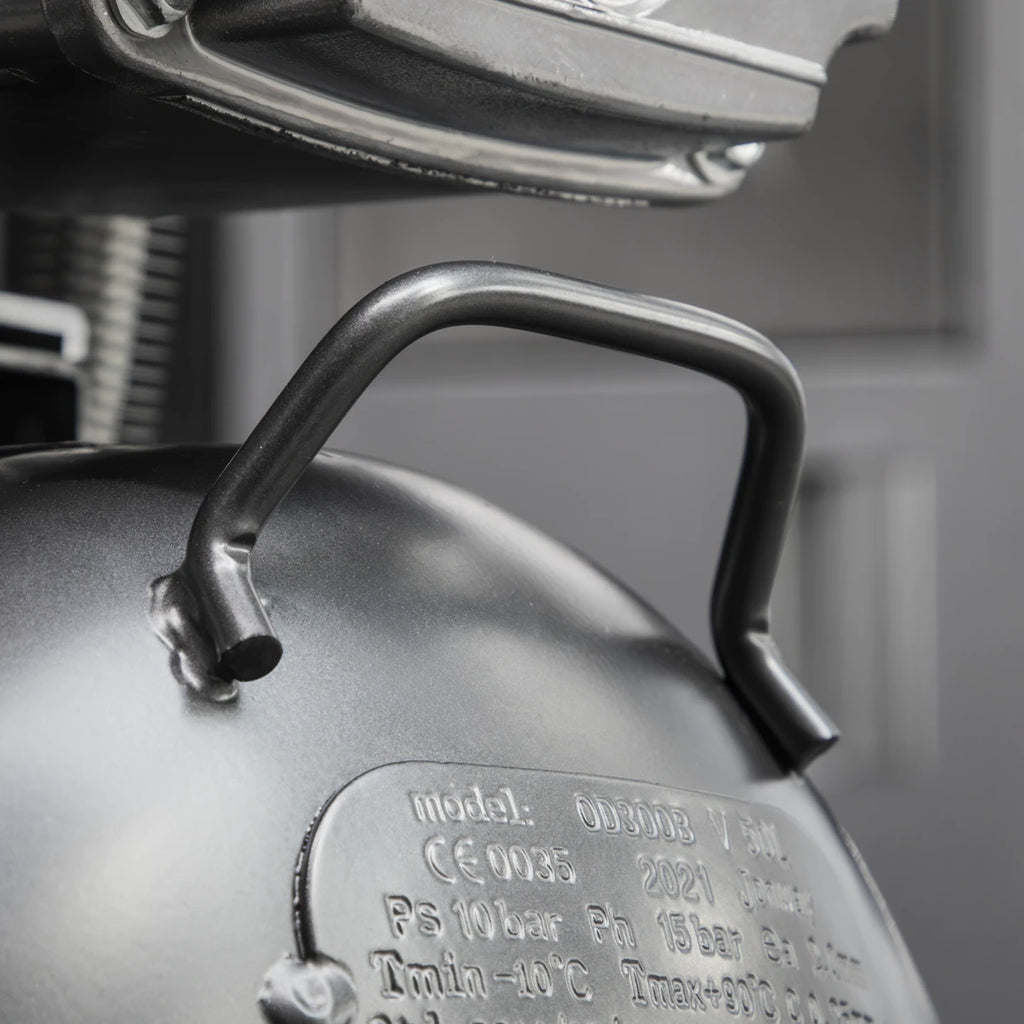

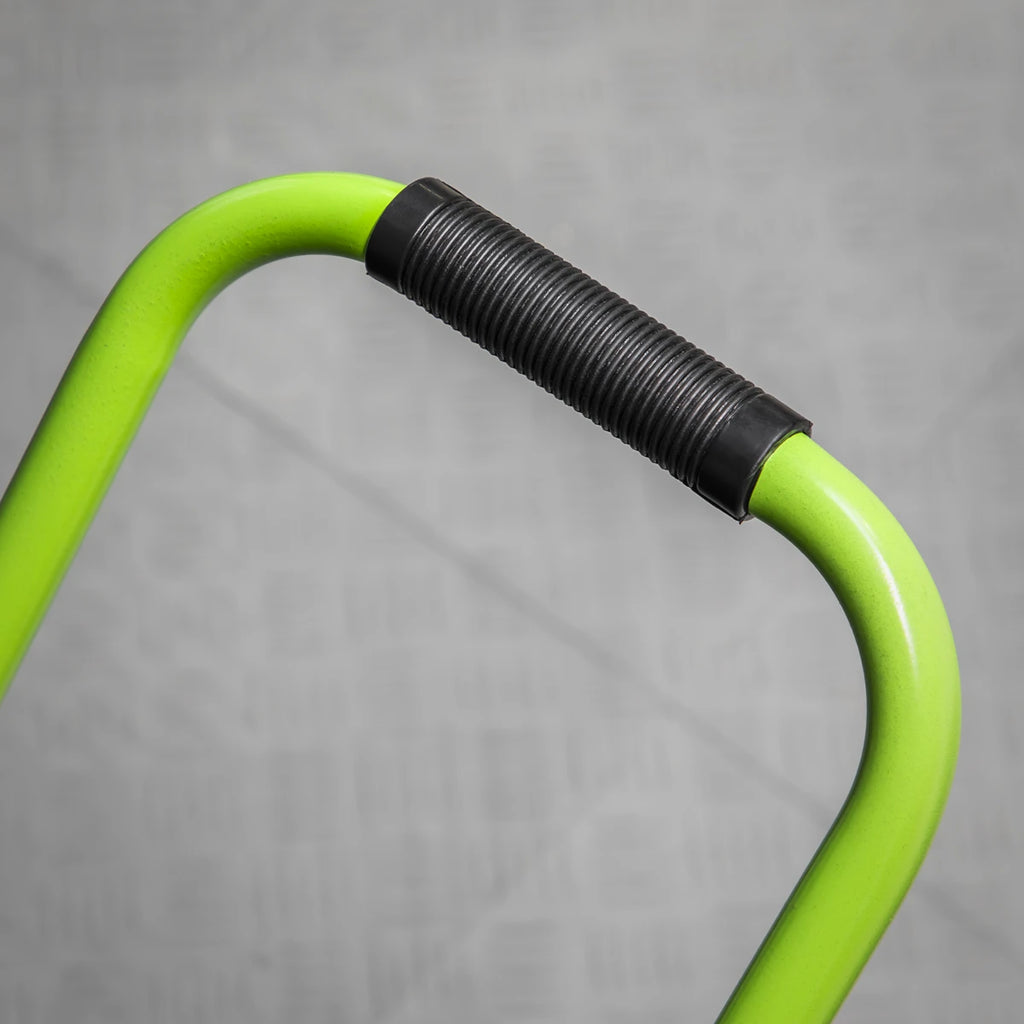

• Supplied with handle and wheels.
• Fitted with 3-pin plug.
Technical Data
|
Air Displacement cfm(L/min):
|
12.6(357)
|
12.6(357)
|
|
Maximum Free Air Delivery cfm(L/min):
|
8.8(249)
|
8.8(249)
|
|
Maximum Pressure:
|
116psi(8bar)
|
116psi(8bar)
|
|
Minimum Rated Supply:
|
13A
|
13A
|
|
Motor Output:
|
3hp
|
3hp
|
|
Noise Level:
|
97dB(A)
|
96dB(A)
|
|
Oil Capacity:
|
0.35L
|
0.35L
|
|
Outlet:
|

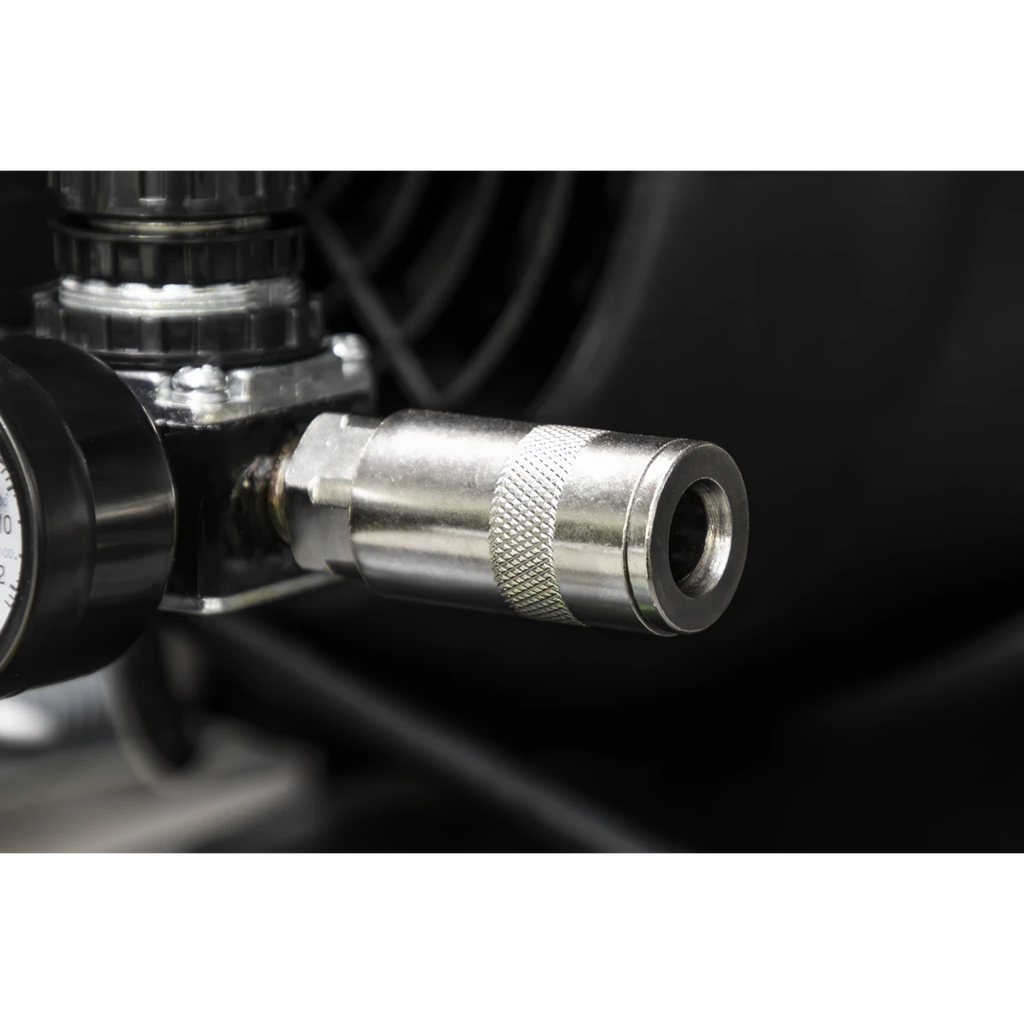

Quick Release Coupling
|
Quick Release Coupling
|
|
Phase:
|
1ph
|
1hp
|
|
Receiver Capacity:
|
50L
|
100L
|
|
Size (W x D x H):
|
695 x 375 x 630mm
|
890 x 450 x 760mm
|
|
Supply:
|
230V/13A
|
230V/13A
|
|
Nett Weight:
|
39kg
|
52kg
|
|
Barcode:
|
5054511527957
|
5054511531190
|
Declaration of Conformity 50L Declaration of Conformity 100L
