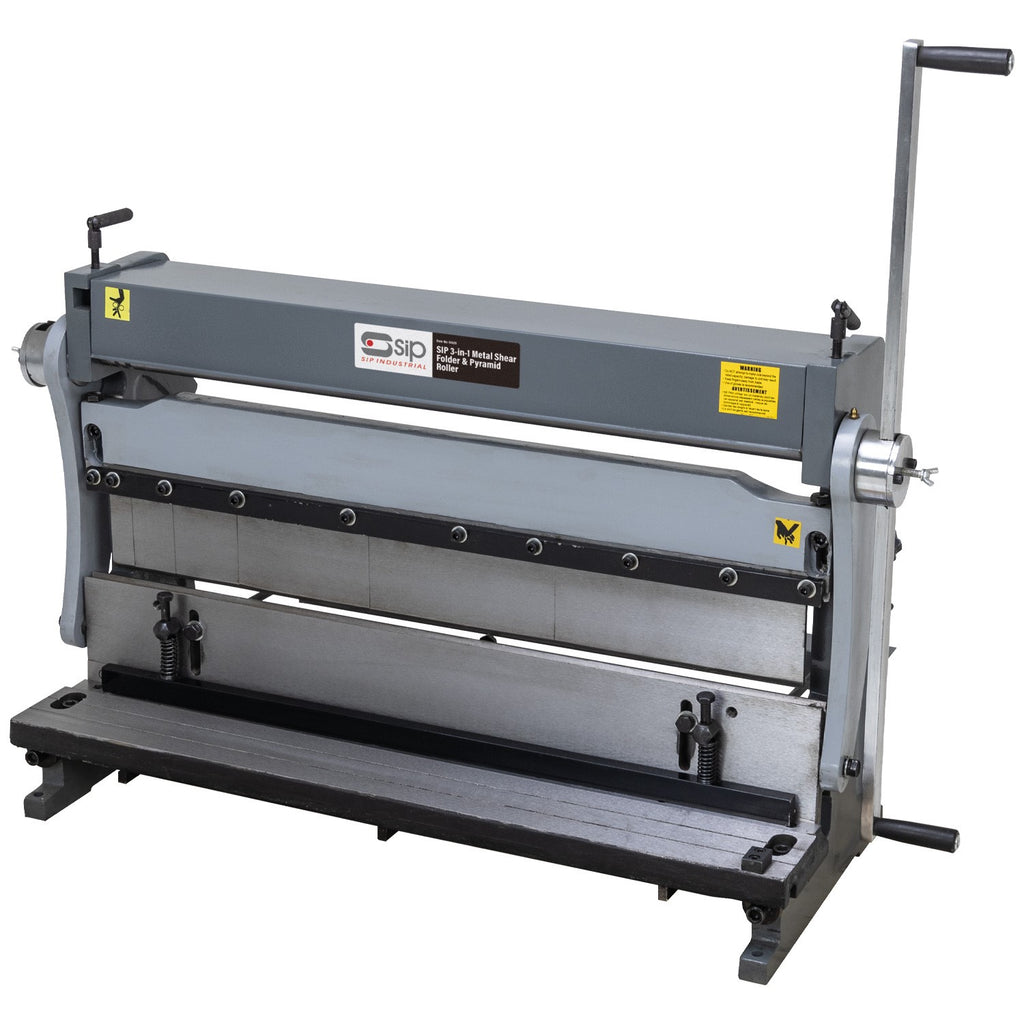

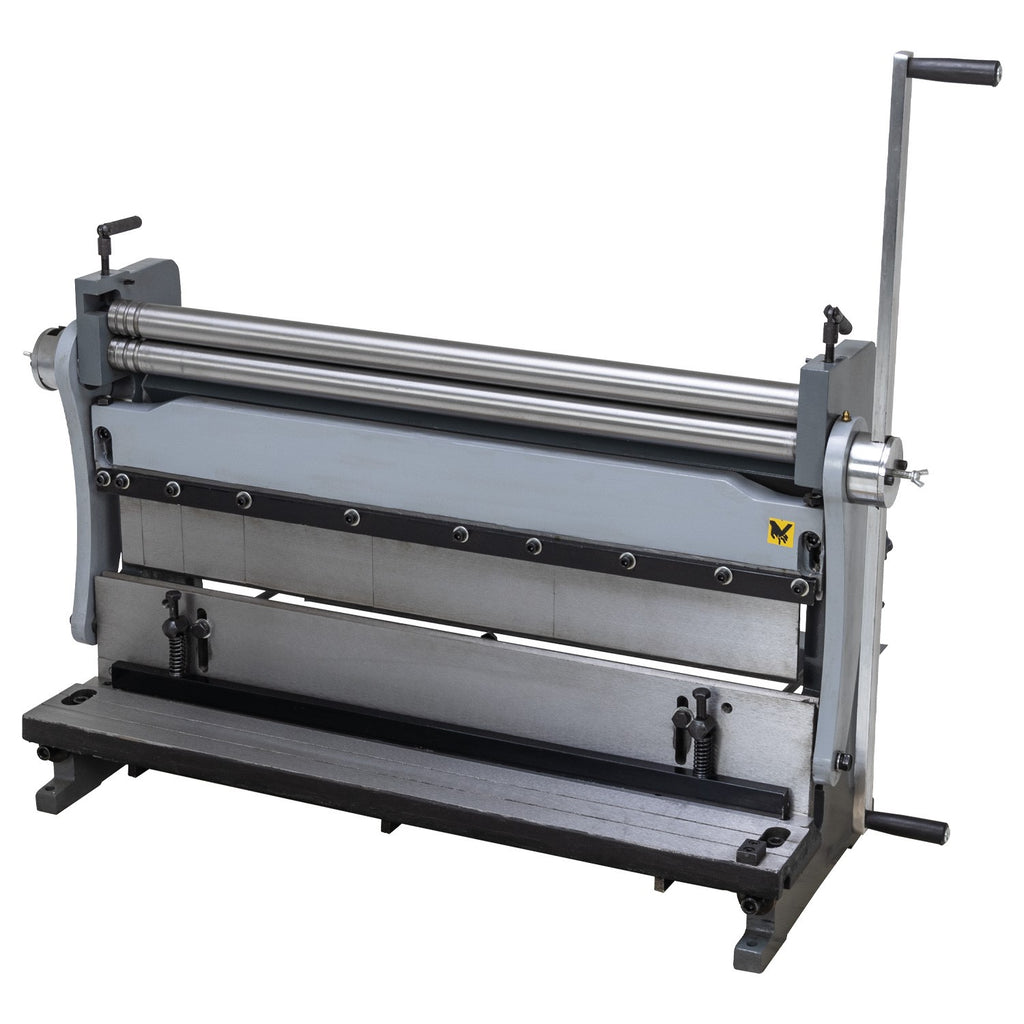

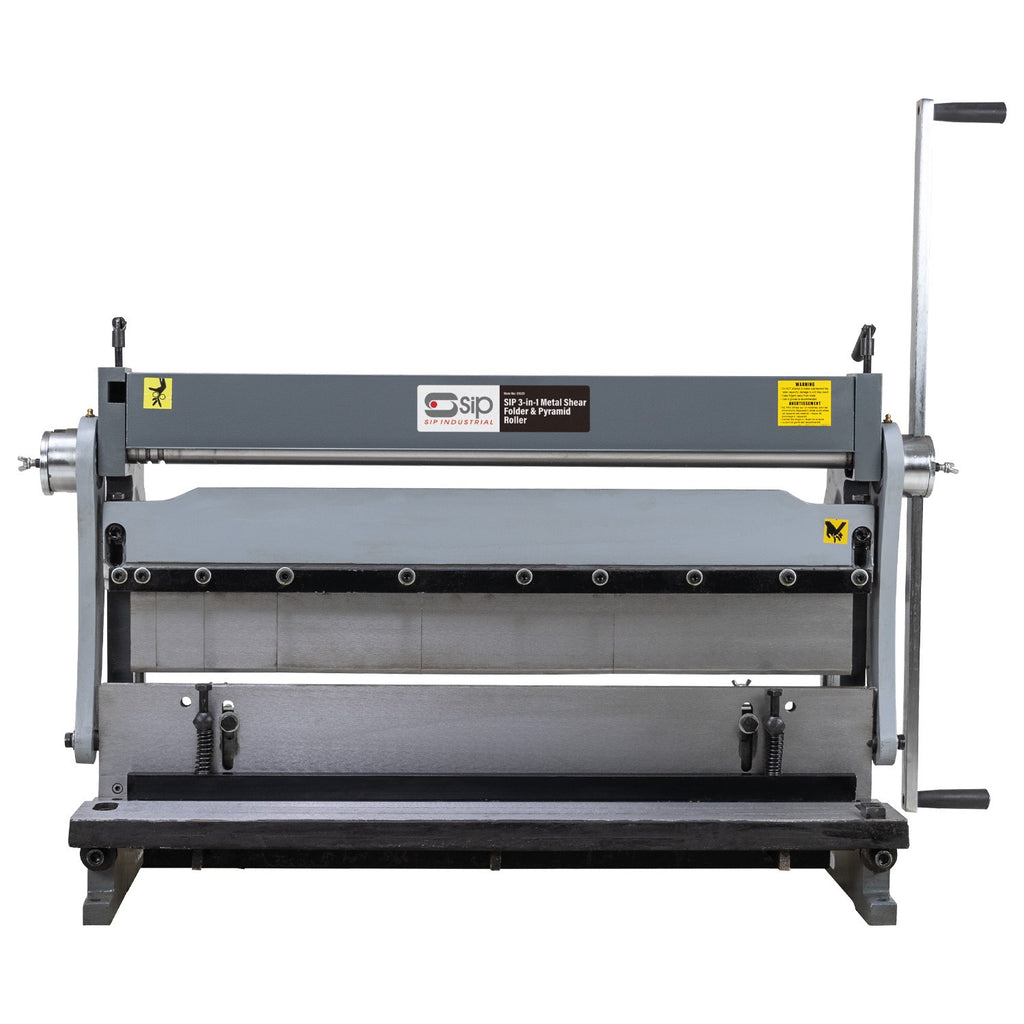

The SIP 3-in-1 Metal Shear, Folder & Pyramid Roller is ideal for cutting, folding and rolling sheet metal sections. This includes mild steel, aluminium, coated steels and stainless steel.
SIP Metal Cutters & Rollers are an essential manual processing machine for sheet metal workshops and professional metalworking.
KEY FEATURES
- Metal shear (max. plate width 760mm)
- Metal folder for folding or shaping sheet metal
- Pyramid roller for bending and rolling repeatedly
- Adjustable machine multi-function handle
- Cast iron and steel construction
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP 3-in-1 Metal Shear, Folder & Pyramid Roller is ideal for cutting, folding and rolling sheet metal sections. This includes mild steel, aluminium, coated steels and stainless steel.
SIP Metal Cutters & Rollers are an essential manual processing machine for sheet metal workshops and professional metalworking.
Applications & uses: Ideal for sheet metal workshops and professional metalworking. Perfect for cutting, folding and rolling sheet metal sections. Suitable for mild steel, aluminium, coated steels and stainless steel.
SIP 2-Year Standard Silver Warranty

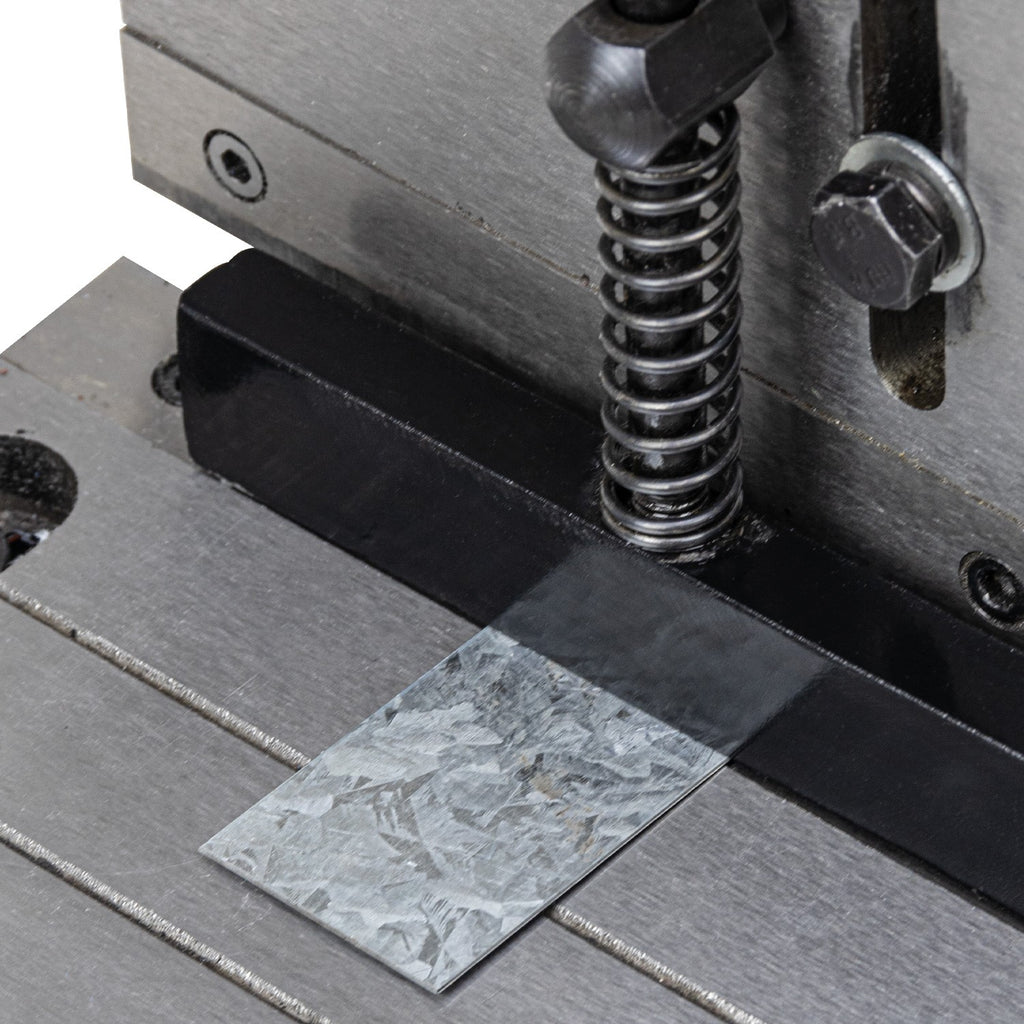

METAL SHEAR (MAX. PLATE WIDTH 760MM)
- A guillotine function uses a scissor action blade to cut sheet metal cross a fixed position to max. width of 760mm. Max. shearing thickness 1mm.
- Fitted with a clamp bar for holding sheet metal in place and an adjustable backstop to measure depth of cut.
METAL FOLDER
- Ideal for folding and shaping sheet metal as part of production and manufacturing processes.
- Max. bending angle 90°. Max. bending thickness 1mm.
- Perfect for creating steel box fabrications and enclosures for circuitry and electronics.
- Adjustable folding formers allow for various sized items to be produced.
- Metal formers allow for easy folding of enclosures and varying lengths of metal to be folded.

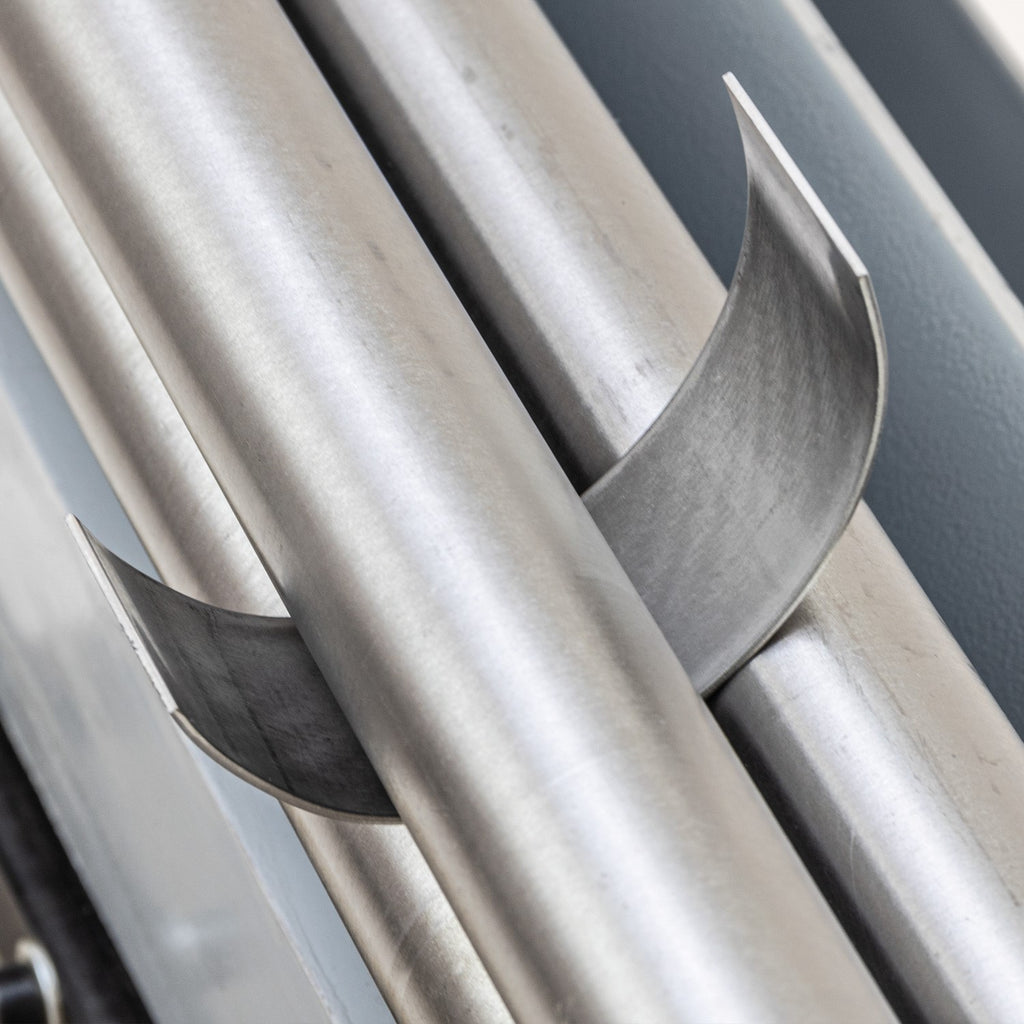

PYRAMID ROLLER
- 3 adjustable pyramid rollers allow sheet metal to be bent and rolled repeatedly to desired specification. Min. rolling diameter 39mm. Max. rolling thickness 1mm.
- Ideal for forming metal tubes, ducting and rings of varying thicknesses and diameters.
- Safety cover guard included for added user safety and storage.
ADJUSTABLE MACHINE HANDLE
- A multi-function handle, fixed to the machine, performs all 3 machine processes.
- This adjustable from left to right, allowing the user to apply the necessary pressure to each process.
CAST IRON & STEEL CONSTRUCTION
- Manufactured using high-quality steels for durability, accurate cutting and long life.
Technical Information
| ITEM NO. | 01529 |
| Bed Width: | 760mm |
| Max. Shearing Thickness: | 1mm |
| Max. Bending Thickness: | 1mm |
| Max. Bending Angle: | 90° |
| Max. Rolling Thickness: | 1mm |
| Min. Rolling Diameter: | ⌀ 39mm |
| Net Weight: | 120.00kg |
| Gross Weight: | 140.00kg |
| Product Dimensions: | 610(H) x 1030(W) x 850mm(D) |
| Packaged Dimensions: | 670(H) x 430(W) x 1040mm(D) |
*Heavy item. Assistance required at delivery point to ensure safe delivery.
