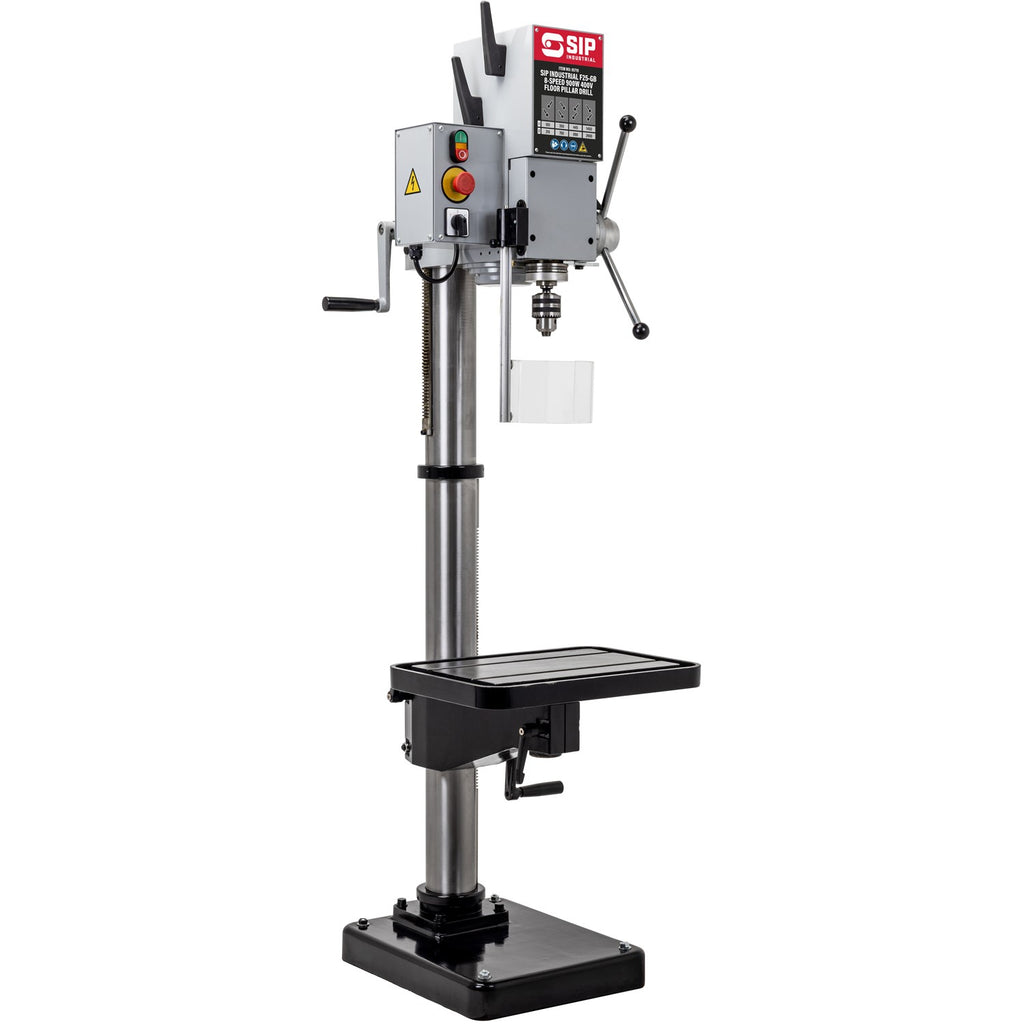

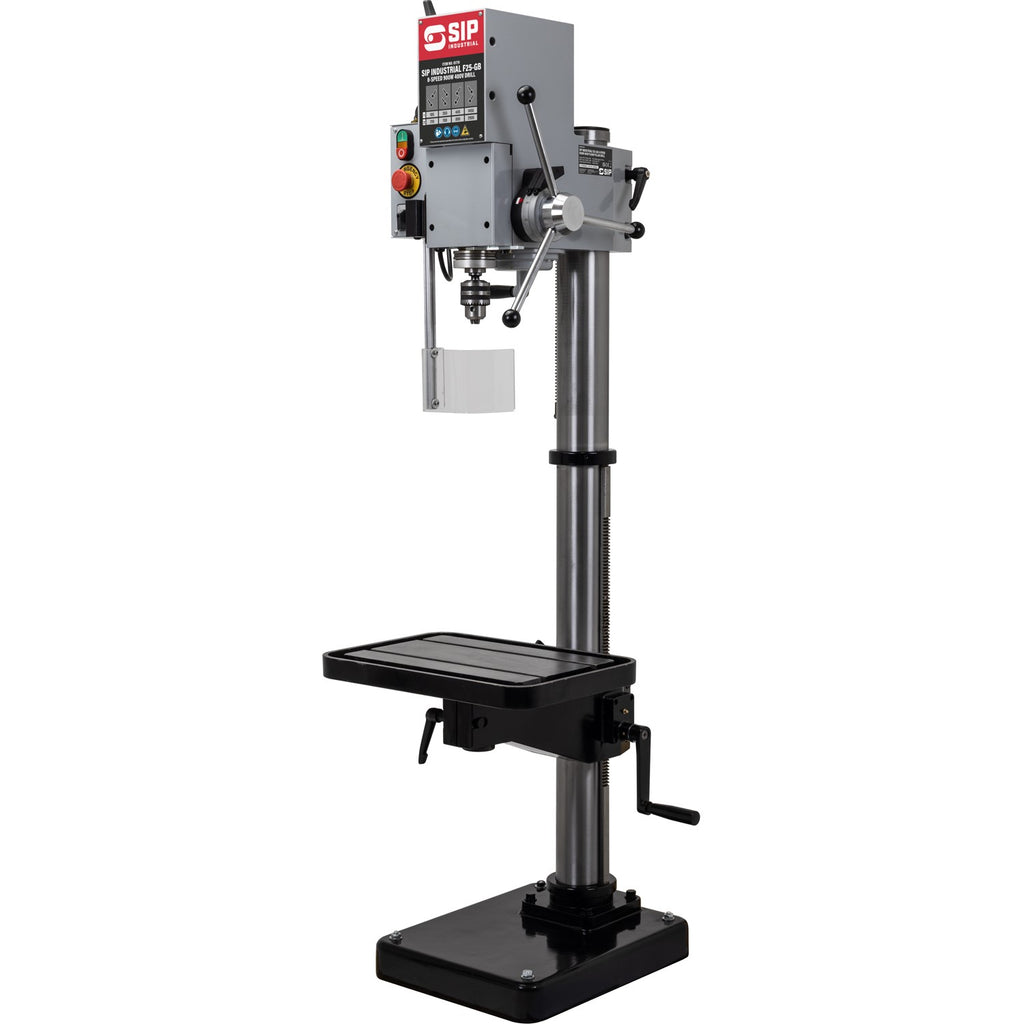

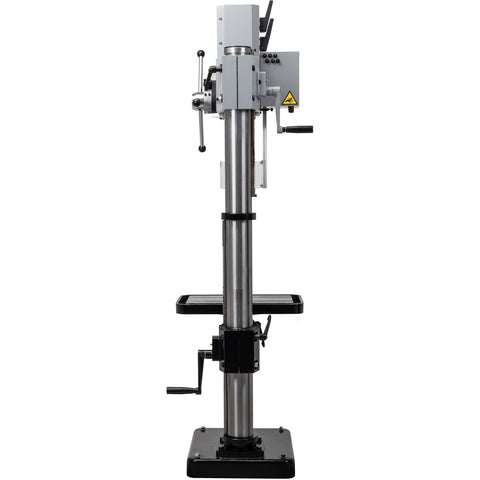

SIP 01719 Floor Pillar Drill F25-GB 8-Speed 900w
The SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.
Featuring an 8-speed gear drive transmission, this drill delivers high torque output across a consistent 105rpm - 2900rpm spindle speed for powerful and precise drilling up to max. ⌀ 25mm. This allows the operator to set the exact spindle speed needed to drill the material.
A gear drive transmission eliminates belt slippage as no manual pulley speed adjustments are required, meaning quicker and easier speed changes for reduced downtime and increased productivity.
Features
- 8-speed gear drive transmission with wide 105-2900rpm speed range

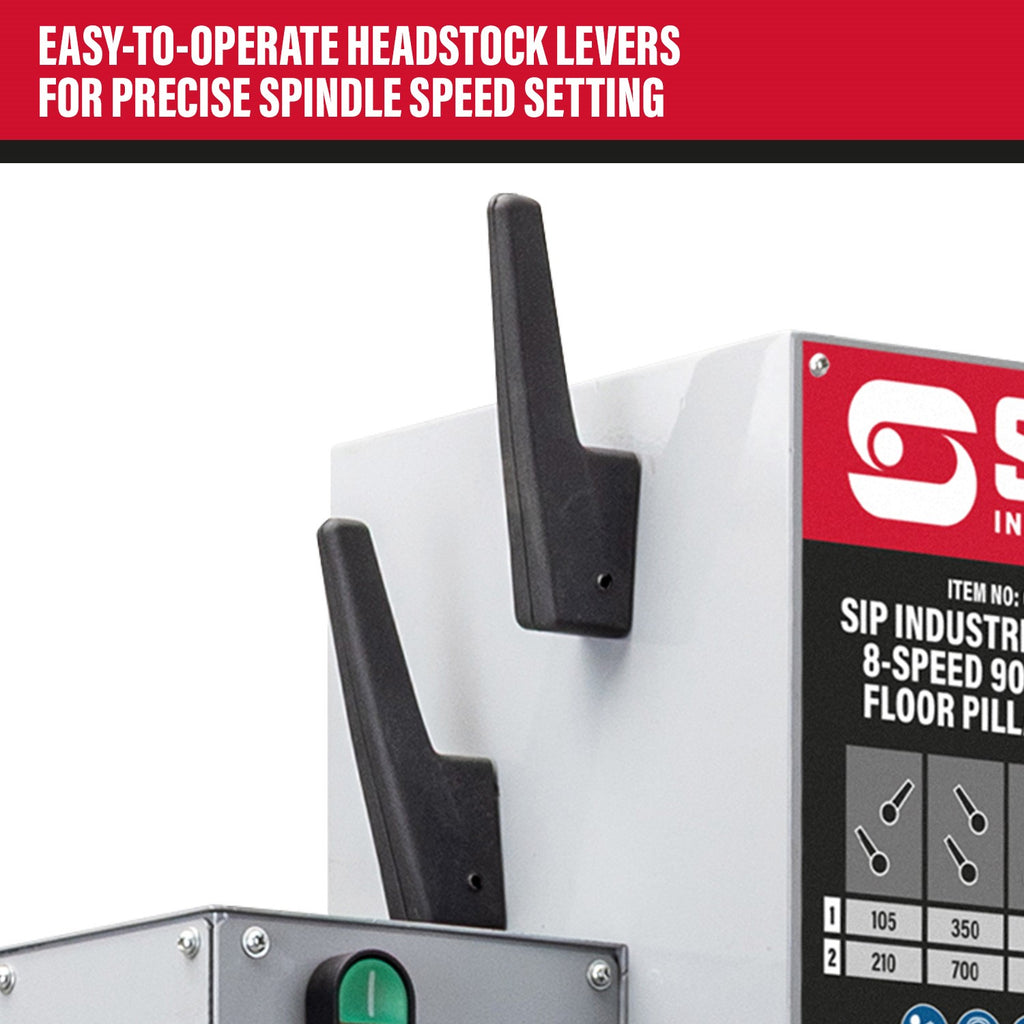

- Easy-to-operate headstock levers for precise spindle speed setting
- High torque output for consistent drilling power and max. ⌀ 25mm
- Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
- Large drill table with adjustable height and rotation for greater versatility
- Heavy baseplate and central column to minimise vibration for stable drilling
The SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.
Featuring an 8-speed gear drive transmission, this drill delivers high torque output across a consistent spindle speed of 105rpm - 2900rpm for powerful and precise drilling up to ⌀ 25mm. This allows the operator to set the exact spindle speed needed to drill the material.
A gear drive transmission eliminates belt slippage as no manual pulley speed adjustments are required, meaning quicker and easier speed changes for reduced downtime and increased productivity.
Applications & uses: Designed for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures.
What's in the box?: 1x SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 3), 1x drill drift, 1x chuck key, 1x Y-type socket wrench and 2x handles for headstock and table.
SIP 2-Year Standard Silver Warranty

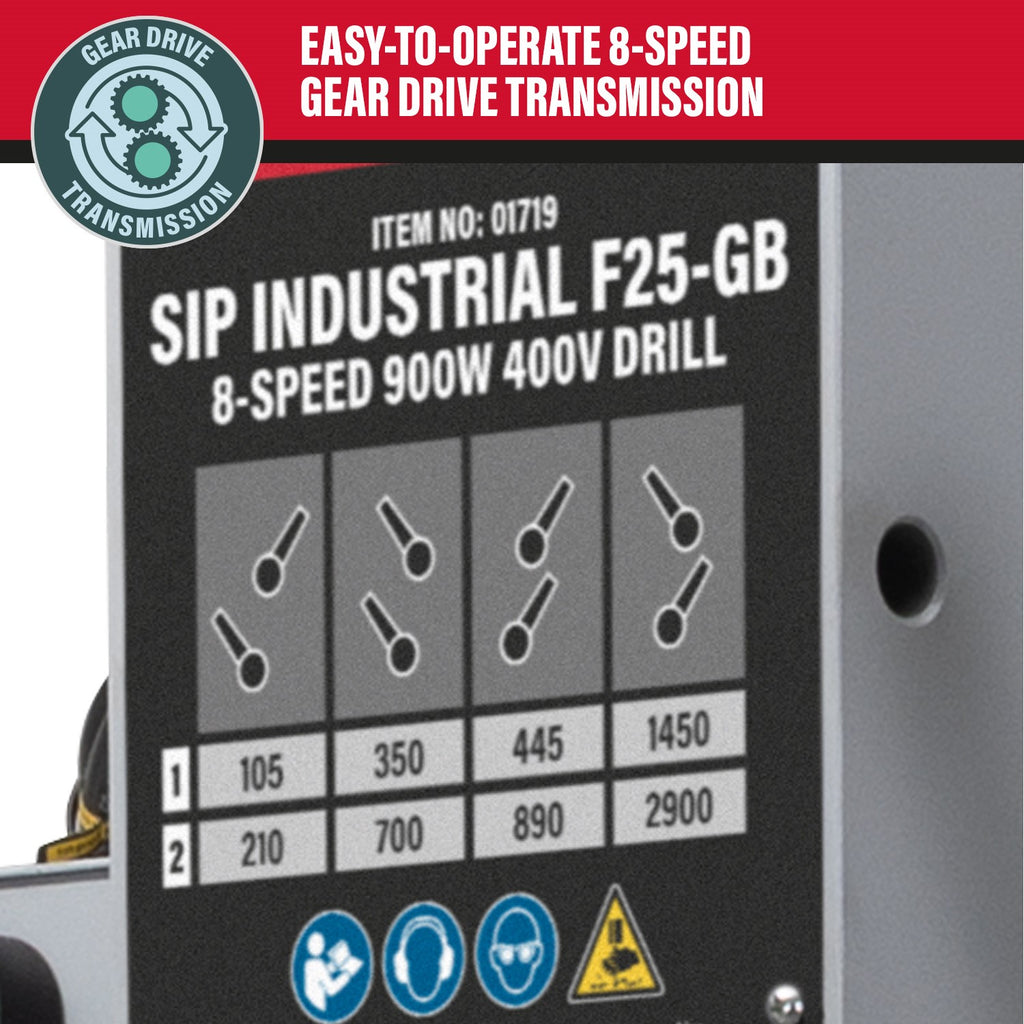

8-Speed gear drive transmission ensures all power is transferred from motor to spindle for high torque drilling.

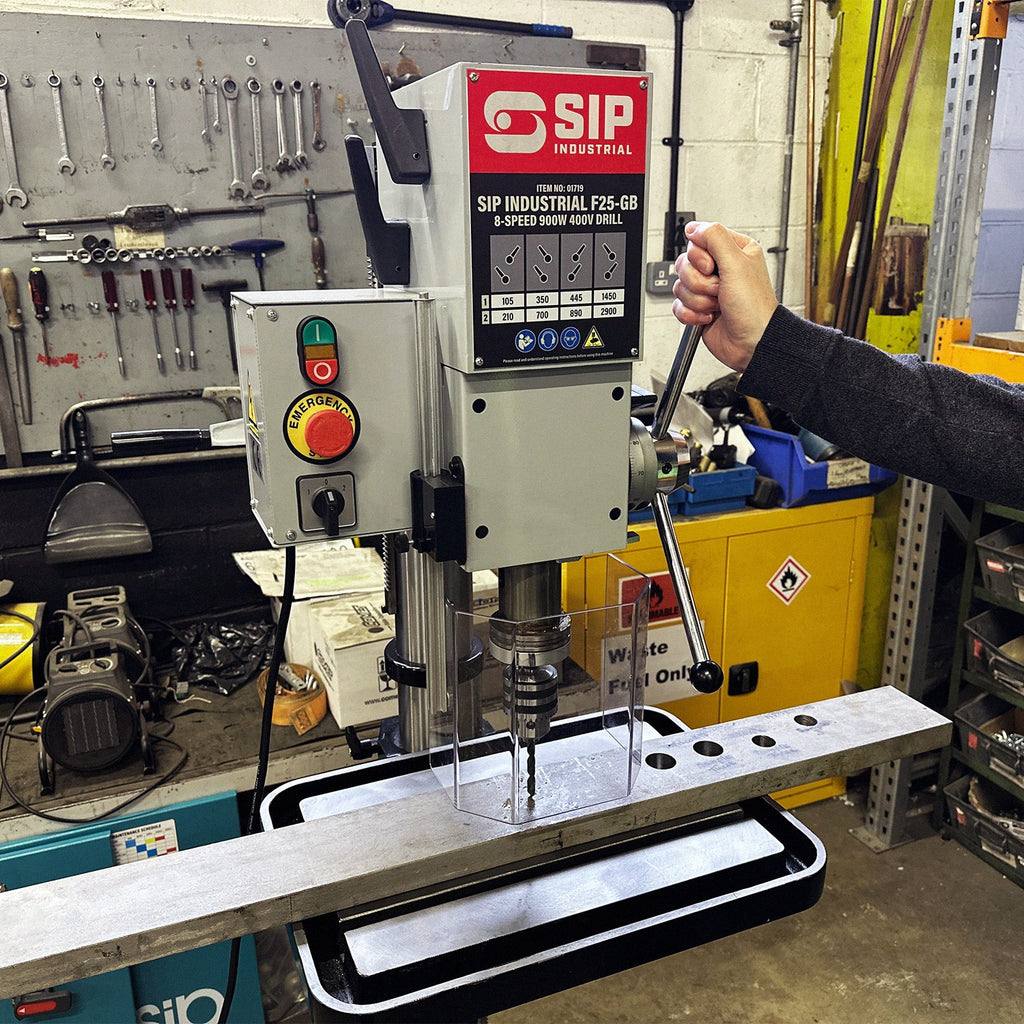

- Easy-to-operate levers on the headstock allow users full control of the 105rpm to 2900rpm drilling speed, meaning spindle speed can be set to suit the material.
- Gear drive transmission eliminates manual pulley speed changes, allowing quicker job set-up and changeovers. This helps to reduce downtime and boosts productivity.

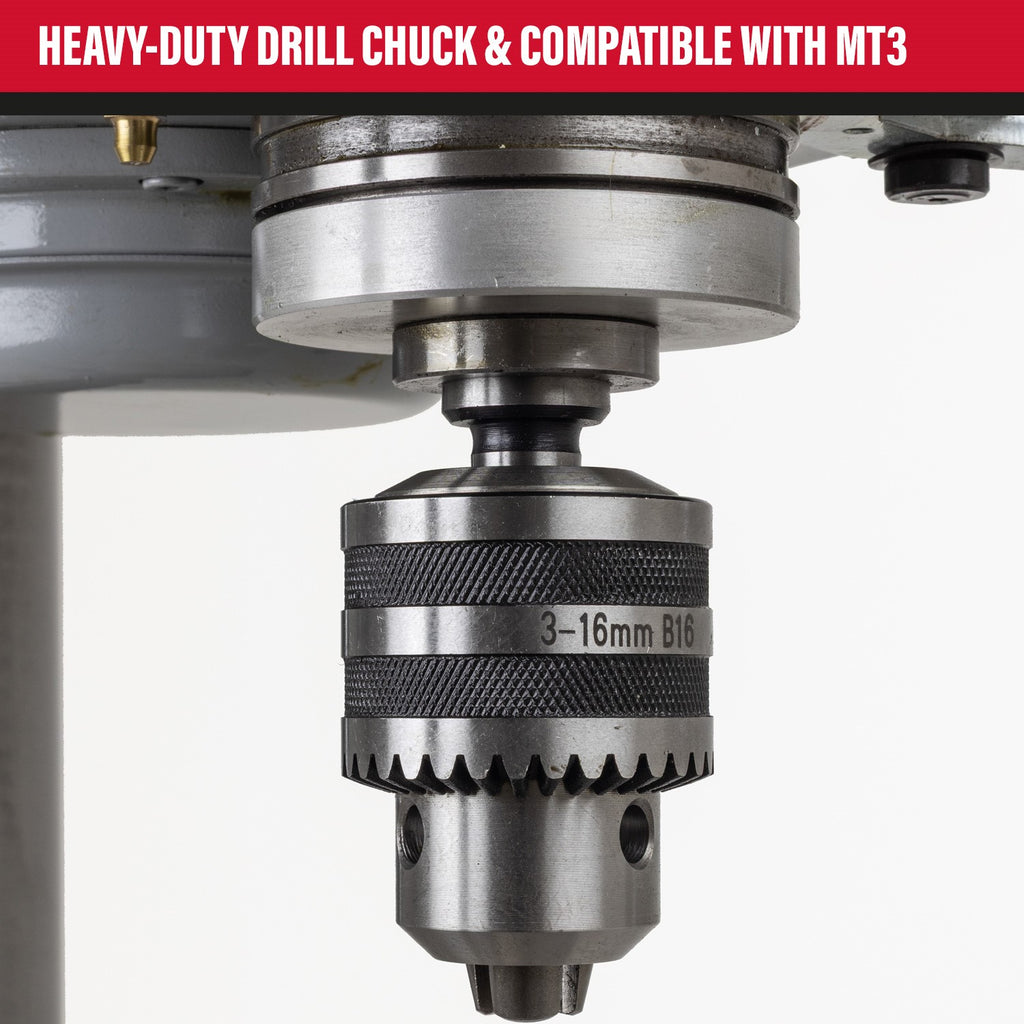

- Heavy-duty configuration with robust drill chuck and MT3 (Morse Taper 3) will withstand forces and vibration of professional drilling and maintain operator safety.

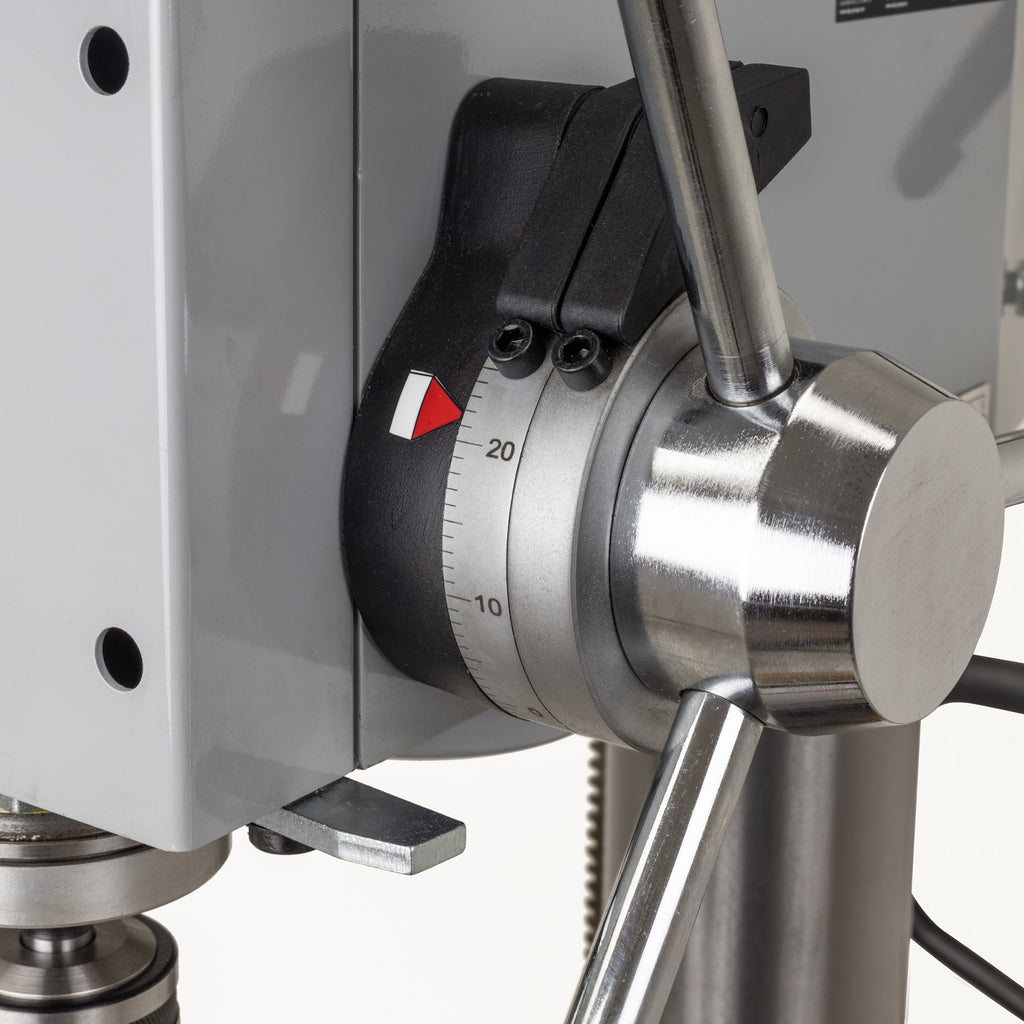

- A depth stop is fitted to eliminate guesswork and ensures consistent holes of the same depth during repetitive drilling tasks.
Heavy duty components ideal for continuous use in production & assembly environments.
- Thick central column and heavy baseplate help minimise vibration for maintaining stability and accuracy. The baseplate should be anchored to the floor.

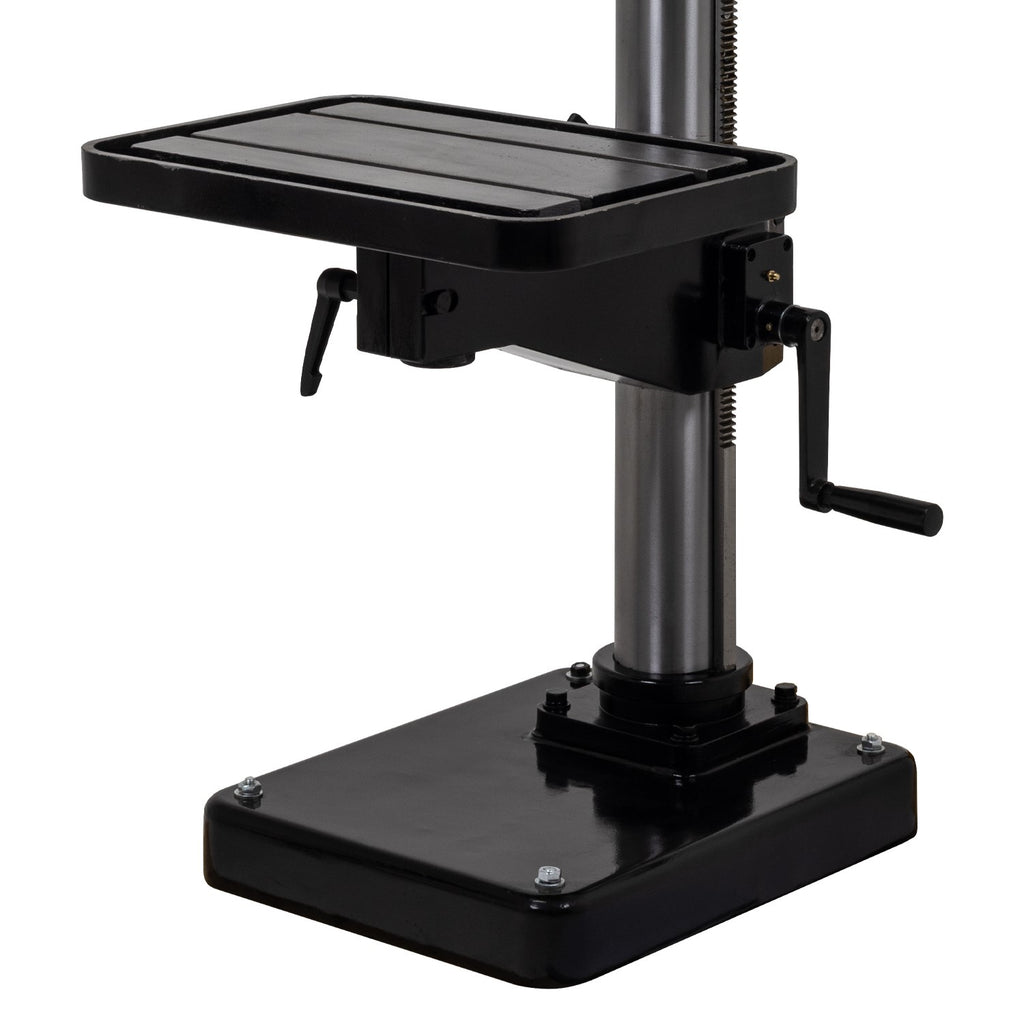

- A large height-adjustable drill press table offers versatility when handling different thicknesses and heights. It rotates left to right for added clearance for longer workpieces.
- The height-adjustable drill head also offers further flexibility and helps users reach optimal height.
Integrated enhanced safety features designed to actively protect operators for secure working environment.

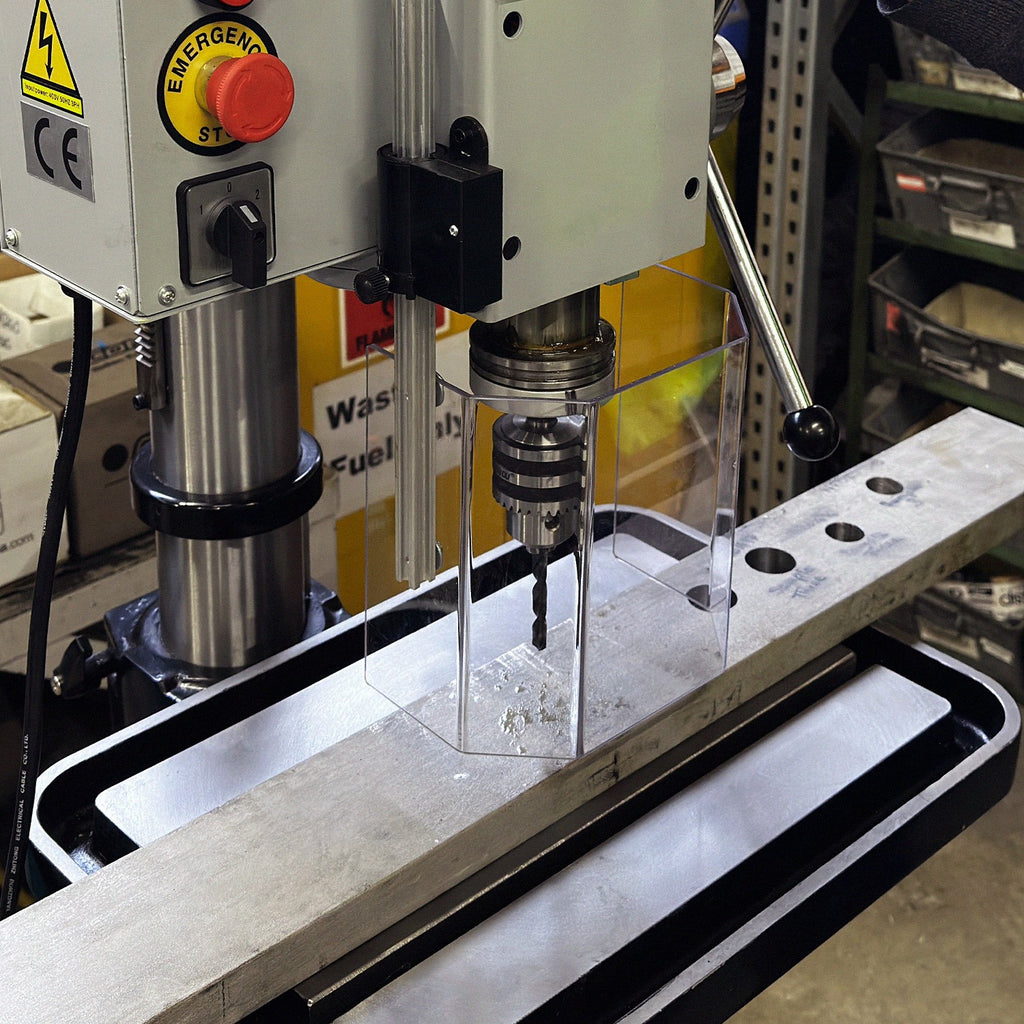

- For added safety, a protective chuck guard shields users from swarf and debris. It also disables the drill when opened.

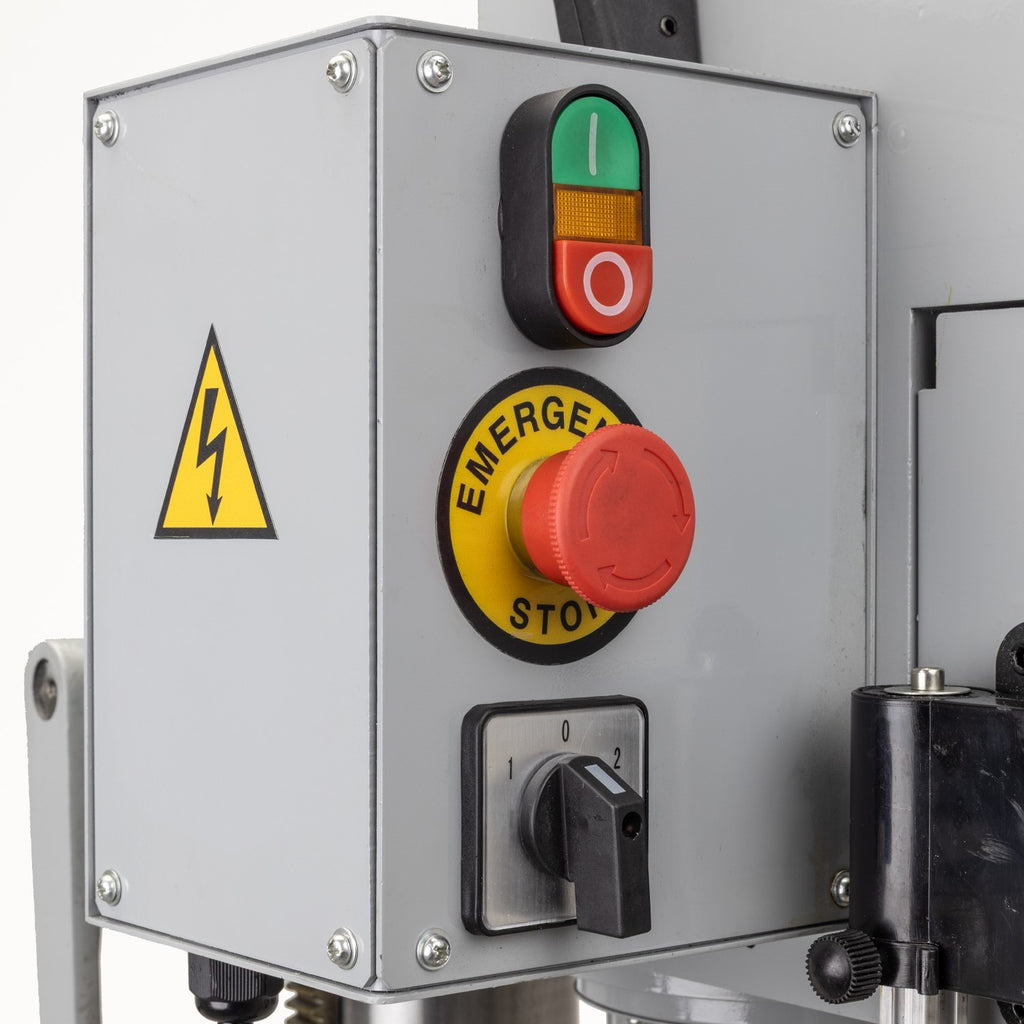

- A low voltage (24v) control circuit minimises electric shock which limits harm to machine operators.
- An interlocking safety switch prevents the drill from running when headstock covers are opened.
Compatible with SIP pillar drills machine vices.
- SIP Machine Vices help to secure workpieces for additional accuracy (01727, 01728, 01729, 01730, 01731).
Technical Data
| ITEM NO. | 01719 |
| Input Supply: | 400v (16A) |
| Motor Power: | 900w |
| No. of Speeds: | 8 speeds |
| Speed Range: | 105rpm - 2900rpm |
| Max. Drilling Capacity: | 25mm |
| Spindle Taper: | MT3 |
| Table Size: | 450mm x 320mm |
| Base Size: | 405mm x 390mm |
| Column Diameter | ⌀ 100mm |
| Swing: | 608mm |
| Height: | 1508mm |
| Spindle Travel: | 125mm |
| Collar Diameter: | ⌀ 130mm |
| Max. Distance: | 905mm (spindle to table) |
| Net Weight: | 190kg |
| Gross Weight: | 235kg |
| Product Dimensions: | 1508(H) x 560(W) x 570mm(D) |
| Packaged Dimensions: | 710(H) x 560(W) x 1670mm(D) |
