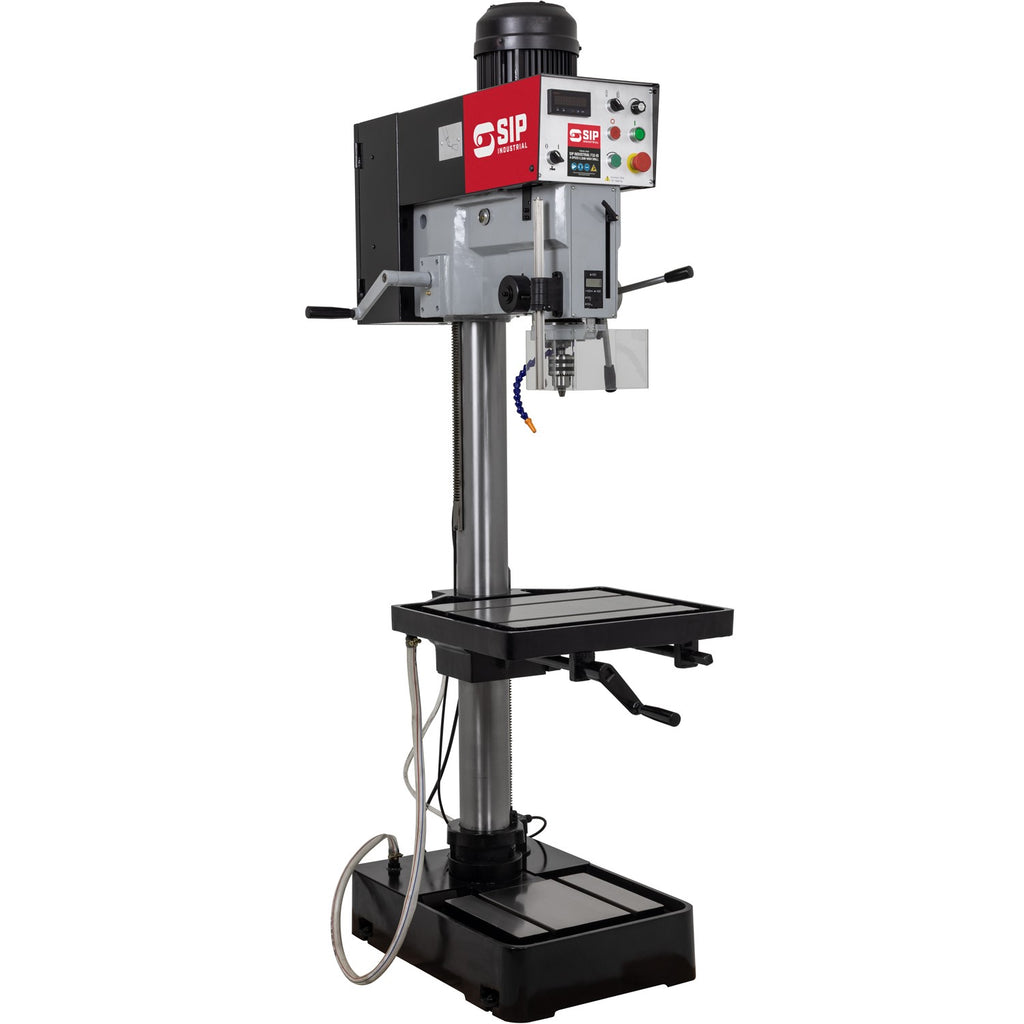

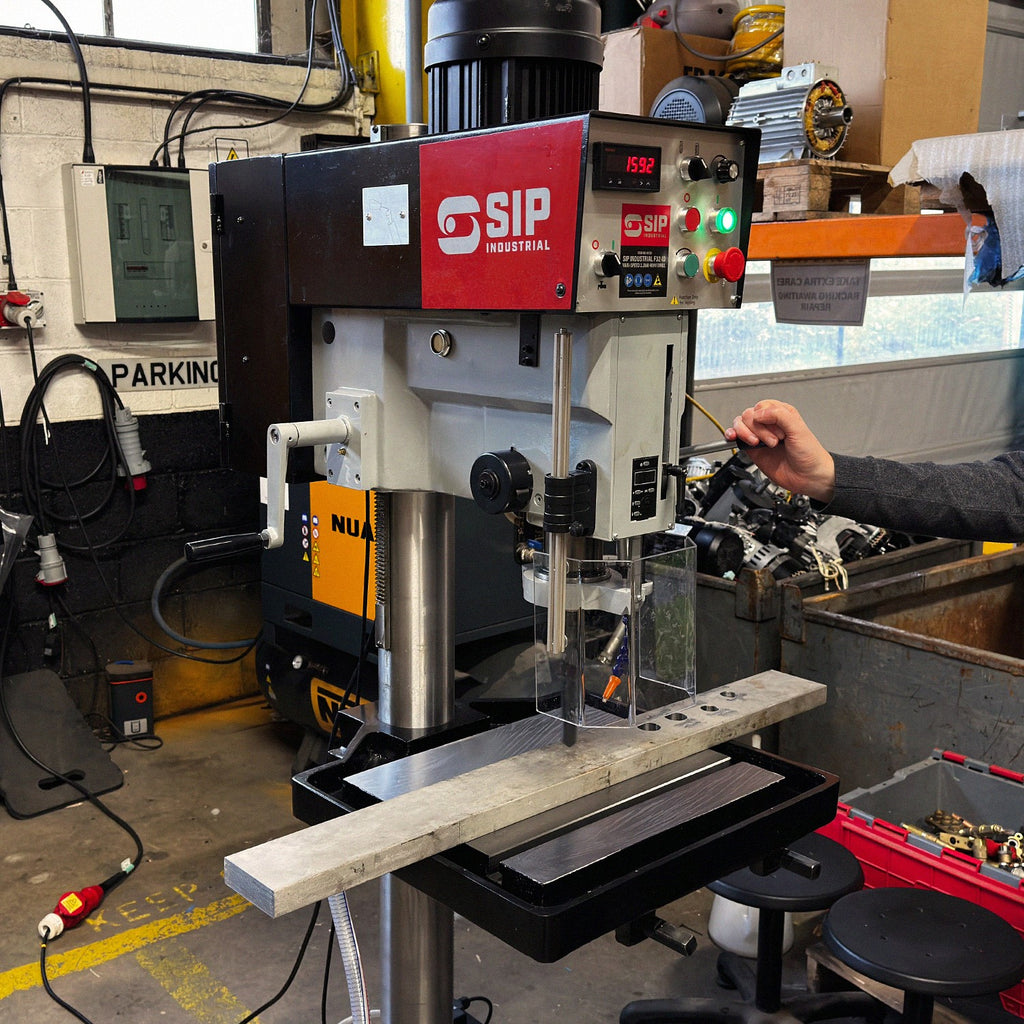

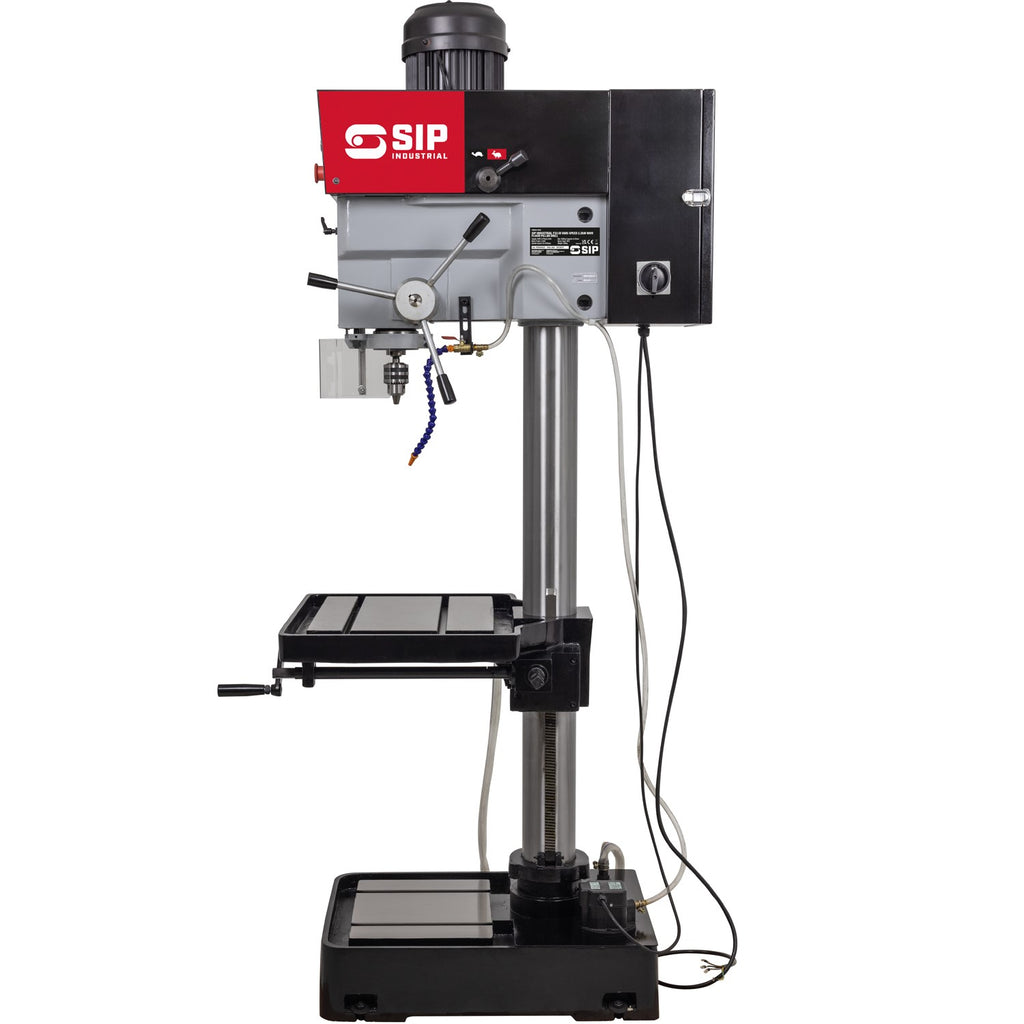

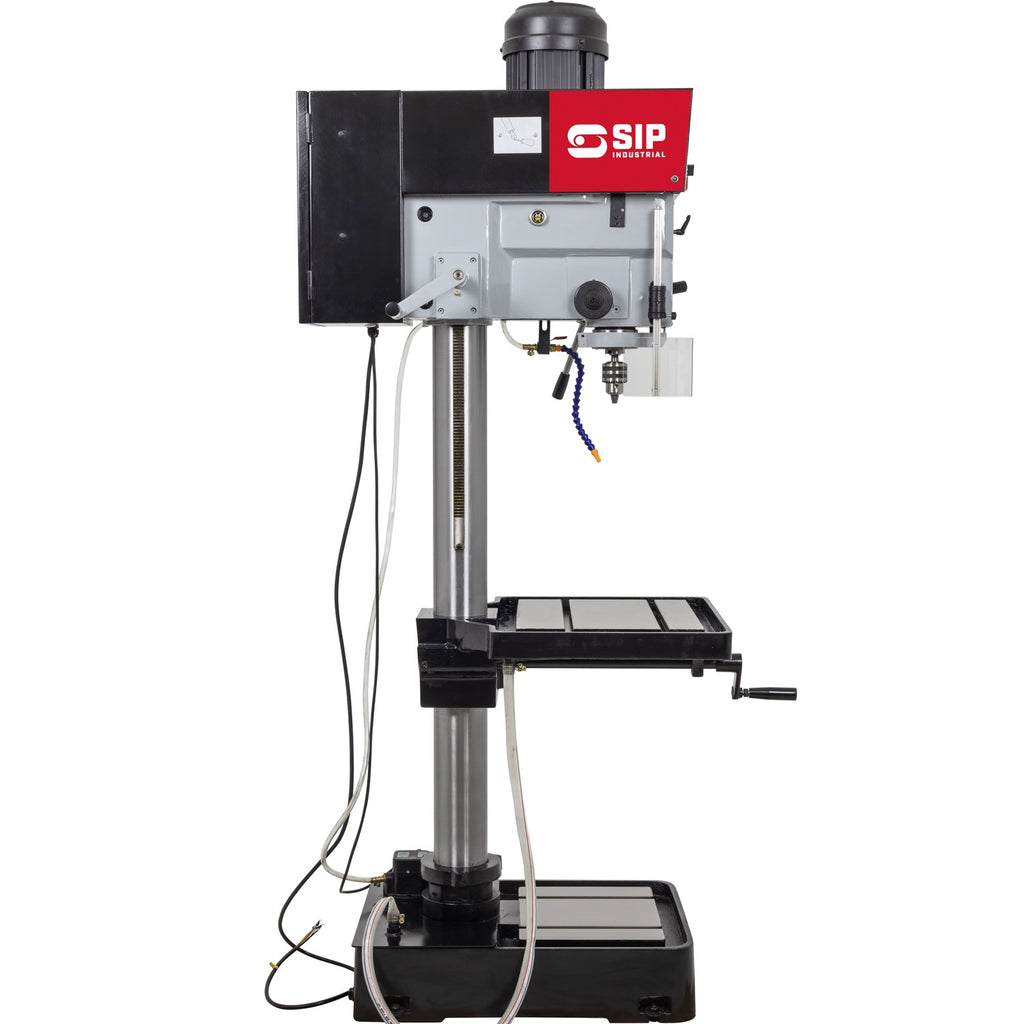

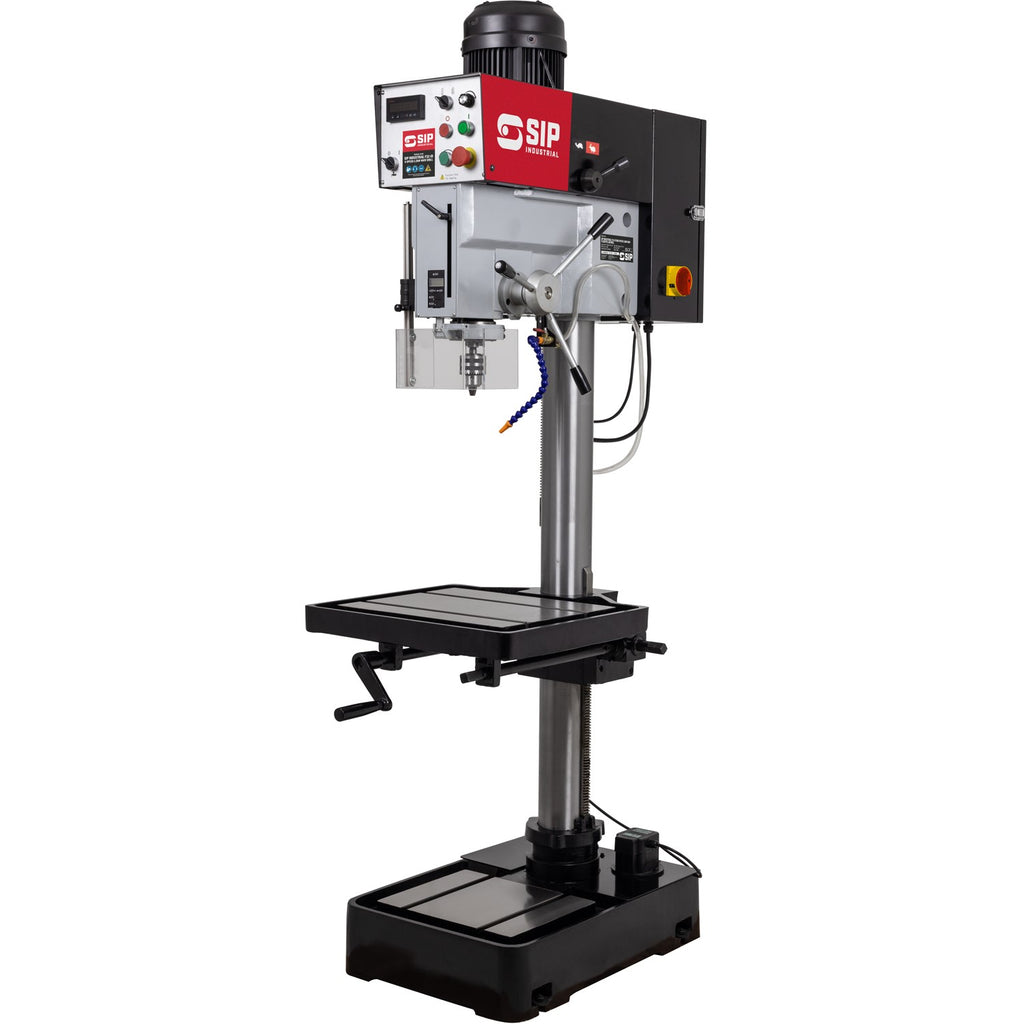

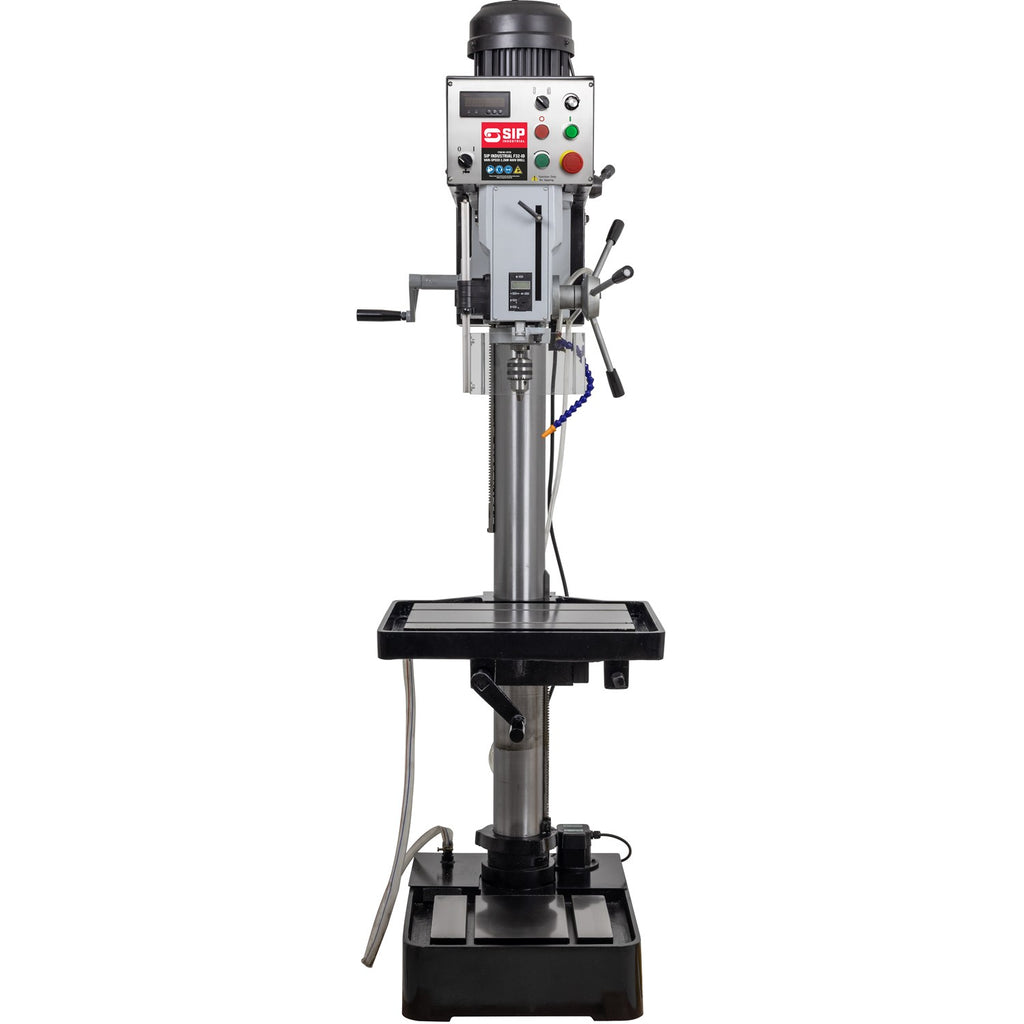

SIP 01720 Vari-Speed 2.2kW Floor Pillar Drill F32-ID

Variable frequency drive inverter transmission ensures all power is transferred from motor to spindle for high torque drilling.

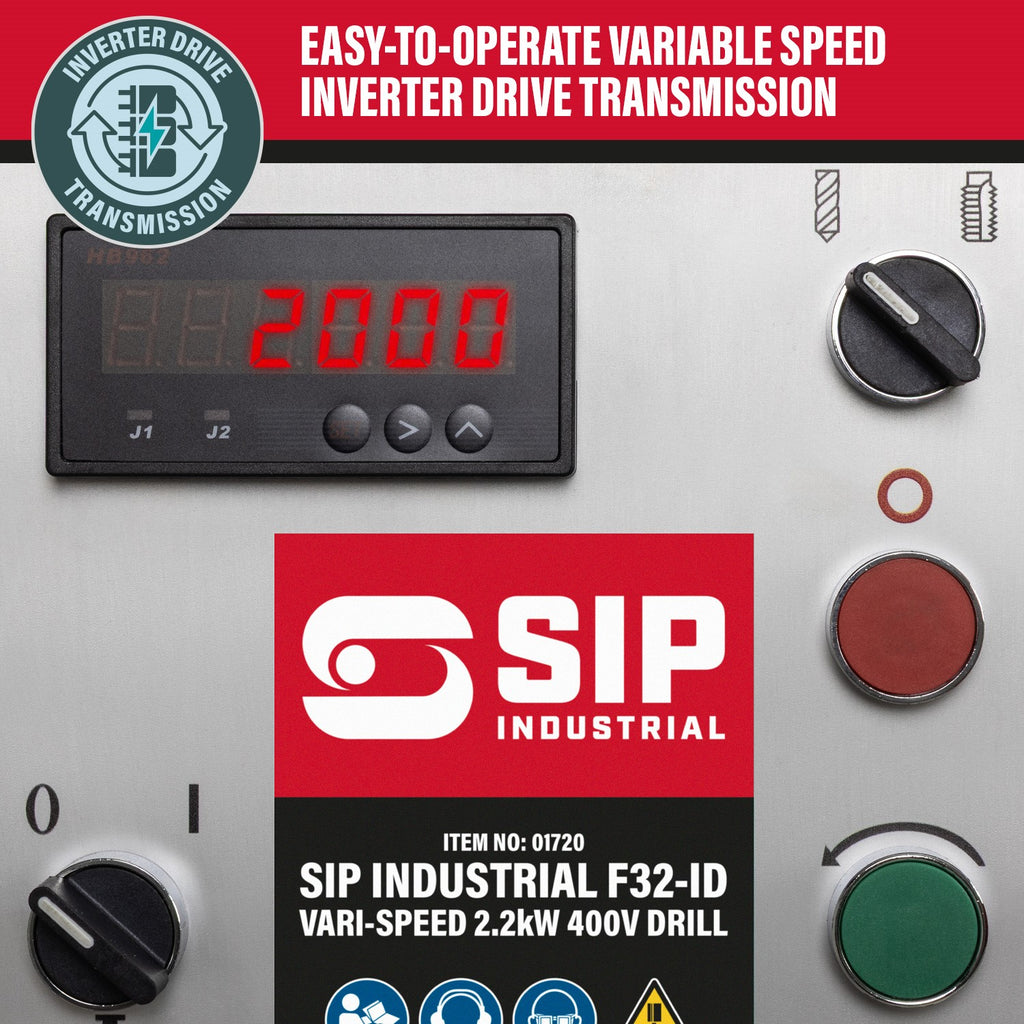

• Easy-to-operate infinitely variable dial on the headstock allows users full control of the 65rpm - 200rpm drilling speed, meaning spindle speed can be set to suit the material.
• Inverter drive transmission eliminates manual pulley speed changes, allowing quicker job set-up and changeovers. This helps to reduce downtime and boosts productivity.

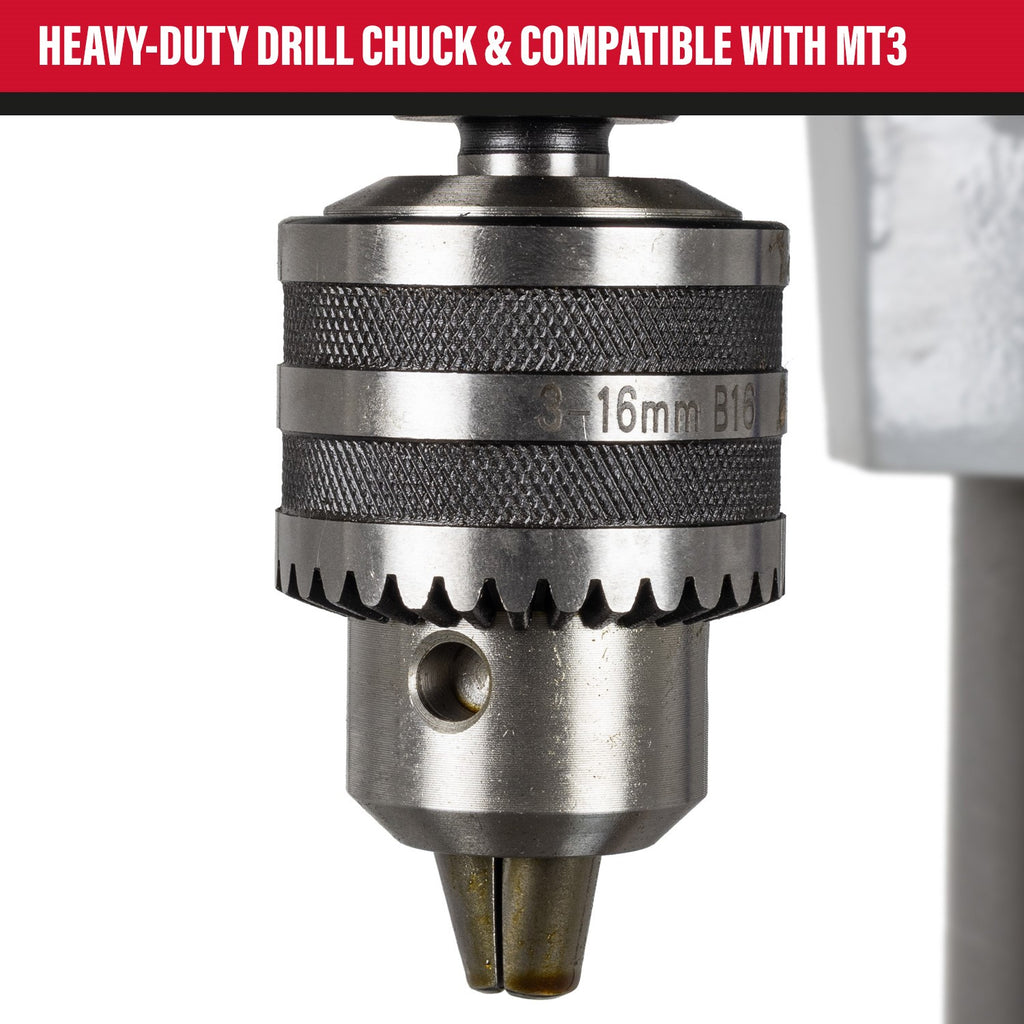

• Heavy-duty configuration with robust drill chuck and MT3 (Morse Taper 3) will withstand forces and vibration of professional drilling and maintain operator safety.
• Tapping functionality produces high-quality screw thread up to ⌀ 19mm, ensuring strong and reliable connection for fasteners that won't cross-thread.

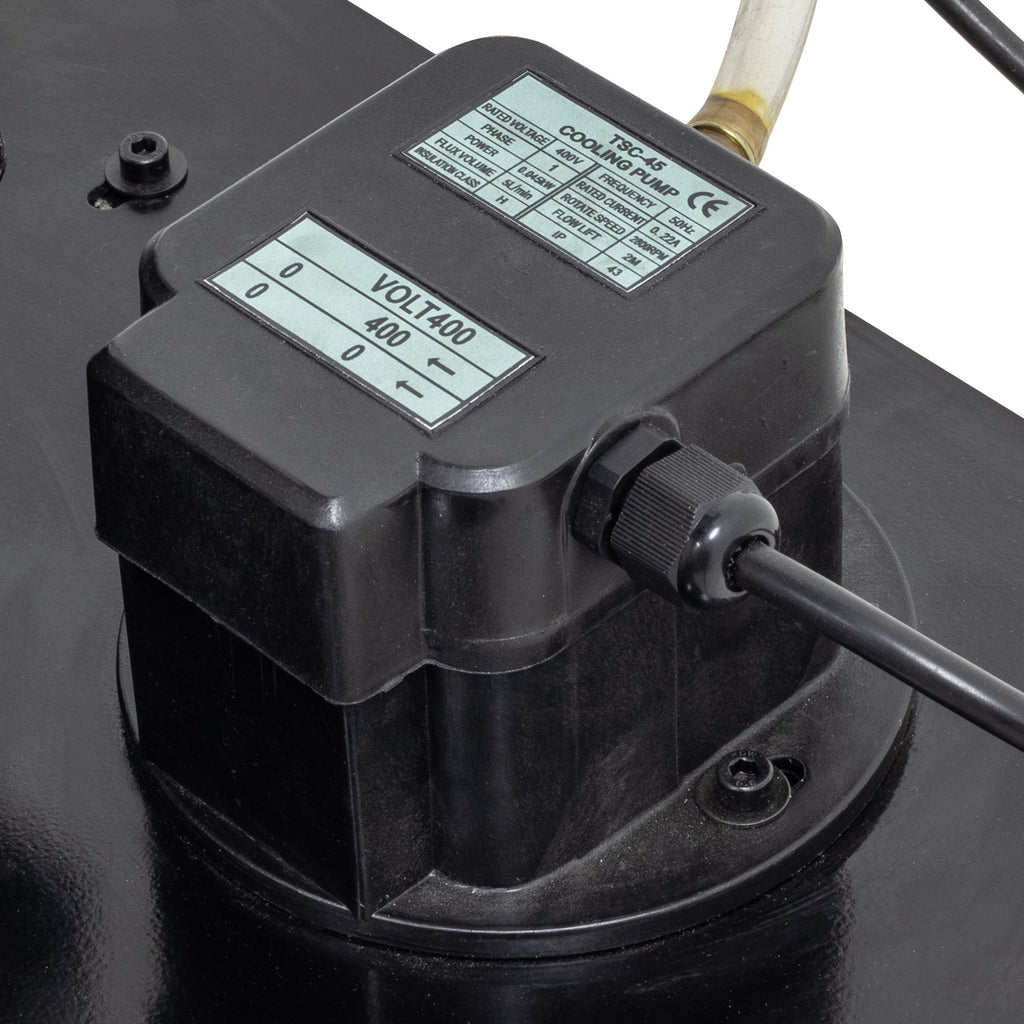

• Recirculating coolant system maintains optimal conditions by reducing heat generated in the workpiece and prevents the drill dulling or breaking.
• A depth stop is fitted to eliminate guesswork and ensures consistent holes of the same depth during repetitive drilling tasks.

Heavy duty components ideal for continuous use in production & assembly environments.

• Thick central column and heavy baseplate minimise vibration for maintaining stability and accuracy. The baseplate should be anchored to the floor.

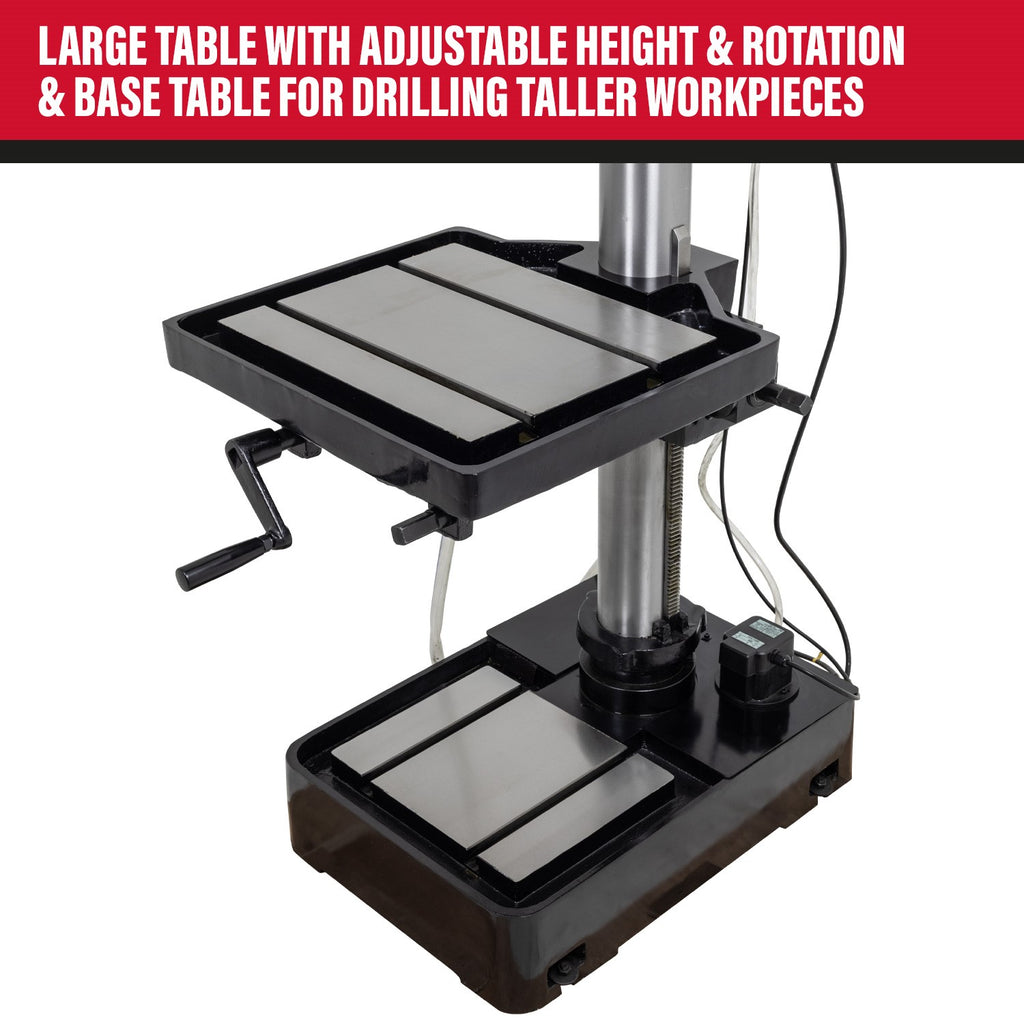

• A large height-adjustable drill press table offers versatility when handling different thicknesses and heights. It rotates left to right for added clearance for longer workpieces.
• The base drill table also enables drilling of taller workpieces, assemblies and fabrications.
• The height-adjustable drill head also offers further flexibility and helps users reach optimal height.
• Chrome steel drill feed handle ensures operators can safely control the descent of the drill bit.

Integrated enhanced safety features designed to actively protect operators for secure working environment,.

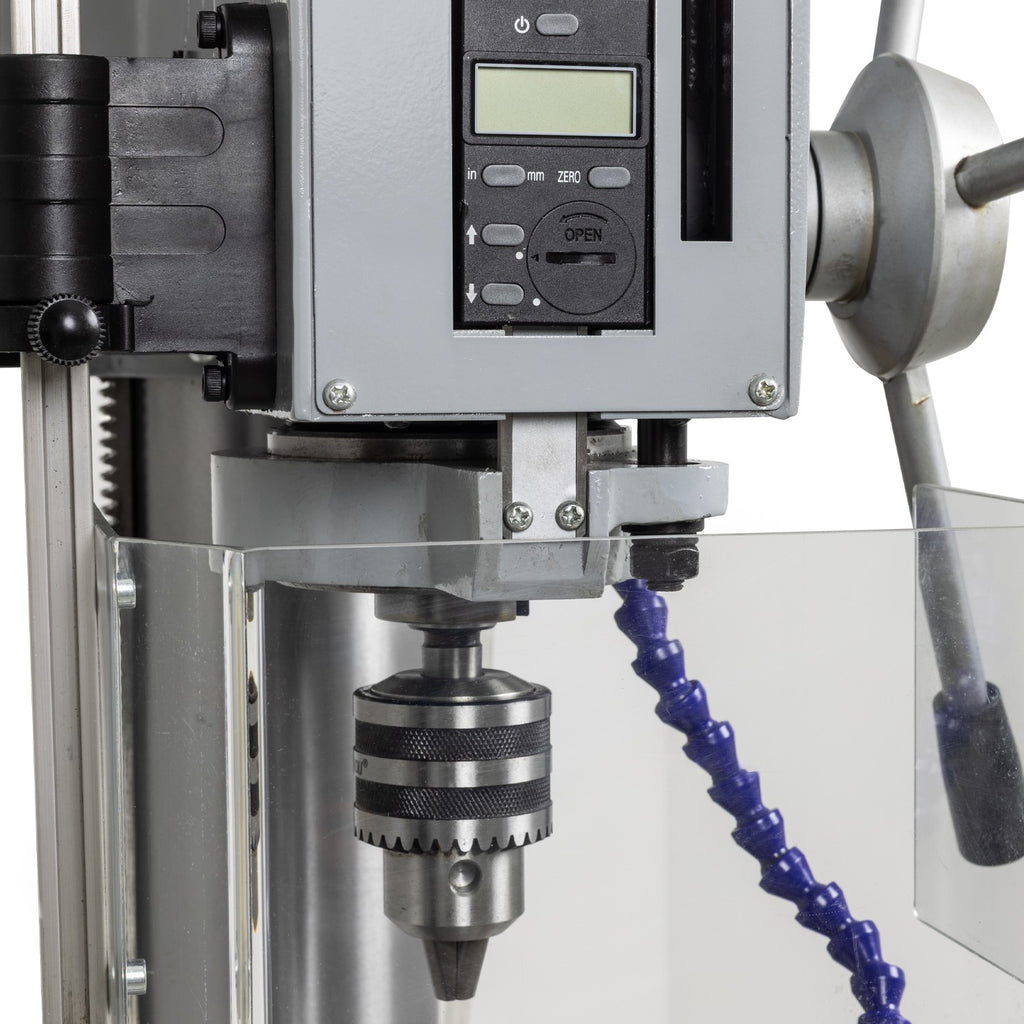

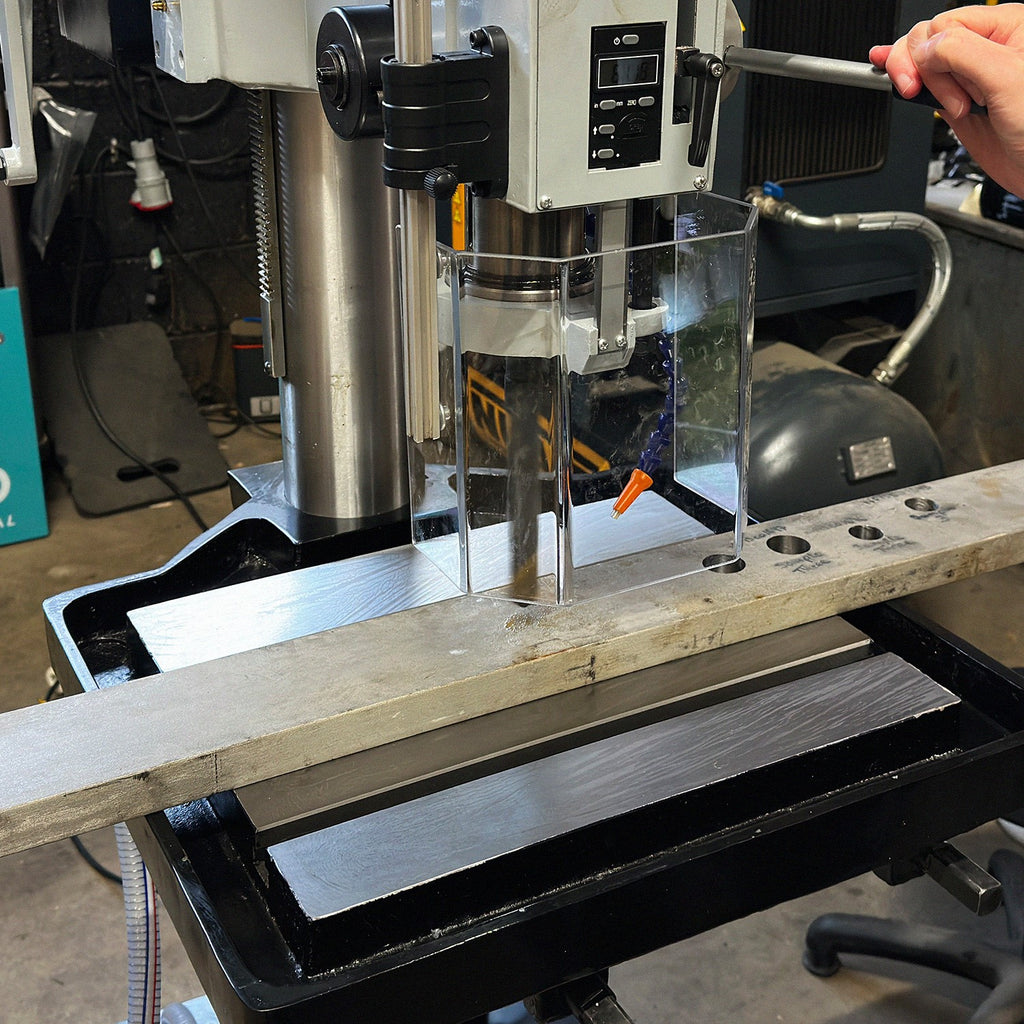

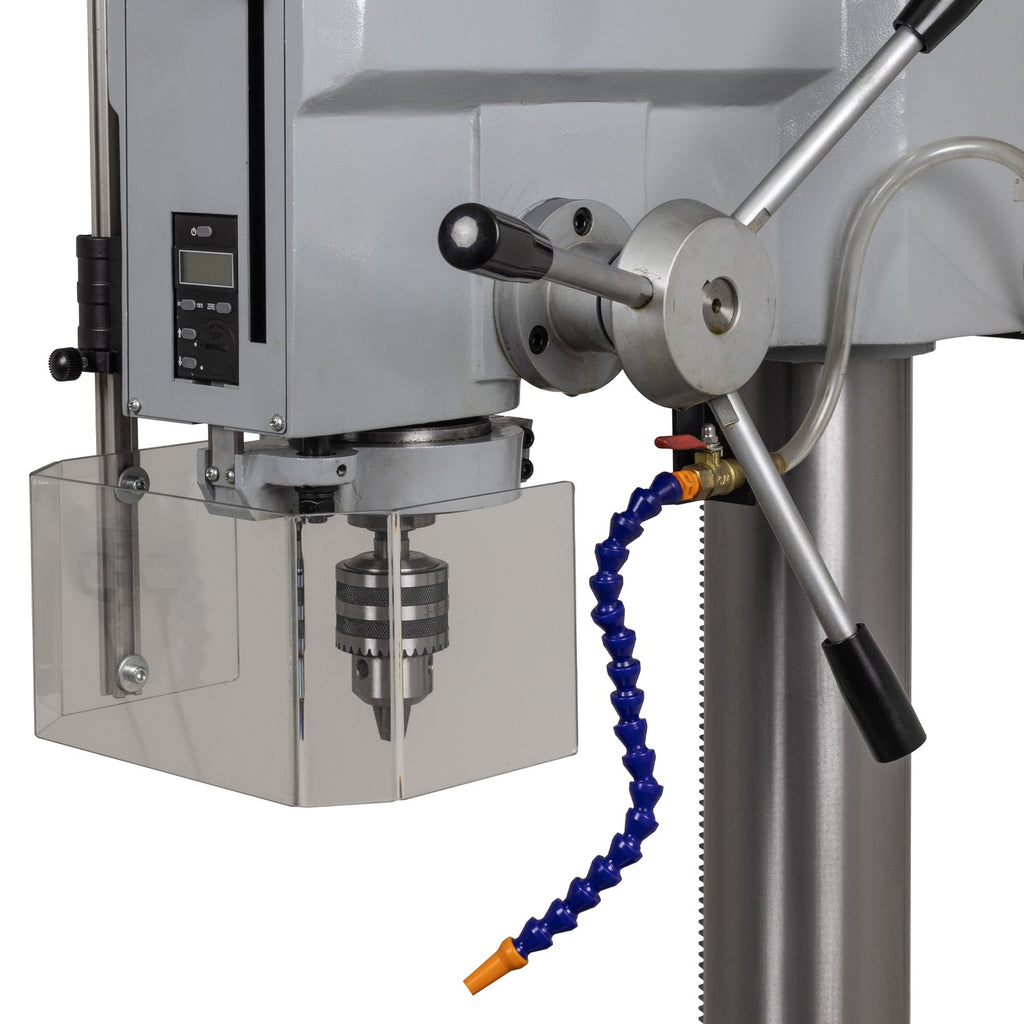

• For added safety, a protective chuck guard shields users from swarf and debris. It also disables the drill when opened.
• A low voltage (24v) control circuit minimises electric shock which limits harm to machine operators.
• An interlocking safety switch prevents the drill from running when headstock covers are opened.

Compatible with SIP pillar drill machine vices & drilling Fluid

• SIP Machine Vices help to secure workpieces for additional accuracy (01727, 01728, 01729, 01730, 01731).
• Use of SIP Water Soluble Cutting & Drilling Fluid is recommended with this drill (01744, 01745).
