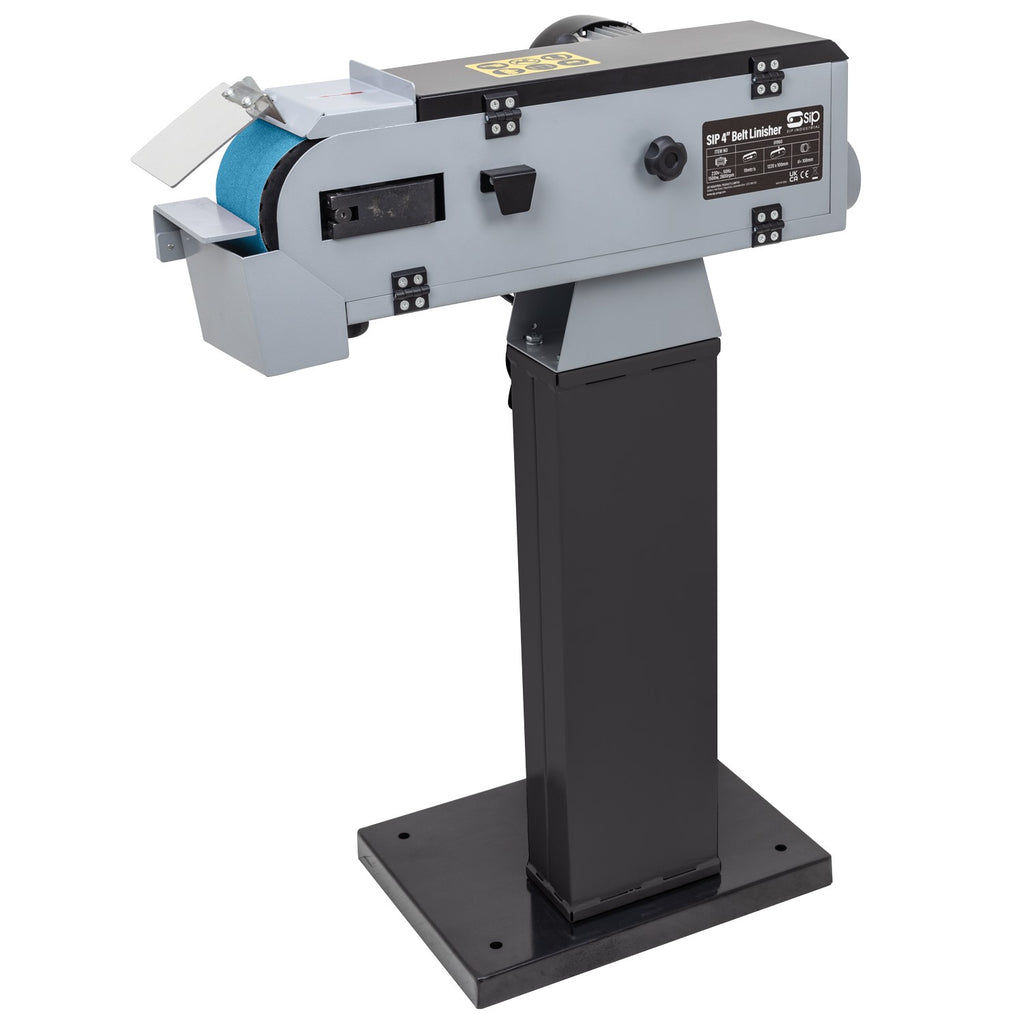

The SIP 4" Belt Linisher is designed for removing sharp edges and burrs from metal workpieces or finishing metalwork products. This includes cleaning and grinding of metalworking products, tubes and profiles.
SIP Belt Linishers are an essential machine for professional metalwork and engineering workshop processes.
KEY FEATURES
- Two-point belt access at wheel and full platen
- Long-lasting zirconium bonded belt (100mm x 1220mm)
- Quick release belt change via an easy-access panel
- Fitted with 100mm metal dust extraction port
- Bench or floor-mountable via supplied stands
- Enhanced safety features and NVR switch
SIP 2-Year Standard Silver Warranty
Full Specification
The SIP 4" Belt Linisher is designed for removing sharp edges and burrs from metal workpieces or finishing metalwork products. This includes cleaning and grinding of metalworking products, tubes and profiles.
SIP Belt Linishers are an essential machine for professional metalwork and engineering workshop processes.
Applications & uses: Ideal for removing sharp edges and burrs from metal pieces. Suitable for finishing mild steel, aluminium or stainless steel metalwork items.
SIP 2-Year Standard Silver Warranty

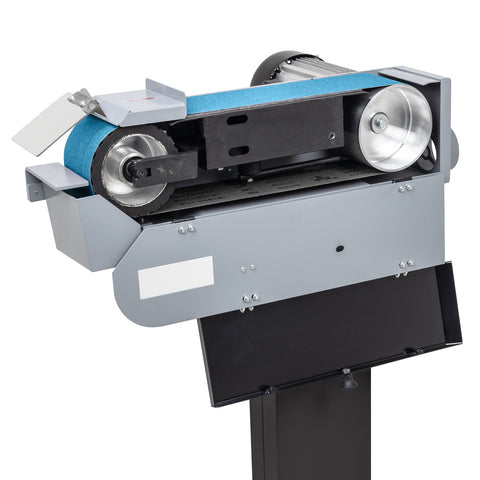

TWO-POINT BELT ACCESS
- This versatile machine has 2 accessible working points (wheel and full platen) for a range of linishing tasks. Belt speed runs at 19mtr/sec for robust application use.

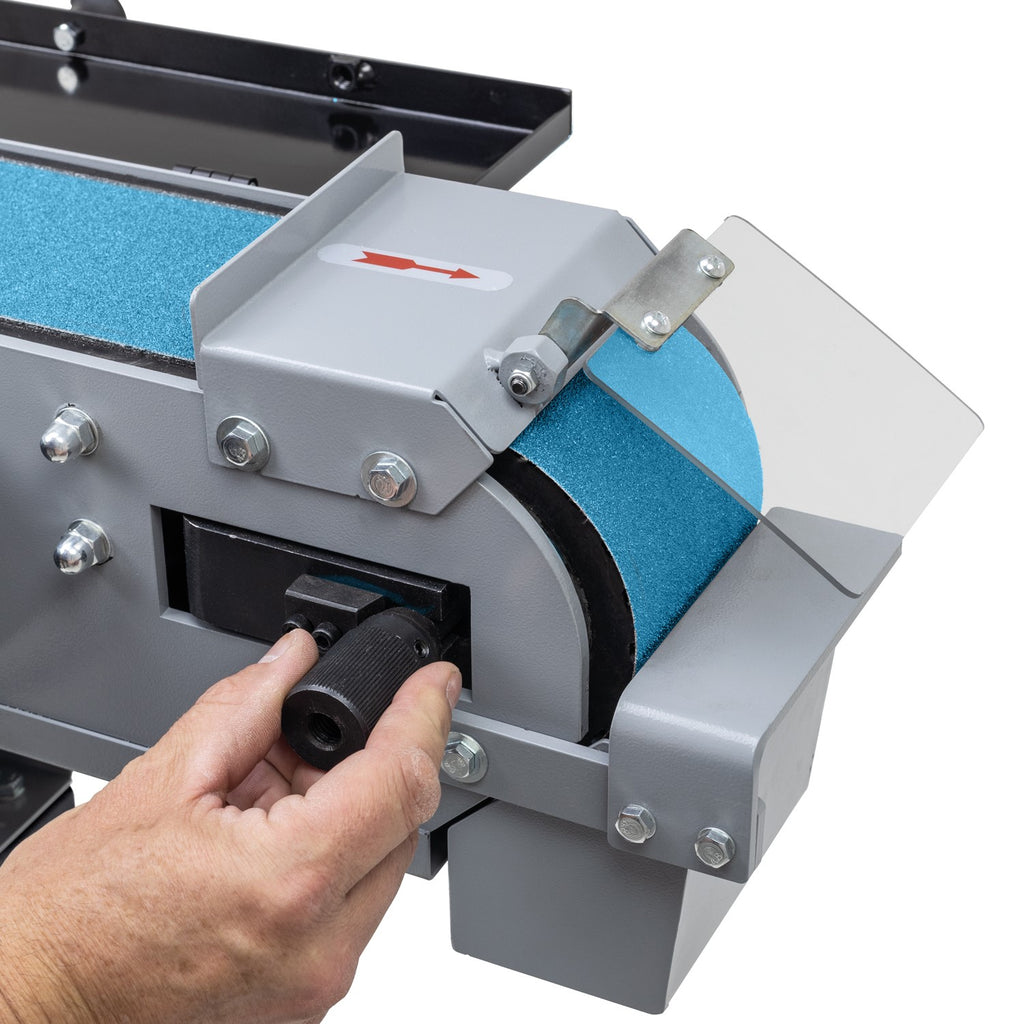

- An adjustable tool support ensures workpiece makes accurate contact with the wheel. An adjustable belt tracker is also fitted to ensure abrasive belt is centralised at all times.
ZIRCONIUM BONDED BELT (100MM X 1220MM)
- Long-lasting zirconium bonded belt for smoothing and finishing a variety of metal types. This includes mild steel, aluminium and stainless steel.
QUICK RELEASE BELT CHANGE
- The abrasive zirconium bonded belt can be quickly released and replaced using an easy-access panel.

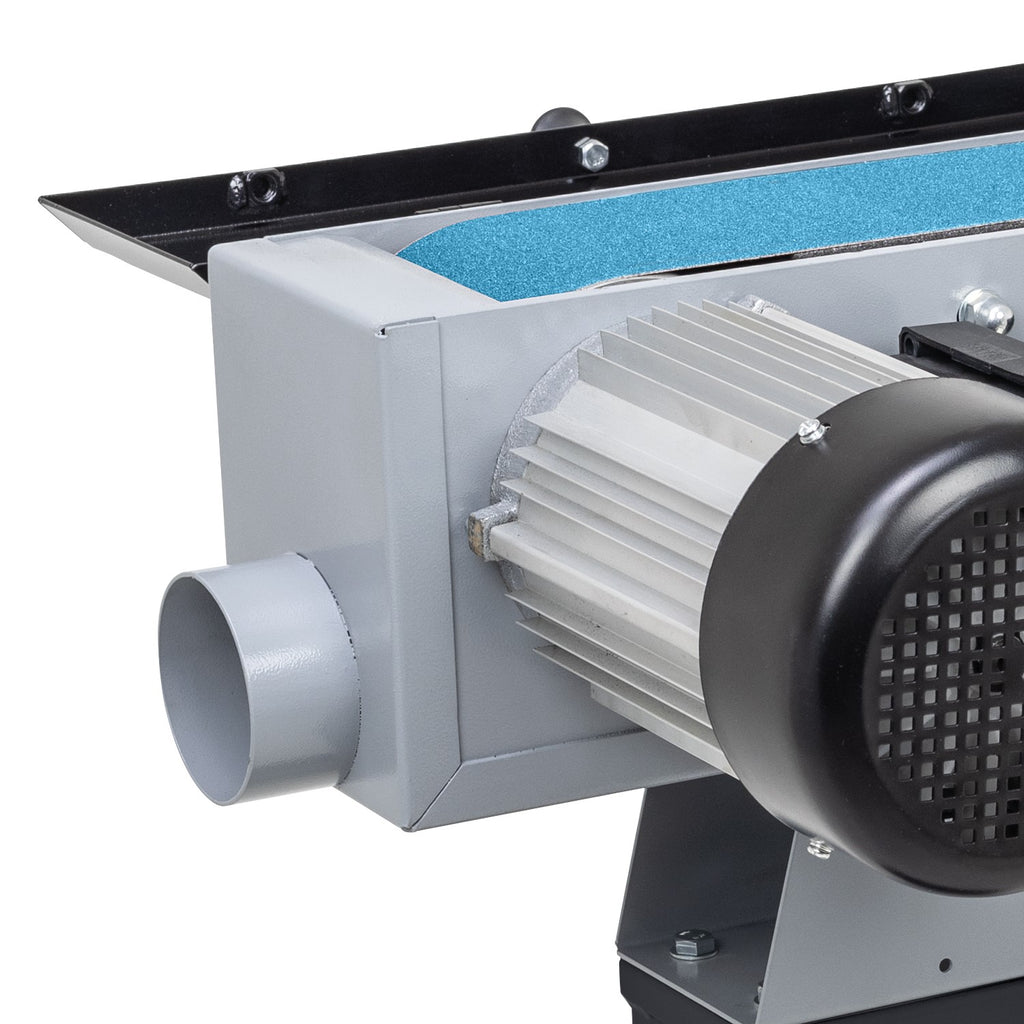

METAL DUST EXTRACTION PORT
- A 100mm metal dust extraction port to be paired with the SIP Metal Dust Collector (01996, sold separately).
BENCH OR FLOOR-MOUNTABLE
- Purpose-built steel stand allows the linisher to be bench-mounted or floor-mountable using the pedestal extension. This makes the linisher ideal for a variety of workshop environments. Steel stand and pedestal extension included.
ENHANCED SAFETY FEATURES
- Fitted with NVR switch, adjustable eye protection and spark trap for greater user safety.
Technical Information
| ITEM NO. | 01960 |
| Input Supply: | 230v (13A) |
| Motor Power: | 1.5kW (2hp) |
| Belt Size / Grade: | 1220mm x 100mm / 80G |
| Belt Speed: | 19mtr/sec |
| Flat Grinding Height: | 860mm |
| Contact Wheel Size: | 125mm x 100mm |
| Working Height (Contact Wheel): | 800mm |
| Net Weight: | 40.00kg |
| Gross Weight: | 45.00kg |
| Product Dimensions: | 885(H) x 390(W) x 650mm(D) |
| Packaged Dimensions: | 750(H) x 400(W) x 330mm(D) |
