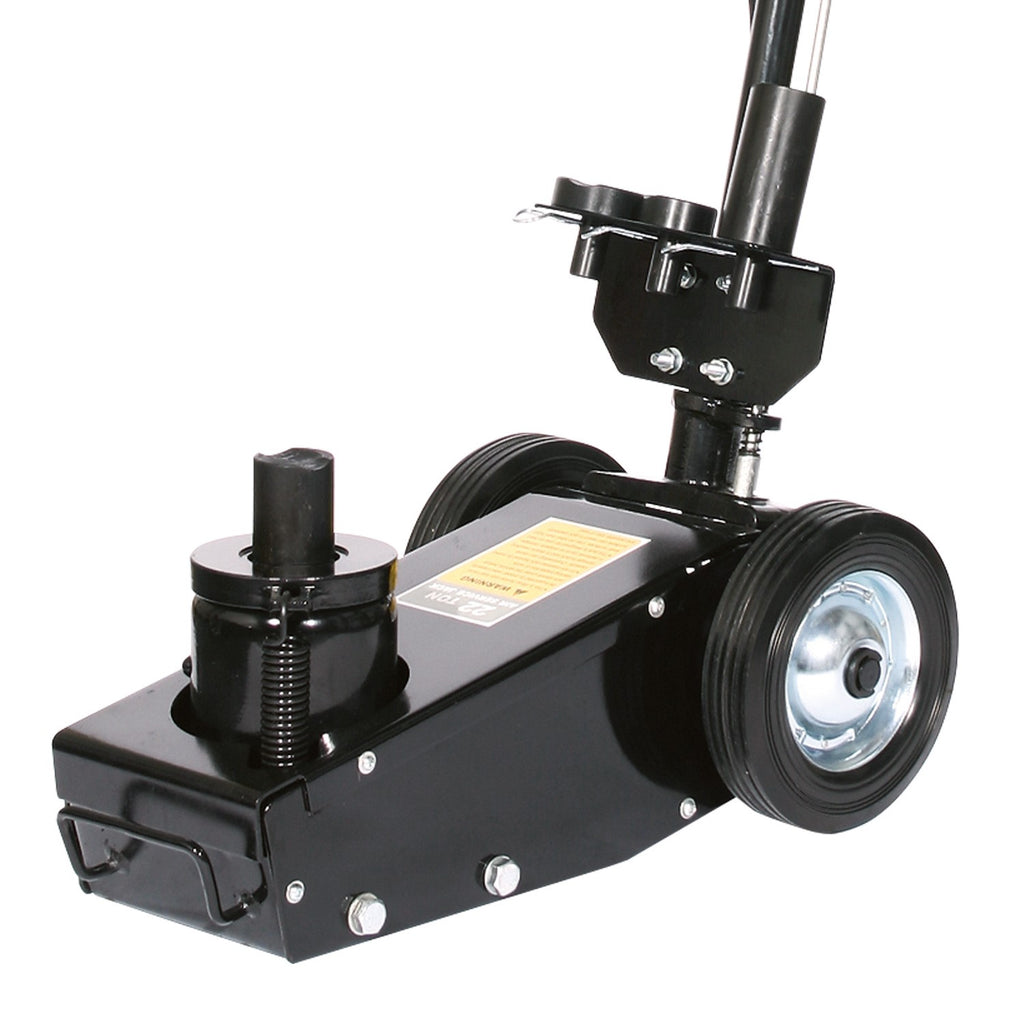

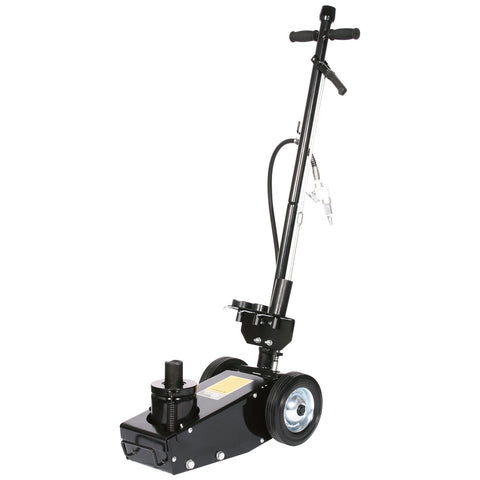

The SIP 22 TON Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery. A low-profile design ensures it can be easily positioned under vehicles with lower clearances.
This compressed air-controlled jack is ideal for demanding applications in professional garages and workshops handling a variety of larger and heavier vehicles.
KEY FEATURES
- 230mm to 555mm adjustable lifting height
- 115mm screw extension for added versatility
- Manufactured from heavy-duty and durable steel
- Low-profile design for easier under-vehicle access
- Large non-marking rubber wheels for added durability

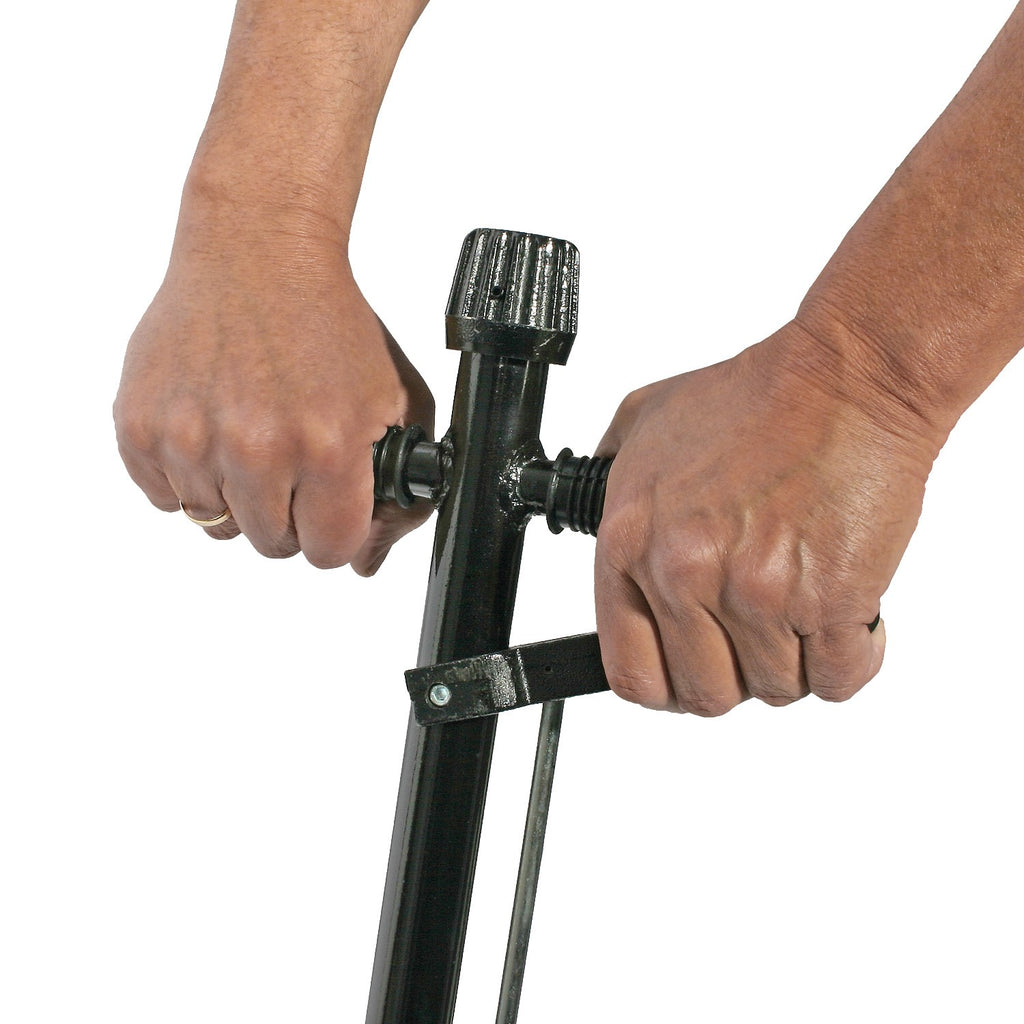

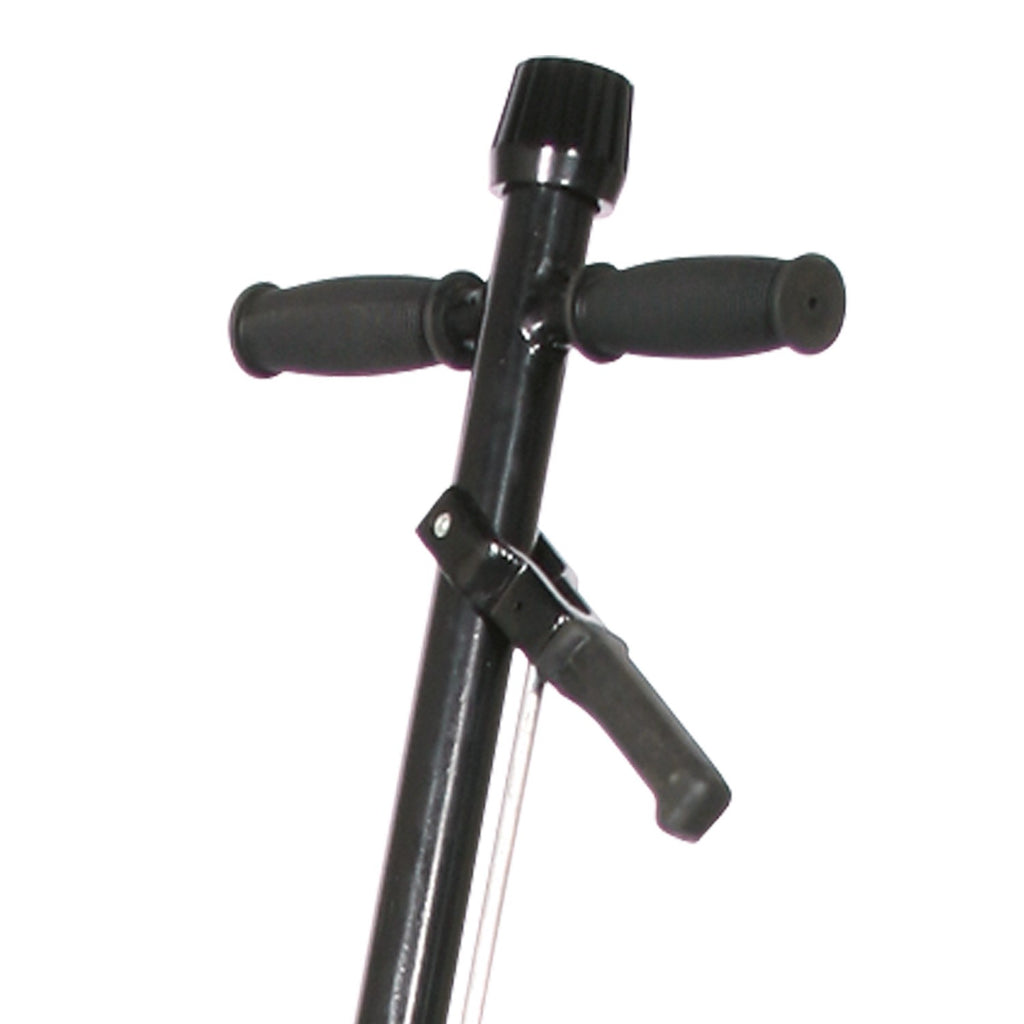

- Built-in release knob and integrated handle lock
SIP 2-Year Standard Silver Warranty*
Full Specification
The SIP 22 Ton Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery, offering dependable and reliable support across all demanding applications.
This compressed air-controlled jack is ideal for professional garages and workshops.
A low-profile design offer easier access under vehicles, particularly those with lower clearances. In conjunction with the large non-marking rubber wheels, this jack is easy to manoeuvre and positioning regardless of the vehicle type.
For optimal user safety, the 22 TON Air Floor Jack is built with a release knob to help lower any vehicles slowly in a controlled manor, and handle lock to prevent the jack from accidentally disengaging, reducing the risk to the operator.
- 22 TON maximum weight capacity
- 230mm to 555mm adjustable lifting height
- 115mm screw extension for added versatility
- Manufactured from heavy-duty and durable steel
- Low-profile design for easier under-vehicle access
- Large non-marking rubber wheels for easy movement
- Built-in release knob and integrated handle lock

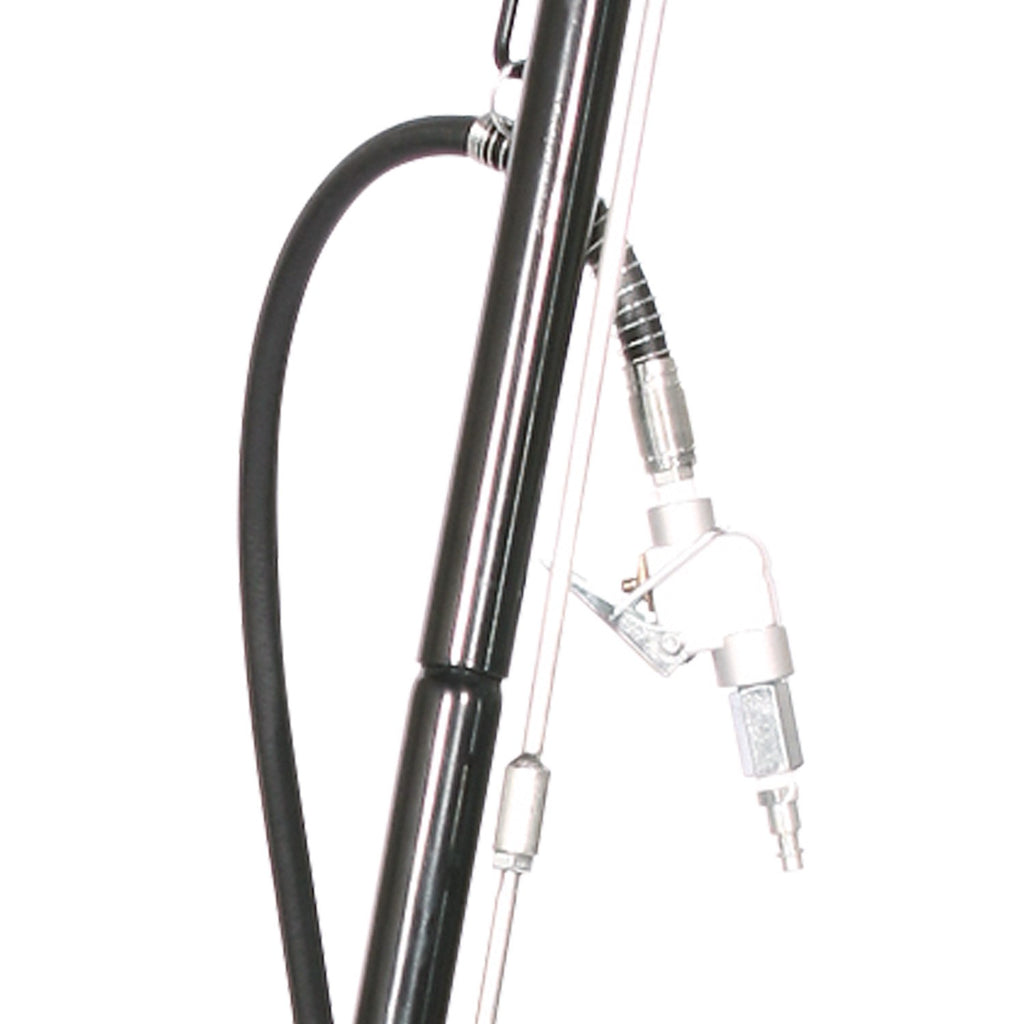

- Integrated air line hook and air control valve
- 9.5CFM (269ltr/min) maximum air consumption
- 102psi (7bar) to 145psi (10bar) pressure
-
SIP 2-Year Standard Silver Warranty
Technical Information
ITEM NO. 03643 Weight Capacity: 22 TON Min. Lifting Height: 230mm Max. Lifting Height: 555mm Ram Stroke: 120mm Screw Extension: 115mm Working Pressure: 102psi (7bar) - 145psi (10bar) Av. Air Consumption: 9.50CFM (269ltr/min) Adaptor Size: Ø 110mm x 50mm
Ø 50mm x 50mm
Ø 20mm x 50mm
Ø 20mm x 70mmNet Weight: 45.90kg Gross Weight: 49.90kg Product Dimensions: Packaged Dimensions: 280(H) x 360(W) x 670mm(D)
