SIP 05498AHR15 Compressor & Hose Reel QT AIR DD 4.5hp 200ltr

SIP 05498AHR15 Compressor & Hose Reel QT AIR DD 4.5hp 200ltr

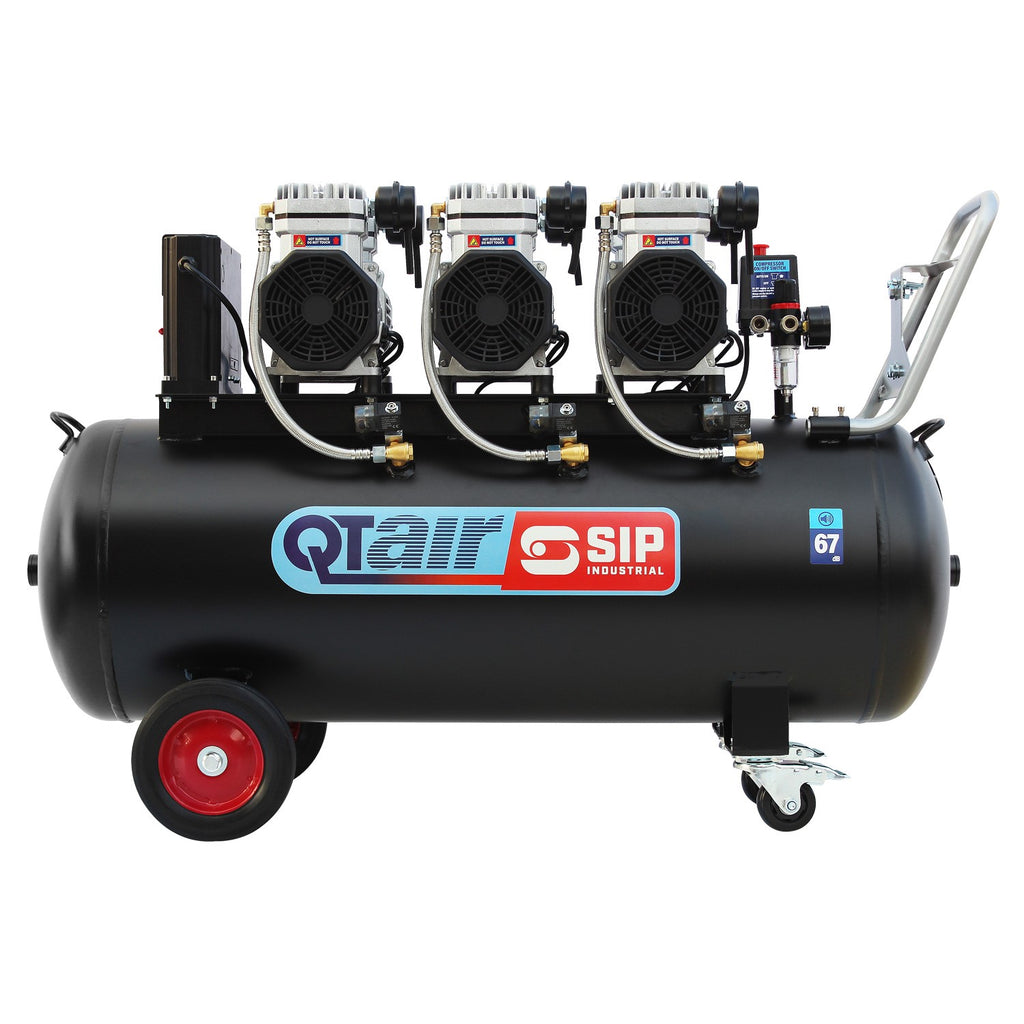

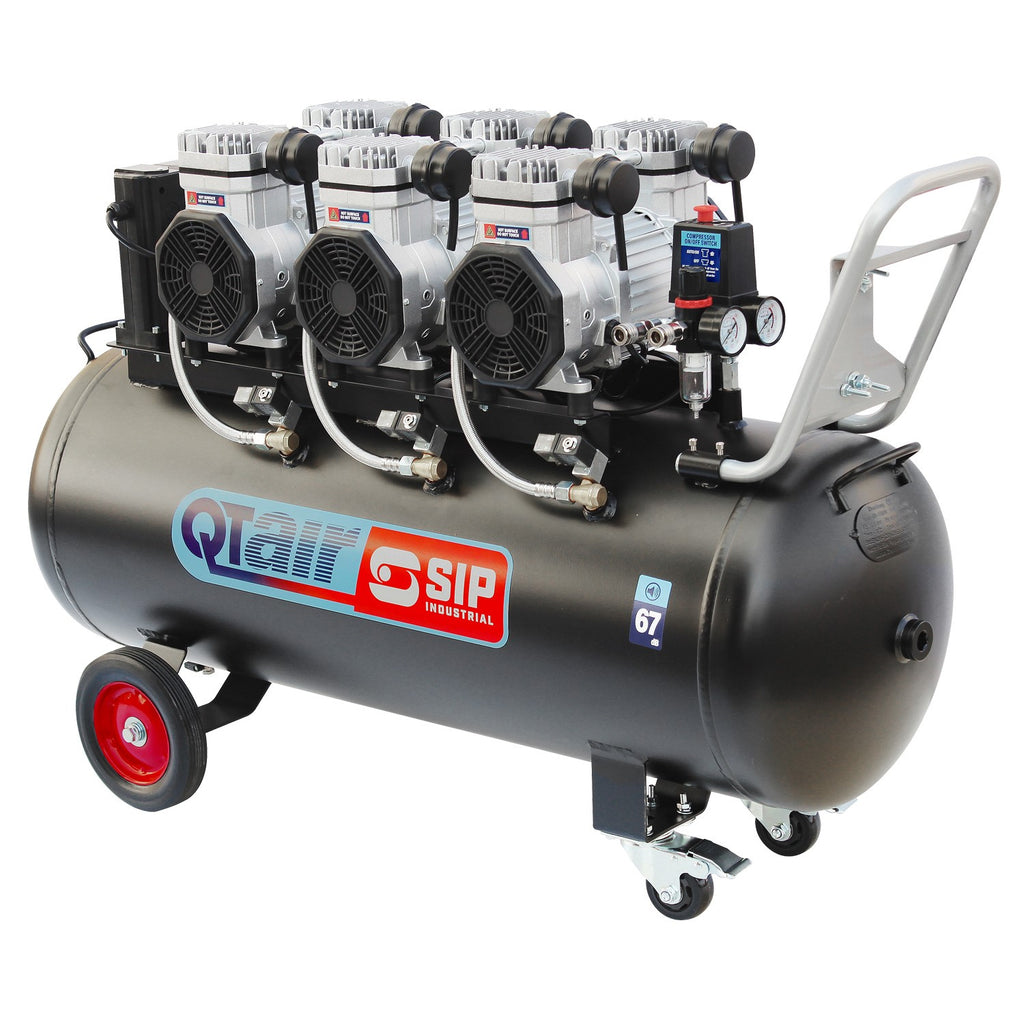

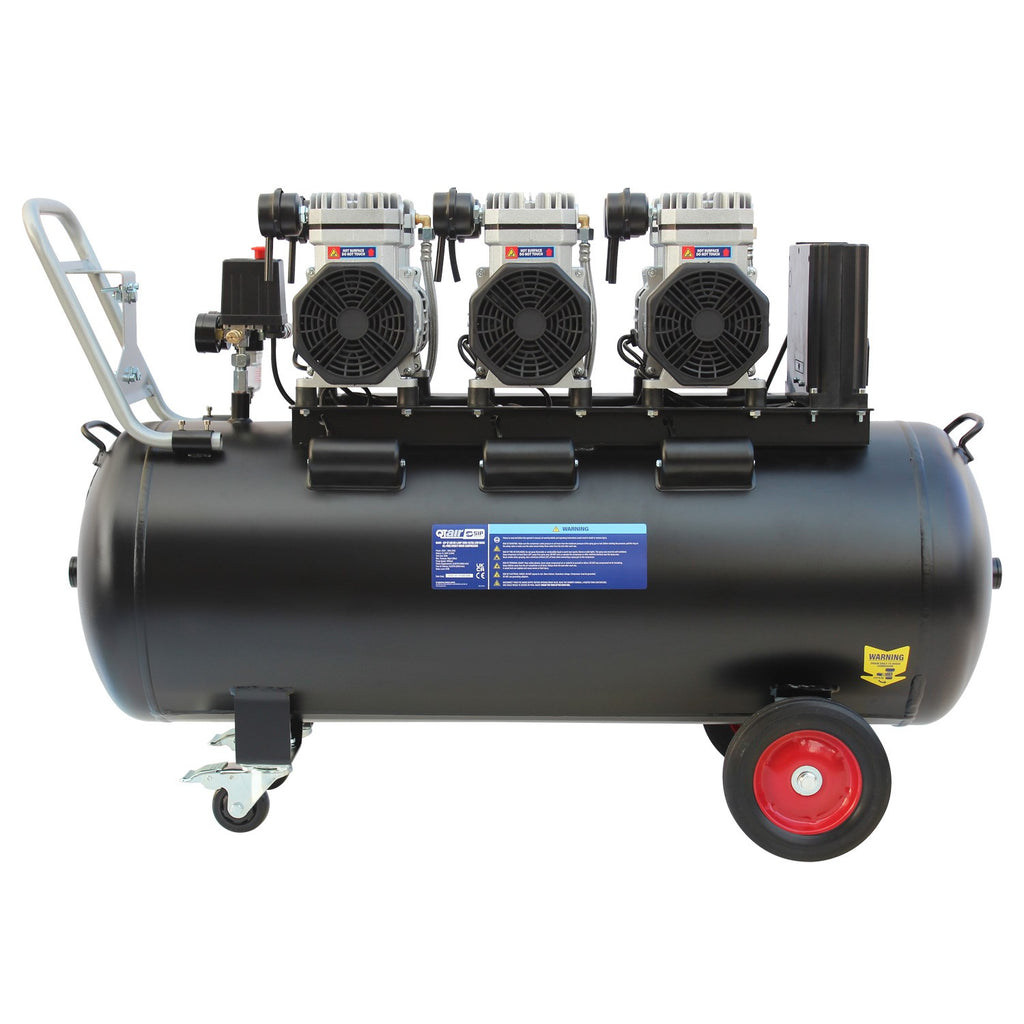

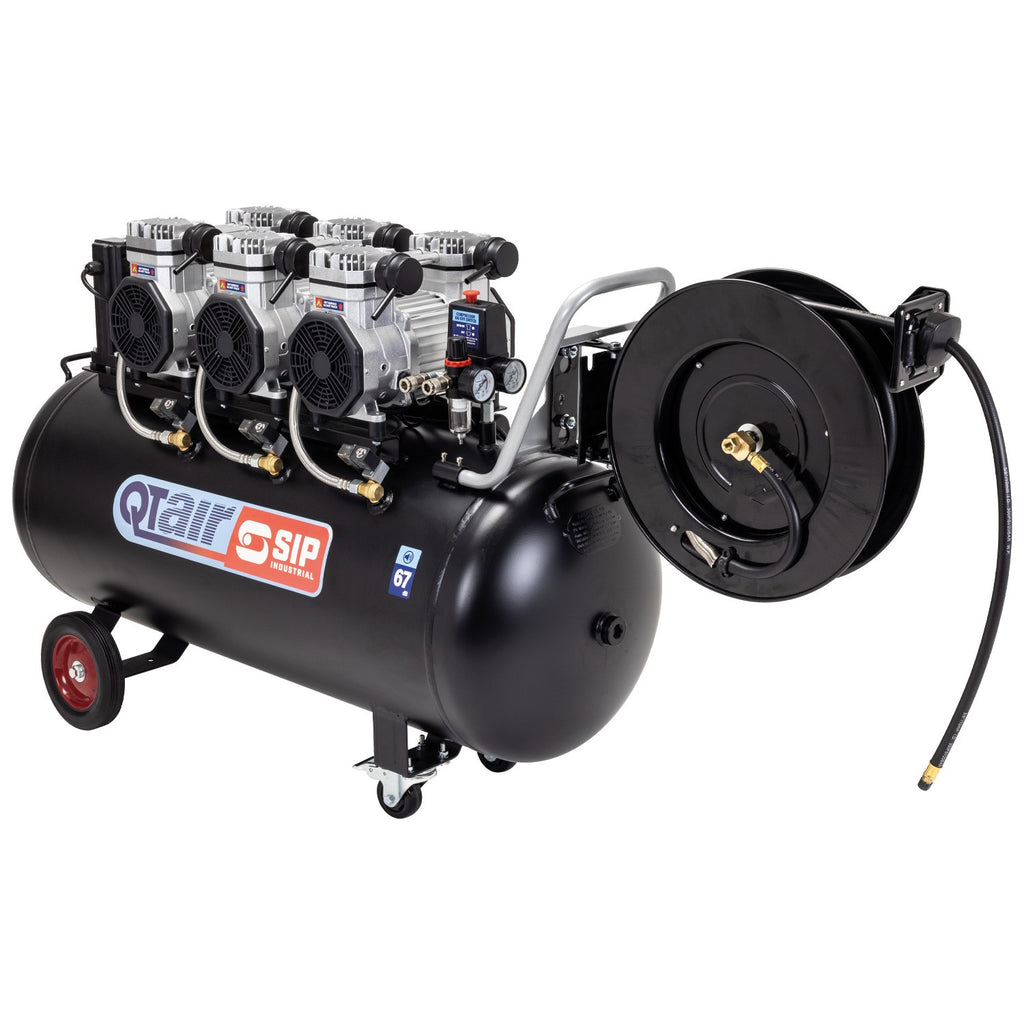

The SIP QT AIR DD 4.5hp 200ltr Ultra Low Noise Oil-Free Direct Drive Compressor is an innovative ultra low noise air compressor which operates at just 67dB and features slow-running 4-pole motor pump units for up to 50% longer life performance.

Built to support demanding higher air volume in automotive environments and large workshops, this oil-free and low maintenance compressor delivers 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single phase supply.

Supplied with a separate SIP Air Hose Reel R15 (07977) for mounting onto the compressor handle using the supplied bracket and fixings.

Features

• 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD)
• Ultra low noise six-cylinder motor pump unit operates at just 67dB
• Slow-running oil-free 4-pole motors for longer life performance (4.5hp/3.3kW)

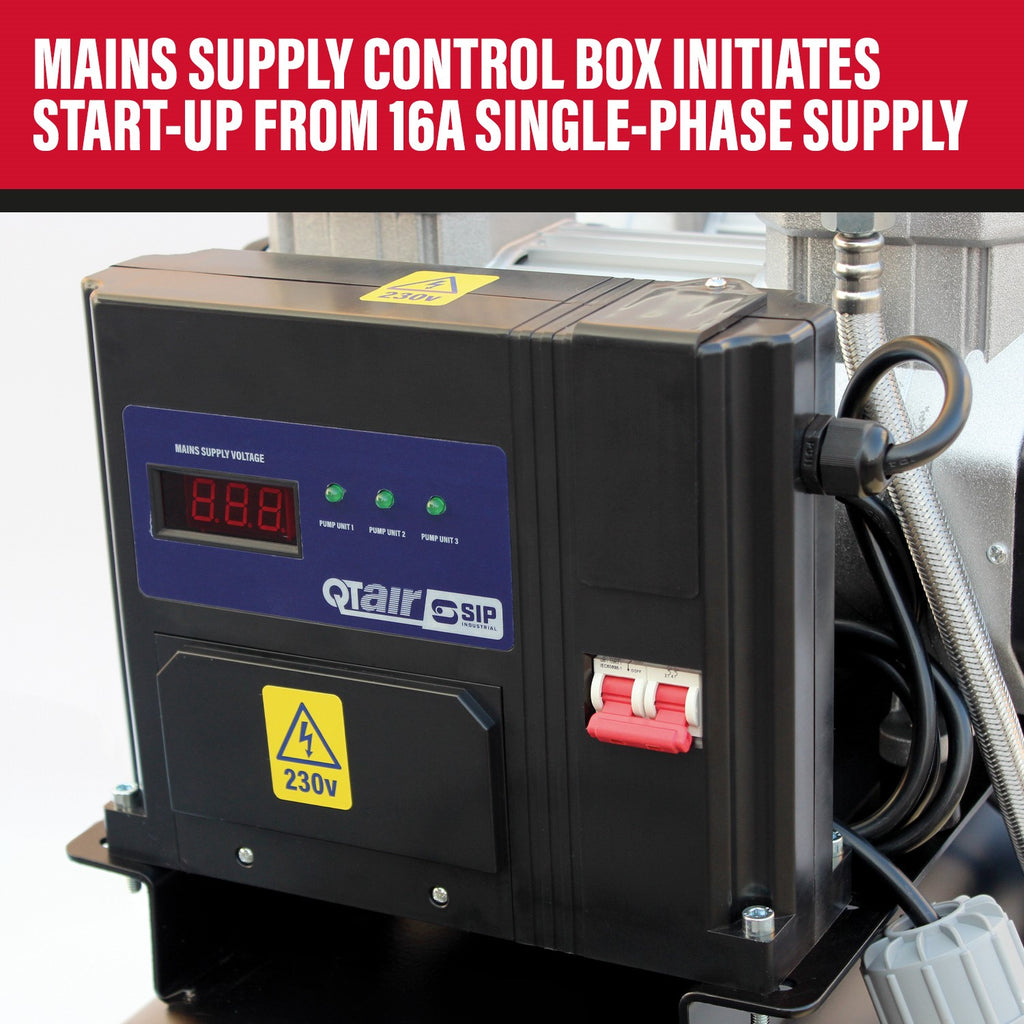

• Mains supply control box initiates start-up from a 16A single-phase supply
• 200ltr receiver with tank and working pressure gauges and quick-release connectors
• U-handle includes bracket and fixings for supplied SIP Air Hose Reel R15 (07977)

  SIP 2-Year Standard Silver Warranty

Applications & uses: Designed for automotive settings and large workshops. Ideal for spraying applications, pneumatic car lifts, tyre changers and plasma cutters. Suitable for sanding and grinding applications.

What's in the box?: 1x SIP QT AIR DD 4.5hp 200ltr Ultra Low Noise Oil-Free Direct Drive Compressor, wheel kit (2x solid wheels and 2x castors), pull handle with air hose mounting bracket and fixings, 3mtr mains cable with 230v/16A plug, 1x SIP Air Hose Reel R15.

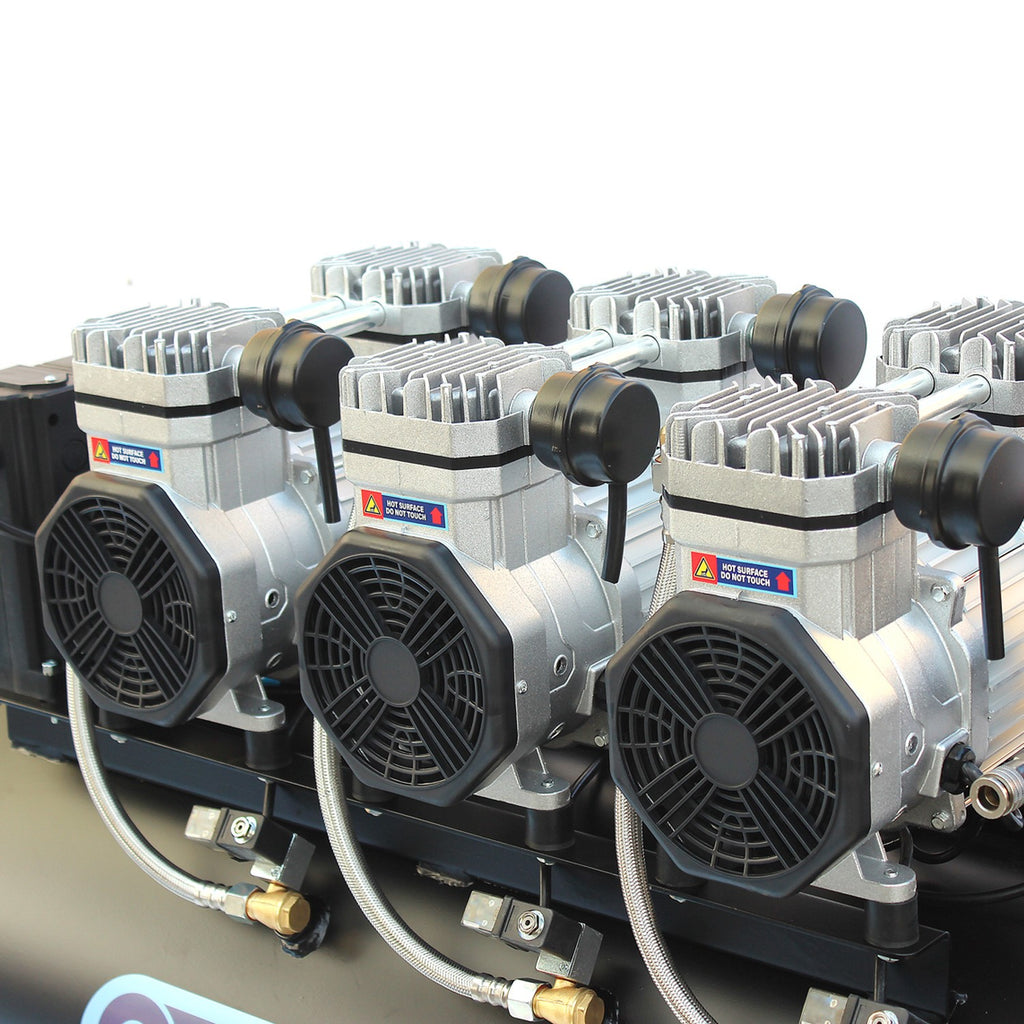

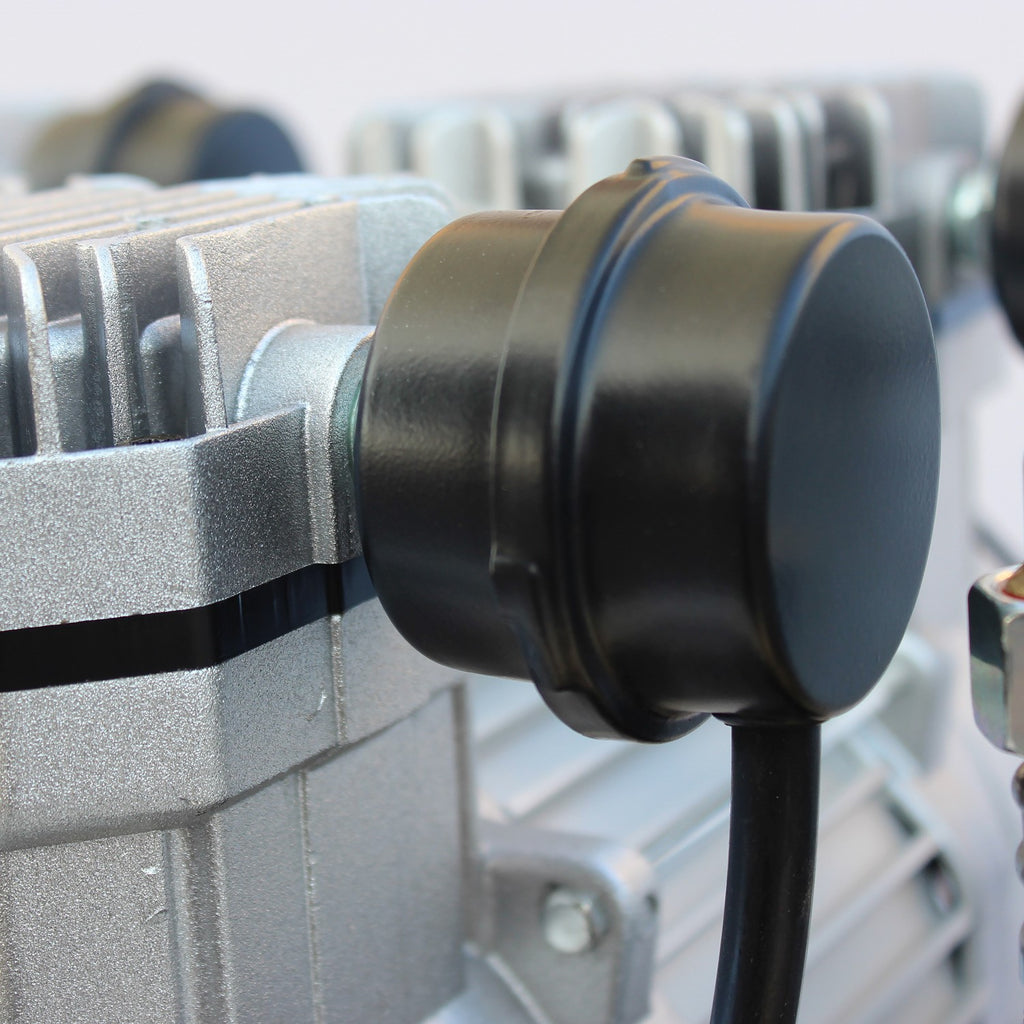

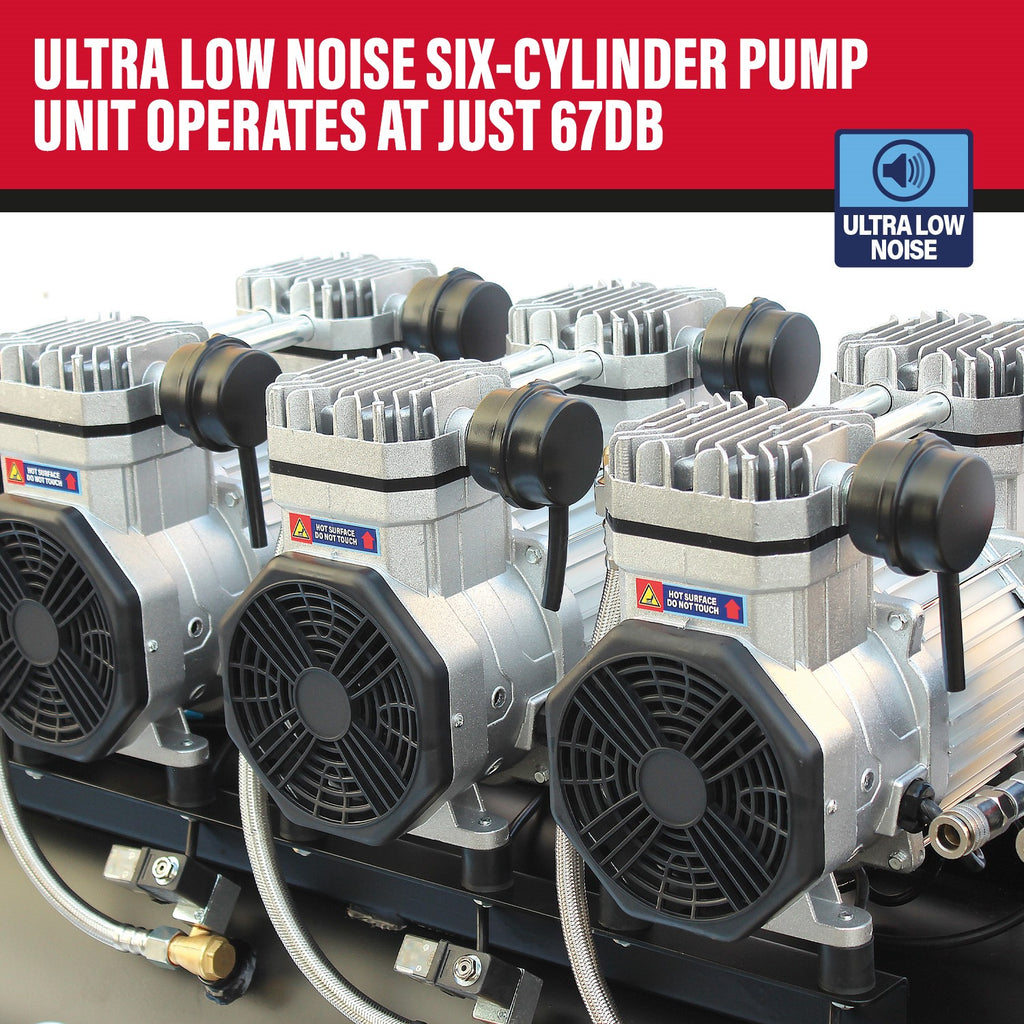

Large six cylinder motor pump unit with slow-running 4-pole motors achieve ultra low noise levels & support higher air volume applications & oil free for low maintenance use.

• Ideal for spraying applications, pneumatic car lifts and tyre changers. Suitable for sanding and grinding applications and perfect for use with spot welders and plasma cutters.
• Slow-running 4-pole motors operate at lower speeds for longer life performance (4.5hp/3.3kW) compared to standard SIP 2-pole motor air compressors. Delivers high 22.8CFM piston displacement resulting in 18.2CFM Free Air Delivery (FAD) from a single-phase supply.
• Large motor fans improve cooling to maintain pump temperature and output performance.

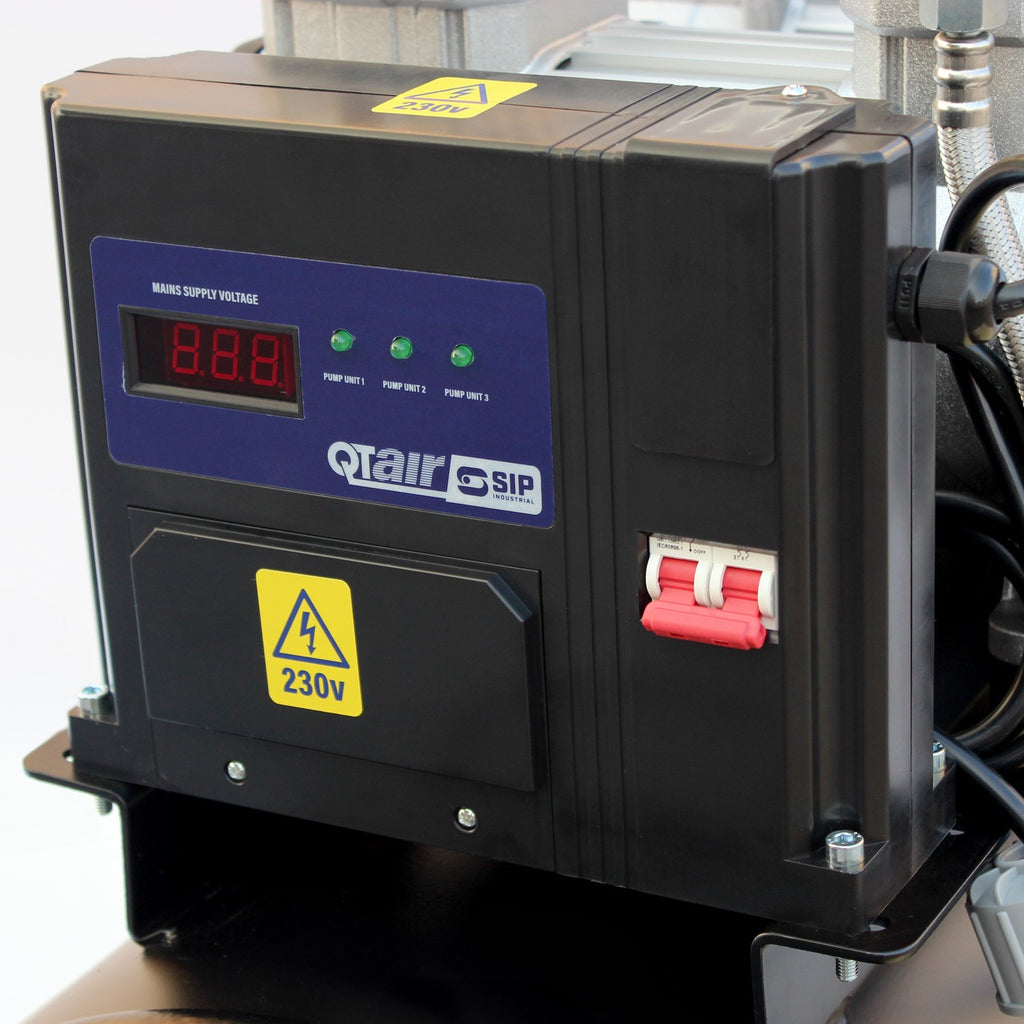

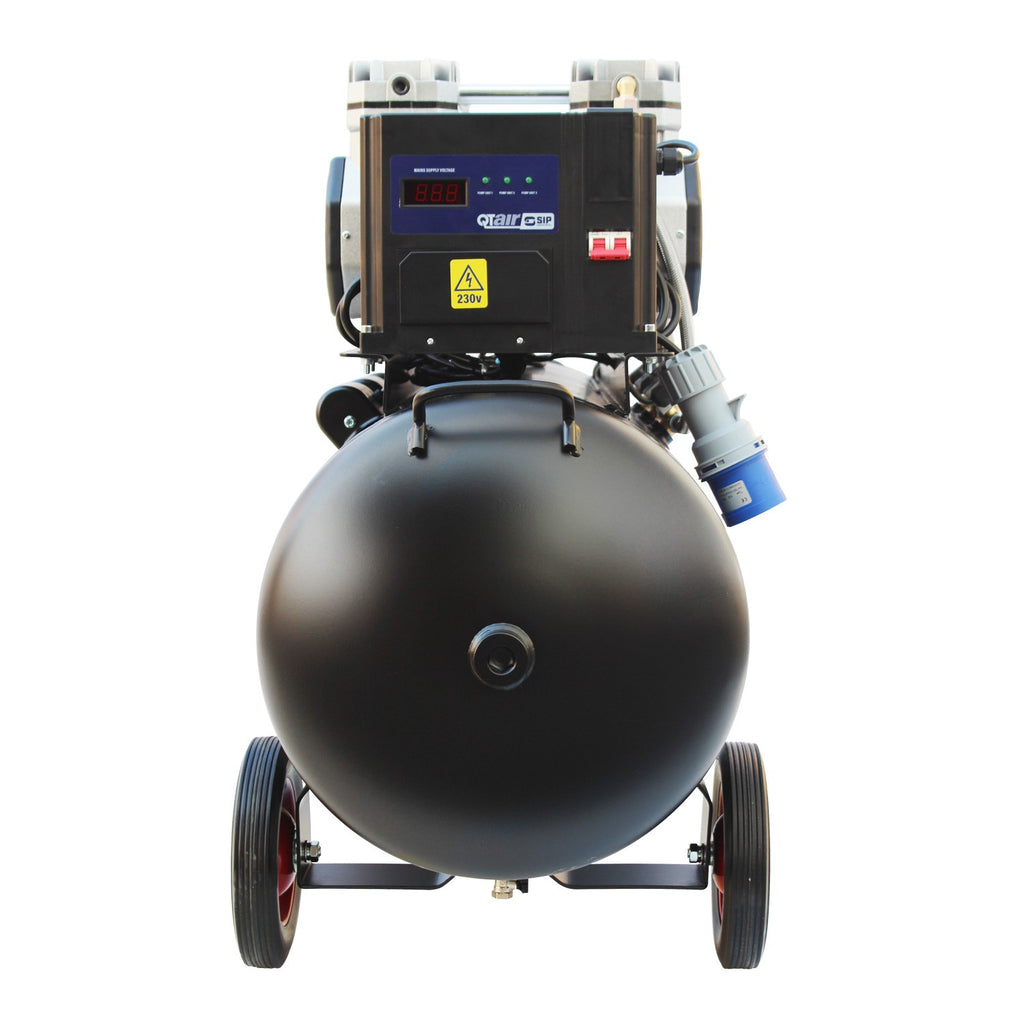

• A mains supply control box with input voltage display initiates individual motor pump unit start-up at 3sec intervals. This eliminates inrush current, alleviating any start-up motor stress and premature motor wear and tear.

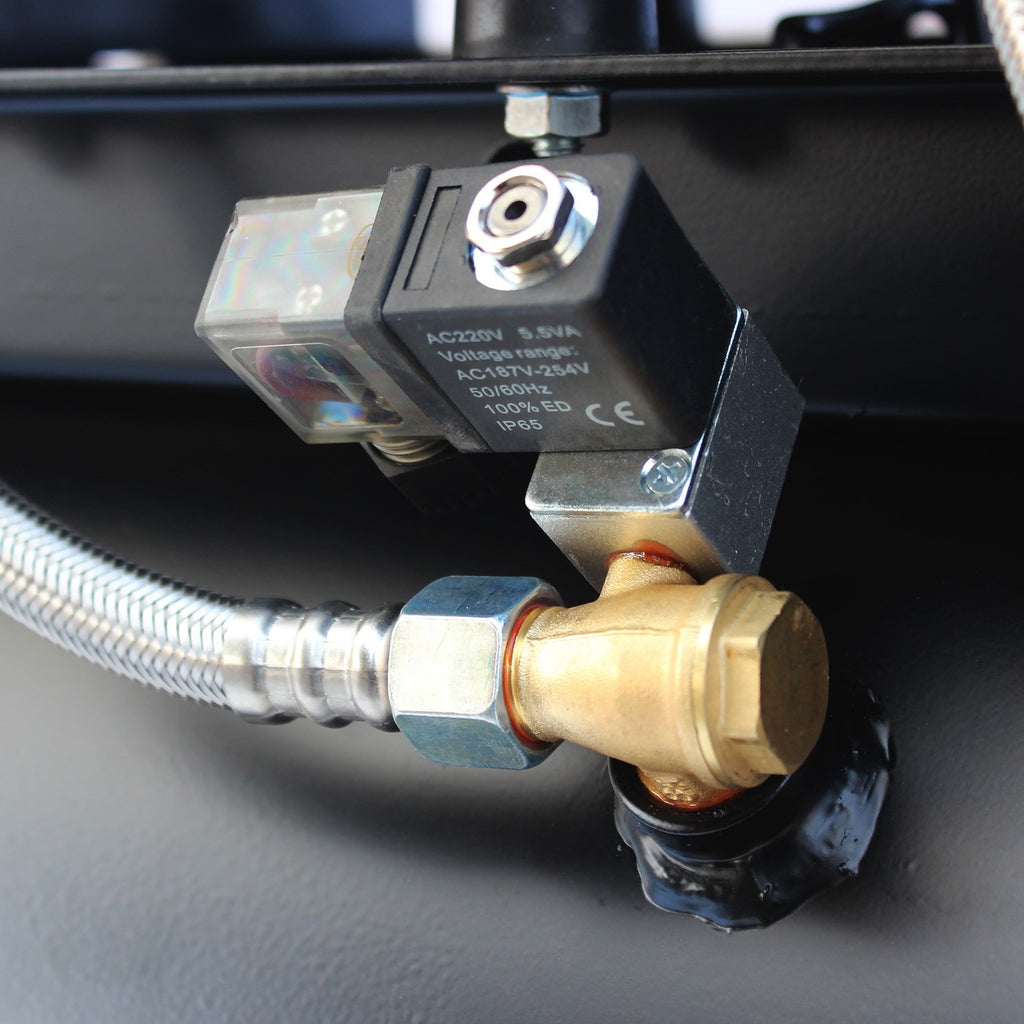

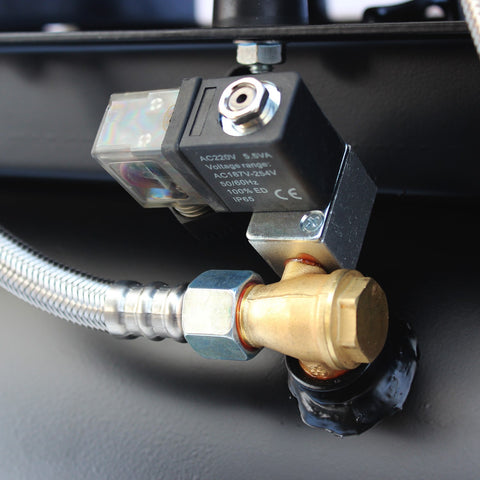

• Also features an electronic auto bleed system for resistance-free start-up. This releases residual delivery pipe pressure before every filling cycle, which ensures each motor reaches it's full operating speed without any additional mechanical stress.
• Fitted with 3mtr mains cable for greater work area flexibility and a 230v/16A plug.
• Operates at an ultra low 67dB for lower noise levels compared to older SIP compressor technology. Ideal for work areas where noise level is a consideration.
• Oil-free operation for low maintenance use and reduced operating costs. This prevents oil carry-through to air tools and equipment, maximising longevity.

200Ltr receiver tank safely stores compressed air ready for air tools  inflation tasks.

• Maintains a consistent air supply of up to 8bar pressure.

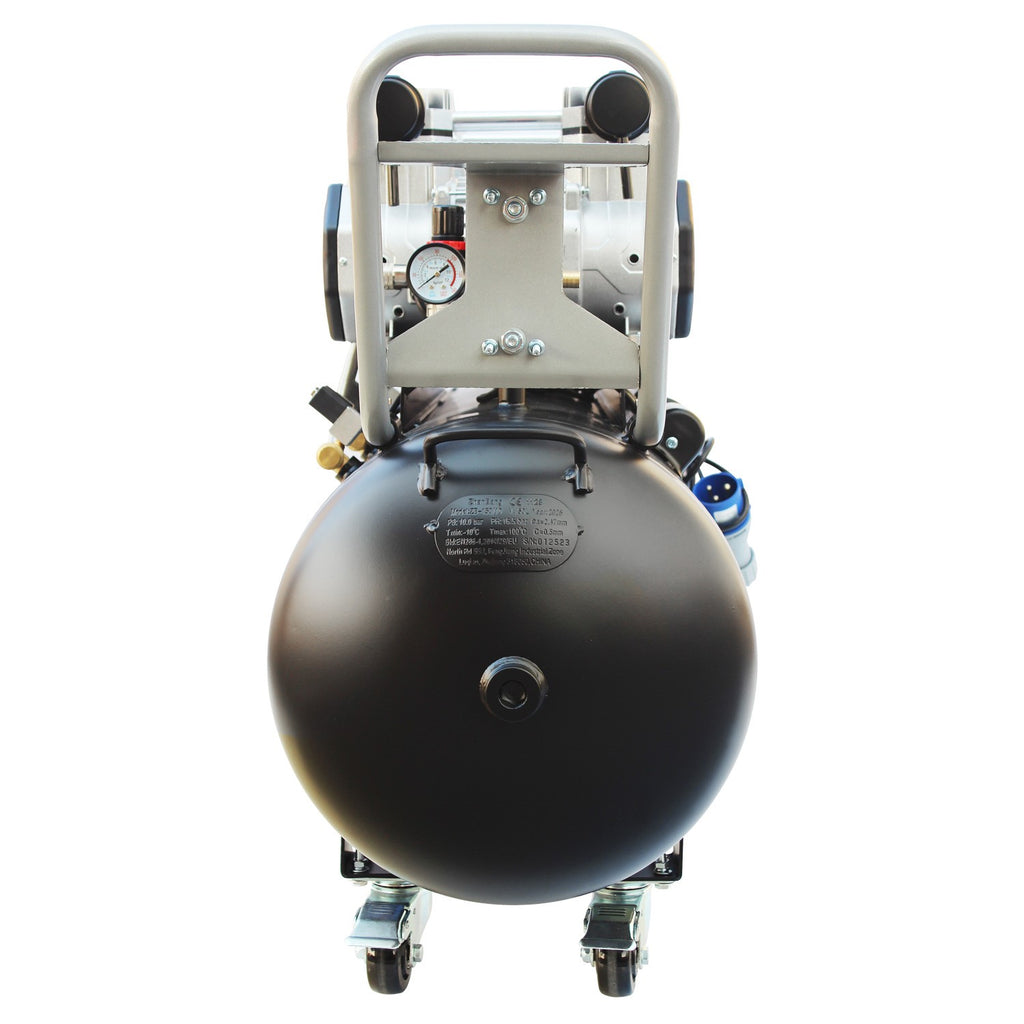

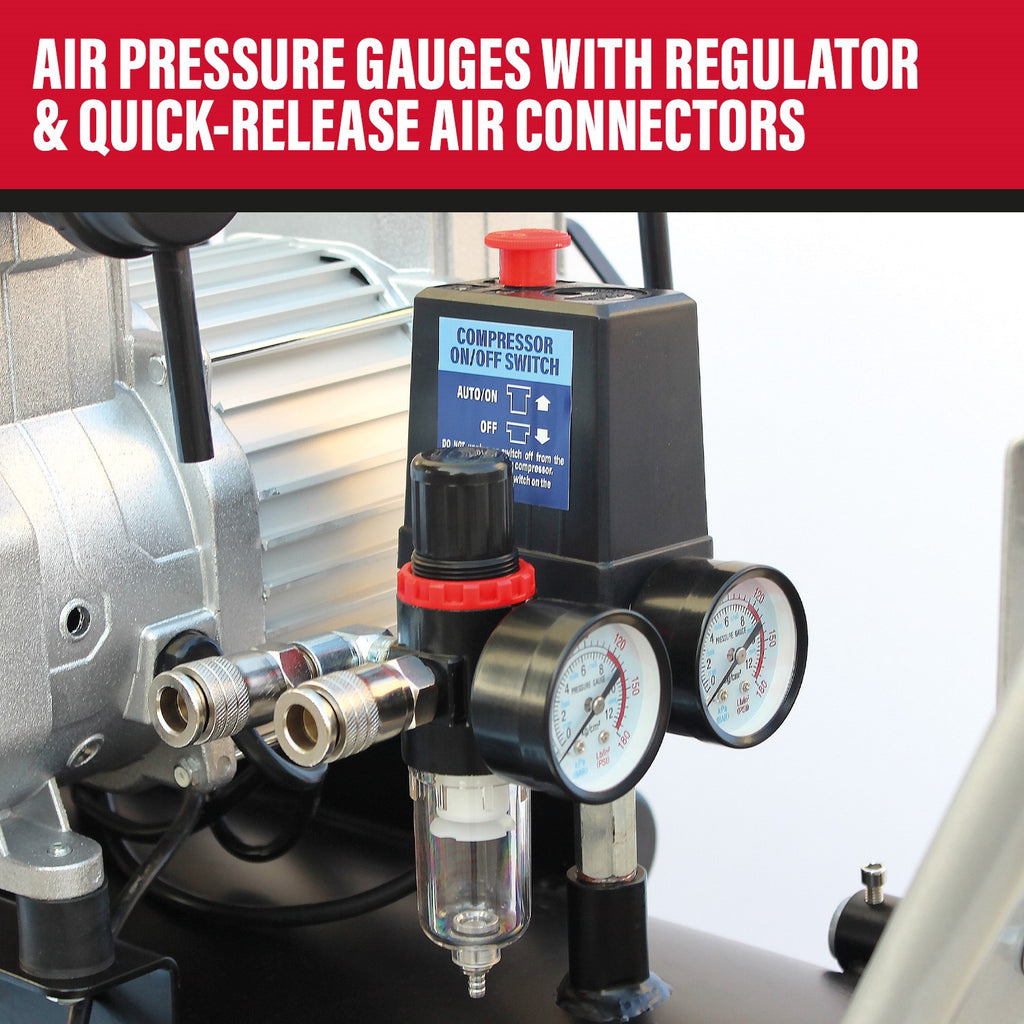

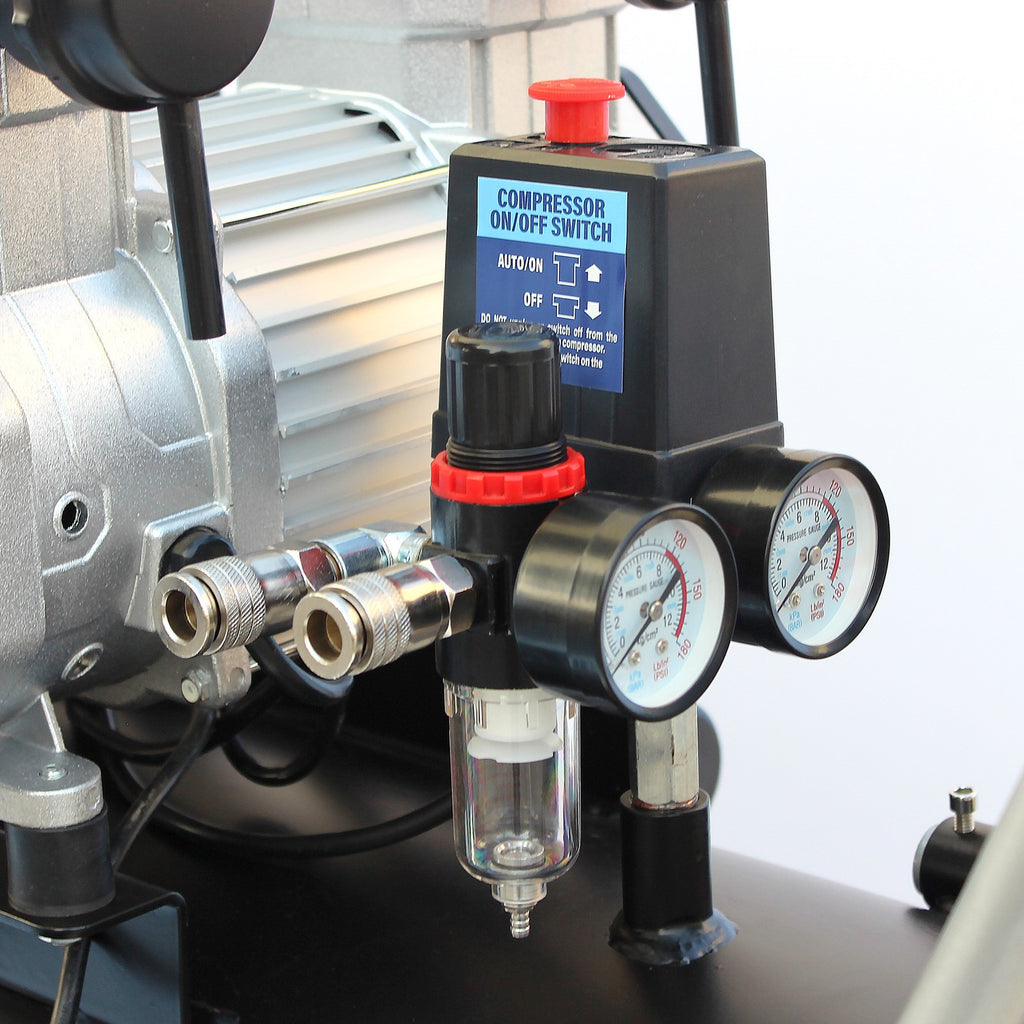

Tank & working pressure gauges with regulator optimise air delivery.

• Provides an accurate display of current pressures for enhanced user operation.

Twin quick-release air connectors for greater application versatility.

• The adjustable regulator (0-8bar) optimises air requirements to both quick-release connectors.

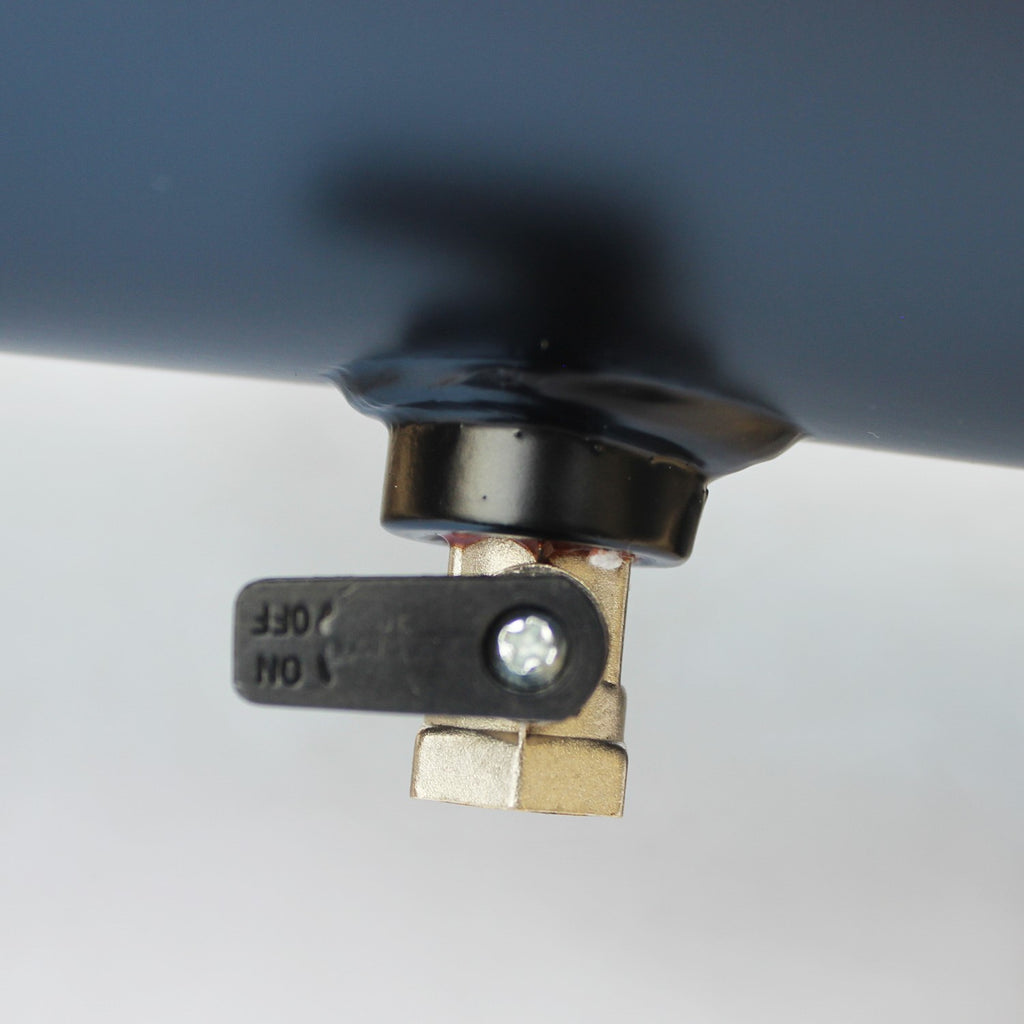

• Also fitted with a quick-release air receiver condensate drain valve.

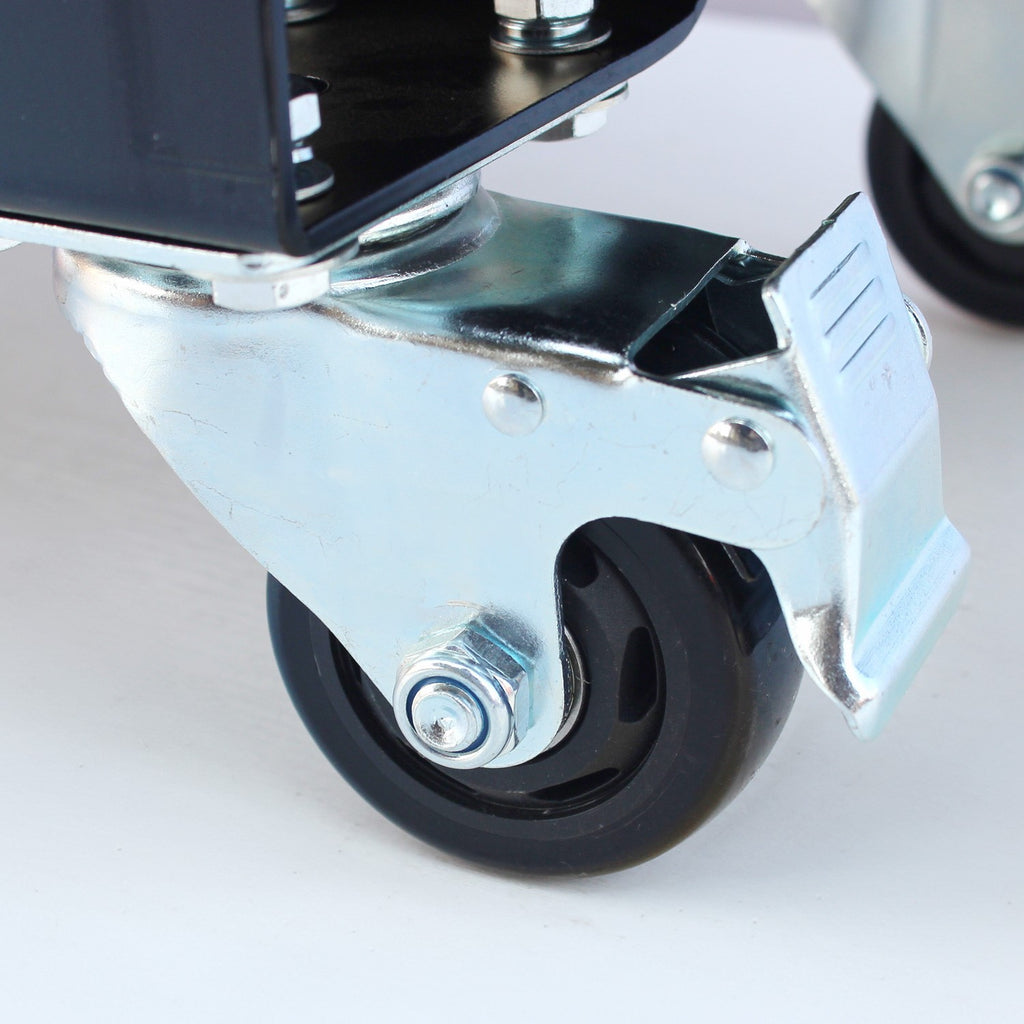

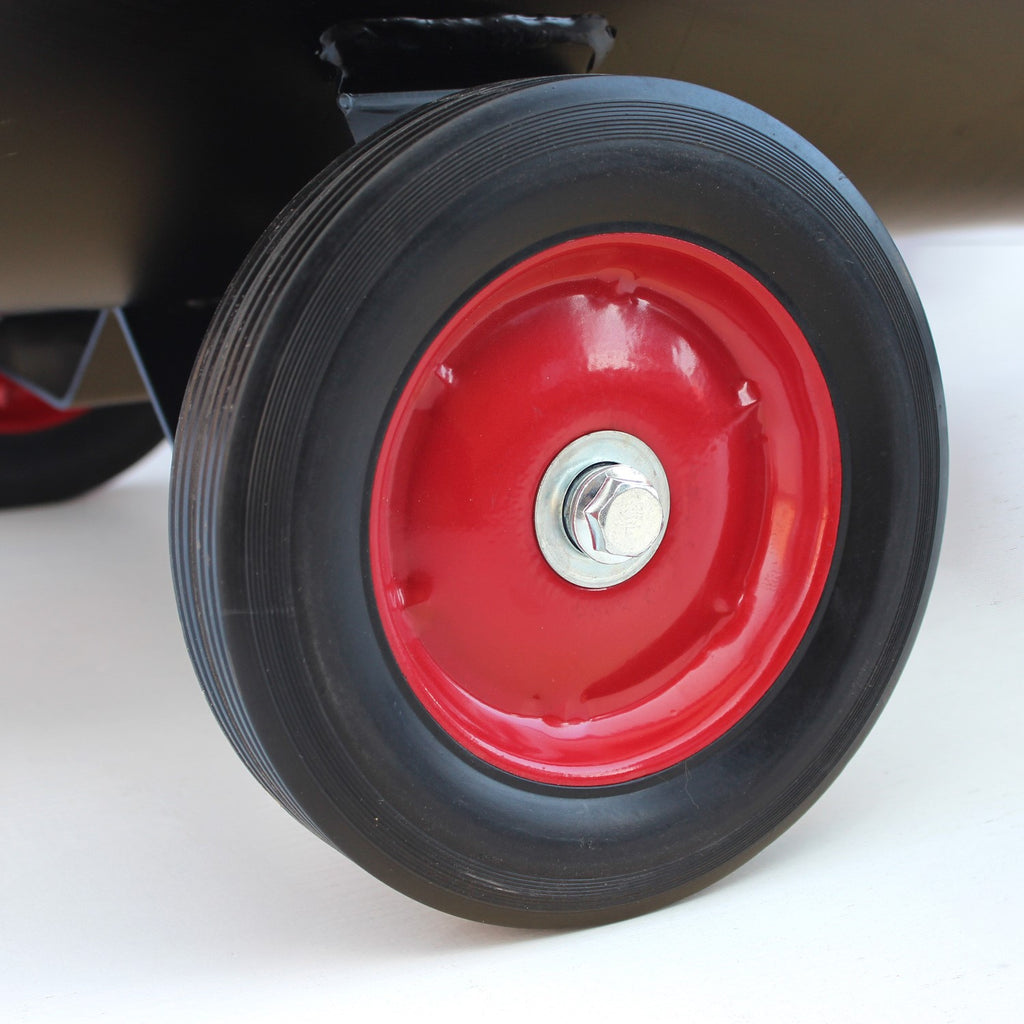

Solid wheel kit with front swivel castors & U-handle for outstanding mobility around the work area.

• Allows full movement in a variety of work area settings for added flexibility.

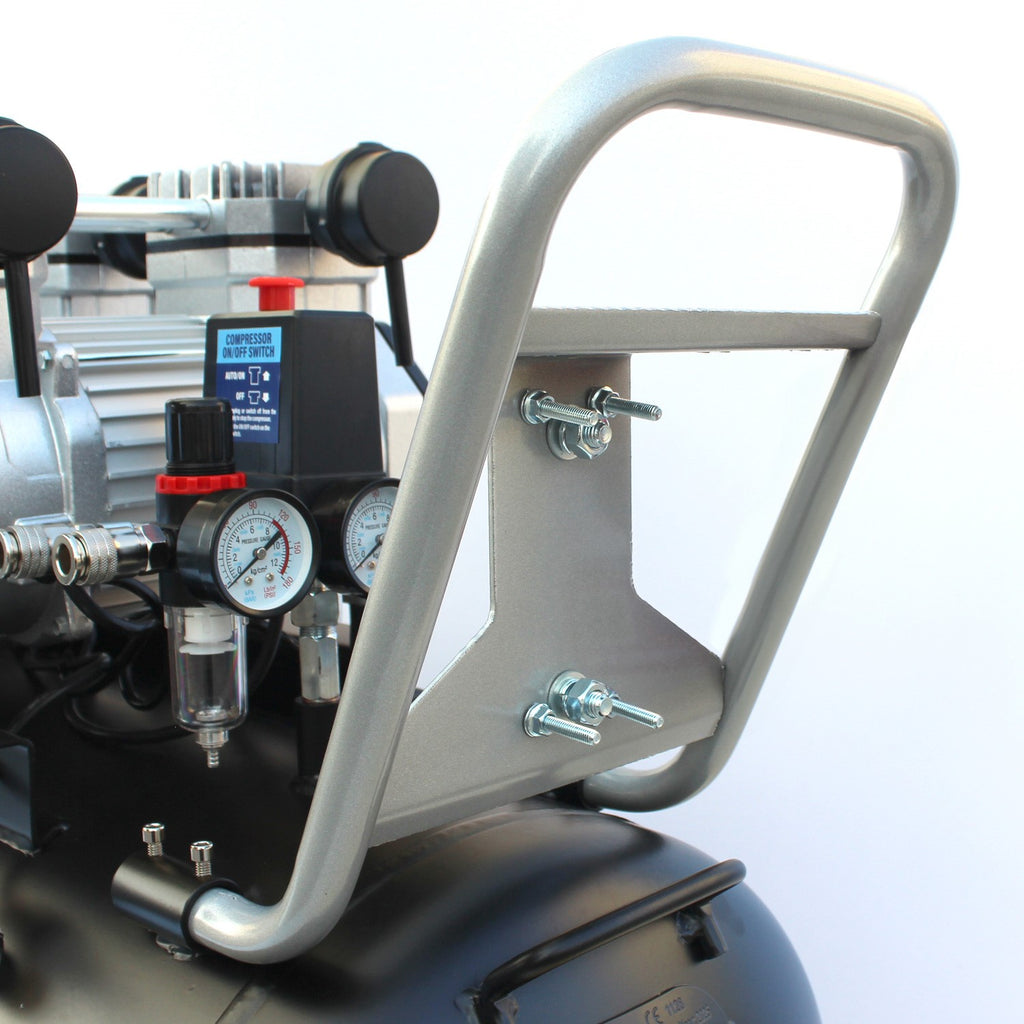

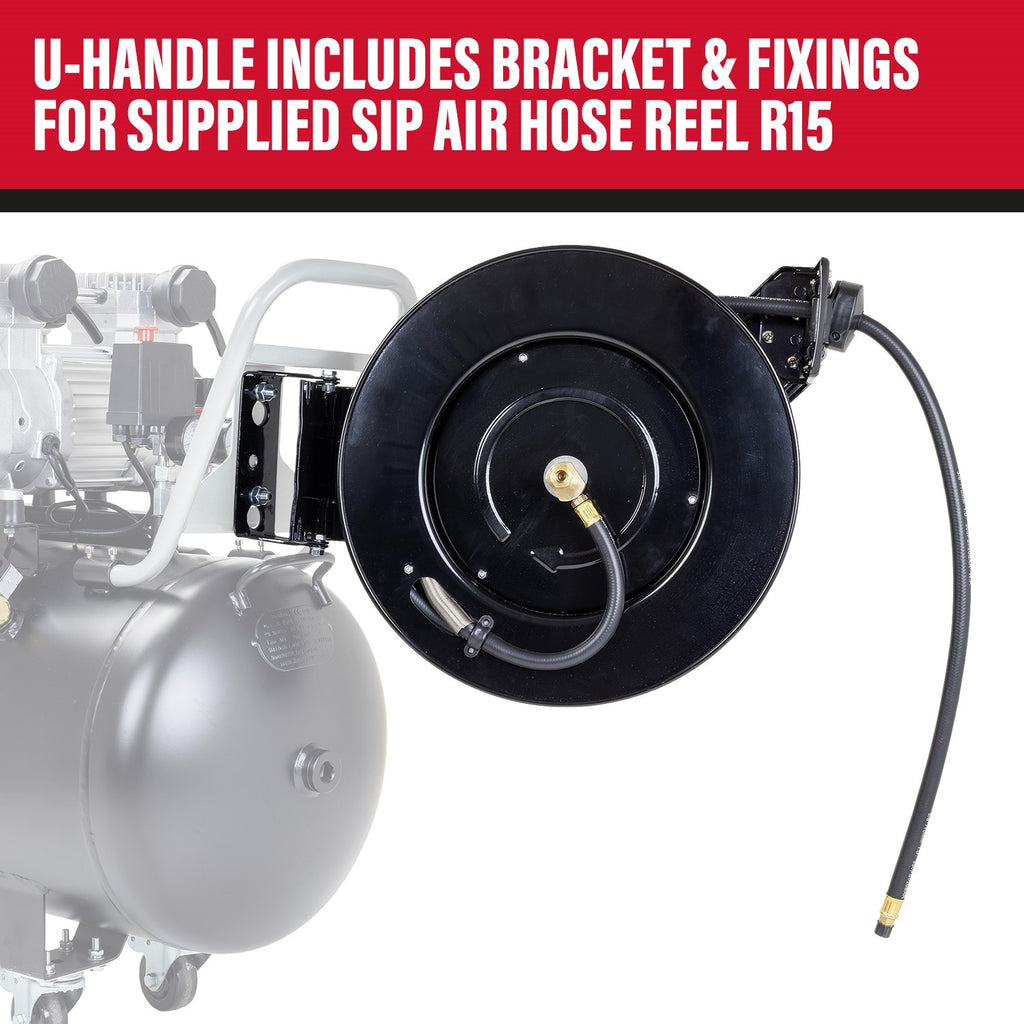

• Supplied U-handle includes bracket and fixings for mounting the supplied SIP Hose Reel R15 (07977).

Technical Data
