STEALTH

Stealth 9112H-AC Cobra by Stealth 321 LCD AC/DC TIG Welding Machine

£ POA

Please call for best price.

321 LCD AC/DC TIG Air Cooled Welding Machine. Increase the efficiency of your welding with the Cobra by Stealth 321 LCD AC/DC TIG Welding Machine. This 3-phase machine utilizes advanced ac/dc technology and features 3 welding modes (TIG HF, TIG LIFT, MMA) for versatile use. Its built-in air cooler and trolley mount provide convenience and ease of use.

Input Voltage works with three-phase 400V

IGBT module converter technology

Phase loss protection

Lift TIG and HF Start Modes

Adjustable Arc Force

High performance on ultrathin surfaces

2T/4T Spot trigger control

4.3" LCD Display

Temperature, Voltage & Current Sensors

Diesel Generator friendly

AC waveforms include square wave, sine wave, triangular wave

AC balance control monitors the oxide and helps better cleaning during aluminium welding

Roller wheels amps control on torch

The Cobra by Stealth 321 LCD AC/DC TIG Air Cooled Welding Machine is compatible with related products, including an up/down remote control, the 9827H air-cooled TIG package (ET26-12SZ torch, WP18AK accessory kit, D3595-1-1 TIG adaptor, EH32LD 3m electrode lead, and WE25/12 12-pin plug with pins 8 & 9), the 9828H water-cooled TIG package (ET18-12SZ torch, WP18AK accessory kit, D3595-1-1 TIG adaptor, 9829 3/8" quick disconnect adaptor kit, EH32LD 3m electrode lead, and WE25/12 12-pin plug with pins 8 & 9), and the 9826H wired pedal for enhanced versatility and performance.

Built-in Air Cooler-The Cobra by Stealth 321 LCD AC/DC TIG Welding Machine is equipped with a built-in air cooler, providing efficient cooling for the welding torch during extended operations. This integrated feature enhances performance by preventing overheating, increasing torch lifespan, and ensuring reliable functionality even during demanding welding tasks.

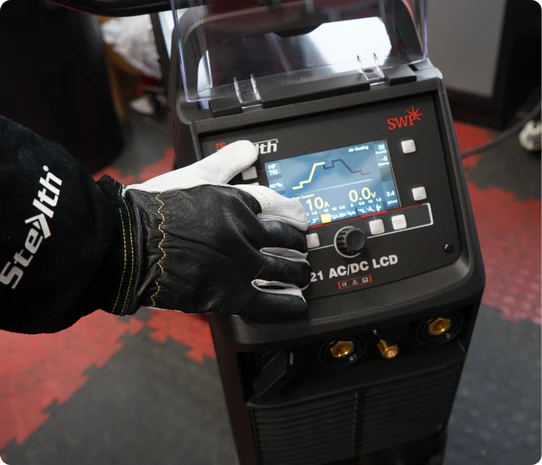

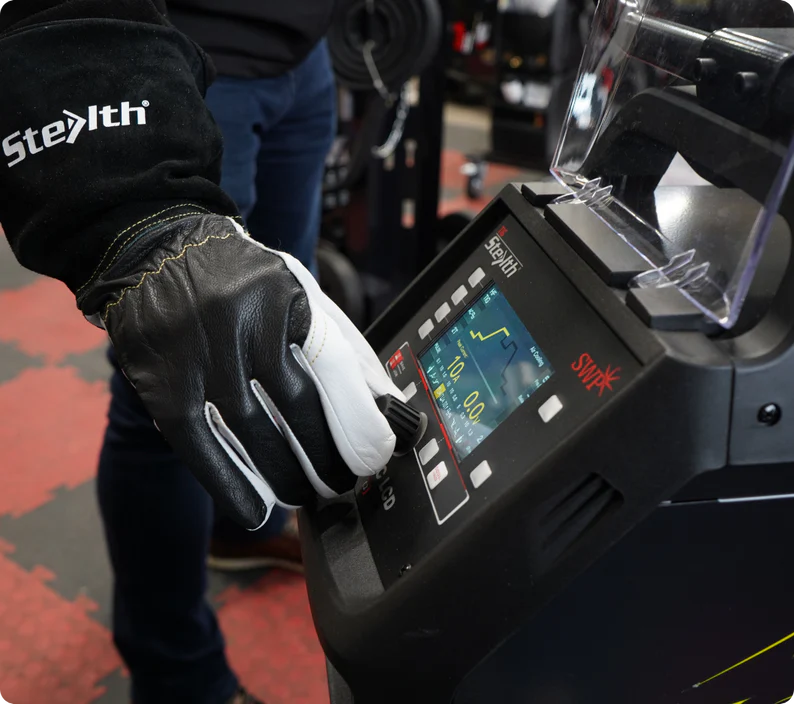

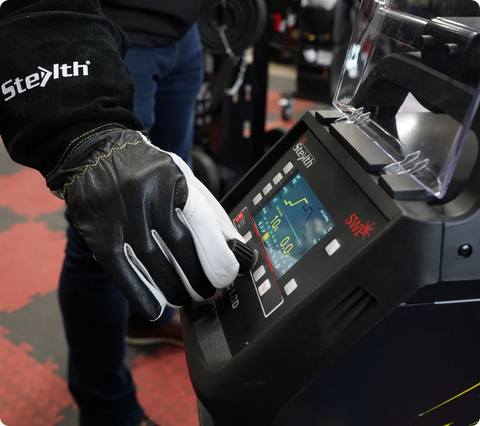

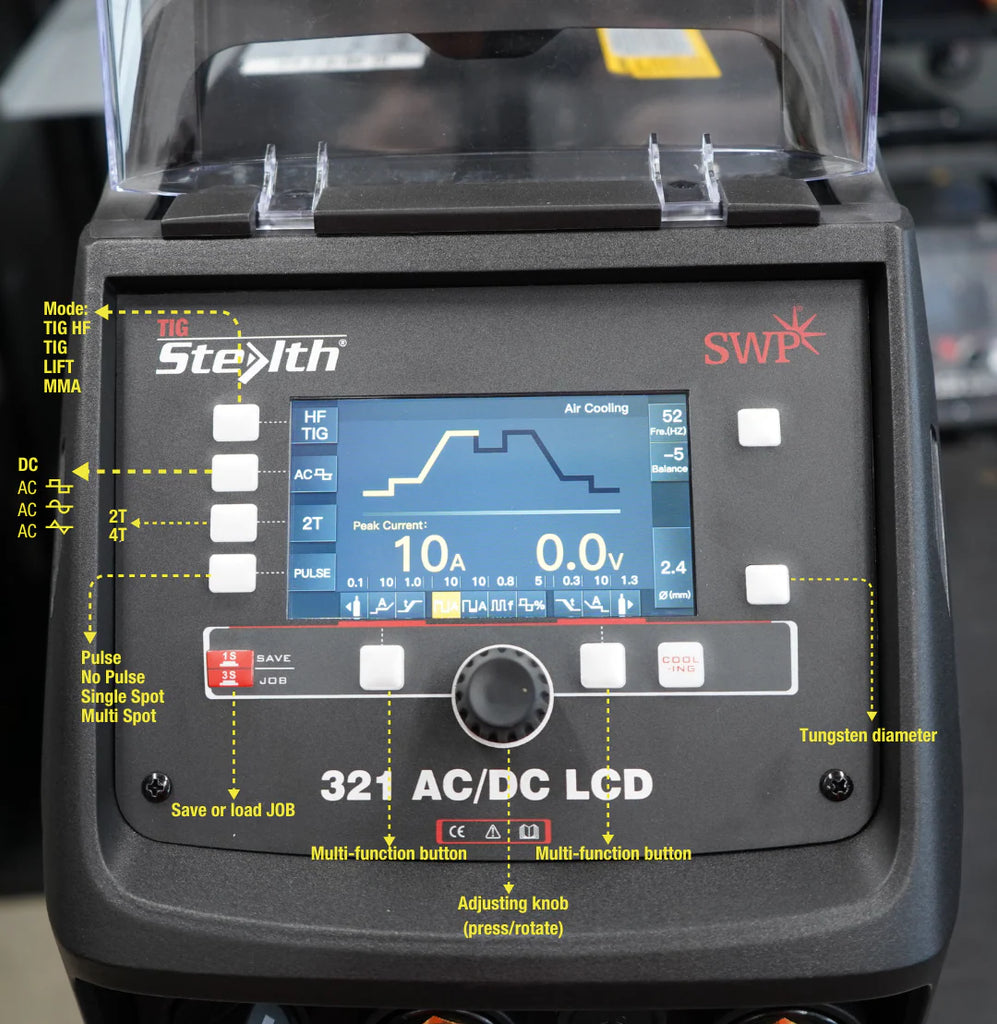

4.3" LCD Display-The Cobra by Stealth 321 LCD AC/DC TIG Welding Machine features a versatile 4.3" LCD screen, providing intuitive controls and real-time feedback for seamless operation.

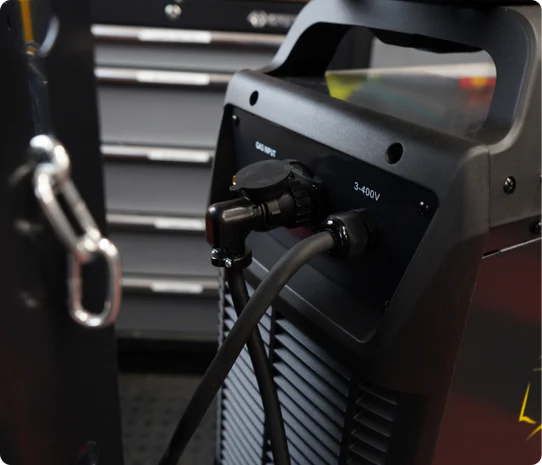

Three-Phase Power-The Cobra by Stealth 321 LCD AC/DC TIG Welding Machine operates on a 3-phase power supply of up to 400V, delivering stable and reliable performance for demanding applications

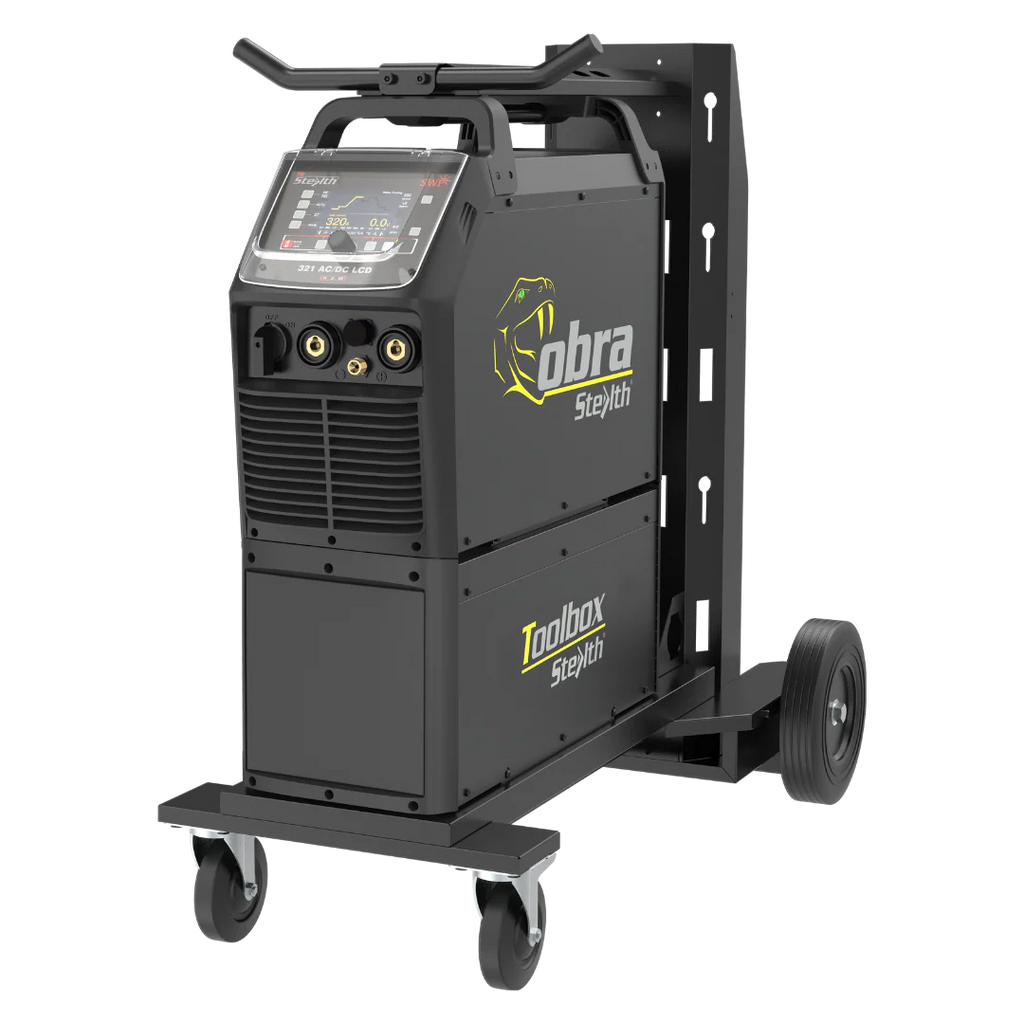

Move with Ease-The Cobra by Stealth 321 LCD AC/DC TIG Welding Machine comes mounted on a sturdy trolley, allowing for effortless mobility and convenient manoeuvring around the workspace.

Specifications

AC/DC Technology-Dual power  PLP safe-Phase loss protection   Easy arc striking-HF
Control system-MCU  Heavy duty cycle-60%   LCD display-4.3"  Generator Friendly-Yes
  • Power supply voltage (V)
    3-400V ± 10%
  • Power frequency (Hz)
    50/60
  • Max input current (A)
    TIG: AC: 17.4 | DC: 18.6
    MMA: AC: 23.2 | DC: 24.6
  • Max input current (kVA)
    TIG: AC: 12 | DC: 12.9
    MMA: AC: 16.1 | DC: 17
  • Welding current range (A)
    TIG: DC: 5-320
    MMA: DC: 10-320
  • Max no-load voltage (V)
    TIG: 84
    MMA: 10.3
  • Up slope/Down slope
    0-10
  • Pre/Post flow (S)
    0.1-2.0/0.0-10.0
  • Pulse frequency (Hz)
    0.5-999
  • Pulse width range (%)
    5-95
  • Duty cycle (40°C 10 min)
    60% @ 320A
    100% 250A
  • Power factor
    TIG: ≥0.7
    MMA: ≥0.73
  • Protection class
    IP21S
  • Cooling
    AF
  • Net weight (kg)
    31.1
  • Dimensions (mm)
    710 x 270 x 490
  • Standards
    EN60974-1:2021 (LVD)
    EN60974-10:2021 (EMC)
    2019/125/EC (EER)
