AMA AMA-20000 Pipe Purge Kit in HD Case DN20-DN150 & Flange Kit DN40-DN150
The AMA Pipe Purge Kit is an excellent aid to reduce inert gas use and purging time. This system uses triple silicon discs to form an airtight seal.
- The kit includes silicone purge plugs, sizes DN20 (3/4″) – DN150 (6″)

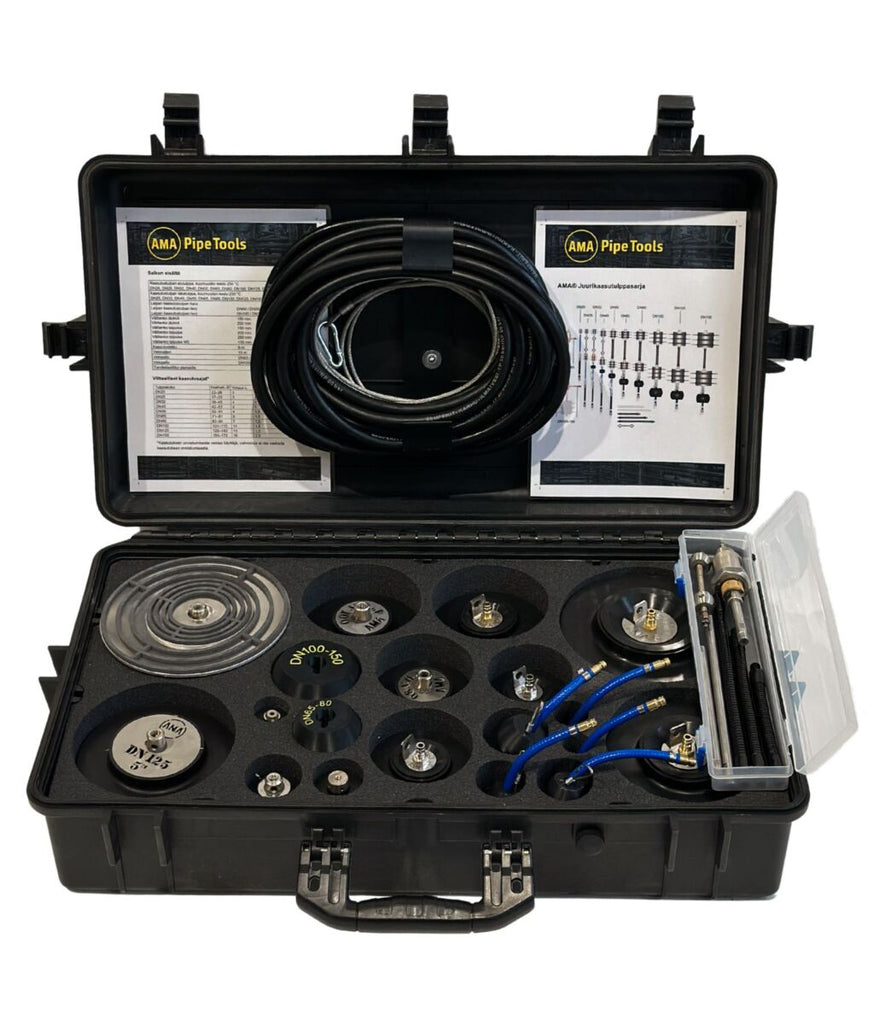

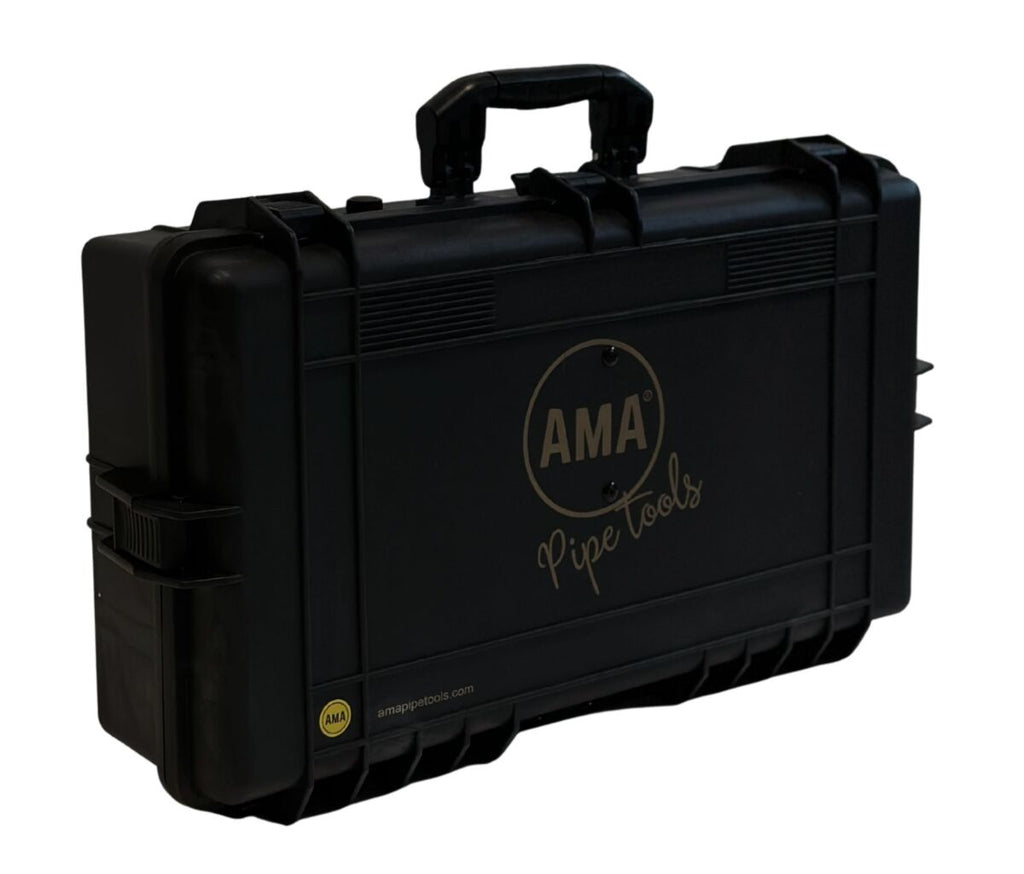

- The carry case also includes a flange welding kit DN40 (1 1/2“) – DN150 (6″)
- Pulling balls make it easier to pull the plugs through pipe bends
- Note! Each silicone seal can be replaced separately from the triple silicone plugs
- Heat resistance 300 °C
- Weight 16 kg
- Made in Finland

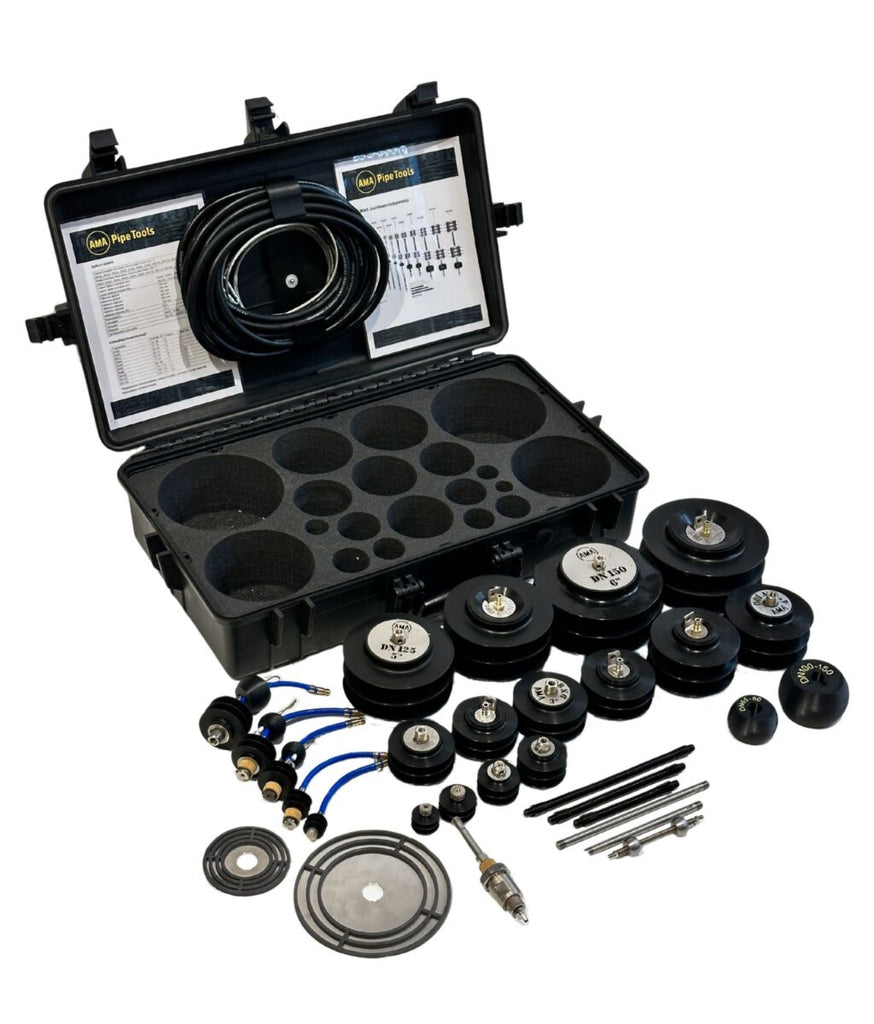

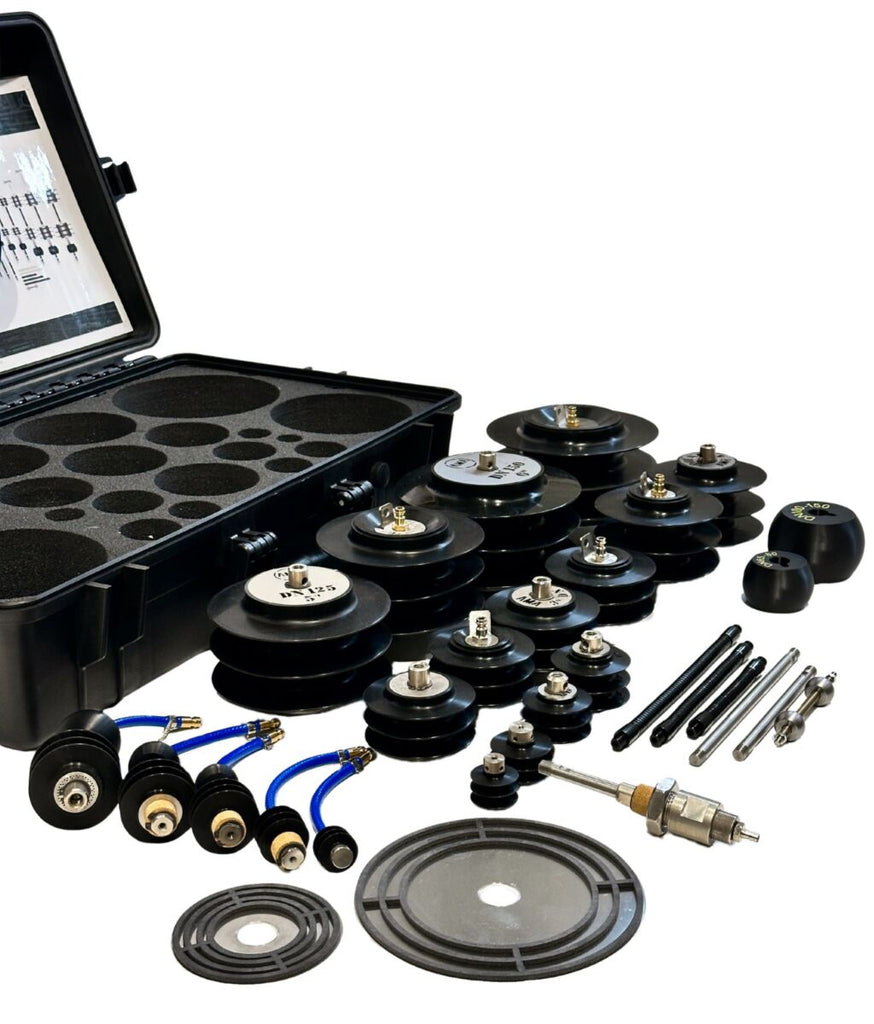

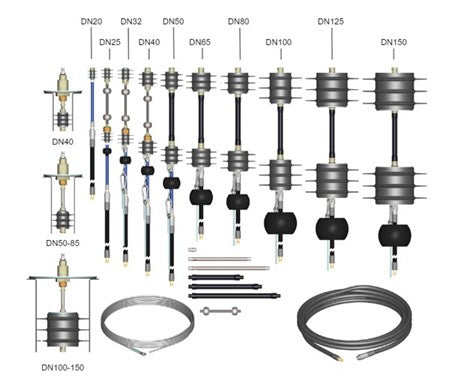

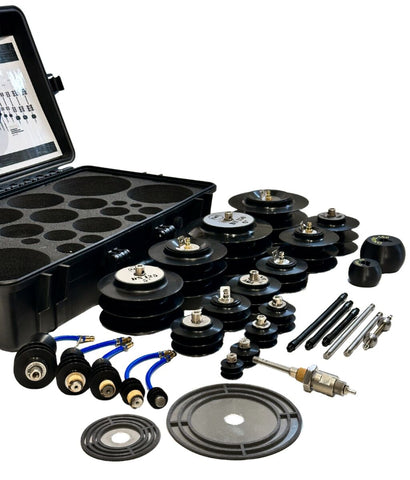

AMA® Pipe Purge Kit contents
|
Content |
Size / length |
|
Inlet plug, heat resistance 300 °C |
DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150 |
|
Tow ball included in the sizes |
DN25–DN50 |
|
Drain plug, heat resistance 300 °C |
DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150 |
|
Adapter M5/M10 for DN40 flange welding |
|
|
Connection 100 mm M10 for flange welding kit |
|
|
Flange cleaning plate (heat resistance 250 °C) |
DN40–DN80 |
|
Flange cleaning plate (heat resistance 250 °C) |
DN100–DN150 |
|
Fixed connection M10 |
150mm |
|
Fixed connection M10 |
200mm |
|
Flexible connection M10 |
150mm |
|
Flexible connection M10 |
200mm |
|
Flexible connection M10 |
250mm |
|
Flexible connection M5 with guide balls |
135mm |
|
Gas hose with coupling |
8 m |
|
Insulated pull cord, incl. lock |
10 m |
|
Tow ball |
DN65–DN80 |
|
Tow ball |
DN100–DN150 |
|
Accessory box for small parts |
Approximate flushing times*
|
Plug size |
Inch |
Inner diameter Ø |
Flow L/min. |
Time min. |
|
DN20 |
3/4" |
22–26mm |
3 |
1 |
|
DN25 |
1" |
27–33mm |
3 |
1 |
|
DN32 |
1 1/4" |
37–45mm |
4 |
1 |
|
DN40 |
1 1/2" |
42–51mm |
4 |
1 |
|
DN50 |
2" |
52–61mm |
4 |
1.5 |
|
DN65 |
2 1/2" |
71–81 mm |
5 |
1.5 |
|
DN80 |
3" |
82–94mm |
7 |
1.5 |
|
DN100 |
4" |
101–115mm |
11 |
1.5 |
|
DN125 |
5" |
128–143mm |
15 |
1.5 |
|
DN150 |
6" |
155–172 mm |
16 |
2.5 |
*The user is responsible for the success of the cleaning process; the manufacturer assumes no responsibility for the success of the cleaning process.
