AMA Pipe Centering Collars - Various Sizes

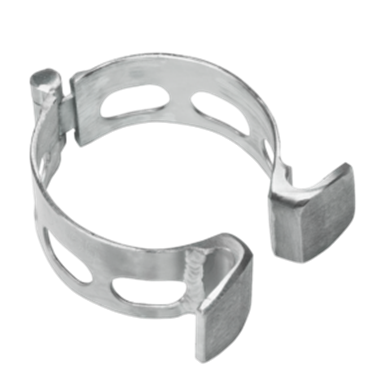

A stainless steel collar for centering and clamping 2 pipes together ready for tack welding. The smallest in the range is DN65 collar can clamp pipes with an outside diameter of 73 – 82mm, the largest DN11500 collar can clamp pipes with an outside diameter of 60 inch – 1500 – 1530mm.
How to use -
Simple to use, this hinged clamp is placed around a pipe and joined to the AMA collar tightener (available separately). The 2nd piece of pipe can be moved into position and the collar moved so that it straddles over the join, between the 2 pipes to be joined. Once centered and in position, the collar can be fully tightened, firmly clamping both pipes in place. Holes within the collar allow access to the join to allow tack welding of the 2 pipes. Once tack welded, the collar can be removed to complete welding.
The two piece clamp is placed around a pipe and joined to an AMA collar tightener on either side (available separately). The 2nd piece of pipe can be moved into position and the collar moved so that it straddles over the join, between the 2 pipes to be joined. Once centered and in position, the collar can be fully tightened, firmly clamping both pipes in place. Holes within the collar allow access to the join to allow tack welding of the 2 pipes. Once tack welded, the collar can be removed to complete welding.
The larger 2 piece collars require x2 collar tighteners either side
Features
- Accurate and easy-to-use centering collar for pipes
- Extremely quick
- Tack weld pipes through the collar slots
- Reduces installation and welding errors to a minimum
Collar Selection Guide
