Automa GIOVE 500-230V Giove 500 Roller Set Powered Pipe Welding Positioner 500kg 230V

Automa GIOVE 500-230V Giove 500 Roller Set Powered Pipe Welding Positioner 500kg 230V

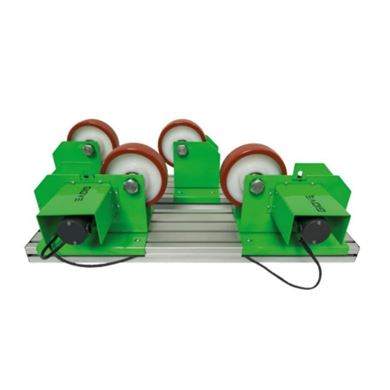

The Automa GIOVE Welding Pipe Roller system is supplied with a powered roller and an idle roller, suitable for the powered rolling of pipes and tubes up to 500KG.  Made by welding positioner specialist Automa in Italy, these 230v welding positioners enhance productivity when welding items such as pipe, shafts, wheels, elbows and other cylindrical workpieces.  The pipe sits on the rollers and the powered roller will turn it at a constant speed to aid welding the join.  The system is supplied on a slotted aluminium base, allowing the rollers to be positioned to suit the diameter of pipe being turned.

Capable of securing a workpiece diameter between 20 – 500mm, the roller drive has a DC electric motor to turn the workpiece. The integrated gearbox ensures smooth operation.

Other features include a continuously adjustable speed range of 80 – 1700 mm/min, making it suitable for both MIG and TIG applications.  The pipe roller has an aluminium base and the wheels are polyurethane coated.

Features

• Drive type: DC

• Travel speed: 80 – 1700 mm/min (Approx 0.17 to 3.6 RPM)

• Connection voltage: 230 V

• Phase: Single
• 500kg load capacity for pipes and tubes
• Powered roller and idle roller configuration
• Engineered by Automa, specialist in welding positioners
• Ensures consistent pipe rotation for quality welds
• Reduces operator fatigue and improves safety
• Available in multiple voltage options
• Ideal for fabrication shops and pipe welding operations
