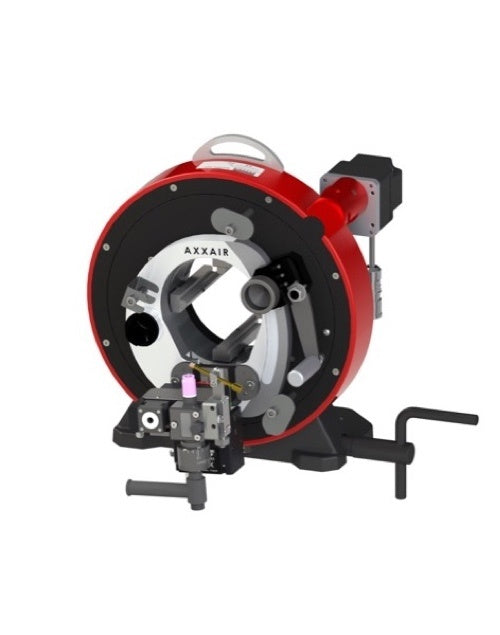

Axxair SX122-NAOF Orbital Prefab Welding Diameter ø12 - ø119mm
Prefabrication orbital welding machine with electronic regulation of arc voltage (AVC) and oscillation (OSC) for multi-pass welding.
It enables production of medium to large series of welding sub-assemblies.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range.
Evolutive machine : can be transformed into an orbital cutting and bevelling machine.

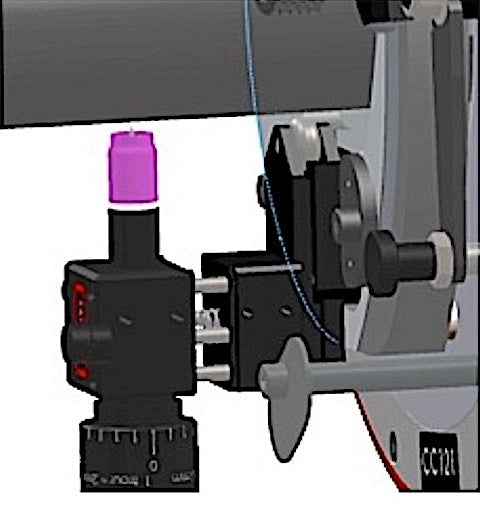

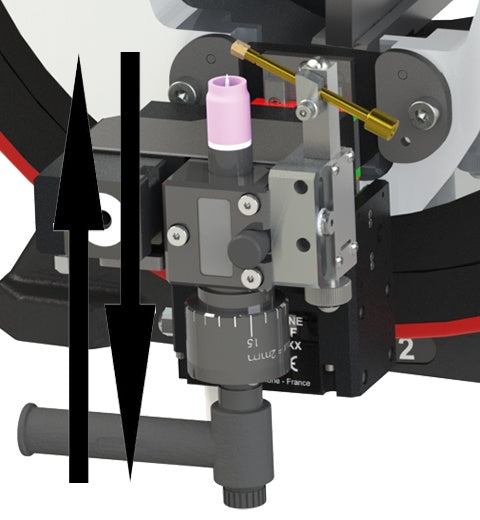

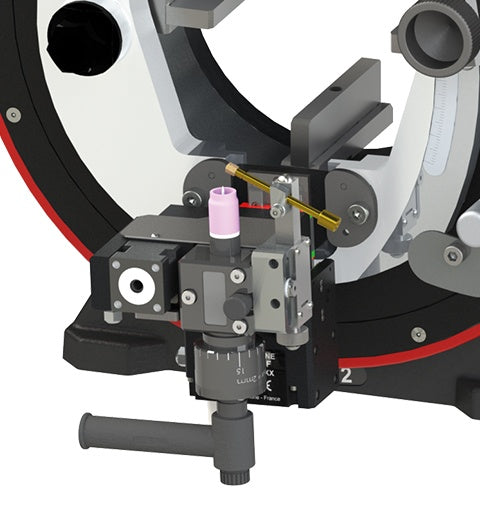

Motorised axial sweep (OSC), Motorised setting and control of the distance tube-electrode (AVC), AVC/OSC system: allows to weld tubes with up to 12.7 mm wall thickness, Driven by SAXX power sources 210 and 300.
Technical Data
Orbital TIG welding machine for prefabrication with AVC/OSC system, water cooled
- Basic stainless steel jaws Ø 29 to Ø119 mm
- Extra stainless steel jaws Ø 12 to Ø 99 mm
- Rotation connected to the SAXX range welding generator
- Operating factor of 100%: 200A (water cooled)
- Weight: 46 kg
