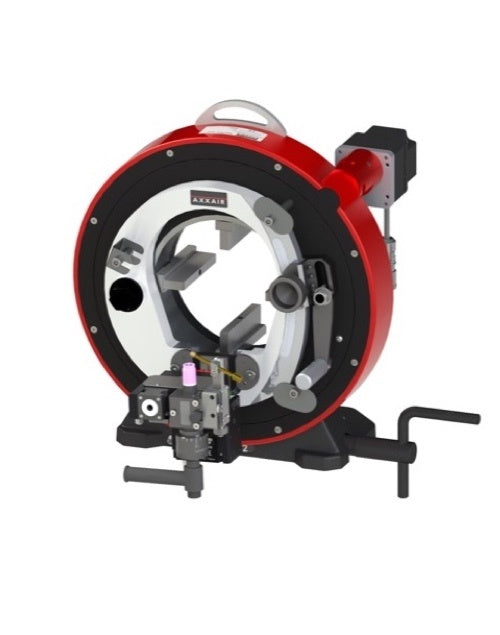

Axxair SX172-NAOF Orbital Prefab Welding Diameter ø16 - ø173mm Water cooled
Prefabrication orbital welding machine with electronic regulation of arc voltage (AVC) and oscillation (OSC) for multi-pass welding.
It enables production of medium to large series of welding sub-assemblies.
Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes integrated into the SAXX power sources range.
Evolutive machine : can be transformed into an orbital cutting and bevelling machine.
Mortorised axial sweep (OSC), Motorised setting and control of the distance tube-electrode (AVC), AVC/OSC system: allows to weld tubes with up to 12.7 mm wall thickness, Driven by SAXX power sources 210 and 300.
Technical Data
- Basic stainless steel jaws Ø 2.75″ to 6.625″ (74 to 173 mm)
- Included stainless steel auxiliary jaws Ø 0.625″ to 4.65″ (16 to 116 mm)
- Electric rotation autoline 120 V – 230V
- Wide diameter range
- Air-cooled: Max. current 100 A at 100%
- Water-cooled: Max. current 200 A at 100%
- Scalability: May be transformed into a cutting and orbital bevelling machine
- Weight: 52 kg/115 lbs
