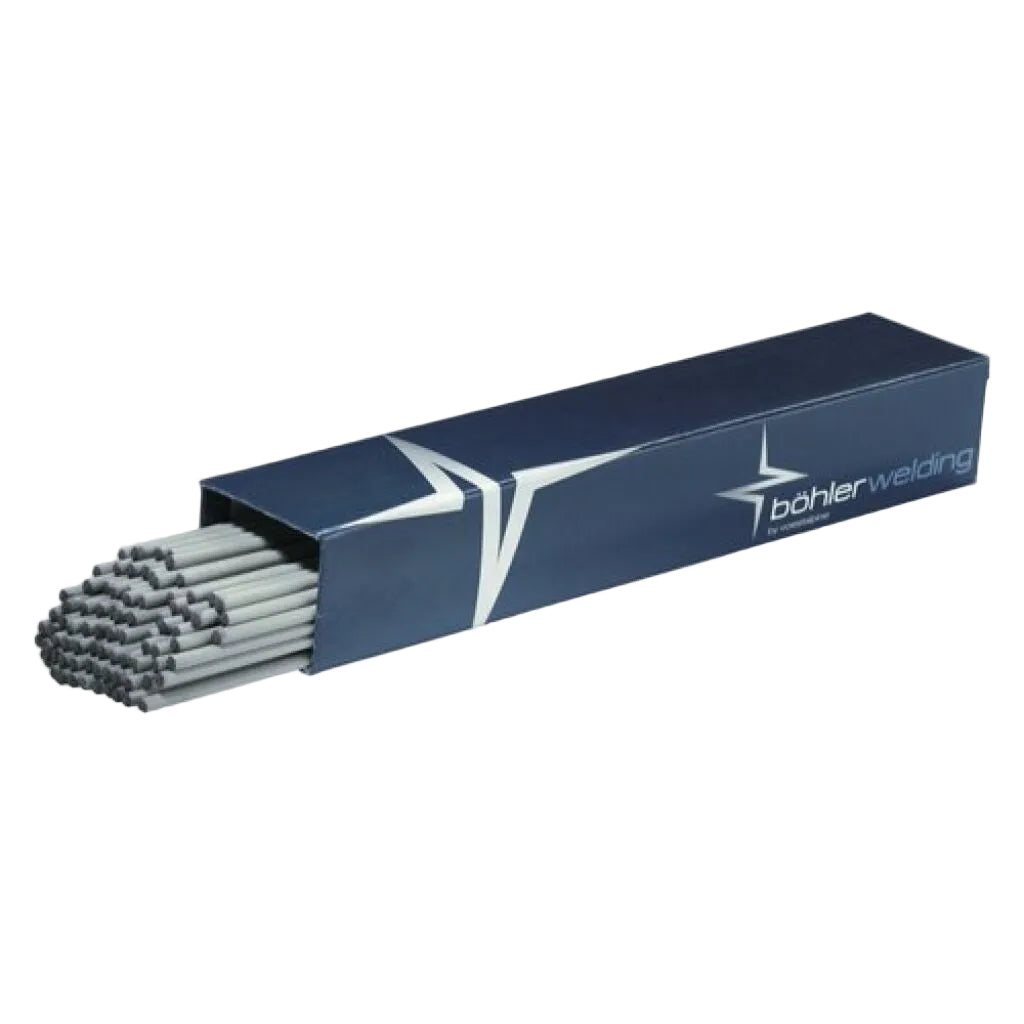

Bohler Avesta 316L/SKR (Austenitic Steels) Stainless Steel Stick Electrodes
Rutile-coated, low-carbon, core wire alloy electrode type E 19 12 3 LR / E316L-17 is suitable for welding 1.4404 and 1.4436 / 316L
type stainless steels in all positions. Furthermore, Böhler Avesta 316L/SKR electrode technology ensures high performance in welding applications with these alloys. The weld metal offers good resistance to general corrosion, pitting, and inter-granular corrosion in chloride-containing environments; for example, it is suitable for applications in dilute hot acids.
The micro-structure of the resulting weld metal is austenite with 5–10% ferrite.
Features
- Corrosion Resistance: Offers “excellent resistance to general, pitting and inter-crystalline corrosion in chloride containing environments.” It is engineered for severe conditions such as dilute hot acids.
- Welding Characteristics: Provides smooth and clean weld profiles with minimal spatter and self-releasing slag.
- Operating Limits: Handles interpass temperatures up to a maximum of 150°C and a restricted heat input of max. 2.0 kJ/mm
Technical Data
- AWS Classification: A5.4 / SFA-5.4, E316L-17
- EN ISO Classification: E 19 12 3 L R 3 2 / EN ISO 3581-A
- Current Type: AC or DC
- Weld Metal Structure: Austenite with 5–10% ferrite
