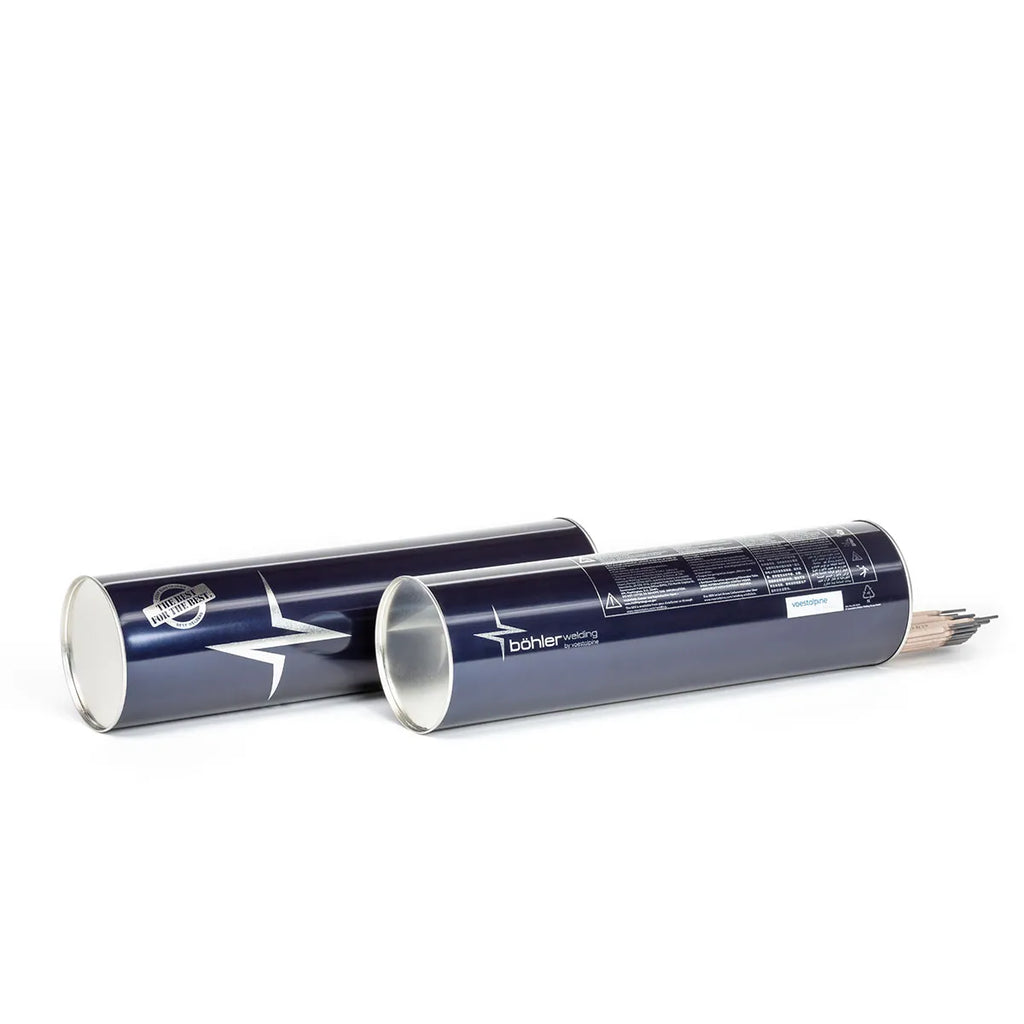

Bohler Fox CEL+ (Cellulosic) Pipeline Steel Stick Electrodes
Bohler FOX CEL+ 6010 Stick Electrodes, these cellulose-coated welding rods are specifically designed for the demands of large diameter pipeline construction and repair, delivering superior performance, safety, and reliability.
Features
- AWS Classification: Meets E6010 (AWS A5.1/SFA-5.1) and E4310 (AWS A5.1M) specifications.
- European Classification: Complies with E382 C21 (EN ISO 2560-A).
- Coating Type: Features a cellulose coating specifically engineered for high-integrity pipeline work.
- Welding Position Optimisation: Primarily recommended for vertical-down welding , especially for the root pass , but also suitable for vertical up.
- Polarity: Operates on DC positive polarity (DC +) , with an option for Minuspol.
- Weld Metal Chemistry (Typical wt.-%): Offers a controlled composition with 0.17% Carbon (C), 0.15% Silicon (Si), and 0.6% Manganese (Mn).
- Weld Integrity Assurance: Provides high safety against the formation of piping or hollow bead and undercut.
- Sour Gas Resistance: Suitable for sour gas applications (HIC-Test acc. to NACE TM-02-84) , with available SSC-test values.
- Approvals: Approved by TÜV (19380.) and carries the CE mark.
Technical Data
- EN ISO 2560-A E 38 2 C 2 1
- AWS A5.1 / SFA-5.1 E6010
- Coating Type: Cellulose
- Operates on DC positive polarity (DC+) for optimum root run characteristics
- Typical Weld Metal Chemistry: 0.17% Carbon (C), 0.15% Silicon (Si), and 0.60% Manganese (Mn)
