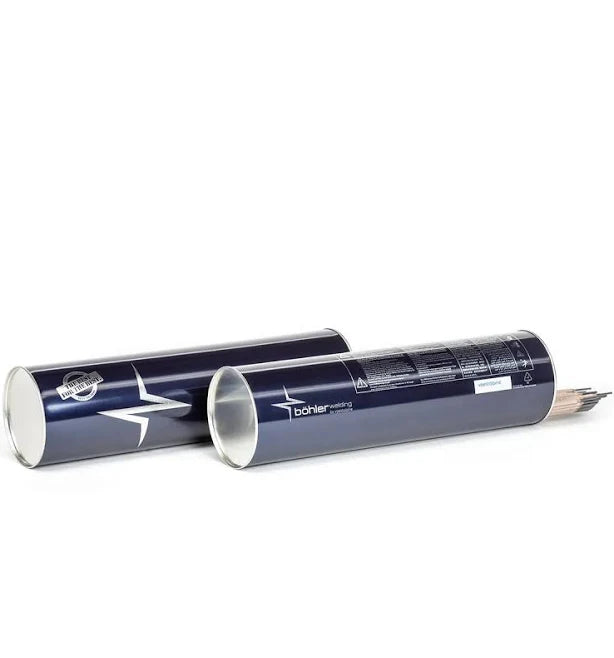

Bohler Fox CEL Mo (Cellulosic) Pipeline Steel Stick Electrodes
The Bohler Fox CEL Mo are premium Molybdenum alloyed cellulose coated stick electrodes specially engineered for high integrity vertical down welding of high strength large diameter pipelines. Operating under the AWS E7010-A1 classification, these electrodes deliver a guaranteed minimum tensile strength of 70,000 psi, making them the industry benchmark for demanding onshore and offshore pipe fabrication.
Features
- Provides an aggressive, highly penetrating arc that ensures sound joint welds with high X-ray quality, even under challenging field conditions.
- Produces a thin, easily removable slag layer, accelerating the progression of vertical positional welding.
- Substantially faster and more cost-effective compared to conventional vertical-up welding methods.
- Fully compliant and tested for sour gas environments
Technical Data
- AWS A5.5 / SFA-5.5: E7010-A1
- EN ISO 2560-A: E 42 3 Mo C 2 5
- Yield Strength (\(R_{e}\)): ≥ 420 MPa (≥ 61,000 psi)
- Tensile Strength (\(R_{m}\)): 510 – 620 MPa (74,000 – 90,000 psi)
- Elongation (A₅): ≥ 22%
-
Charpy-V Impact Energy (KV):
- ≥ 70 J at -30 °C
- ≥ 49 J at -40 °C
