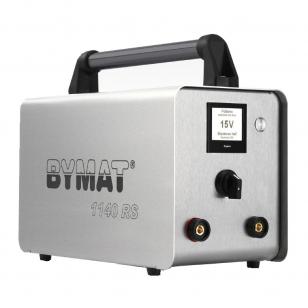

Bymat 1140RS Brushline Stainless Steel Cleaner with Starter Accessory Kit 110V & 230V
Bymat 1140 RS Stainless Steel Cleaner Starter Accessory Kit includes a set of 3 metre cables and earth clip, the Weld Brush Pro, 1 litre Electrolyte A cleaning bright steels, 0.5 litre Electrolyte C, 100ml Electrolyte ET (dark marking), 100ml Electrolyte EN (light marking), 2 wide mouth container, 90 Degree Anode and 20 Felt pads for embossing.
The Bymat stainless steel weld cleaner 1140 RS is a high-power machine from the Brushline range of high-frequency weld cleaning machines. This new range of machines uses High-Frequency Technology to speed up the cleaning process. This machine has a 100% duty cycle with no machine downtime.
Cleaning
The Bymat will easily remove the oxide film from the weld quickly, cleanly, and safely. Dip the pad or brush into the Electrolytic cleaning solution, then wipe it across the weld. The oxide film instantly disappears, and the welded area is simultaneously protected against corrosion (passivated) in one operation. Compared with cleaning and pickling with acids, this process is significantly faster and less expensive, with no waiting time. The chemicals used for the process contain no hazardous substances and are significantly safer than conventional chemical cleaning methods.
Electropolishing
The grey edge marks (heat-affected zones) close to the welded seams are caused by the material changes during the welding process. These can be removed without problem using the “Polish” setting on the machine. It is possible to polish stainless steel to a high-gloss finish, thus returning the material's original lustre.
Dark marking of electrically - conductive surfaces
Dark marking onto Stainless Steel can be performed using a template/stencil designed to your specific requirements. The Bymat will permanently mark components deep black, easily, rapidly, and inexpensively. Once marked, the text or design cannot be removed by cleaning products or solvents, and it will not wear off. Company logos, graphics, trademarks, serial numbers, identification numbers, scales, and texts can be permanently marked. Our high-performance electrolyte is pH-neutral and requires no neutralisation.
Light marking of electrically – conductive surfaces
Light marking uses the same template/stencil as dark marking. Using a different Electrolyte can achieve a light marking effect like engraving. Material is removed from the component, leaving your design/text permanently etched into the surface. This is suitable for materials such as black steel and aluminium.
The machine is CE marked and is manufactured to meet all applicable EU directives.
Features
- The latest in High-frequency technology
- High-power machine
- 100% Duty cycle
- Direct programming without the need to adjust settings
- 4 Functions in 1 compact unit
- Cleaning (brush only)
- Polishing (brush only)
- Dark Marking
- Light
- Marking/Etching

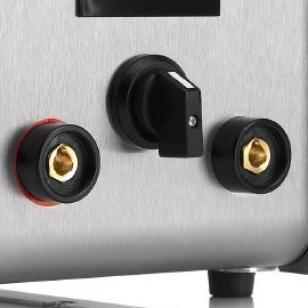

- Quick-release cables with Dix connectors
- Ergonomic user-friendly design
- Environmentally friendly cleaning solutions/electrolytes
- Robust Stainless-Steel construction
- Portable
- Faster and less expensive than conventional cleaning methods
- Proven track record within the welding industry
Specifications
- Voltage: 110V 50-60Hz
- Power: 1200 VA
- Dimensions: 420mm L x 215mm W x 350mm H
- Weight: 21.8Kg (Without Cables)
