Please call for best price.

Package Includes: 3 Metre MMA Leads, 230V 16a plug & 16a-13a whip lead

FOC Spares: 5kg mild steel electrodes, wire brush, chipping hammer, welders gauntlets, french chalk & holder SEE PHOTO also with 230v plug + adaptor

RRP £89.00 + VAT

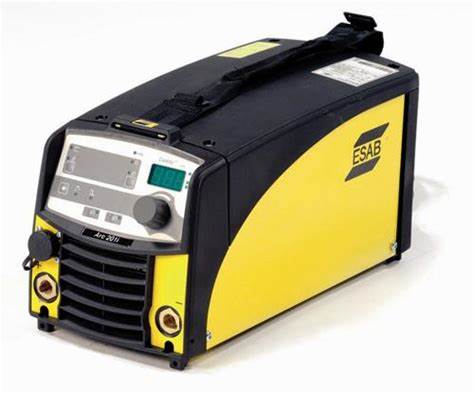

The ESAB Caddy 201i is now the 5th generation ESAB's portable inverter welding equipment, with over 30 years of inverter technology built in. The Caddy Arc 201i is a compact and portable inverter for MMA and scratch start Tig welding. The more advanced Caddy® A33 panel gives you a digital display, hot-start and arc force control to fine tune the welding, a choice of MMA or TIG welding, LiveTig™ start in TIG mode, two memories and remote control facility. Both panels are easy to understand and set, even when wearing welding gloves. The machines are equipped with the large OKC 50 cable connectors with higher durability. Caddy® is built in accordance with IP23, which means it can be used outdoors – even in the rain.

Caddy® Arc supplies direct current and you can weld most metals including alloyed and non alloyed steel, stainless steel and cast iron. With Caddy® Arc 151i you can weld most electrodes from Ø1.6 - 4.0 mm. The Caddy® A33 control panel has the latest regulator, ArcPlus™ II, that provides a more intense, yet smooth and stable arc that is easy to control. Arc Plus™ II generates smaller droplets, the arc burns smoothly and there is no need to pause at the edges when weaving. ArcPlus™ II offers even better welding characteristics, simplifies your work and gives you better weld quality with less need for post weld treatment.

With Caddy® Arc you can easily TIG-weld. All you need is a TIG torch with a gas valve, a gas regulator and a cylinder of gas. Panel Caddy® A33 gives you LiveTig™ start that electronically controls the start current. You can weld mild steel or stainless steel with or without filler material.

Control Panel A33:

  • For Caddy Arc 151i and201i
  • TIG with liveTig striking.
  • Hot Start (Adjustable)
  • Arc Force (adjustable)
  • ArcPlus ll Controller.
  • Digital Display.
  • Drop Welding.
  • Remotely Controllable.
  • Parameter Storage

• Professional welding tool.
• In and outdoor installation on site.
• In and outdoor repair and maintenance on site.
• In and outdoor fabrication.

Technical Data

Permitted load @ 40C, MMA
25% duty cycle, A                                              170
30% duty cycle A                                                -
60% duty cycle A                                               130
100% duty cycle A                                             110
Permitted load @ 40C, TIG
20% duty cycle A                                               220
25% duty cycle, A                                              -
30% duty cycle A                                               -
60% duty cycle, A                                              150
100% duty cycle, A                                            140

Mains Voltage V/ph Hz                                 230/1
Fuse (slow) A                                                   16
Setting Range MMA(A33), A                         4-170
Open circuit voltage, Uo max, V
A33 without VRD function                               55-60
Power factor at max current                       0.99
Efficiency at max current                              81
Dimensions lxwxh, mm                                  418 x 188 x 208
Weight, kg                                                          7.9
Enclosure class                                                 IP23
Application classification                               S
Standards                                                           IEC/EN 60974-1
