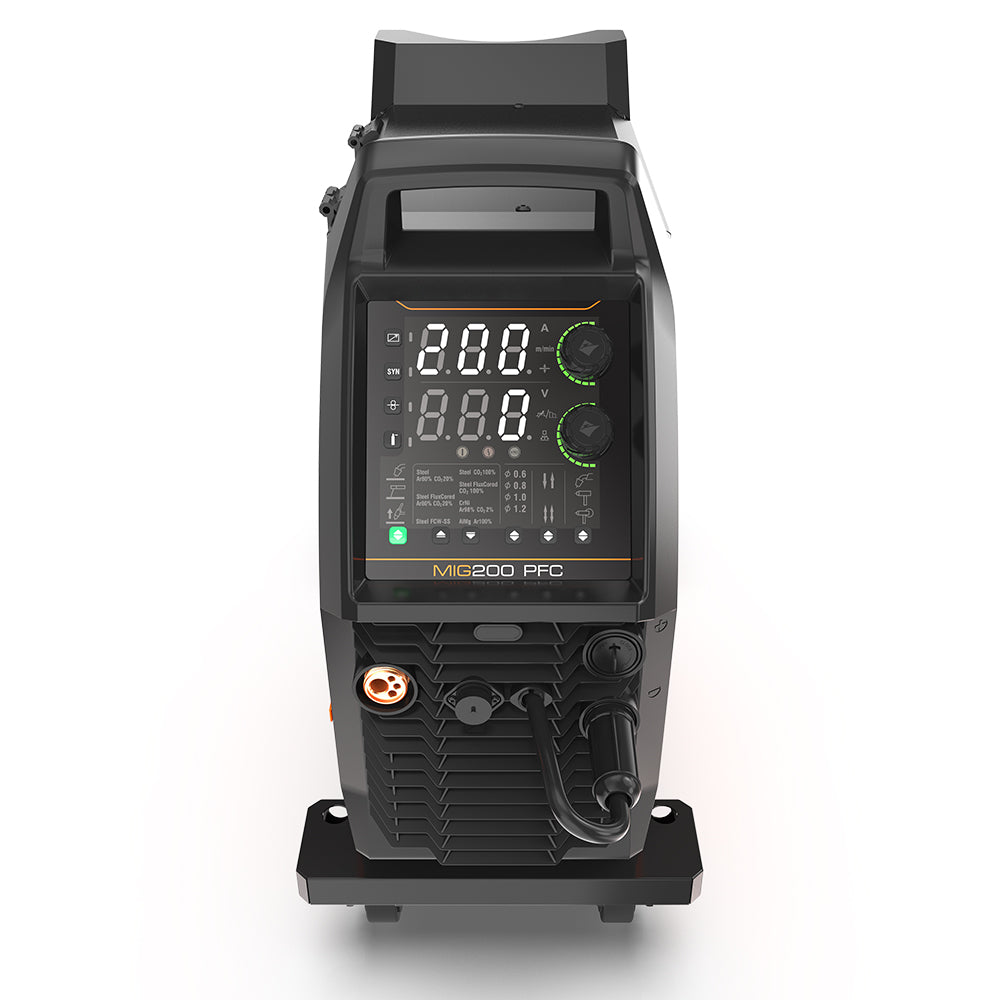

Jasic EVO MIG EM-200CT 200A 110/230V

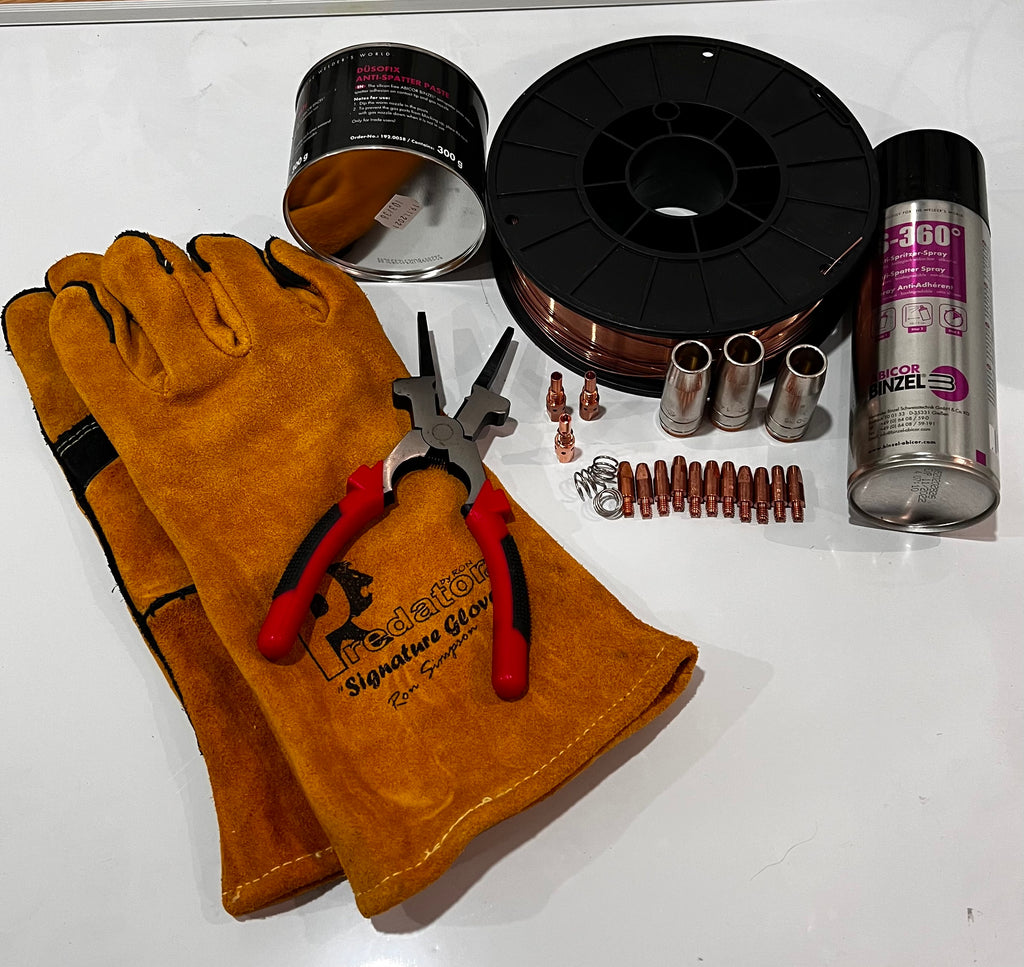

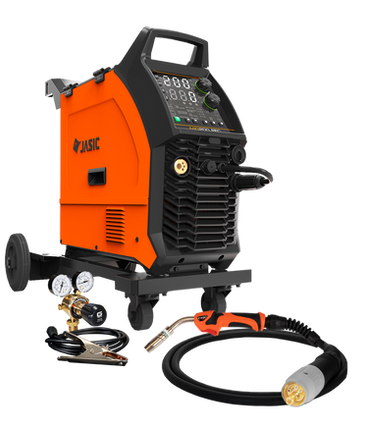

All MIG Packages incl. Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Anti-spatter Spray, Tip Dip, Mig Pliers 16Amp Plug with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
Technical Data EM-200CT MIG 200 PFC Input voltage AC95-265V, 50/60 Hz AC 115V AC 230V No load voltage 68V MIG Rated input current 38.1A 32.8A Ieff 17.4A 13.5A Rated input power 4.4kVA 7.5kVA Current range 30-140A 30-200A Rated duty cycle @ 40ºC 30% Wire feed speed 2-12m/min 2-16m/min Wire spool size D300 MMA Rated input current 28.3A 24.8A Ieff 15.5A 13.6A Rated input power 3.2kVA 5.7kVA Current range 20-110A 20-180A Rated duty cycle @ 40ºC 30% TIG Rated input current 24.2A 19.43A Ieff 13.3A 10.6A Rated input power 2.8kVA 4.4kVA Current range 5-140A 5-200A Rated duty cycle @ 40ºC 30% Efficiency >80% Power factor 0.99 Idle state power <50W Protection class IP23S Insulation class H Dimensions (L x W x H) 920 x 480 x 755mm Weight 41.9Kg Recommended generator size 6.5kVA 11.5kVA

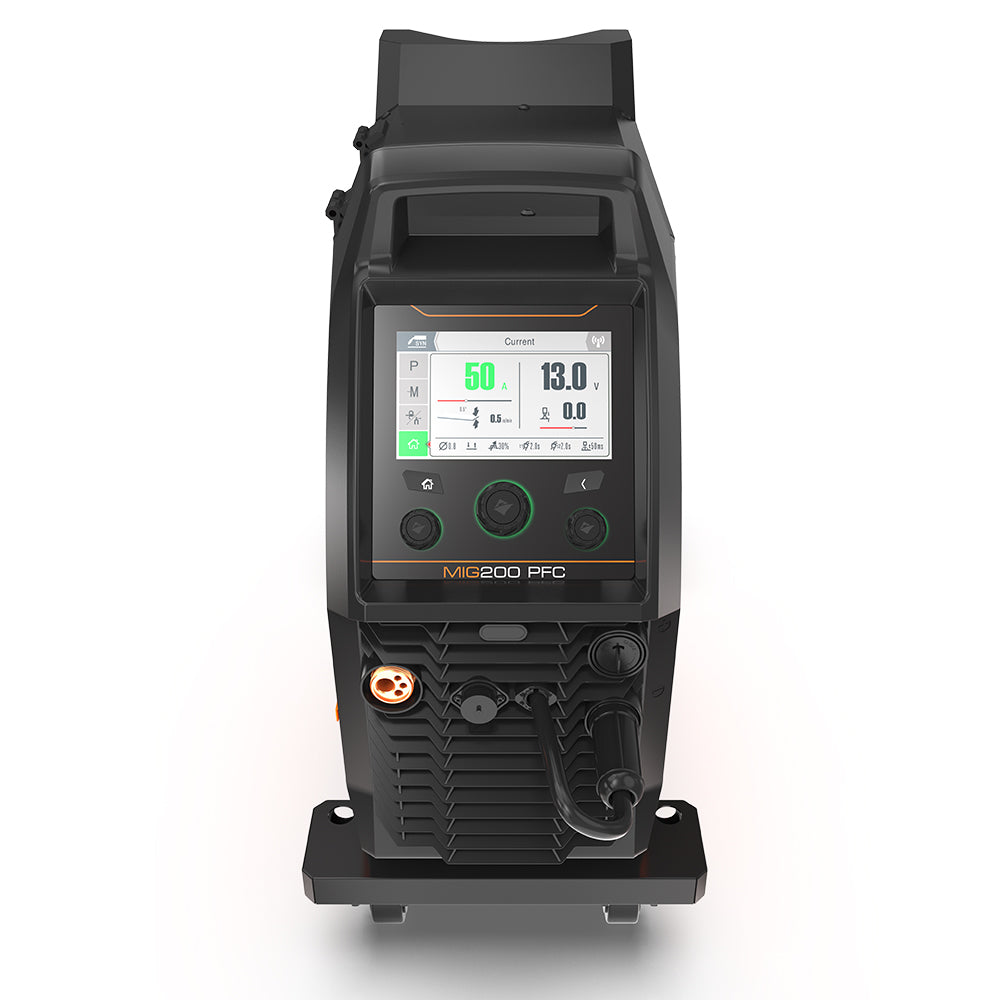

Key Features • Rugged, ergonomic design • Clear Vision technology • Intelligent synergic control • Adaptable wide voltage range • Welding engineer mode • Smart Lift TIG • Consistent and efficient MIG spot welding performance • Flexible remote control solutions (optional) • Power factor correction (PFC), generator friendly • Quick factory reset; auto sleep mode • Compatible with MIG digital torch and spool gun and pull-push torch • LED inside wire feeder cabinet; handy accessory storage slot • Fan on demand • Trolley with cylinder holder • Voltage Reduction Device (VRD) • Key power electronic component protection • Overcurrent and overheat protection • TFT screen (optional)
Brochures & Manuals
