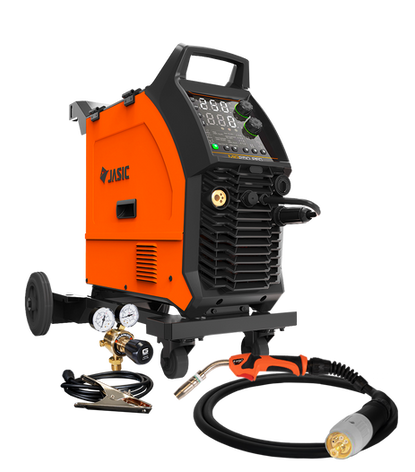

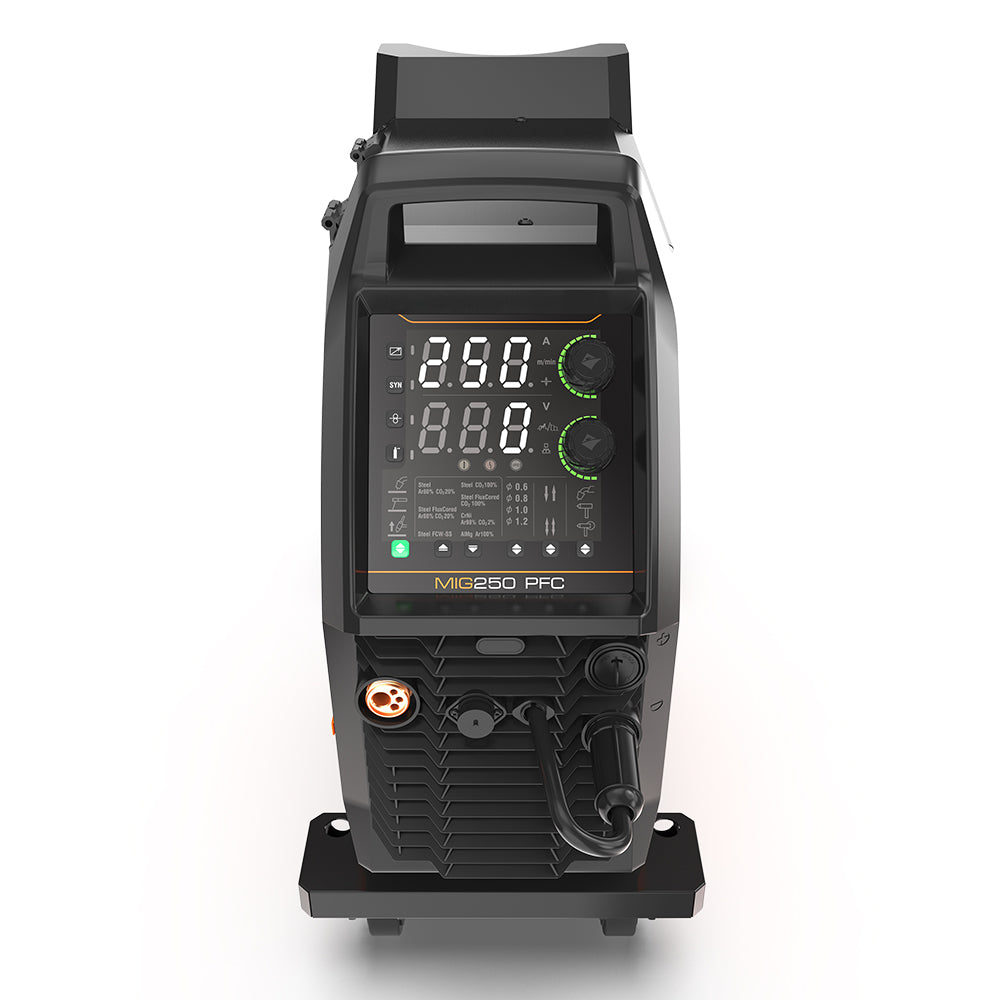

JASIC EVO MIG 250CT PFC 250A 110/230V

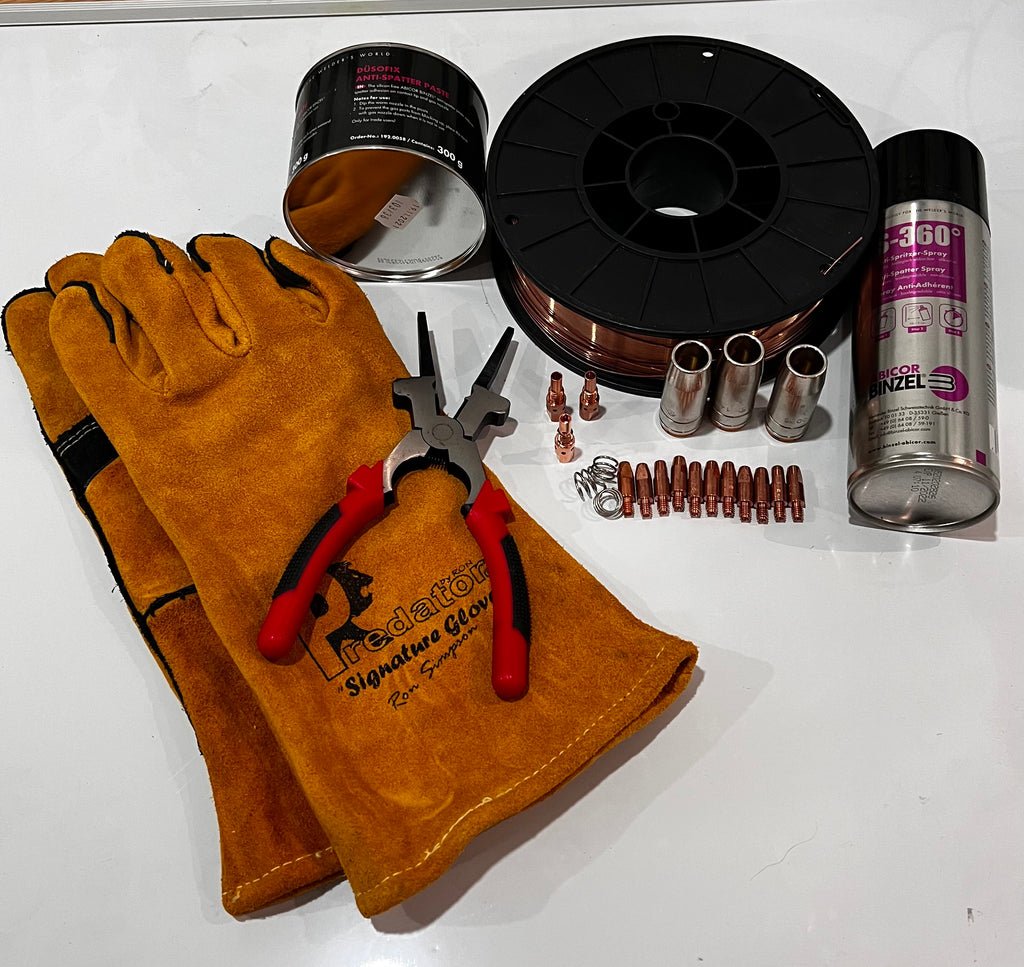

All MIG Packages incl. Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Anti-spatter Spray, Tip Dip, Mig Pliers 16Amp Plug with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
Technical Data EM-250CT MIG 250 PFC Input voltage AC95-265V, 50/60 Hz AC 115V AC 230V No load voltage 70V MIG Rated input current 53.2A 44.9A Ieff 19A 18.5A Rated input power 6.1kVA 10.3kVA Current range 30-160A 30-250A Rated duty cycle @ 40ºC 30% Wire feed speed 2-14m/min 2-18m/min Wire spool size D300 MMA Rated input current 33A 32.2A Ieff 18.1A 17.6A Rated input power 3.8kVA 6.9kVA Current range 20-125A 20-220A Rated duty cycle @ 40ºC 30% TIG Rated input current 29.1A 26.5A Ieff 15.9A 14.5A Rated input power 3.3kVA 6.1kVA Current range 5-160A 5-250A Rated duty cycle @ 40ºC 30% Efficiency >80% Power factor 0.99 Idle state power <50W Protection class IP23S Insulation class H Dimensions (L x W x H) 920 x 480 x 755mm Weight 41.9Kg Recommended generator size 9kVA 15.5kVA
Key Features • Rugged, ergonomic design • Clear Vision technology • Intelligent synergic control • Adaptable wide voltage range • Welding engineer mode • Smart Lift TIG • Consistent and efficient MIG spot welding performance • Flexible remote control solutions (optional) • Power factor correction (PFC), generator friendly • Quick factory reset; auto sleep mode • Compatible with MIG digital torch and spool gun and push-pull torch • LED inside wire feeder cabinet; handy accessory storage slot • Fan on demand • Trolley with cylinder holder • Voltage Reduction Device (VRD) • Key power electronic component protection • Overcurrent and overheat protection
Brochures & Manuals
