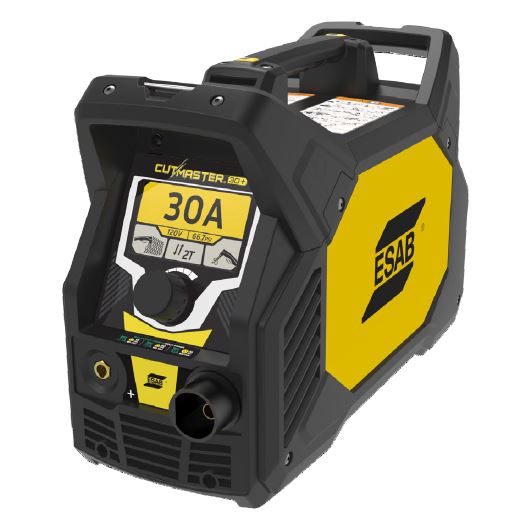

ESAB 0559130004 Cutmaster 30+ Plasma Cutter with 6.1m SL60 Hand Torch, 10mm Cut. Dual Voltage 110v & 240v CE
Cut-master 30+ is the perfect combination of power and portability for hand-held plasma cutting machine. Plus means more, so we’ve added a user-friendly 10.9 cm TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 10 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.
Recommended pierce and cut capacity: 10 mm Maximum edge cut capacity: 16 mm
- Portable and durable with three handles and lightweight, industrial all-weather housing
- Bright 10.9 cm TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
- Dual input 120-240 V, 1 ph power with automatic voltage detection that sets max output amperage

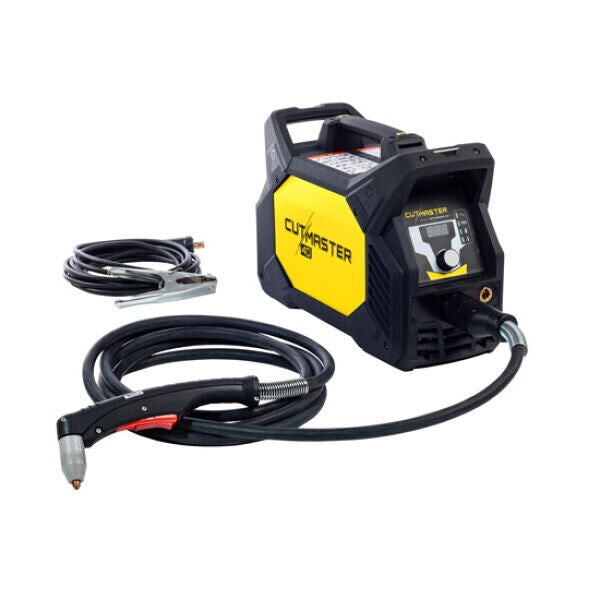

- Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
- Switch between normal and grate cutting modes
- Automatic air pressure detection and post-cut air purge to expand consumable life
- 40% duty cycle @ 30 A (120 V); 100% @ 20 A (120 V)
- Cut-master Black Series consumables included for up to 60% longer life
- Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
Power & Portability
Tackle cuts in any terrain with industrial housing and a compact design.
- Pierce and cut capacity of 3/8" and a maximum edge cut capacity of 5/8"
- 40% duty cycle at 30A and 100% duty cycle at 20A
- Runs on both 110 and 240v input with auto-voltage detection
- Lightweight design with three handles for easy transportation
- Durable, weather-protected IP23S housing
Efficiency + Ease

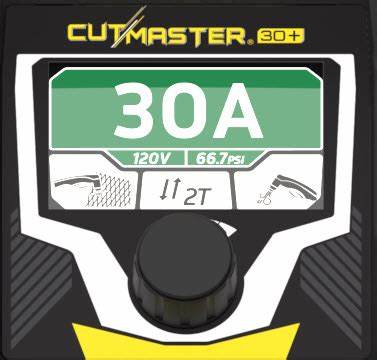

Mastering cuts is simple with our user-friendly TFT LCD screen.
- Bright 4.3" screen is optimal for displaying settings and making adjustments
- Adjustable 2T/4T trigger lock to achieve long cuts by hand or with MechPak
- Automatic air pressure recognition and purging for proper cutting pressure and extended consumable life
- Comes as standard with long-lasting Cutmaster Black Series electrodes
Simplicity + Flexibility
Dominate any plasma cutting job with built-in functionality and flexibility.
- Switch from normal plate to grate cutting mode to extend consumable life when working with expanded metal
- Equipped with SL60TM 1Torch and a full range of consumables for both shielded and unshielded cutting and gouging
Technical Data
Mild Steel Clean Cut 10 mm
Mild Steel Severance 16 mm
Stainless Clean Cut 8 mm
Aluminium Clean Cut 6 mm
Input Power 220-240 V ±10%,1 ph
Duty Cycle 30 A/120 V@40%
Input Air Required 0.6-0.8 MPa,145 LPM
Generator Required 8 kVA
Dimensions L x W x H 465x200x315 mm
Weight (incl. torch) 13 kg
| Weight | 13 kg |
|---|---|
| Dimensions | 465 × 200 × 315 cm |
| Cut Capacity |
0-10 mm |
| Supply Voltage |
240V |
| Amperage Cutting |
0-40 Amp |
