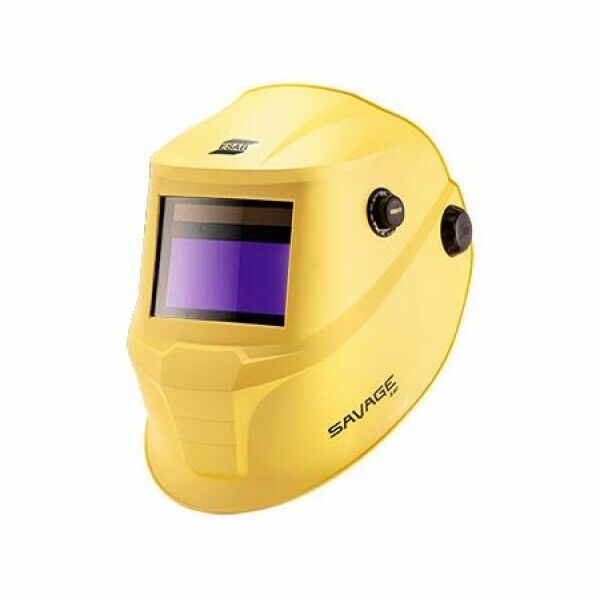

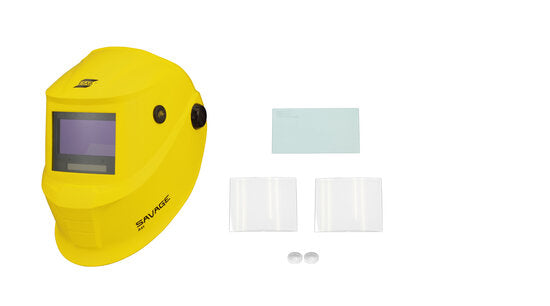

The Savage A41 welding helmet improves on the legendary Savage A40 with an updated digital user interface, streamlined external grind button and wider shade range. Using cues from ESAB’s Sentinel A60 and Savage A50LUX, the Savage A41 user interface now includes a clear and simple digital push-button UI, with precise setting feedback using a multi-colour LED display so you know the exact shade, delay and sensitivity setting you have selected. The Savage A41 retains all the other performance aspects from Savage A40, including fantastic true colour technology, excellent optical characteristics, housed in our distinctive shell design.
- Four arc sensors for higher auto darkening response
- Wide coverage and a large viewing area of 100 x 50 mm (3.93 x 1.96 in.) offers a wide field of vision and increased spatial awareness
- Adjustable sensitivity and delay controls using the digital adjustment / LED interface allows a wide range of use from high amperage MIG welding to the most delicate TIG process
- Externally activated Grind Button. Shade 4 Grind Mode
- True Colour ADF with passive Shade 4 setting for a brighter view and enhanced colour definition
Welding Process:
- Oxy-Fuel Cutting
- Plasma Cutting
- Grinding
- Welding, GMAW (MIG/MAG)
- Welding, GTAW (TIG)
- Welding, PAW -Plasma Arc Welding
- Welding, SMAW/MMA (Stick)
Technical Specification
Cartridge Dimensions - 110 x 90 x 7.8 mm (4.33 x 3.54 x 0.3 in.)
Viewing Area - 100 x 50 mm (3.93 x 1.96 in.)
Lens Shade - DIN 4, 8-13 Automatic
Power Supply - Solar cell, Replaceable Battery (1*CR2450 lithium). Alerts when low battery.
Sensors - 4
Switch Time, from Dark to Light - 0.1-0.9 s
Switch Time, at 23℃ - 0.07 ms
Certification Mark & Standards - CE: EN ISO 16321 W4/8-13 V2,
ANSI: 787.1+, CSA: Z94.3
Warranty - 2 years
