A safe, precise and very powerful, yet compact hydraulic pipe cutting system compared to other cutting methods. Suitable for wet and even underwater solutions.
As the name indicates, HYDRA Infinity is pipe cutting without boundaries in terms of cutting capacity for pipe outside diameter. You can basically cut all pipe sizes (outside diameter) from 360 mm (14”) upwards. It has blade depth adjustment as standard.

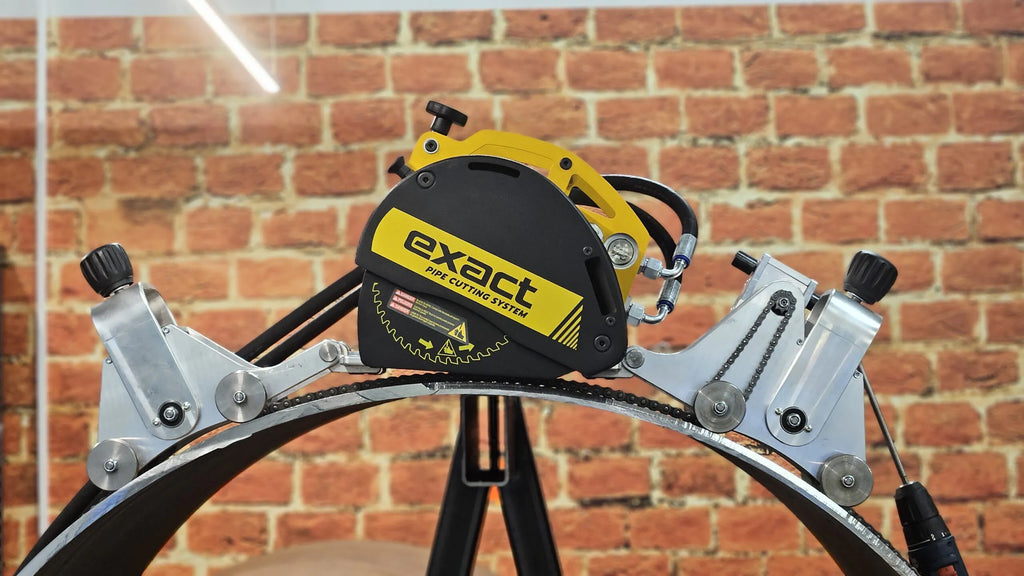

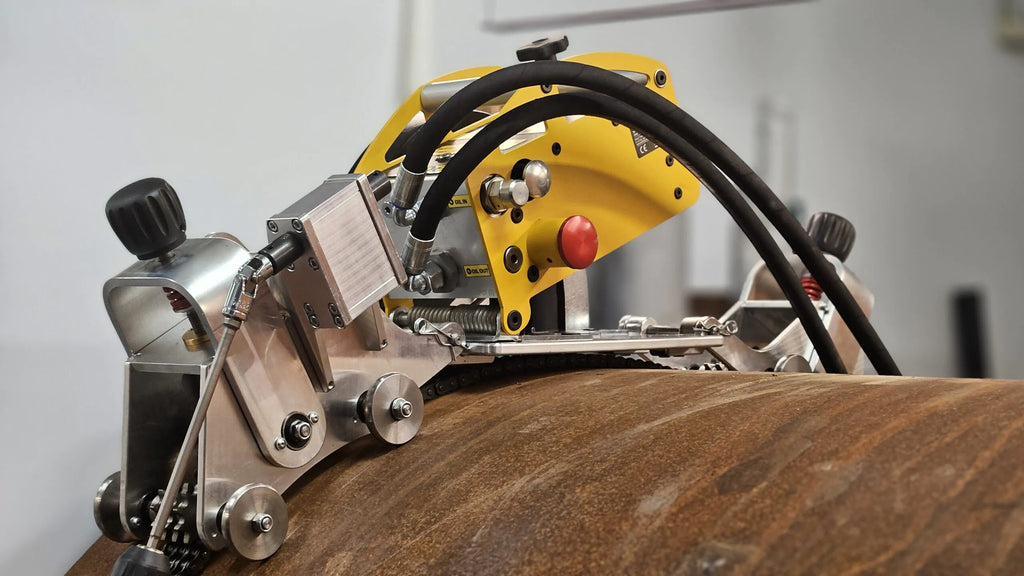

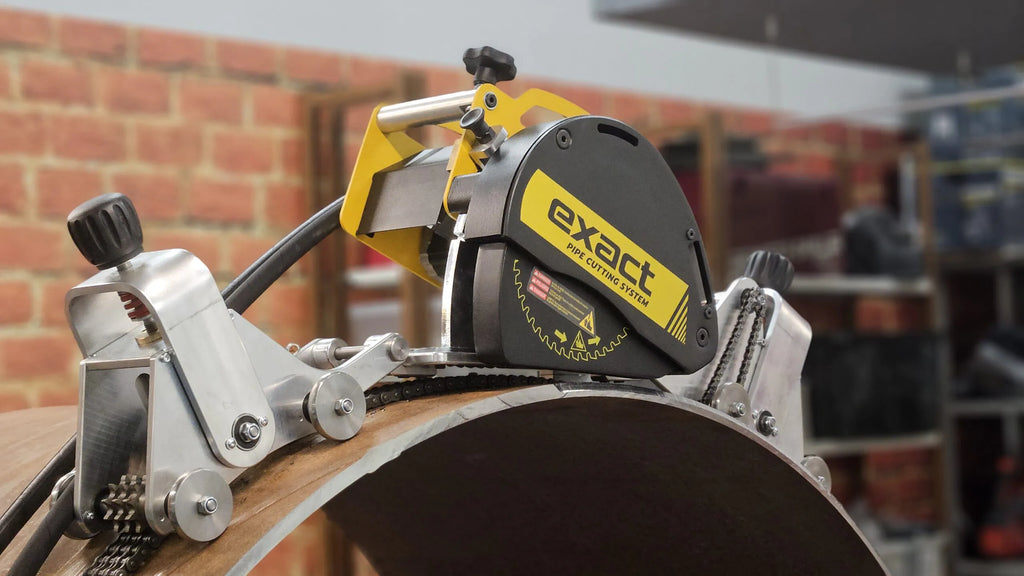

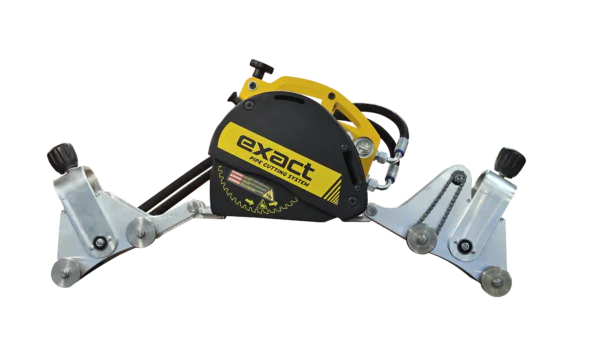

Exact HYDRA Infinity is a new type of pipe cutting system, unlike the other Exact models, it uses a chain type of gripping mechanism. Thanks to the flexibility of the chain segments, it allows you to extend the chain segment gripping unit as much as you like.
Thanks to this innovative method, the boundaries of pipe cutting diameter limitations are no longer an issue. The hydraulic power can be taken from a power pack of from excavator (with oil fluid flow divider) .
Cut + Bevel package is available for cutting and bevelling cast iron & plastic pipes in one process.
The price includes:
- Exact PipeCut System Shoulder Bags, 2 pcs
- Exact PipeCut Infinity motor unit with Cermet 165 blade installed
- Tensioner device
- Tensioner device with crank
- Chain segments for attaching the saw to pipe:
2 m, 2 pcs
1 m, 1 pc
0,5 m, 1 pc
0,2 m, 2 pcs
0,1 m, 1 pc - Operating instructions
- Tools to change the blade
Technical Data
| Pipe OD |
360 mm – Infinity (14" – Infinity), no upper limit |
|---|---|
| Max. wall thickness |
25 mm (steel), 45 mm (plastics) |
| Pipe material |
Aluminium, Cast iron, Ductile (nodular cast iron), Glass fibre, Multi-layered materials, Plastic, Stainless/Inox steel, Steel |
| No-Load speed |
3400r/min |
| Blade diameter |
140mm (5.51”), 165 mm (6.5"), 180 mm (7.2"), 190 mm (7.6") |
| Mounting bore |
62mm (2.44”) |
| Hydraulic pressure max. |
150 bar |
| Hydraulic flow max. |
25 l/min |
| Weight |
27 kg |
