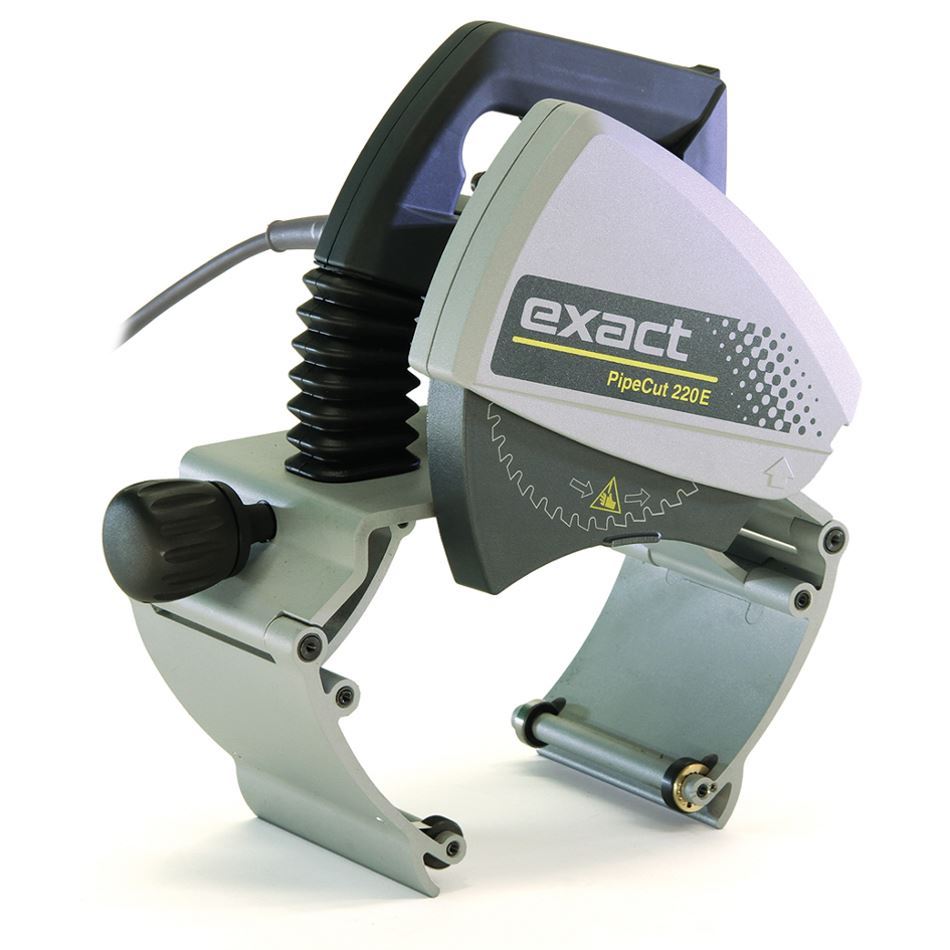

Power plus a wide cutting capacity with PipeCut 220E. It can be used for cutting both metal and plastic pipes; the machine has adjustable motor speed and constant torque. Because of its robust design it is ideal for use in both the workshop or on site for a multitude of different pipe applications.
Includes

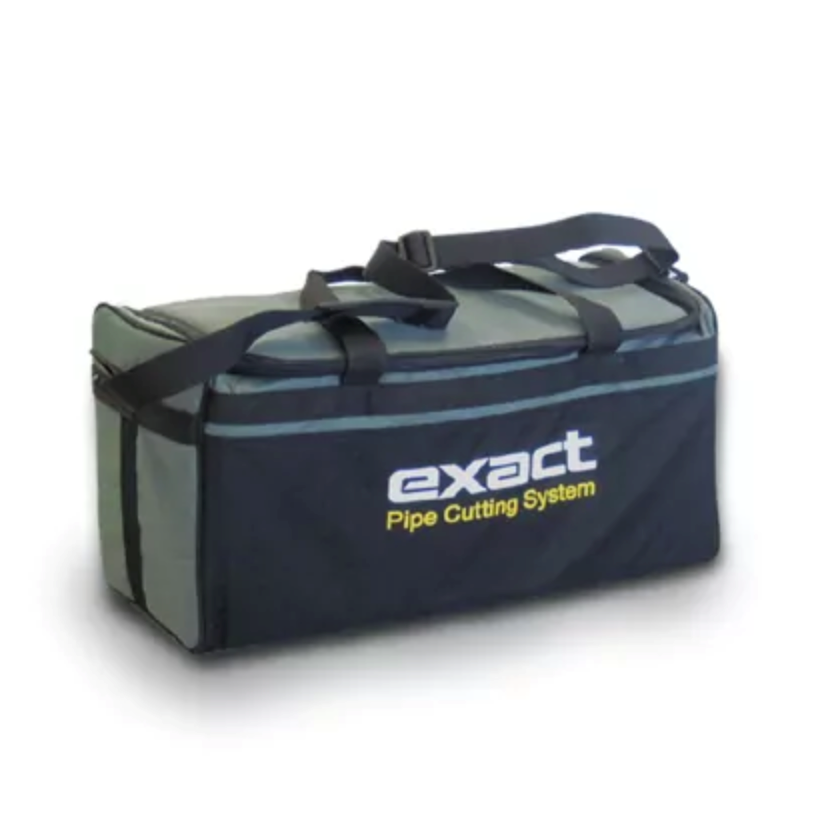

- PipeCut Bag 3
- Exact PipeCut 220E pipe saw
- Pipe Support 280, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
-
TCT 140 blade fitted to the machine
Pipe material Acid-resistant steel, Cast iron, Copper, Multi-layered materials, Plastic, Stainless steel, Steel
Pipe OD 15mm – 220mm (0.6”- 8.6”)
Max. wall thickness 8 mm (0.31“) steel, 14 mm (0.55“) plastic
Voltage / Power 230V / 1200W
Voltage / Current 110V, 120V / 9.2A
No-Load speed 1600 – 3500 r/min
Blade diameter 140mm (5.51”)
Mounting bore 62mm (2.44”)
Weight 6,0kg (13 lbs)
Electronical unit Blade speed preselection, automatic fuse, soft start, torque control
Speed preselection 4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials
Loading capacity of supports 314 kg , 692 lb (4 supports)
