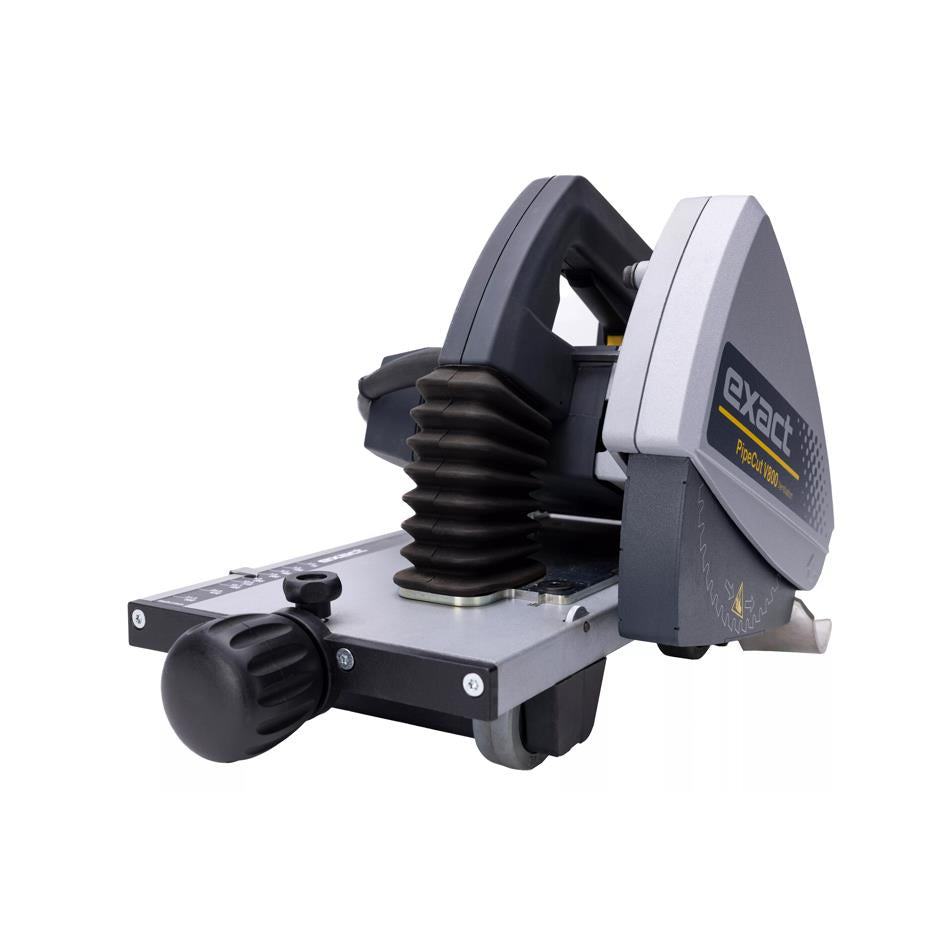

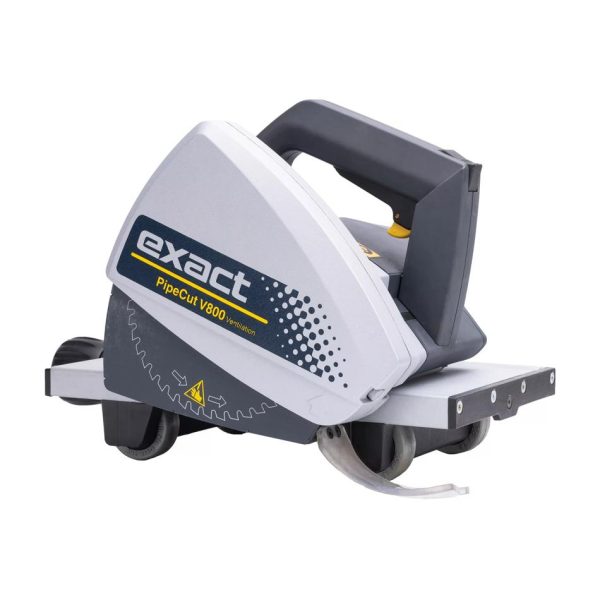

EXACT PIPECUT V800 SYSTEM
The EXACT V800 offers a new era for spiral duct cutting. The Pipe Cut V800 is easy to use and has a huge size range for cutting spiral ducts. As a result of the cut, ends of the duct are straight and ready to be connected. As an optional extra, we have special pipe supports that can hold spiral ducts from 75 mm to 1000 mm.
Pipe cutting is significantly faster compared to traditional methods. The resulting surfaces are Exact, precise and of uniform quality meaning the pipes are ready for joining right away.
Used in ventilation installation, these systems can be used as an acceptable cutting method in health and safety controlled sites (please check with site manager/HSE).
Exact Tools – better results with less work
Technical Data
| Pipe Ø (OD) | 75 mm – 800 mm (3” – 31.5) |
| Wall thickness | 1,5mm (0.06”), 6mm (0.23”) seam |
| Cuts the following pipe materials |
Thin wall steel, aluminium, and stainless ventilation pipes
|
| Voltage / Power | 230V / 1010W |
| Voltage / Current | 110V, 120V / 8.4A |
| No-Load speed | 4000 r/min |
| Blade diameter | 155mm (6.1”) |
| Mounting bore | 65mm (2.55”) |
| Weight | 6,0kg (13 lbs) |
| Range of use Ø | 75 mm – 800 mm (3” – 31.5) |
| Max. pipe wall | 1,5mm (0.06”), 6mm (0.23”) seam. |
| Weight | 6kg |
PipeCut Bag
Operating Instructions & DVD
Hex socket key – 5mm (Fitted)

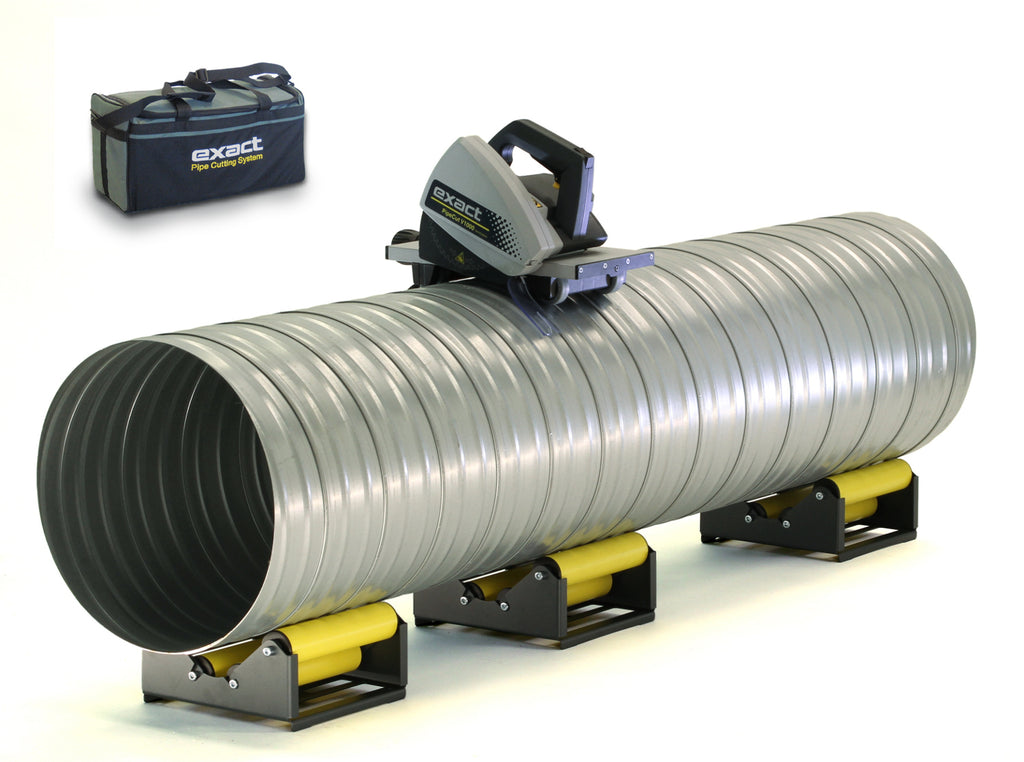

V155 Cermet blade (Fitted)Optional: V1000 Pipe Support Set
