Cleanable welding smoke filter unit for welding robots, exhaust hoods and extraction tables

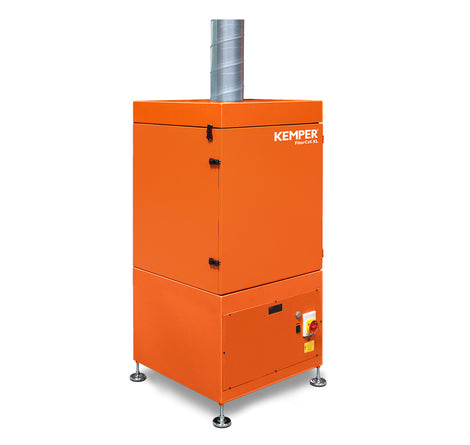

KEMPER FilterCell XL extraction filter unit with time-controlled, automatic filter cleaning is suitable for extraction via a pipe on exhaust hoods, tables and robot cells. The device is designed for high levels of smoke and dust during non-stop operation. The KemTex® ePTFE membrane filter cartridge for ultra-fine dust particles separates particles even below 0.1 µm.
Applications
- High levels of smoke and particles
- Non-stop operation
- For exhaust hoods, extraction tables and robot cells
Benefits
- High efficiency due to automatic filter cleaning
- Space-saving due to compact design
- Easy installation since unit is delivered ready to plug in ("plug and play")
- Best health protection for employees by use of KemTex® ePTFE filter cartridge with surface filtration
- Safe operation by rotation field control
Properties
- 160mm duct connection
- Automatic filter cleaning
- KemTex® ePTFE filter cartridge
- Height-adjustable feet
- Rotation field control
Variants
- Other voltages
Technical Data
Filter method-Cleanable filter
Filter cleaning method-Rotating nozzle
Filter surface-10 m²
Type of filter-Filter cartridge
Filter material-KemTex® ePTFE membrane
Filter efficiency-> 99.9 %
Dust classification-M
Basic data
Extraction capacity-1000 m³/h
Max. fan performance-3000 m³/h
Dimensions (w x t x h)-655 x 655 x 1460 mm
Weight-155 kg
Motor power-1,5 kW
Power supply-110V,230V,400V
Noise level-69 dB(A)
Additional information
Fan type-Radial fan
