GBC Cage Clamps

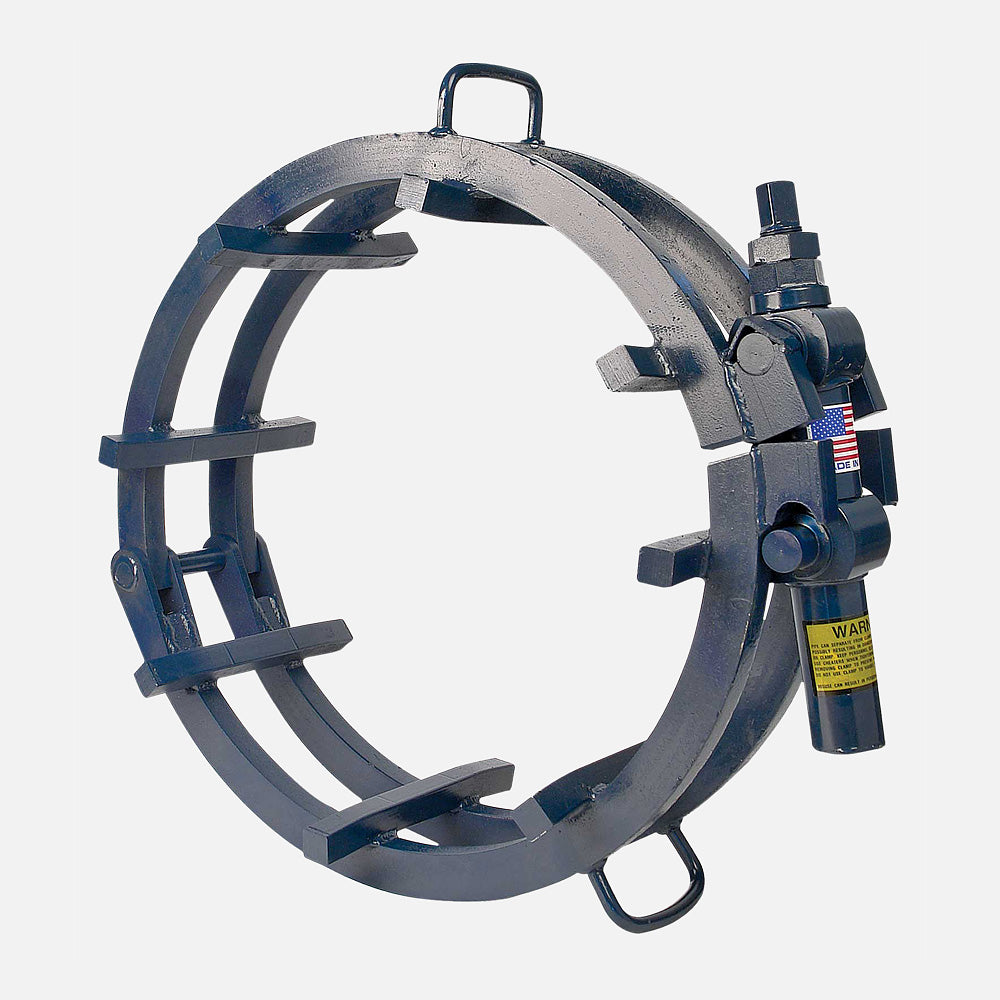

Cage or ‘Tipton’ Clamps are a cost effective method to align a single size of pipe. Three versions are available; manual, ratchet and hydraulic.

These are available in two styles, either “Tack” or “No Tack”. The tack type has straight cross bars and is removed from the pipe before welding. The more popular no tack model has arched cross bars to permit a 90% circumferential weld without removing the clamp.

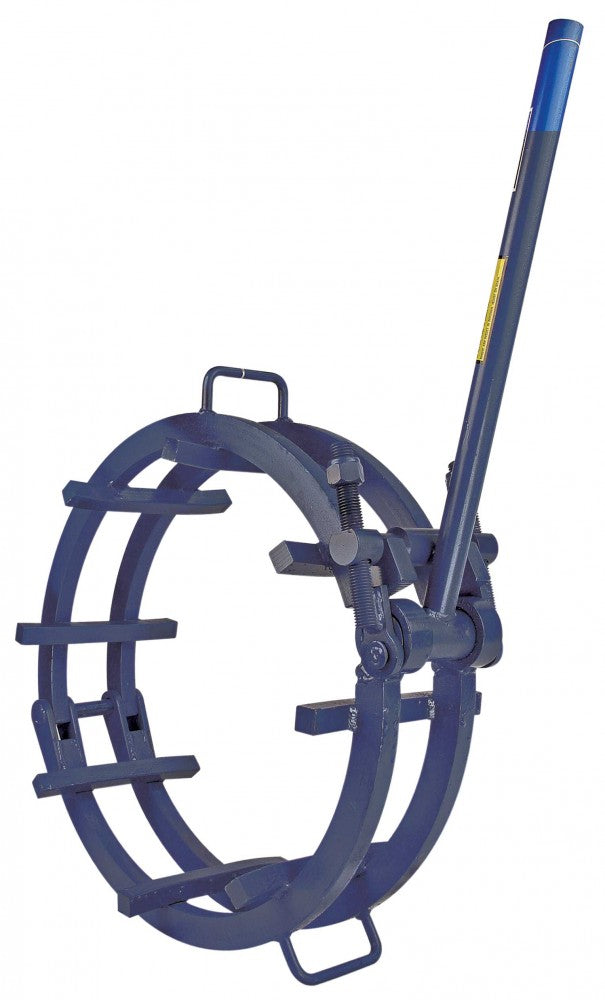

Manual Cage Clamps - Range : 2-60
• Will not back off while weld is being made.
• Simple and easy to use.
• Stainless steel versions available

Part No.    Pipe Size    Weight KG
CCM4            4”                  8.00
CCM6            6”                 14.00
CCM8            8”                 15.00
CCM10          10”               23.00
CCM12          12”               24.00
CCM14          14”               30.00

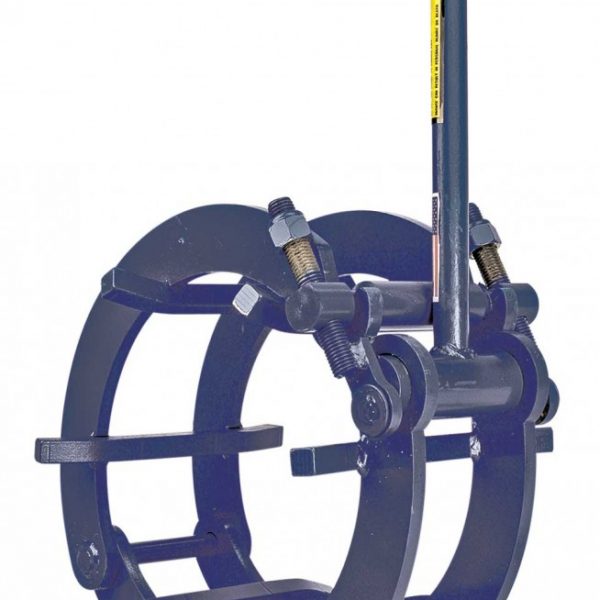

Precision Acme Threads ensure great strength and ease of operation.
• Will not back off while weld is being made.
• Mechanism is enclosed to eliminate dirt or mud.
• Standard 1” ratchet handle fits all sizes

Part No.    Pipe Size    Weight KG
CCR6              6”                 21.00
CCR8              8”                 23.00
CCR10           10”                25.00
CCR12           12”                29.00
CCR14           14”                31.00
CCR16           16”                46.00

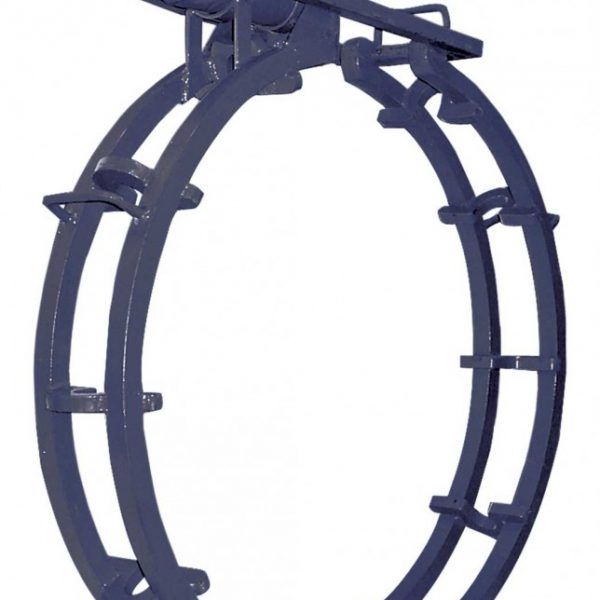

• Hydraulic jack capacity 10-12 ton.
• Specials upon request.
• Stainless steel versions available

Part No.    Pipe Size    Weight KG
CCH20           20”               61.00
CCH24           24”               66.00
CCH28           28”               69.00
CCH30           30”               74.00
CCH32           32”               78.00
CCH34           34”               83.00
