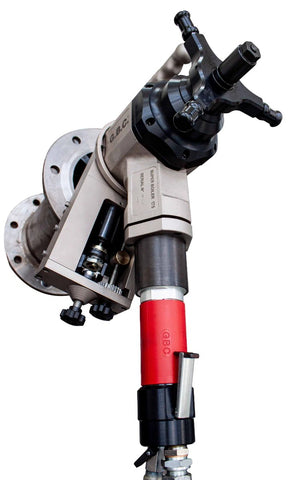

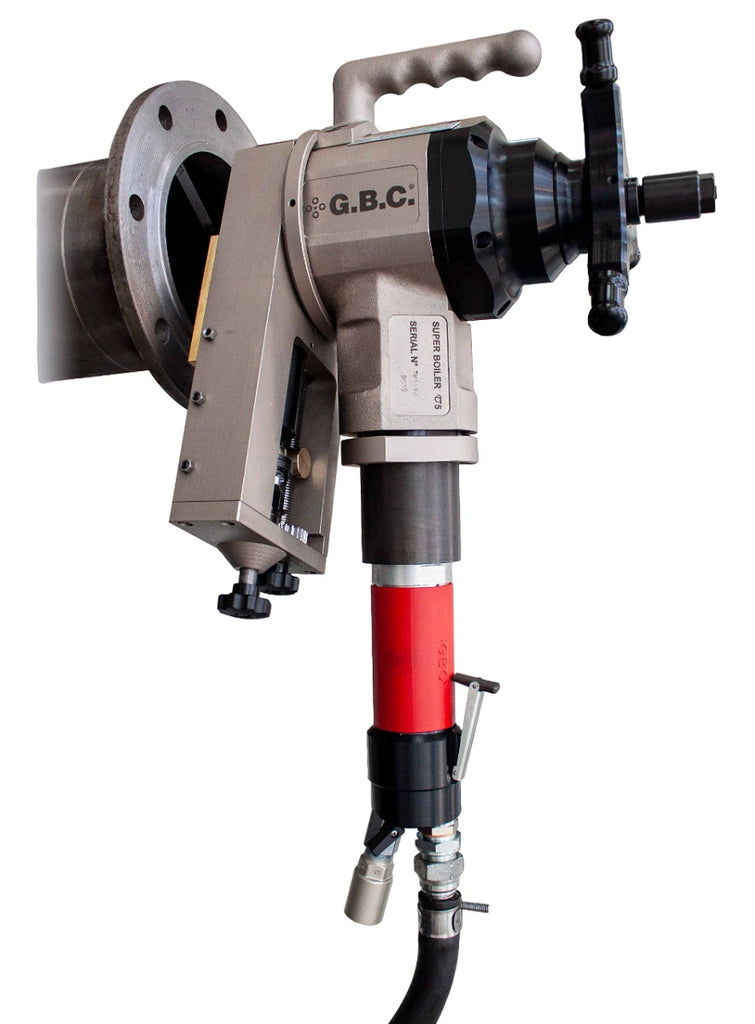

Flange facing machine.
RANGE MIN. 65 MAX 400 MM Ø FLANGE DIAMETER

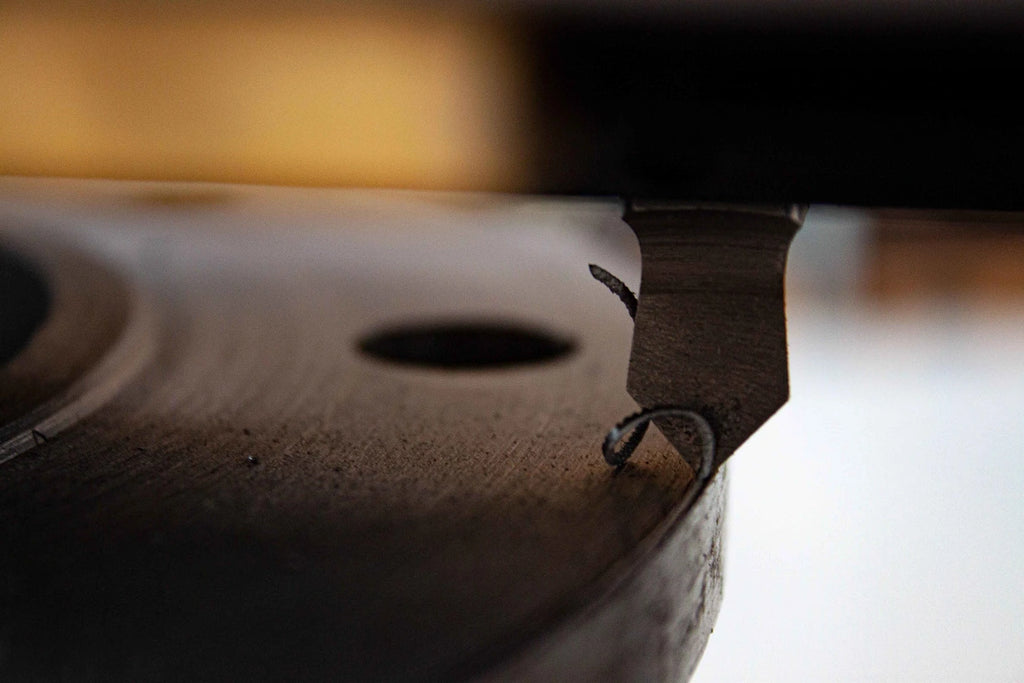

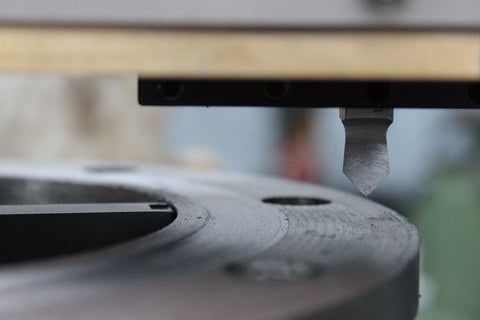

The Superboiler T5 flange facing machine can achieve high quality finishes with it's automatic cut feed from the OD inwards. The standard stock finishes carried out are with step: 0,2 - 0,4 - 0,6 - 0,8mm.

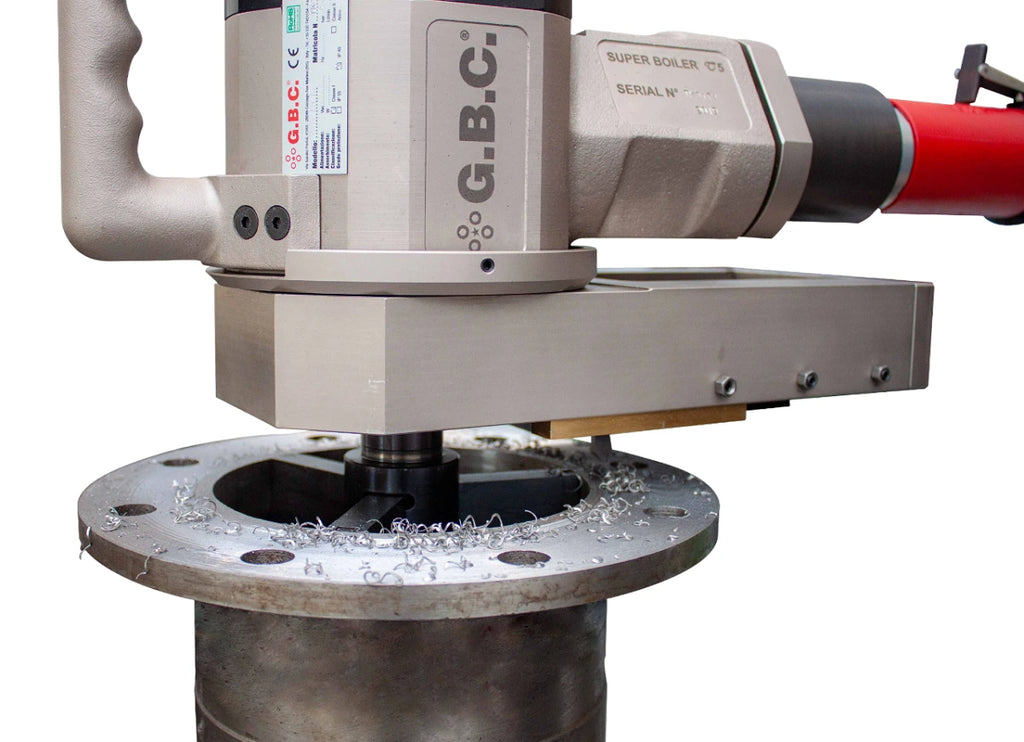

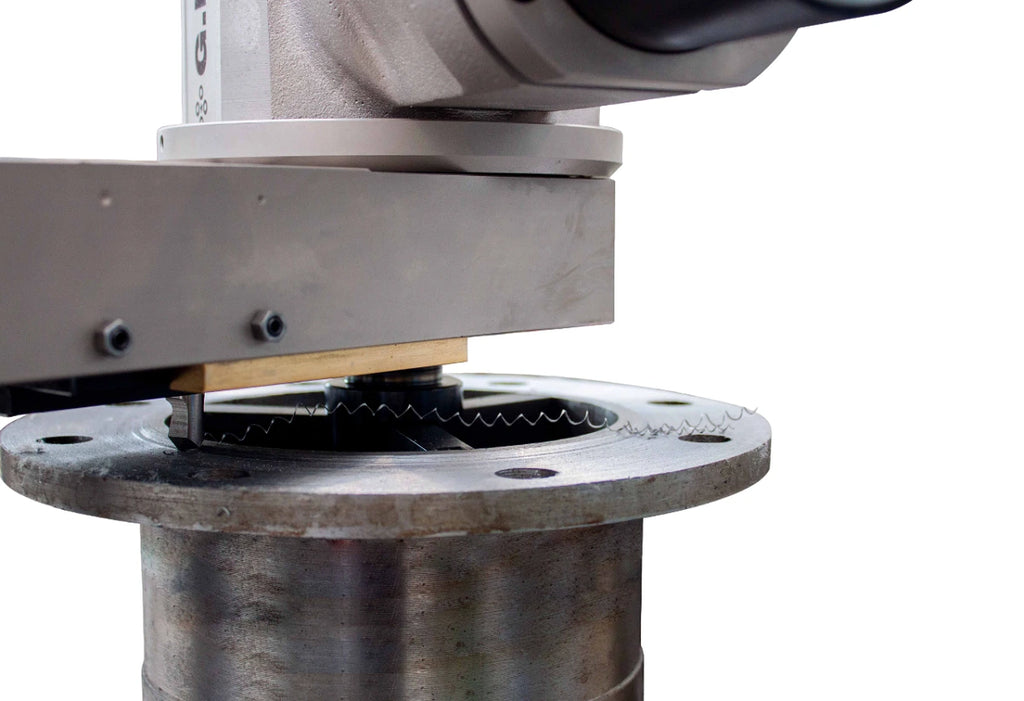

This machine has an automatic radial feed of 60mm max stroke. The machine locks concentric to the bore of the flange, with the axial feed being manually indexed.
- RANGE min. 65 max 400 mm flange diameter

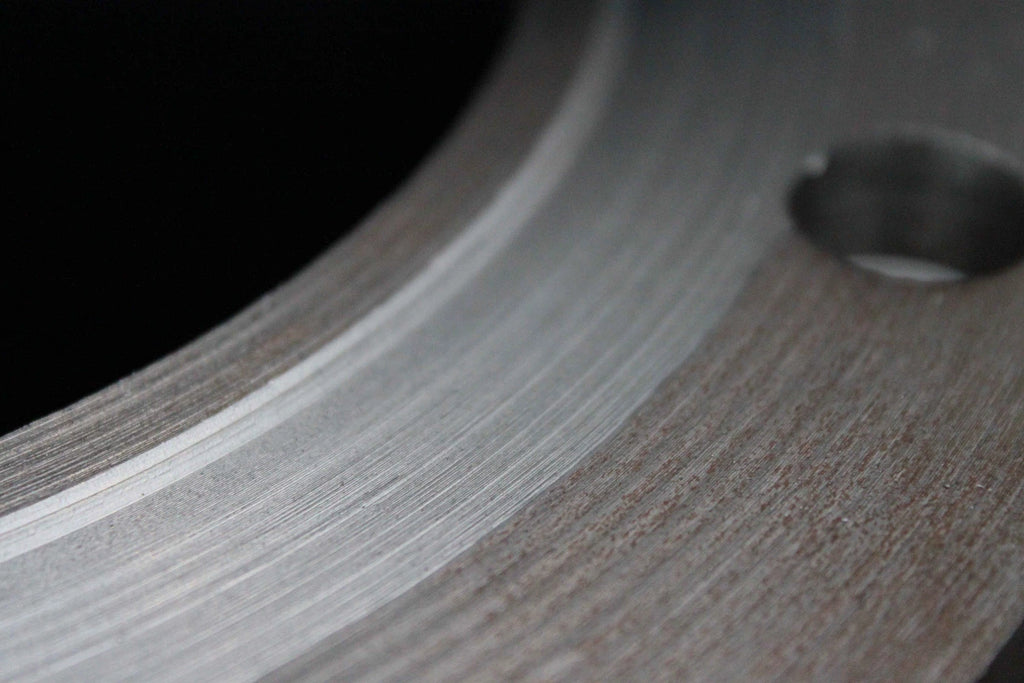

- FUNCTIONS Stock finish, smooth finish, gramophone finish on flanges, valve seats and gaskets
- MATERIALS Any kind of steel
- POWER Pneumatic or electric
