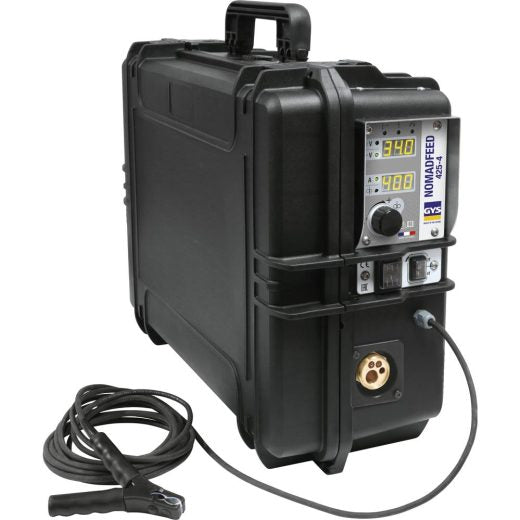

The GYS NOMADFEED 425-4 is a suitcase wire feeder ideal for running the MIG welding process from a stick welding power source. The wire feed motor takes its power directly from the welding circuit and will run from most welder generators on the market. Its 4 roll wire drive ensures reliable wire feeding of thin and soft wires from 5 or 15KG spool sizes.

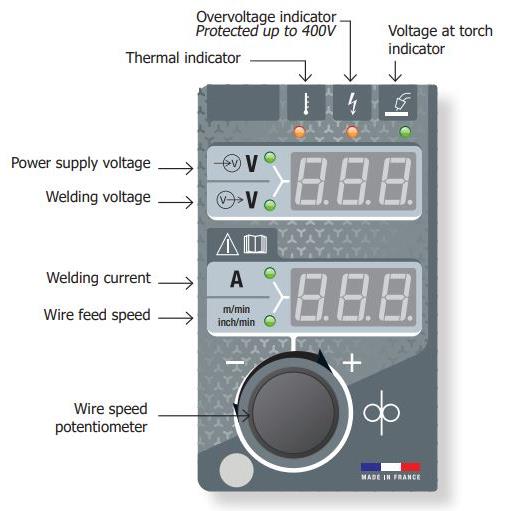

A clear to view display shows wire feed speed and voltage settings and amperage is displayable whilst welding.

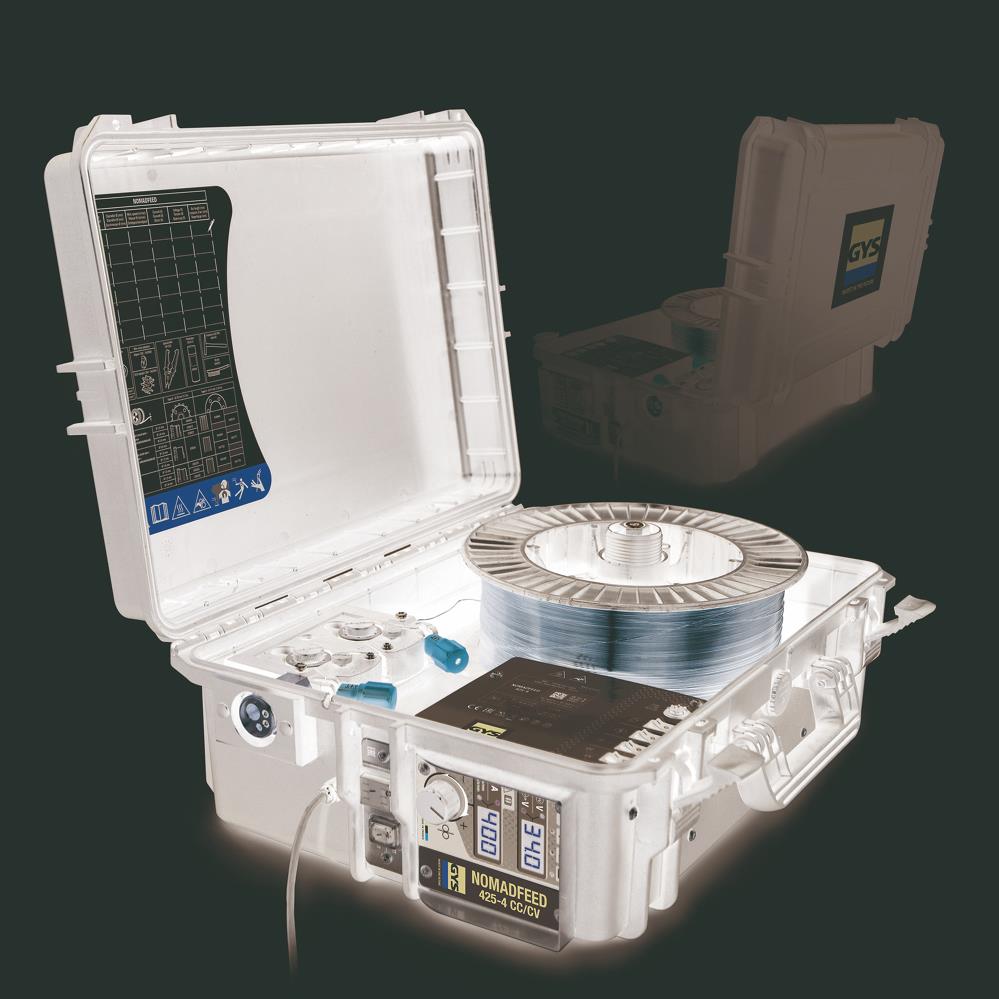

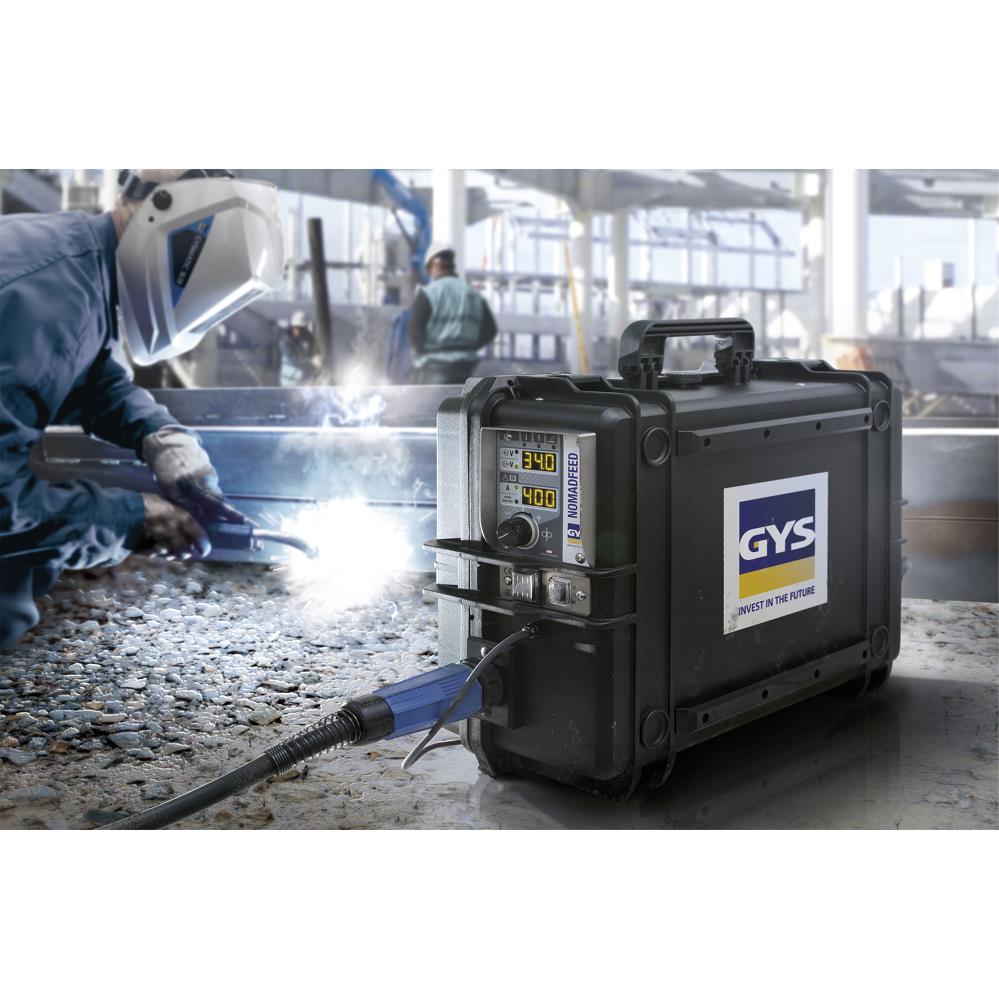

Robustly constructed in a reinforced moulded case, the NomadFeed is a fully enclosed wire feed unit, sealed against the elements and is perfect for mobile site welding. The NomadFeed is rugged enough to be used in even the harshest on site environments.
Designed to run off virtually any constant current or constant voltage power source, including MMA, MIG, TIG and engine driven welder generators. A suitcase wire feed is commonly used by welders doing extensive hard facing or increasing productivity when welding big industrial or agricultural equipment.
The wire feeder requires no additional supplies, only welding cable connections and can run positive or negative polarity, giving outstanding performance with solid or flux cored wires.
Supplied 1.2 & 1.6mm V Groove Rollers
Key Features
- Connect to virtually any DC welding power source
- Arc Voltage sensing wire speed control for arc stability
- Excellent performance with flux cored and solid wire types
- Bomb proof construction for use in the harshest of conditions
- 4 roll drive system to ensure trouble free wire feeding
- Torch trigger latching and burn back control and wire inch
- Industry standard euro torch connection
- Heavy duty contactor to cope with up to 425A current
- Front control protection
- IP23 protection to prevent water ingress
- Will work with input voltages of between 16 and 110V
- Takes 5 and 15kg spools
- Improved arc characteristics to prevent arc outages on CC power sources.
- Improved mechanical construction to increase robustness.

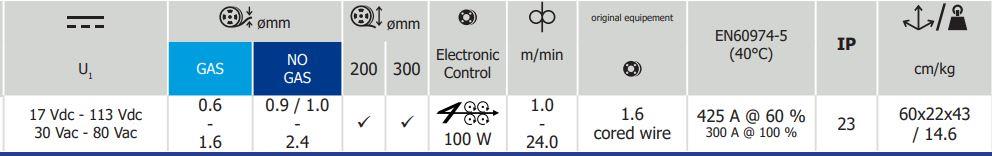

Technical Specifications
- Wire Sizes (Solid) 0.6mm – 1.6mm
- Wire Sizes (Cored Wire) 0.9mm – 2.4mm
- Amps & duty cycle 425A @ 60% max (300A @100%)
- Mac OCV 110V DC
- Approx. welding amps range on 1.0mm solid wire (CC 100-250 Amps) (CV 50-250 Amps)
- Approx. welding amps range on CC with 1.2mm solid wire (CC 150-350 Amps) (CV 100-350 Amps)
- Size approx. 67.5 x 27 x49 cm
- Weight approx. 15.5KG
