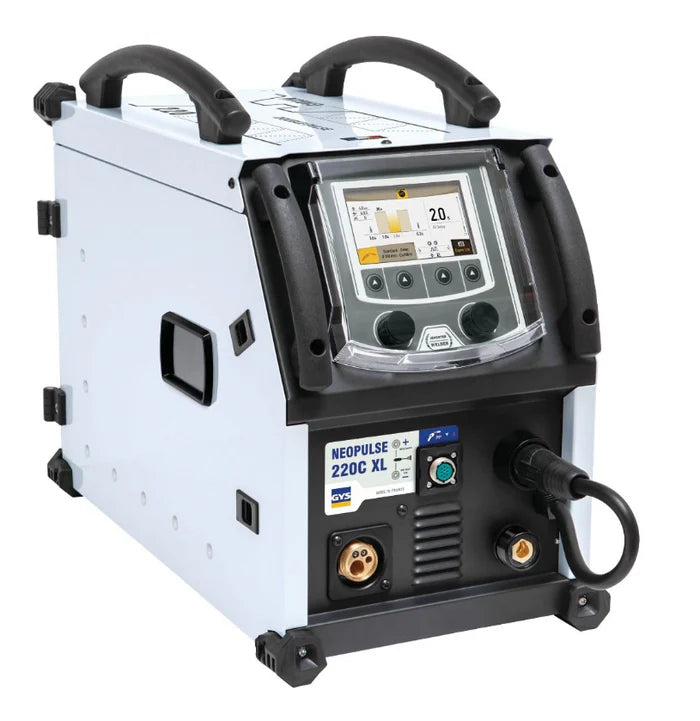

The NEOPULSE 220 C XL uses the latest technology to ensure the highest performance level. The digital interface allows for quick and easy modifications of the welding parameters.
Key Features
Multi process welding - MIG, MMA DC/ PULSE, TIG DC/PULSE
Smart - Includes synergic mode, simply select 2 criteria (material/ gas combination and the wire diameter) and the NEOPULSE works out the optimal welding conditions whilst still allowing you to adjust the settings
Robust and mobile
Maximum productivity - 4 microprocessors, high duty cycle, high arc voltage for easier ignition and exceptional arc dynamic
Features
- Single-phase pulsed MIG/MAG generator with digital technology for high performance welding.
- Features numerous synergic curves and exceptional arc dynamics for superior weld quality.
- Intuitive digital interface allows for quick and easy adjustments of welding parameters.
- Equipped with a precise and powerful 4-roller wire feed system for reliable wire feeding.
- Multi-process welding capabilities: MIG/MAG, MMA DC/Pulse, and TIG DC/Pulse.
- Synergic mode automatically determines optimal welding conditions based on material, gas, and wire diameter.
- Accurate calibration of wire feed speed to adjust voltage measurement and refine energy calculation.
- Traceability function records all welding steps for industrial manufacturing in line with EN ISO 3834.
- Optimized MIG/MAG settings with 6 welding modes: Standard Dynamic, Standard Impact, Standard Root, Pulsed, Modularc, and Manual.
- Features TACK modes (SPOT and DELAY) and trigger options (2T and 4T) for versatile welding control.
Specifications
| EAN Code | 3154020061842 |
| Weight | 29.5 kg |
| Welding Processes | MIG/MAG, MMA DC/Pulse, TIG DC/Pulse |
| MIG/MAG Wire Diameter (Steel/Stainless) | 0.6 to 1.0 mm |
| MIG/MAG Wire Diameter (Aluminum) | 0.8 to 1.2 mm |
| MIG/MAG Wire Diameter (CuSi/CuAl) | 0.8 to 1.0 mm |
| MMA Electrode Diameter | Up to 5 mm |
| MIG-MAG Welding Modes | Standard Dynamic, Standard Impact, Standard Root, Pulsed, Modularc, Manual |
| Tack Modes | Spot and Delay |
| Trigger Options | 2T and 4T |
| Compatible Wire Reels | Ø 200 / 300 mm |
| Input Voltage | 230V |
| Input Power | 7.5 kVA |
| Protection Class | IP23S |
| Dimensions | 61 x 32 x 49 cm |
Technical data
- Input Voltage - 230V
- Input Amperage - 16A
- Amp Range - 10-220A
- Wire Feed Type - 2 Roll
- Multi-process - Yes
- Duty Cycle at 40C - 150A @ 60% 130A @ 100%
- Wire Diameter Range - 0.6mm - 1.0mm (steel), aluminium - 0.8m - 1.2mm
- Warranty - 3 Years
- Package includes - Machine, earth lead & gas hose, feed rollers 0.8/1.0mm V groove
The GYS 061842 MIG Neopulse 220 C XL is a portable synergic pulsed power source designed for high-performance welding. It supports multi-process welding, including MIG, MMA DC/PULSE, and TIG DC/PULSE. The digital interface allows easy parameter adjustments, and the synergic mode optimizes settings based on material, gas, and wire diameter. It features 4 microprocessors, a high duty cycle, and robust mobility. Specs: 230V input, 10-220A range, 150A @ 60% duty cycle, and a 3-year warranty.
